GigaCore 10

MSRP: POA
LU0100058

The GigaCore 10 is by far the most versatile Luminex Gigabit switch ever built. The half 19” unit with front and rear connectivity is designed to be mounted in a truss, in a rack, or even on a wall. The robust metal enclosure and rugged Ethercon and (optional) Fiber connectors make this unit excel in truss-mounted applications with Ethernet-enabled devices, such as moving lights, PA systems, microphones, cameras, or general stage connectivity. The GigaCore 10 is an excellent choice for switching flexibility and redundancy. Just by coupling two units, AV professionals can create a full 19” rack combination with a primary and secondary unit.

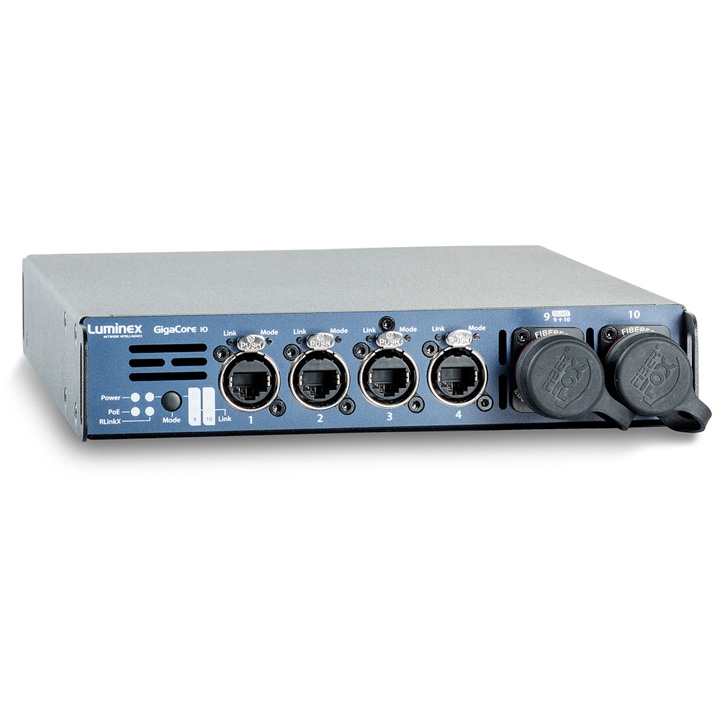

Note: The product image is model LU0100058-NDM. Product variations may not be represented by this image.

Would you like a Demo?

Versatile. Effortless. Reliable.

  • By far the most versatile Luminex Gigabit switch to be built to date, the plug-and-play GigaCore 10 has been designed specifically for the challenges and rigours of the live events and touring industry, where effortless setup, flexible use options, compact size, and rugged reliability are key.

Versatile.

  • Discover network flexibility in its true nature. The unit can be mounted in a truss, on a wall, or in a rack, which makes it suitable for many applications. And with the easy group function, it’s a piece of cake to modify groups, change port settings or add devices to the network, without having to reprogram the entire system.

Effortless.

  • GigaCore’s plug-and-play technology is a real-time-saver for all AV professionals. The fully pre-configured Ethernet switch has an easy group function with RGB LED indicators, that is easily configured through an intuitive web interface. You can set up one solid converged network for lighting, audio, and video in just minutes without bandwidth issues.

Reliable.

  • With its robust housing and rugged connectors, the GigaCore 10 is sure to become the all-time favourite switch for touring and live events. The software is validated against all common protocols in the AV industry and will flawlessly work with almost every fixture you connect to the network. For ultimate reliability, two units can be combined in a 1U rack space and operate in a primary/secondary mode.

Focus on Being Creative Again.

  • Stop wasting time on programming your network or spending money on IT consultants to do it for you. With Luminex GigaCore switches and only some basic AV knowledge, you can do it all by yourself in just the blink of an eye. Now you can finally focus on your core business as an AV technician or designer: “being creative”!
  • Tailored for AV industry Pre-configured settings that are common in the AV industry, such as QoS and IGMP snooping.
  • Easy set-up with an intuitive web interface Easy group function with pre-configured VLAN’s for a quick set-up (without IT knowledge).
  • RGB LED indication Quickly identify groups, PoE+ status, and redundancy settings through the front panel’s coloured LEDs.
  • Link Aggregation Aggregate several Inter-Switch Links (ISL) into one virtual link to increase bandwidth between switches.

Ultimate Link Redundancy

  • RlinkX redundancy protocol automatically takes over signal in milliseconds in case of a link failure.

PoE+ (optional)

  • Deliver up to 130W over Ethernet to power up fixtures, nodes, cameras, intercom systems, and other devices.

The Ultimate Touring Companion with Rugged Fiber.

  • The GigaCore 10 has two slots for rugged Fiber connectors (option between Neutrik of Fiberfox) for long-distance coverage. So when harsh environments such as tours and live events are your daily life, the GigaCore 10 is likely to become your best friend you can always rely on.

Free Software Included

  • LumiNet Monitor is a free software pack that will increase the comfort of working with Luminex equipment and together with the easy-to-use web interface for GigaCore’swill be of high value to your project monitoring and preparation solutions.
  • Most suitable applications: Touring and live events
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • MultiLinkX (Link aggregation): Yes
  • Profile manager: Yes
  • Memory: 4Mb
  • MAC address table:
  • Address learning / Aging: Self-learning, Auto aging
  • Switching throughput: 22Gbps
  • Jumbo frames: MTU up to 9600
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto-negotiation
  • Auto crossover: MDI / MDIX
  • Auto-sensing: Full or Half-Duplex (Gigabit is Full Duplex)
  • Ethernet connectivity: 8 x Shielded Neutrik Ethercon connectors
  • Fiber connectivity: 2 x slot for rugged fiber connectors
  • Ethernet port speed: 1Gbps
  • Serial: None
  • Power connectivity: 1x Neutrik powerCON TRUE1
  • Power input: 100-240VAC, 50-60Hz
  • Power consumption: Maximum 20W, Maximum 150W with PoE
  • Fuse: None
  • Backup power input: None
  • Backup PoE power input: None
  • PoE
  • Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
  • Sound protocol compliance: Yes (low jitter)
  • Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet
  • Display and jog: None
  • Configuration: Through the built-in web server
  • Status LEDs:
    • Global status LEDs: Power, PoE power, RLinkX, and mode
    • Port status LEDs: PoE, MultiLinkX, RLinkX, groups, link/activity, and port speed
    • Dark mode available



  • Colored RGB LEDs: Yes
  • Mounting: Truss, rack, or wall
  • Enclosure: Robust metal housing
  • Dimensions (W x D x H): 8.66" x 13" x 1.73" (220 x 330 x 44 mm)
  • Weight: 6.17 lbs (2.8 kg)
  • Packaging: 21" x 13" x 3.15" (530 x 330 x 80 mm)
  • Environment:
    • Operating temperature: 32 - 122 °F (0 to +50 °C) (non-PoE version), 32 - 104 °F  (0 to +40 °C) (PoE version)
    • Storage temperature: 14 - 158 °F (-10 to +70 °C)
    • Humidity (non condensing): 5 to 95% RH



  • Noise level @1m:
    • Max 18dBA (Ambient: 0 – 35°C)
    • Max 24dBA (Ambient: 35 – 50°C)
    • Max 18dBA (PoE <80W, Ambient: 0 – 35°C)
    • Max 24dBA (PoE <80W, Ambient: 35 – 40°C)
    • Max 18dBA (PoE >80W, Ambient: 0 – 30°C)
    • Max 24dBA (PoE >80W, Ambient: 30 – 40°C)



  • Certificates/Approvals: cSGSus Mark, CE, CB certificate, RoHS
  • Standards: IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55022, EN 55024 (pending for approval)

*Note: Luminex LCE operates a policy of continuous development. Luminex LCE reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details. www.luminex.be

For the most up-to-date Software and Firmware visit https://www.luminex.be/support-2/
