ARES5A

MSRP: POA
AUARES5A_B

"Sounds versatile"

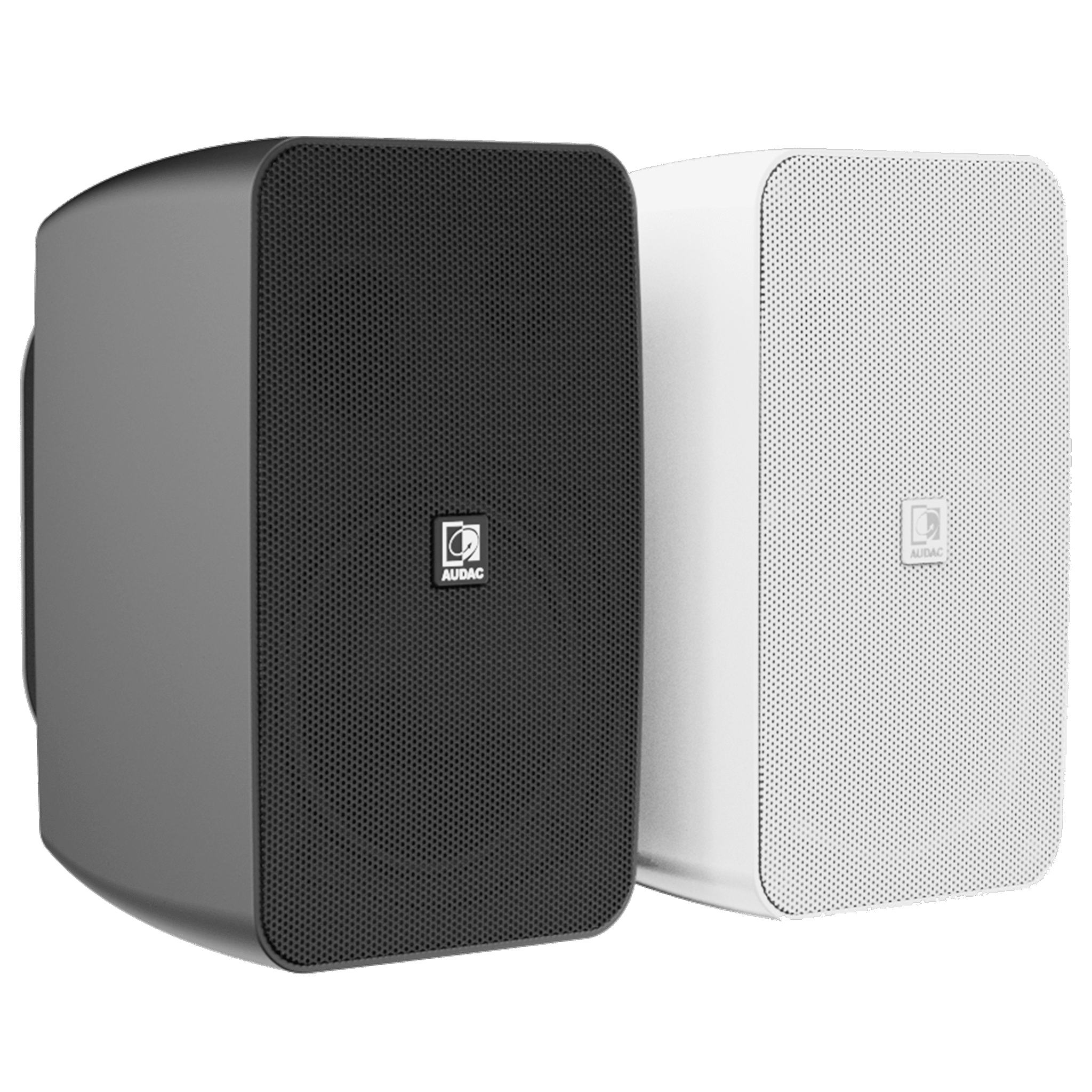

The ARES5A is a 2-way active speaker system consisting of an active and passive unit to be linked with each other. It offers an easy and flexible solution for a wide variety of applications. The 2-way loudspeaker is carefully constructed out of high-quality components resulting in a 5 ¼” woofer and a ½” high-frequency tweeter. This craftmanship in combination with an integrated DSP is creating an extremely clear and powerful sound experience for a wide range of applications.

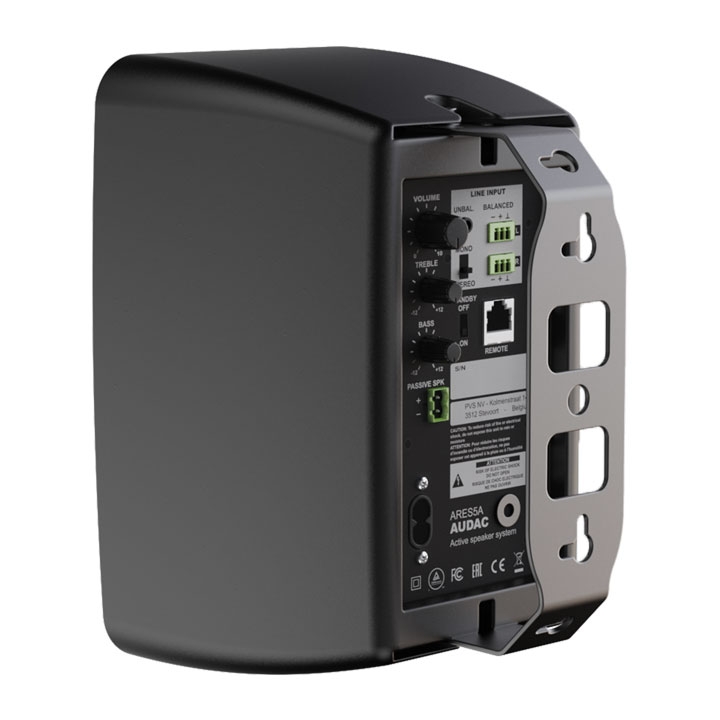

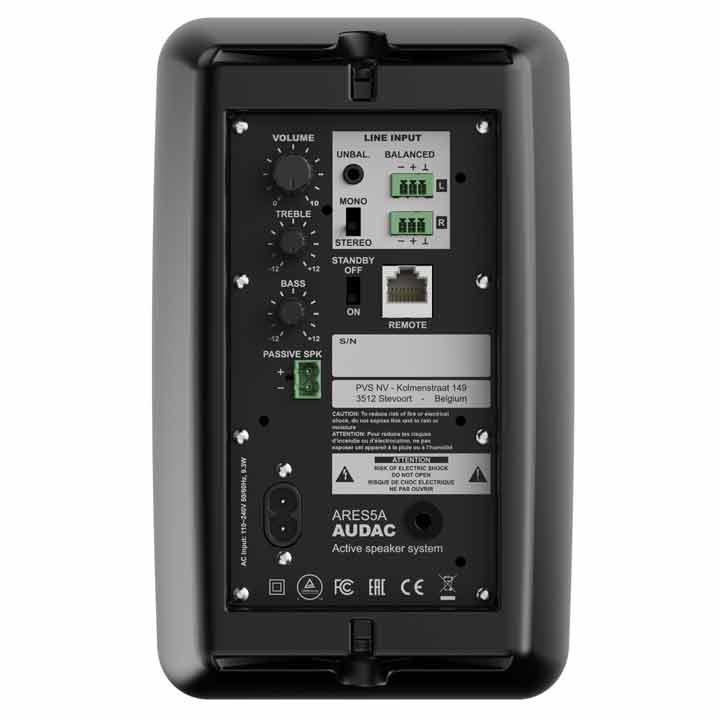

The integrated amplifier can deliver a power of 2 x 40 Watt and includes a stereo line input which is implemented balanced and unbalanced, allowing a convenient connection to any kind of audio source. Unbalanced audio sources are connected through a 3.5 mm jack connector, while balanced sources can be connected to the terminal block input connection allowing long signal runs without interference. A volume potentiometer allows the user to adjust the level of loudness while the two-band tone control allows equalization of treble and bass. The auto-standby mode reduces power consumption when no input signal is detected. The active speaker includes a stereo amplifier module, also delivering the input signal to the passive unit.

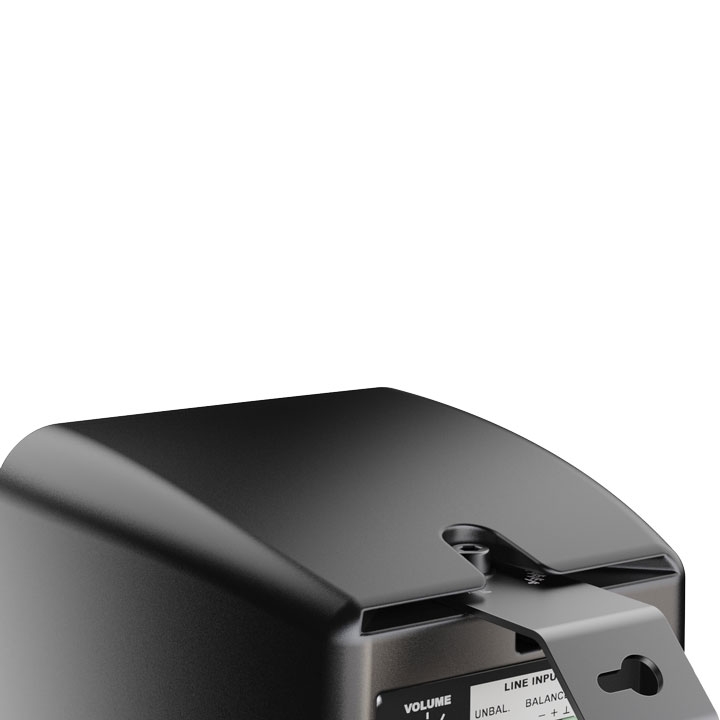

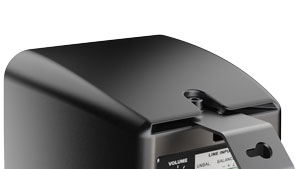

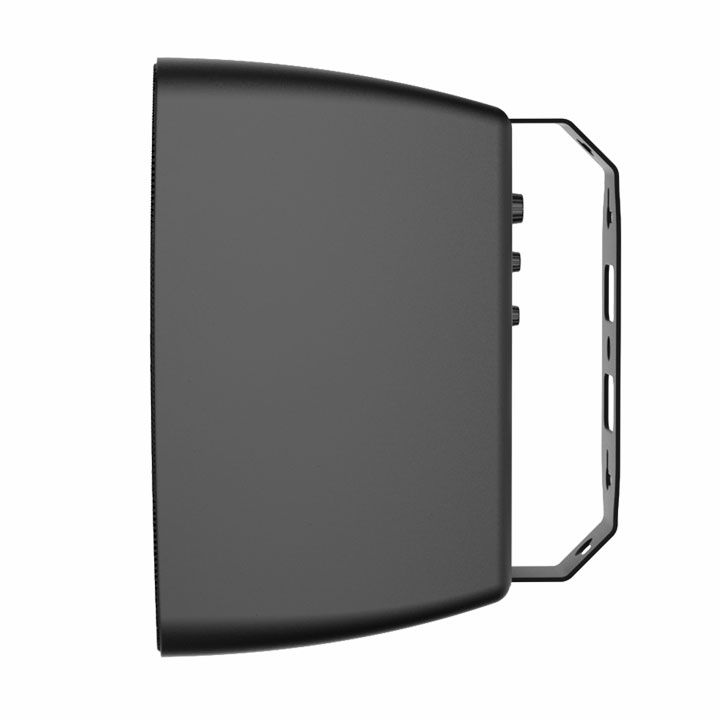

A specially designed bracket system allows close-to-wall installation of the speakers, while the recessed bracket structure guarantees an optimal cosmetic outlook of the system. The ARES5A can be mounted both horizontally as vertically with an inclination up to 45° on both sides, enabling to position of the loudspeaker in the right direction. Due to the fact that the bracket itself consists of 2 45° corners, installation in corners or even ceiling can easily be achieved. The optional MBK455 angled mounting bracket set allows for an extra inclination of 90° when needed.

To ensure optimum safety during and after installation, the ARES is equipped with M6 drop safety.

A remote input connection implemented through an RJ45 connector allows wall panel connections, allowing expansion of the system through remote input modules. A variety of optional remote input units with different input possibilities is available.

Would you like a Demo?

Rotatable Surface Mount Indoor Energy Star

RMS Power 2 x 20 W
Dynamic Power 2 x 40 W
Sensitivity (1 W / 1 m) 88 dB
Frequency Response (± 3 dB) 80 Hz - 20 kHz
Auto Standby mode (ENERGY STAR® compliant) Standby Time 20 Minutes
Power Supply 100 ~ 240 V AC / 50 ~ 60 Hz
Power Connector IEC C7 / C8 Power Inlet
Connectors (Remote Control)  RJ45
Outputs (Passive Loudspeaker) 2-pin Euro Terminal Block (Pitch - 5.08 mm)
Drivers (HF)  13 mm (PEI Tweeter)
Drivers (LF)  5 1/4" (Polypropylene)
Power Consumption (Nominal) 11.3 W
Power Consumption (Standby)  < 0.35 W
Inputs (Balanced Stereo) Connector 2 x 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Inputs (Unbalanced Stereo) Connector 3.5 mm Jack (2x)
Inputs (Remote) Connector RJ45



Dimensions  5.9" x 9.45" x 57" (150 x 240 x 146 mm) (W x H x D) (Excl. Bracket) and 5.9" x 9.45" x 7.64" (150 x 240 x 194 mm) (Incl Bracket)
Weight 7.7 lbs (3.5 kg) (Pair)
Color Black (RAL9003)
Color White (RAL9005)
Construction ABS
Front Finish  Powder Coated Steel Grille with Lining
Bracket Powder Coated Steel
Construction  Impact and UV Resistant ABS
Color White (RAL9005) (ARES5A/W)
Color Black (RAL9003) (ARES5A/B)
Accessories Included Mounting Bracket
Accessories Included Power Cable
Accessories Included 3.5 m Connection Cable Speaker
Accessories Included Wall Screws and Plugs

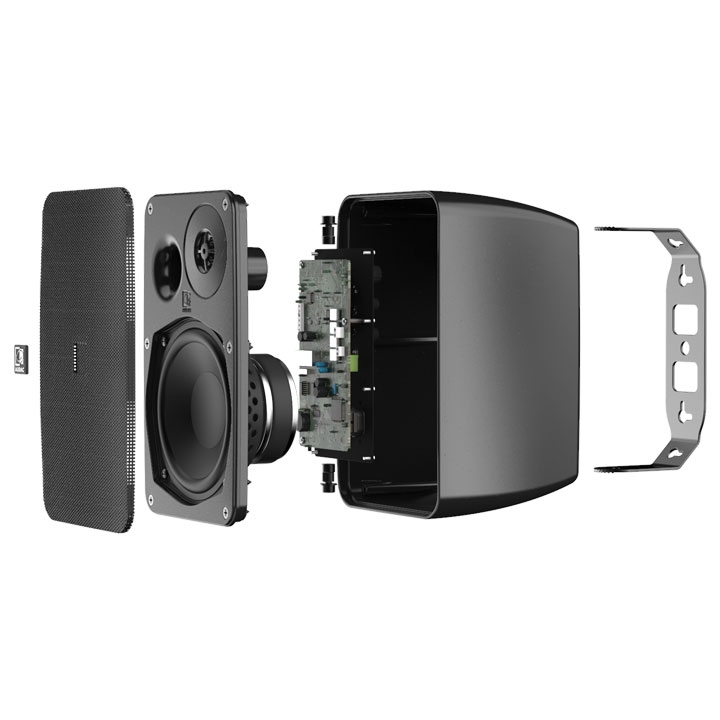

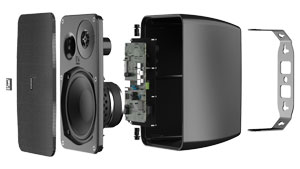

ARES5A Exploded DiagramCLEAR AND POWERFUL SOUND EXPERIENCE

The 2-way loudspeaker is carefully constructed out of high-quality components using a 5 ¼” woofer and a ½” high-frequency tweeter. This craftsmanship in combination with an integrated DSP is creating an extremely clear and powerful sound experience for a wide range of applications.



Sleek Design



SLEEK DESIGN

The design of the solution is ensured to streamline with the rest of the AUDAC product portfolio. Through its ABS enclosure and by ensuring that the mounting bracket blends aesthetically into the cabinet itself, the ARES gives you a more sleek and modern outlook than other solutions on the market.



Versatile Mounting PossibilitiesVERSATILE MOUNTING POSSIBILITIES

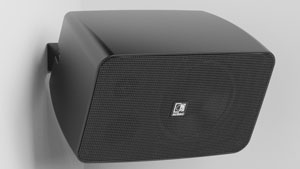

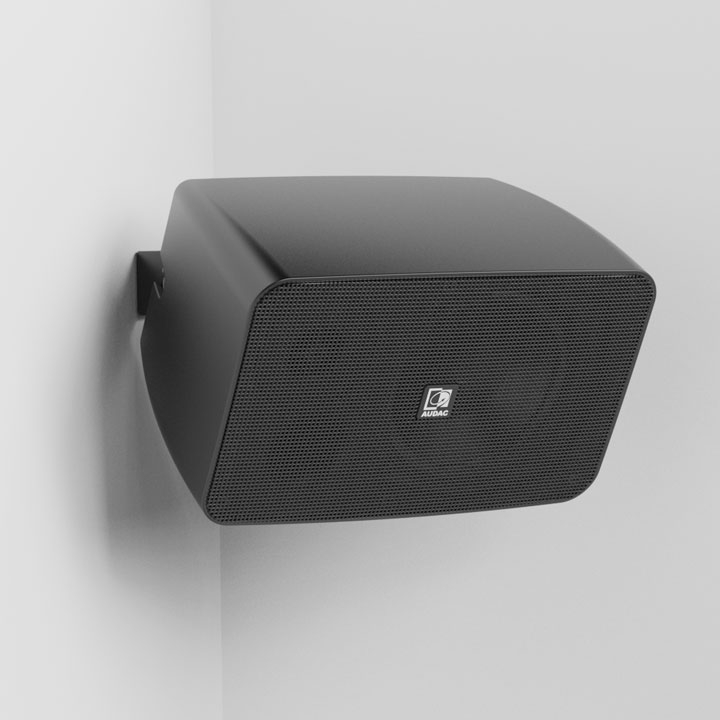

The standard included bracket system allows close-to-wall installation up to 45° inclination and can even be installed in corners. The optional MBK455 angled mounting bracket set allows for an extra inclination of 90° when needed.









Why choose the AUDAC ARES5A as your next 2-way active speaker system?

1)    Variety of inputs
The ARES5A stereo active speaker system is equipped with a wide range of both balanced and unbalanced inputs, which allows a convenient connection to any kind of audio source.

2)    Sleek design
Did you know the ARES5A stereo active speaker system is designed in an ABS enclosure while the recessed mounting bracket blends aesthetically into the cabinet itself, ensuring a modern and sleek outlook?

3)    Versatile mounting options
Did you know the ARES5A stereo active speaker system can be mounted both horizontally as vertically with an inclination up to 45° on both sides, enabling the position of the loudspeaker in the right direction? Due to the fact that the bracket itself consists of 2 45° corners, installation in corners or even ceiling can easily be achieved.

4)    Clear and powerful sound experience
Did you know the ARES5A stereo active speaker system is constructed out of a high-quality 5 ¼” woofer and ½” high-frequency tweeter? This craftsmanship in combination with an integrated DSP is creating an extremely clear and powerful sound experience.

5)    MBK455 mounting bracket
Di you know an optional MBK455 90° bracket makes it possible to fit up the ARES5 stereo active speaker system easily to the ceiling or even mount it to a smartboard or trolley?

6)    Wide range of applications
Did you know that due to its versatility, the ARES5A stereo active speaker system creates an all-in-one solution for a wide range of applications, including educative, corporate, and even residential environments?

7)    Energy star compliant
Did you know the amplifier which is integrated into the ARES stereo active speaker system switches to standby mode when no signal is recognized? This ensures the energy consumption reduces to less than 0.5W, making the loudspeaker energy star compliant.

8)    Secure mounting
Did you know the ARES5A stereo active speaker system is equipped with M6 drop safety busing, ensuring optimum safety during and after installation?

9)    Expand your inputs

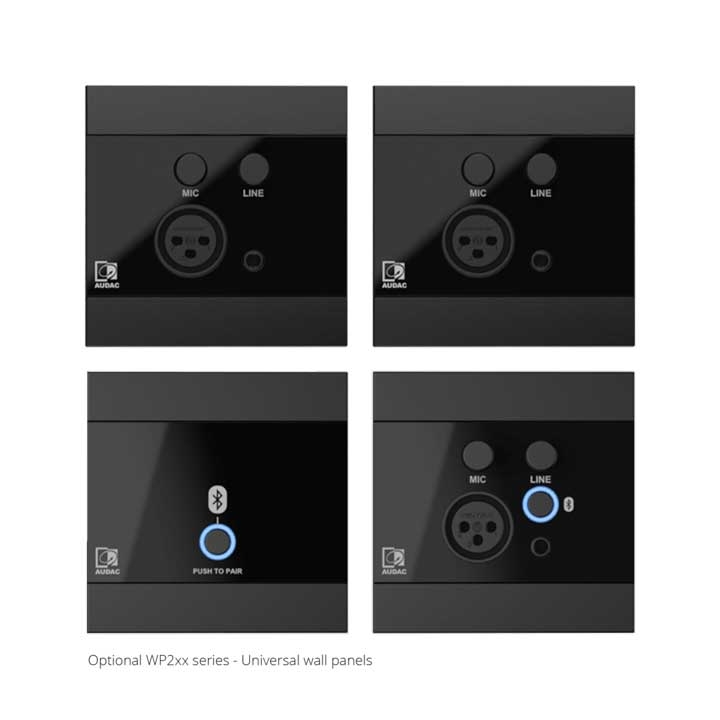

Did you know the optional WP2xx series not only offers great controllability over the ARES5A stereo active speaker system but also enables us to expand our inputs largely? As an example, the WP205 universal wall panel, which is specially designed for the ARES series, offers the possibility to expand the inputs with a 3.5mm jack stereo line input connection and a balanced microphone input.

10)   Configure up to 4 ARES sets with one single WP2XX
Did you know the user-friendliness of the WP2XX series goes even further than controlling a single ARES5 stereo active speaker system, as one wall panel, allows you to control and share inputs to up to four ARES sets and quickly change the input and/or volume?

#ARES5A #AUDAC #Solutions #AVtweeps

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
