CEP803 Octo channel 4 Ohm energy-efficient amplifier - 8 x 30W - 70/100V

MSRP: POA
AUCEP803

Note: Special Order Only

Octo channel 4 Ohm energy-efficient amplifier - 8 x 30W - 70/100V

The CEP series are professional 70/100V multi-channel energy-efficient amplifiers. The one unit height device comes in two models. The CEP803 offers eight channels and has an output power of 30 Watt. Both low impedance as 70/100V, deliver high-quality amplification distributed over multiple zones in various applications. With its compact and lightweight design, the CEP series is designed with high efficiency and reliability by providing input linking through miniature switches at the back of the device in combination with Class-D amplifier technology. These switches allow daisy linking inputs from one channel to another by simply pressing the switch.

The highly efficient Class-D amplifier technology delivers an uncompromised sound experience in the most effective way. The input connections are performed with 3-Pin Terminal block connectors while the output connections are performed with a 4-pin Terminal block connector.

The multi-channel amplifier is Energy Star compliant yet can be enabled or disabled with a standby switch on the back of the device. This amplifier is an HE (1RU) 19” unit. In order to ensure maximum installer/maintenance convenience, the CEP is passively cooled.

Would you like a Demo?
  • Energy star certified
  • Terminal block input connections
  • Input linking through miniature switches
  • Terminal block output connections
  • Compact and lightweight design
  • Class-D amplifier technology

Energy Star

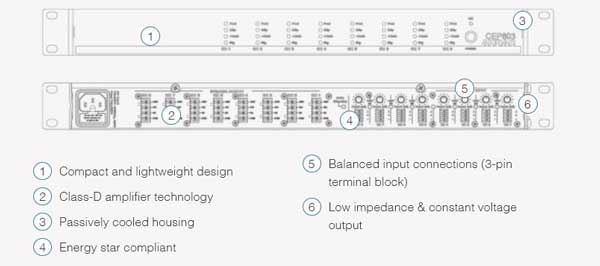

CEP803 Drawing

RMS/AES power handling @ 4Ω: 8 x 30 W
@ 70 V:  8 x 30 W
@ 100 V: 8 x 30 W
Outputs - Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
Inputs - Connector 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Power Supply 100 ~ 240V AC mains operation voltage
Signal / Noise > 100 dB
THD+N (@ 1 kHz) < 0.05% (1/8 rated Power)
Crosstalk (@ 1 kHz) < 70 dB
Technology Class D
Protection DC Short circuit
Overheating
Over load
Signal limiting
Cooling Convection Cooled
Operating Temperature 32° - 104° F (0° - 40° C) @ 95% Humidity
Frequency Response (± 3 dB) 110 Hz - 20 kHz
Power Supply: Switching mode
Source: 100 ~ 240 V AC / 50 ~ 60 Hz
Power Consumption Standby: 0.6 W
Idle: 17.5 W
Nominal (1/3 MUP): 150 W
Nominal (1/8 MUP): 68 W
Inputs Sensitivity (1W/1m): -0.5 dB ~ 10.5 dB
IEC C14 Connector
Input linking through miniature switches
Connector: 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Outputs: Voltage / Impedance 4 Ω
70 V / 167 Ω
100 V / 333 Ω
Mounting 19"
Unit height 1 RU (HE)
Colors Black
Dimensions 18.98" x 1.73" x 13.98" (482 x 44 x 355 mm) (W x H x D)
Weight 13.28 lbs (6 kg)
Construction Steel

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
