Home Category Brands AUDAC M2DIS

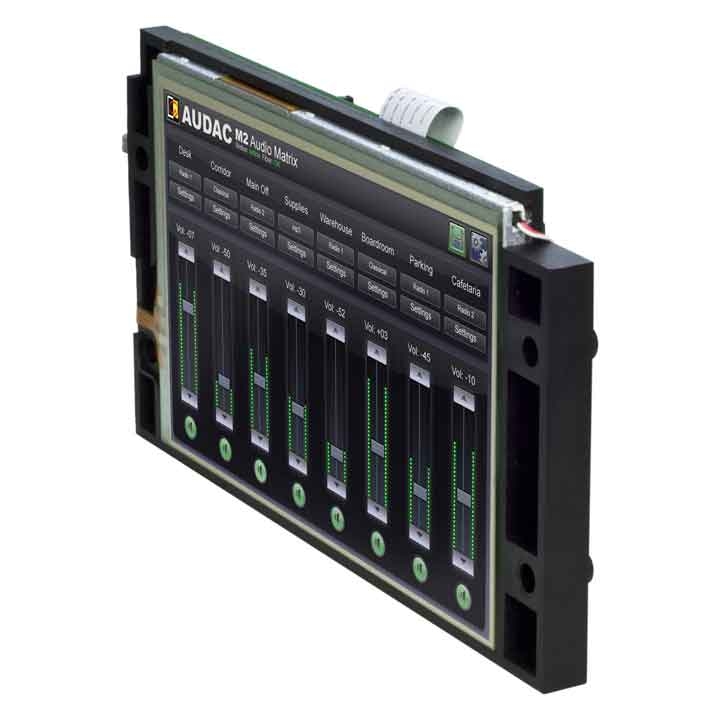

7” touchscreen display kit

The M2DIS is an optional display unit with touchscreen which can be installed internally in the front panel of the M2 Multi-Media Digital Audio Mixer. This unit consists of a 7” TFT display panel with a resolution of 800 x 480 px that is fitted with a resistive touch-screen panel. It is controlled by a powerful 32 bit processor which communicates directly with the M2's DSP processor. This unit allows the user to operate the control functions of the matrix systems without any external equipment. So it is now possible to set up zone selection or input mixing without any external devices. This can be useful when the system is installed in a technical room where no external control devices are within reach.

Would you like a Demo?
Display Type : TFT-LCD
Display Size : 7” (178 mm)
Resolution : 800 x 480 px
Touchscreen type : Resistive
Processor type : 32-bit
Configuration : WVGA (16:9 diagonal)
Colour depth : 262.144 colors
Viewing angle : 140°
Mounting : Assembly in M2 front panel

How can I update my products?

AUDAC uses two methods to update their devices.

  • USB
  • AUDAC system manager

When unsure which method to use, please refer to the product manual.

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
