ALTI4M 2-way 4" design wall sound projector

MSRP: POA
AUALTI4M/B

"Don't feel like hanging around?"

2-way 4" design wall sound projector

The ALTI4M is a variant of the ALTI pendant speakers, featuring a die-cast mounting bracket for wall & ceiling mount purposes. This allows the same audio system design and identity throughout the entire installation in case some areas are not allowing pendant solutions to be used due to the ceiling heights or structures. Acoustics and construction are identically crafted, while connections are made through AWX-5 connectors.

The ALTI4M features a 2-way 4” driver combination with a coaxially mounted 1” soft dome tweeter and is fitted with a phase plug for excellent off-axis performance. The 2-way combination with a high-quality polypropylene enclosure and acoustic engineering craftsmanship guarantees premium performance for demanding applications. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 Watt is achieved.

Variant MSRP

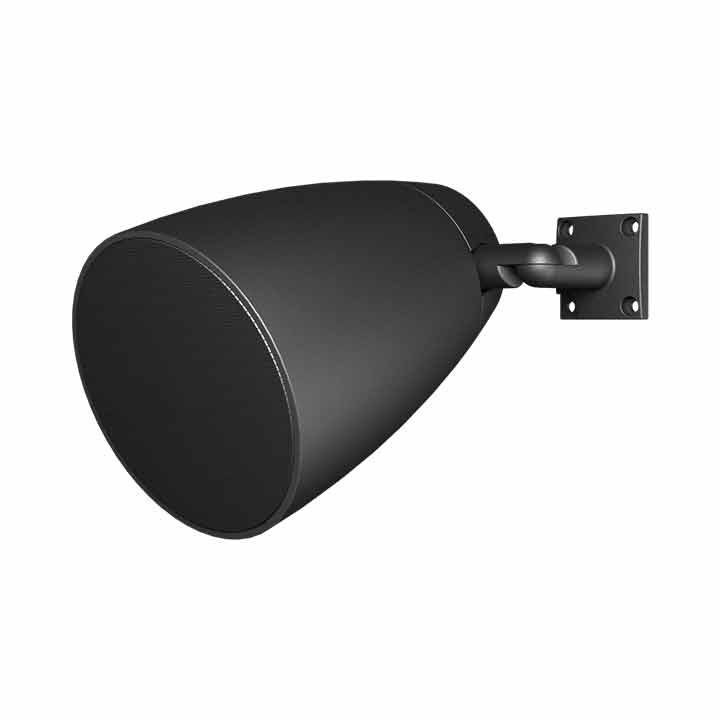

Black version AUALTI4M/B POA

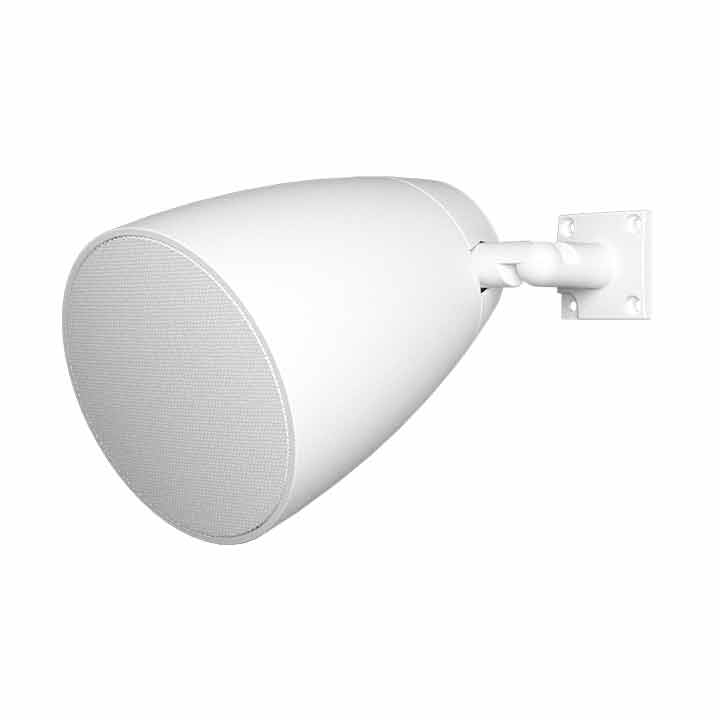

White version AUALTI4M/W POA
Would you like a Demo?

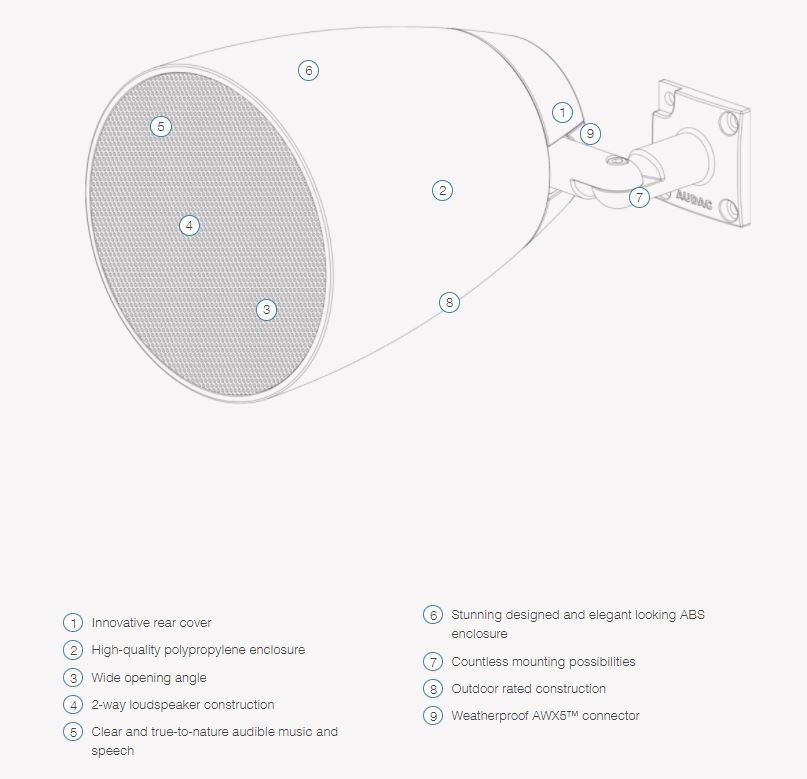

  • Stunning designed and elegant looking ABS enclosure
  • Innovative & unique design
  • Multi-tapping 100V line transformer
  • AWX5™ waterproof connector
  • Countless mounting possibilities

70/100V 16 Ohm

Max. Power : 60 W
RMS Power : 30 W
Speaker type : 2-way coaxial
Drivers : 4”
Impedance : 16 Ω
Dispersion Conical : 165° (average 500 Hz to 5 kHz @ -6 dB)
Line Transformer Tappings 1 : 208 Ω - 100 V / Not used - 70 V / 24 W
Line Transformer Tappings 2 : 417 Ω - 100 V / 24 W - 70 V / 12 W
Line Transformer Tappings 3 : 833 Ω - 100 V / 12 W - 70 V / 6 W
Connectors : Waterproof AWX-5 connector
Sensitivity (1W/1m) : 80 dB
Sound Pressure (Max. W/1m) @ 16 Ω : 95.1 dB
Frequency Range (-10 dB) : 65 Hz - 20 kHz
Frequency Response (± 3 dB) : 85 Hz - 20 kHz
Dimensions : 8.07" x 6.69" x 10.15" (205 x 170 x 258 mm) (W x H x D)
Connection cable length : 0.7 m (2.29 feet)
Mounting & handling : 2-way Revolving mounting bracket
Construction : Polypropylene
Front finish : Aluminium grill
Accessories Included : 2-way Revolving mounting bracket
Accessories Included : 5-pin connection cable (70 cm / 27.55" )



WIDE OPENING ANGLEWIDE OPENING ANGLE

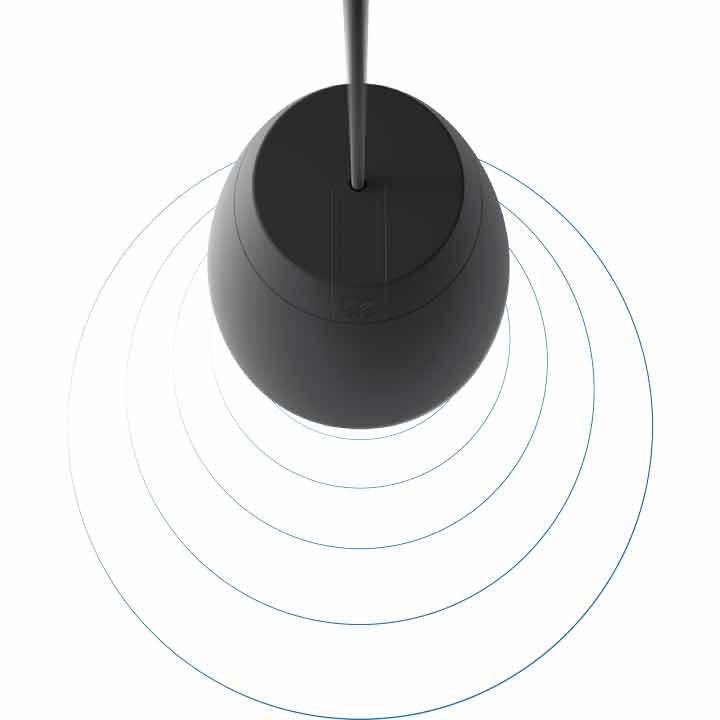

The wide opening angle of the speaker guarantees an exceptional dispersion in all different kinds of applications and locations with high ceilings and large open spaces. The carefully matched components and construction guarantee optimal coverage over the entire frequency range.

UNIQUE MOUNTING POSSIBILITIESUNIQUE MOUNTING POSSIBILITIES

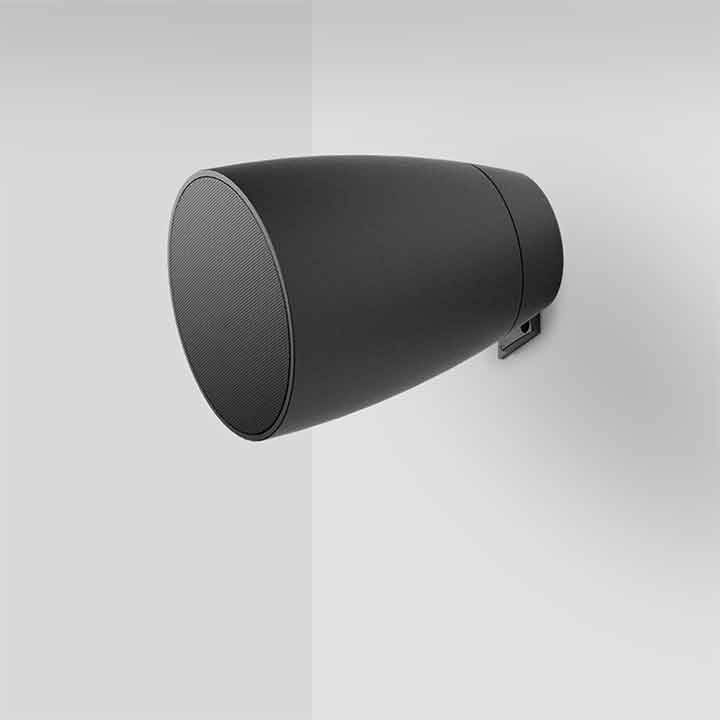

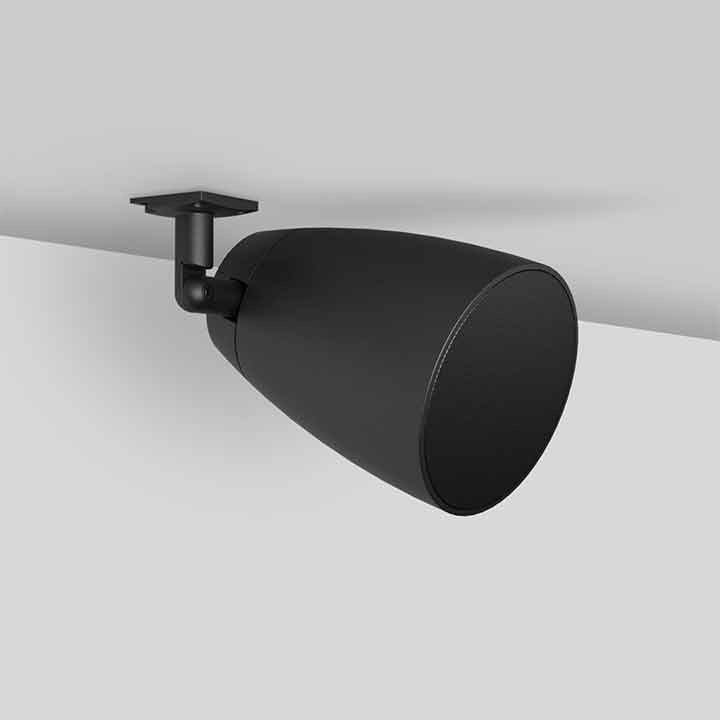

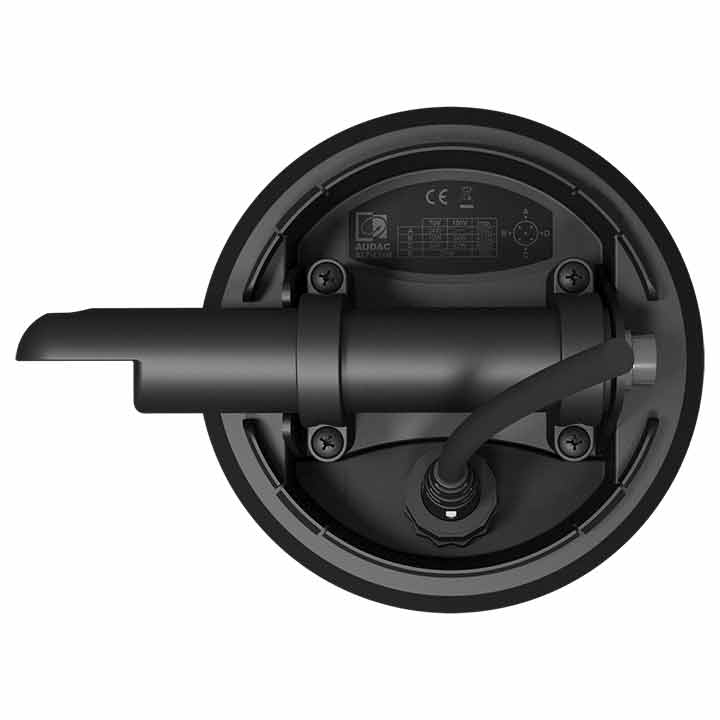

A die-cast mounting bracket makes wall & ceiling mounting possible at any desired angle. This swiveling bracket allows the same audio system design and identity throughout the entire installation. Some areas do not allow pendant solutions to be used due to the ceiling heights or other structures.

MOISTURE RESISTANT DRIVERMOISTURE RESISTANT DRIVER

Thanks to a special coating applied to the drivers, the ALTI series are also suitable for use in applications with high levels of humidity such as outdoor terraces, bathrooms, or many more!

EASE ADDRESSEASE ADDRESS

GENERIC MODELING SOFTWARE FOR DISTRIBUTED LOUDSPEAKER SYSTEMS

EASE Address is a software that allows the modeling of acoustic sources, distributed loudspeaker systems in particular, in two dimensions.

Find out more about EASE Address

EASE FOCUS 3EASE FOCUS 3

UNIVERSAL SOUND SYSTEM MODELING IN 3D

EASE Focus 3 is an acoustic simulation program for 3D modeling of line arrays, sub arrays, columns and conventional loudspeakers.

Find out more about EASE Focus 3



AWX5™ CONNECTOR

Weatherproof connectivity and adjustments in one connection

The AWX5™ connector is a specially designed connector that prevents the use of extra equipment and adjusting to a speaker system for setting the desired power tapping and maintaining an IP55 waterproof connection. The power setting can be made by simply rotating the connector. On the cable part of the connector is a white dot displayed. Depending on the position of the white dot, the desired power can be selected. When inserted a screwable outer ring with an inner rubber seal guarantees a superior connection in any type of weather condition. The power tapping can be set in 3 adjustable steps for 100V and one step for 8 Ohm standard low impedance applications.

Find out more about AWX5 Connector

ALTI series – 10 reasons why - Why choose the ALTI series as your versatile pendant/ sound projector?

1) Premium acoustic components

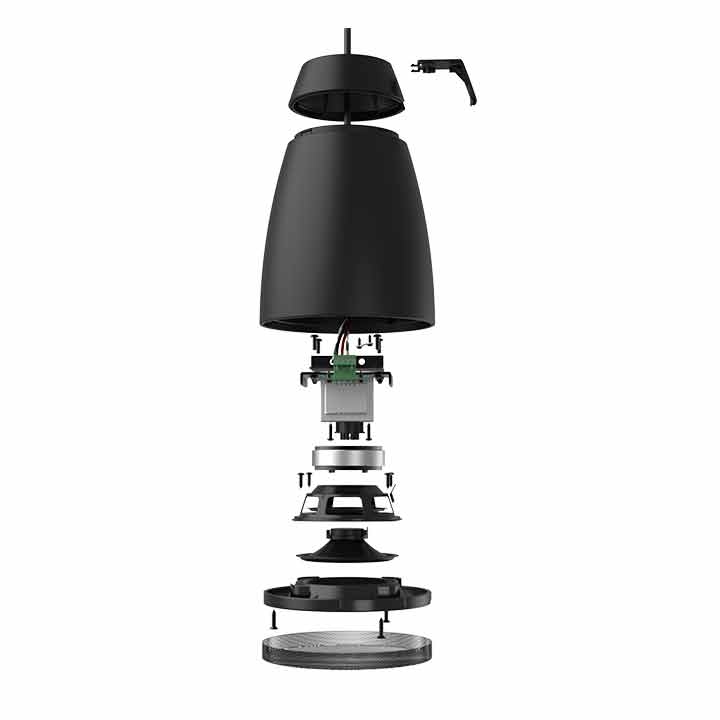

Did you know that for the ALTI loudspeaker series, only the most premium acoustic components were used? The craftsmanship that went into the design guarantees top-tier performance resulting in a clear speech intelligibility and warm and detailed music reproduction.

2) Wide beam coverage

Did you know that the wide opening angle of 165° for the ALTI4(M) loudspeaker series and 115° for the ALTI6(M) guarantee an exceptional dispersion in all different kinds of applications and locations with high ceilings and large open spaces?

3) Secure and fast mounting system

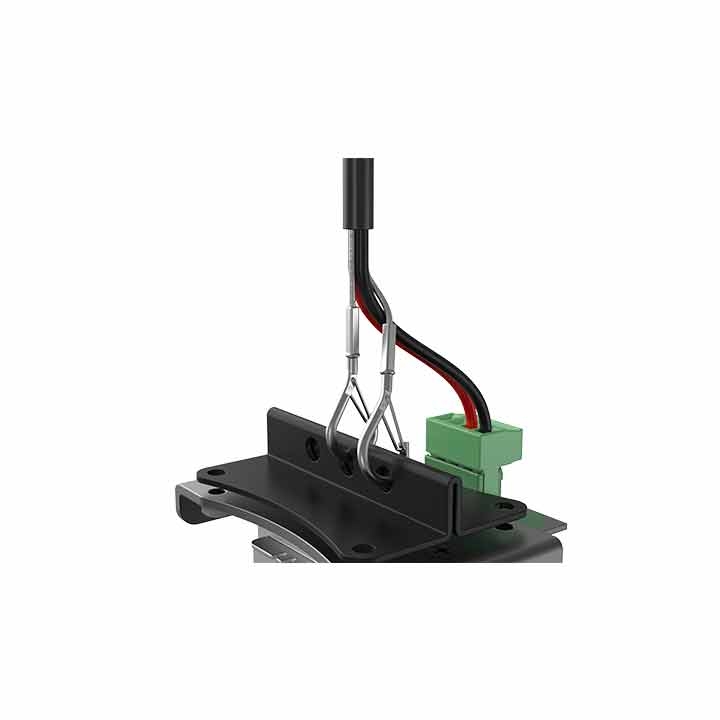

Did you know that the fixation of the ALTI loudspeaker series is done through 2 snap-hooks on one end and a dual Gripple™ fixation on the other end? This creates a safe & secure fixation and allows a finger quick installation.

4) Innovative & unique design

Did you know that thanks to its elegant design, the ALTI loudspeaker series is a perfect fit for places with modern interiors, high ceilings, and large open spaces like beach bars?

5) All in one outer jacket

Did you know that the ALTI pendant loudspeaker series' connection cable, steel suspension, and safety wire are all stored in a single outer jacket, resulting in a clean-looking all-in-one entity?

6) Cable covers for a clean design

Did you know that an innovatively designed rear cover hides the connection and suspension on the speaker end of the ALTI pendant loudspeakers? This unique SlideCap™ innovation ensures the cover can easily be attached and detached by sliding, even after installation.

7) Wide variety of ceiling heights – cable lengths 3.5 meters

Did you know that the included cable length of the ALTI pendant loudspeakers is 3.5 meters, offering possibilities for a wide variety of ceiling heights? Optional connection cables of 7 and 10 meters expand your possibilities even more.

8) Moisture resistant

Did you know the drivers of both the ALTI pendant loudspeaker and the sound project variant are applied with a special coating allowing them to be suitable for applications with high levels of humidity?

ALTIxM

9) Outdoor proof Construction

Did you know that the ALTIxM design wall sound projector, with an IP rating of 65, provides a great solution for various outdoor applications? Its elegant ABS enclosure together with the waterproof AWX5™ connector and weather and moisture-proof drivers make sure this design wall projector series shines in any weather condition.

10) Countless mounting possibilities

Did you know that the ALTIxM design wall sound projector features a die-cast mounting bracket for wall & ceiling mount purposes at any desired angle? This swiveling bracket allows the same audio system design and identity throughout the entire installation.
