The ATEO is a series of extraordinary loudspeakers especially designed for fixed installation in indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants, or even clubs.

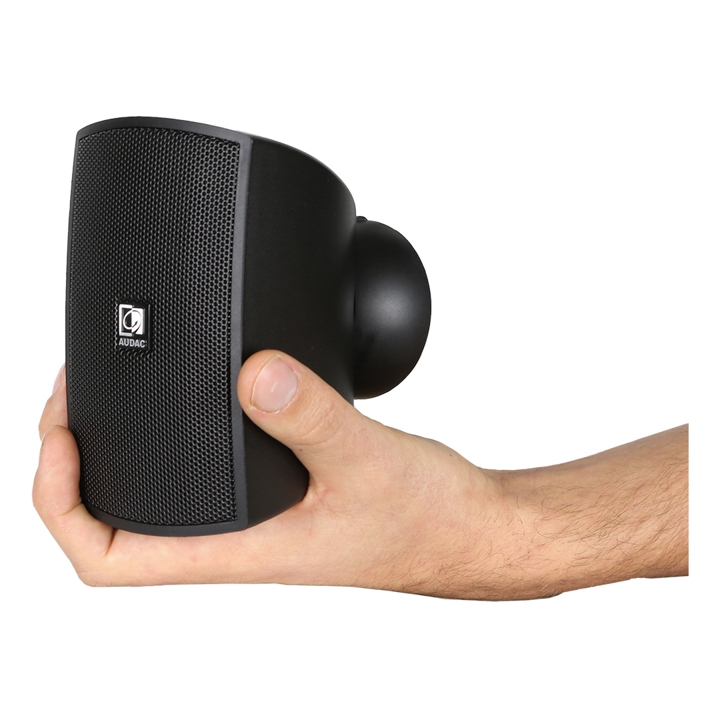

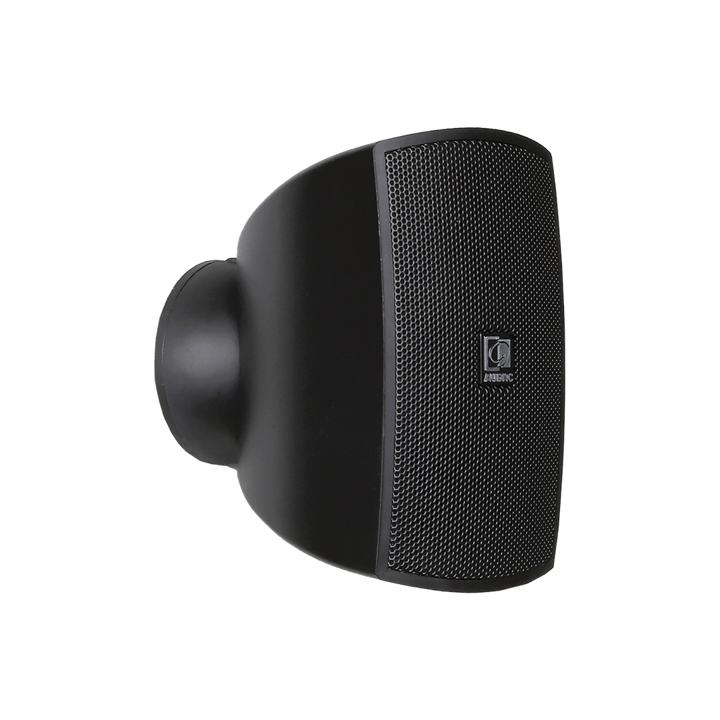

The ATEO2 is the ultra-compact model of this series which smoothly integrates into any interior like no other loudspeaker. The sound originates from a 2” aluminum cone driver which provides a full-range, warm and detailed sound, with an improved response in the low frequencies due to the ported design. This way, smooth sound reproduction with clear and crisp sound is guaranteed.

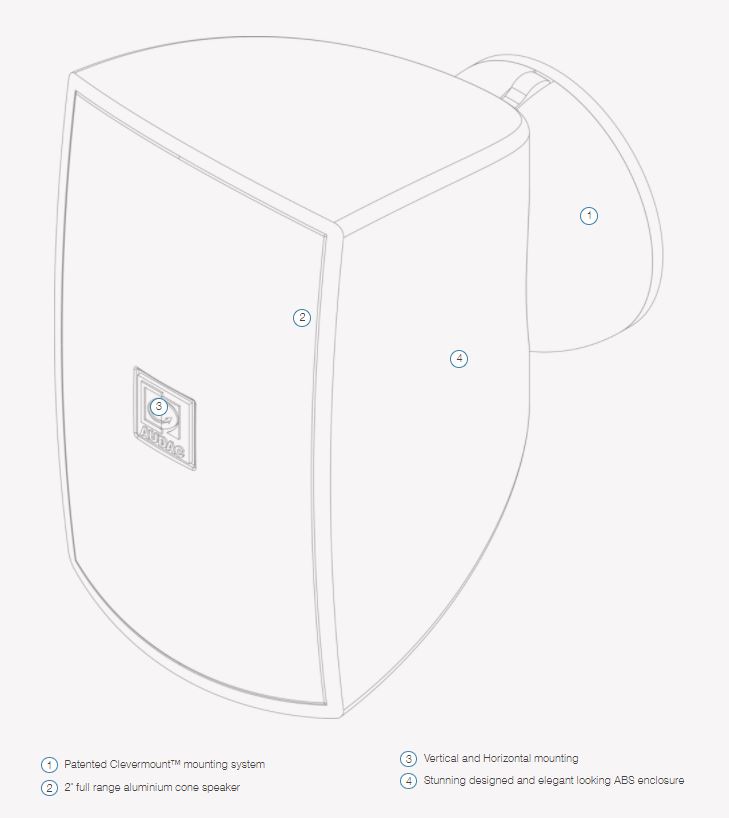

The internal self-resetting network provides optimal overload protection. It features a stunningly designed and elegant looking ABS housing that is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting bracket using Clevermount™ technology, making the loudspeakers cabinet flow together with the mounting bracket providing great ease for installing the loudspeaker in one good-looking entity.
The mounting and connection of the loudspeaker are done by mounting the wall plate to the desired location. The terminal block connector should be fitted to the wires coming from the amplifier and plugged into the counterpart on the speakers’ side. The only next step is clipping the speaker onto the wall plate and tightening it by a quarter turn until it's fixed.
Note: Sold in pairs, priced per speaker
|Speaker type :||Full range|
|Max. Power :||20 W|
|RMS Power :||10 W|
|Sensitivity (1W/1m) :||83 dB|
|Sound Pressure (Max. W/1m) :||93 dB|
|Frequency Response (± 3 dB) :||120 Hz - 20 kHz|
|Frequency Range (-10 dB) :||100 Hz - 20 kHz|
|Dispersion Horizontal :||145°|
|Dispersion Vertical :||170°|
|Ingress Protection rating :||IP40|
|Connectors :||2-pin Euro Terminal Block|
|Drivers :||2” Aluminium full range|
|Incline angle Left :||25°|
|Incline angle Right :||25°|
|Incline angle Bottom :||25°|
|Incline angle Top :||15°|
|Impedance :||8 Ω (ATEO2)|
|Impedance :||16 Ω (ATEO2D)|
|Dimensions :||3.14" x 5.35" x 4.52" (80 x 136 x 115 mm) (W x H x D)|
|Weight :||0.859 lbs (0.390) kg|

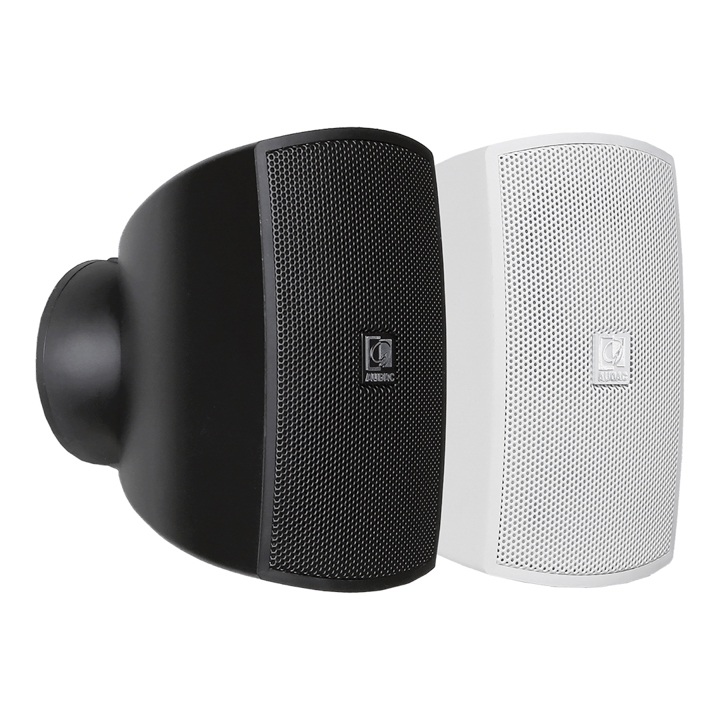

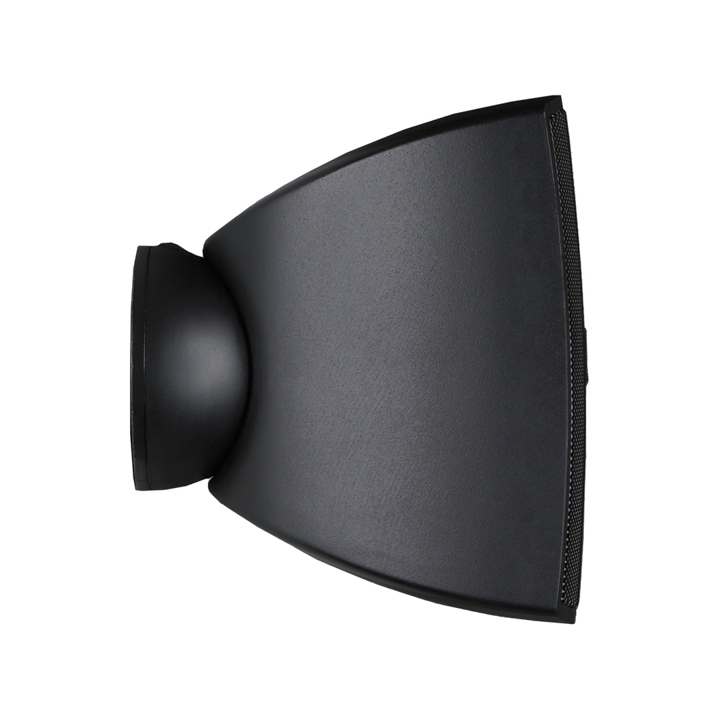

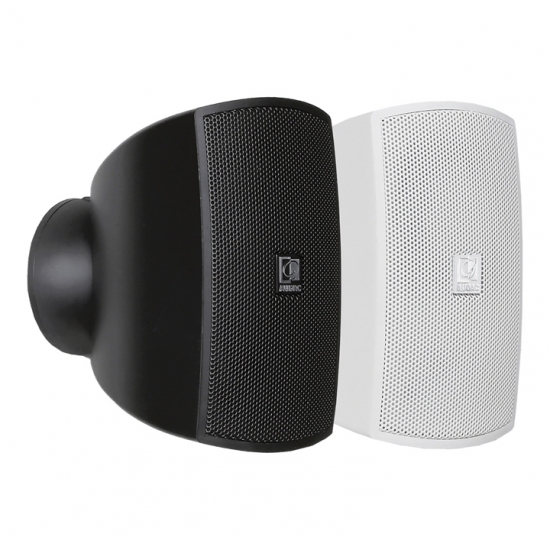

|Colours :||Black (RAL9005) (ATEO2/B, ATEO2D/B)|
|Front finish :||Steel grill|

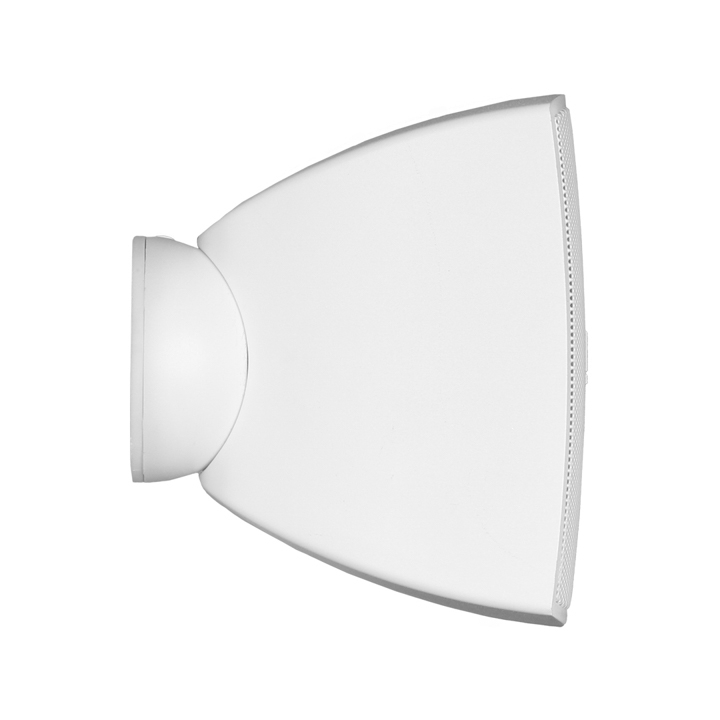

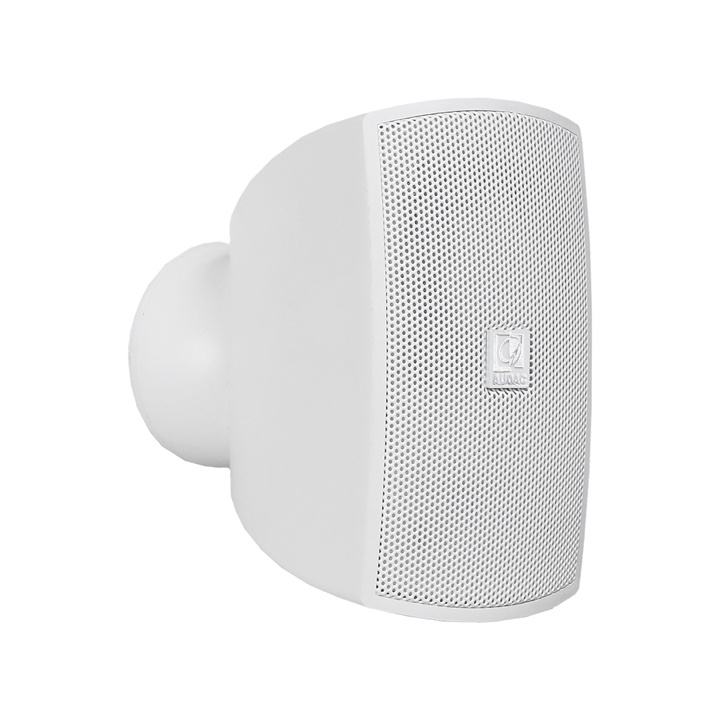

|Colours :||White (RAL9003) (ATEO2/W, ATEO2D/W)|
|Operating temperature :||-4 °F ~ 140 °F (-20 °C ~ 60 °C)|
|Accessories Optional :||WTR06 - 6W 100V line transformer|
Thanks to the Clevermount™ innovation, the loudspeaker can be placed in any horizontal or vertical direction with a simple Allen key twist. This makes the loudspeaker step-less inclinable in every direction.
The optional WMA incline bracket adds an extra 30° angle to the already existing incline angle of ATEO speakers. This opens the possibility to place the speaker horizontally or vertically at an angle up to 60° and ensure a perfect sound experience.

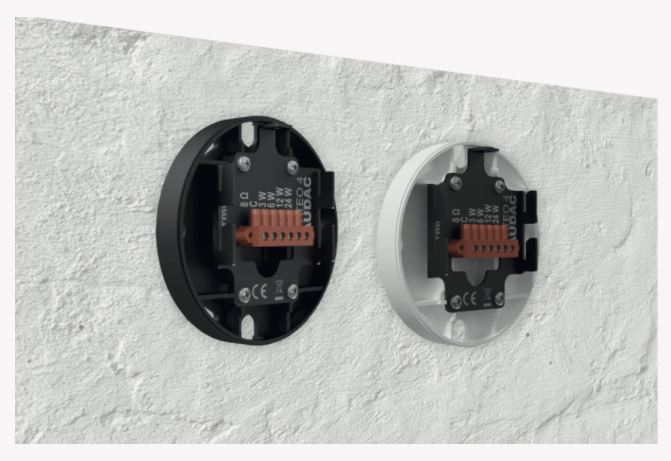

The connection of the loudspeaker simply happens by attaching the included wall plate to your desired location and wiring the cables to this wall plate. The Clevermount™ innovation ensures the installer has both hands free to slide the loudspeaker cabinet into the bracket.
The only loudspeaker mount where functionality and elegance truly meet.
Loudspeakers that are equipped with the CleverMount™ technology have the advantage of making the speaker cabinet flow together with the mounting bracket providing great ease for installing the loudspeaker in one good-looking entity. The safe installation of the loudspeaker is acquired thanks to the separate bracket base. This base can easily be installed and connected without the help of a second person. Once the bracket base is firmly mounted to a wall, the loudspeaker cables can be connected to its desired breakout points. The loudspeaker can now slide onto the bracket base with the use of only one hand. Thanks to this system, the loudspeaker placement and connection can be made before the final delivery of the project.
CleverMount™ also enables you to angle the loudspeaker in both vertical and horizontal directions from the front side so that the perfect angle is achieved. This way, it’s really child’s play to install a large umber of loudspeakers in no time.
*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
