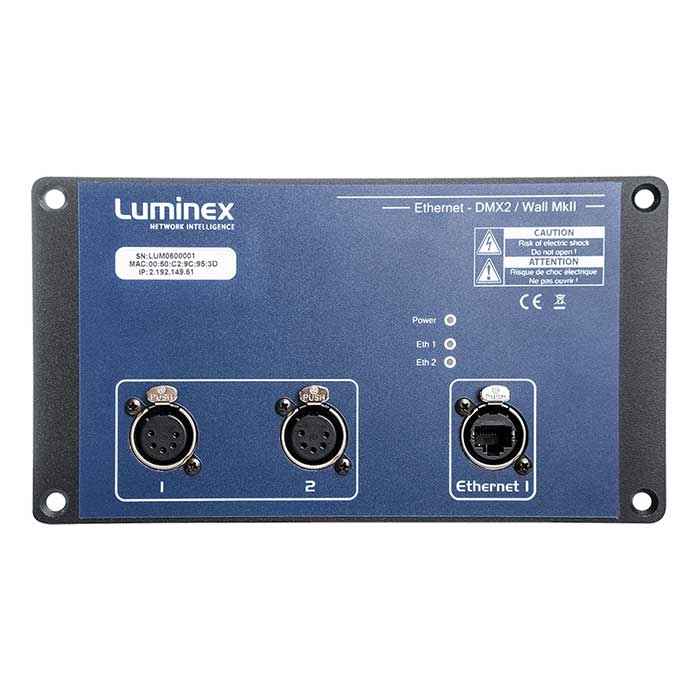

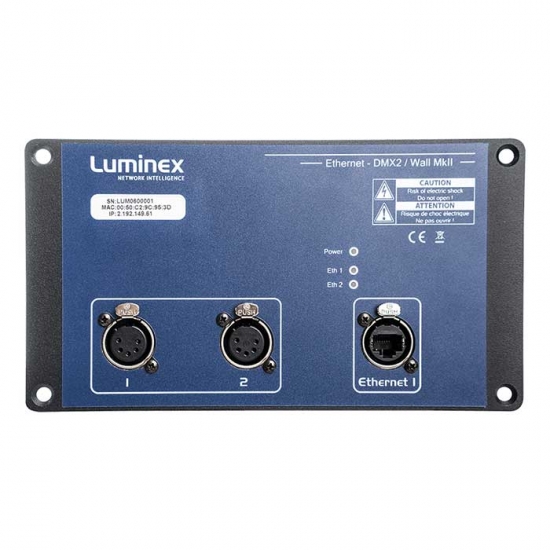

Ethernet DMX2 Wall MKII with PoE input


An extremely powerful Ethernet-to-DMX converter with a custom merging engine for pro lighting solutions.

Would you like a Demo?

Replaced by LumiNode 2

Stream up to 300 universes • Convert ArtNet, sACN, RTTrPL (BlackTrax) … to DMX and easily come with up to 300 universes. Easy set-up with front display • Load pre-configured set-up profiles through the front-end display or the easy-to-use web interface. Wall mounted solution • Metal housing, ruggedized Ethercons and shielded DMX connectors, perfect for theaters and cruise ships. Custom merging engine • With custom merging you can control specific paramaters of fixtures with different sources. Full RDM support • Setup, manage and monitor all your lighting devices from one central place: LumiNet Monitor. PoE powered only • Don’t worry about power plugs anymore. This Ethernet-DMX unit can only be powered over Ethernet (PoE). Power up your creativity. • Stop limiting your creativity by technical restrictions. Luminex Ethernet-DMX converters are extreme powerful nodes designed for professional lighting projects. The powerful processor that can cope with up to 300 universes, the engine for custom merging and the re-routing feature for visualising merged results make the Ethernet-DMX converters very high-end and truly unique products. Don’t worry about power plugs. • All our truss mounted and DIN-rail Ethernet-DMX converters can be powered through PoE or/and with direct power. Just connect everything over ethernet and don’t worry about power cables anymore. (Rack mounted converters have optional PoE while wall mounted units can only be powered over Ethernet) Full RDM support: never climb the truss again. • All Ethernet-DMX units fully support all RDM features, which enable users to setup, manage and monitor every connected unit directly from LumiNet Monitor or any other RDM controller. Free software included • LumiNet Monitor is a free software pack that will increase the comfort of working with Luminex equipment and together with the easy-to-use web interface for Ethernet-DMX converters, it adds high value to your project monitoring and preparation. *Note: Luminex LCE operates a policy of continuous development. Luminex LCE reserves the right to make changes and improvements to any of the products described in this document above without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details. www.luminex.be

  • Merging engine: Yes
  • Softpatch: Yes
  • Trigger system: Yes
  • ReRoute: Yes
  • Profile manager: Yes
  • Snapshot: Yes
  • Monitoring software: LumiNet Monitor V2 (free)
  • DMX port direction: Input or output (configurable)
  • DMX port isolation: Optical and galvanic isolation per port
  • DMX Port termination/biasing: Yes
  • DMX timing: Framerate: 10-40fps - break: 176-352µs
  • Ethernet port speed: 100Mbps
  • Port sensing: Auto-negociation, MDI / MDIX
  • DMX connectivity: 2x shielded & gold plated Neutrik 5 pin XLR (female)
  • Ethernet connectivity: 1x shielded Neutrik Ethercon connector
  • Rear connectivity: Not applicable
  • Power connectivity: None (PoE only)
  • Power input: None
  • Power consumption: Maximum 4W
  • Fuse: None
  • PoE powered: Yes (class 0 rated)
  • DMX protocols: DMX512 (1986 & 1990), DMX512-A, RDM ANSI E1.20
  • Ethernet protocols: Art-Net™ (1-4), sACN ANSI E1.31, RTTrPL (BlackTraX)
  • Display and jog: No
  • Configuration: Through the built-in web server
  • Status LEDs: Power LED, Ethernet Port LED (link and activity)
  • Mounting: Wall
  • Enclosure: Robust metal housing
  • Dimensions (W x D x H): 8.3" x 4.5" x 2.1" (210 x 114.5 x 53.4 mm)
  • Weight: 1.94 lbs (0.88 kg)
  • Packaging: 10.2" x 6.5" x 4.1" (260 x 165 x 105 mm)
  • Environment:
    • Operating temperature: 2 - 140°F (0 - +60°C)
    • Storage temperature: 14 - 158°F (-10 - +70°C)
    • Humidity (non condensing): 5 to 95% RH
  • Certificates/Approvals: CE
  • Standards: EN 60950-1, EN 55022, EN 55024
