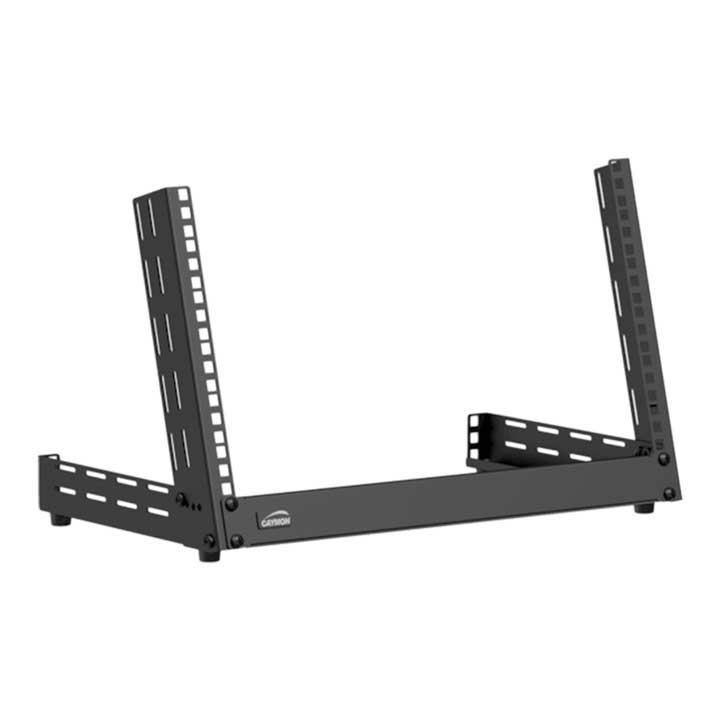

Desktop open frame rack - 6 units - Adjustable angle 0°~15°

The TPR306A is a professional and solid constructed desktop rack with adjustable angle for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It ensures maximum installation, connectivity and maintenance ease while simultaneously storing up to 6 units for studio, processing, test and other 19” equipment. The 0° ~ 15° adjustable slanted front profiles offer optimal stability and a perfect viewing angle on the front panels of the installed equipment at any given time.

The construction is made of 2.0 mm thick steel finished in a black (RAL9004) powder coating with fine structure. Punched equipment mounting profiles on the front offer a multifunctional use of the rack while perforated sides allow cable guiding or accessories mounting. Delivered in a flat-down package, the simple structure allows assembly by a single person in record-breaking time.

Would you like a Demo?


  • Stores up to 6 units of 19” Equipment
  • Punched square holes for use with snap-in cage nuts
  • 2.0 mm thick cold rolled steel frame
  • Easy assembly in 5 minutes
  • Ships as flat-down package
  • Desktop standing use
  • Slanted front for optimal stability and equipment viewing
  • Perforated sides for cable guiding or accessories mounting
  • 0° - 15° adjustable angle
  • 1 unit backside mounting possibility
Adjustable angle 0° - 15° adjustable tilt angle
Unit height 6 RU
Max. load 66.14 lbs (30 kg)
)Dimensions 20.4" x 12.51" x 11.86" (509 x 317,8 x 301,3 mm) (W x H x D) (incl. rubber feet)
Colours Black (RAL9004)
Accessories Included 1 set Assembly hardware
    12 x Cage nuts + screws
  Optional KM600 - M6 Cage nuts

*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
