WP225 Universal wall panel - Microphone, line & Bluetooth receiver - 80 x 80 mm


Coming Soon

Universal wall panel - Microphone, line & Bluetooth receiver - 80 x 80 mm

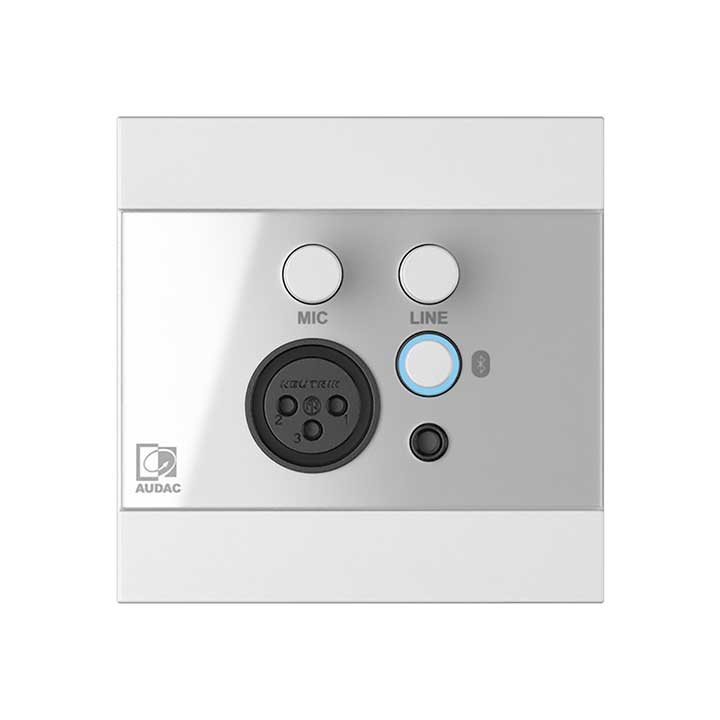

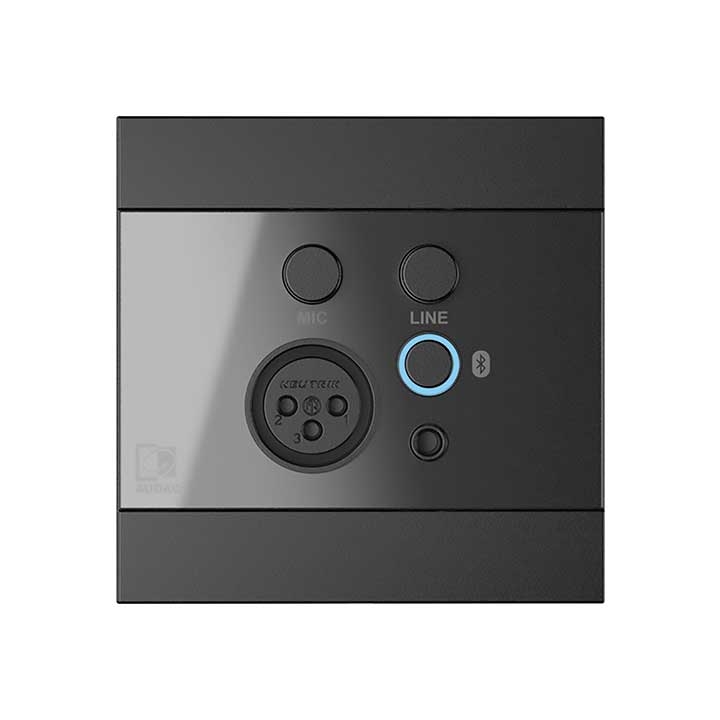

The WP225 is a remote wall mixer that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523, and more). It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, ... ) or balanced microphone to the level corresponding to the differential signal input making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.

It also features a Bluetooth receiver and pair button with a handy LED indicator to check if it's in pairing mode or already connected to a device. Bluetooth pair name can be customized as desired. The Bluetooth receiver works with iPhones, iPads, iOS & Android smartphones, tablets, PC, Laptops, Desktops, etc...

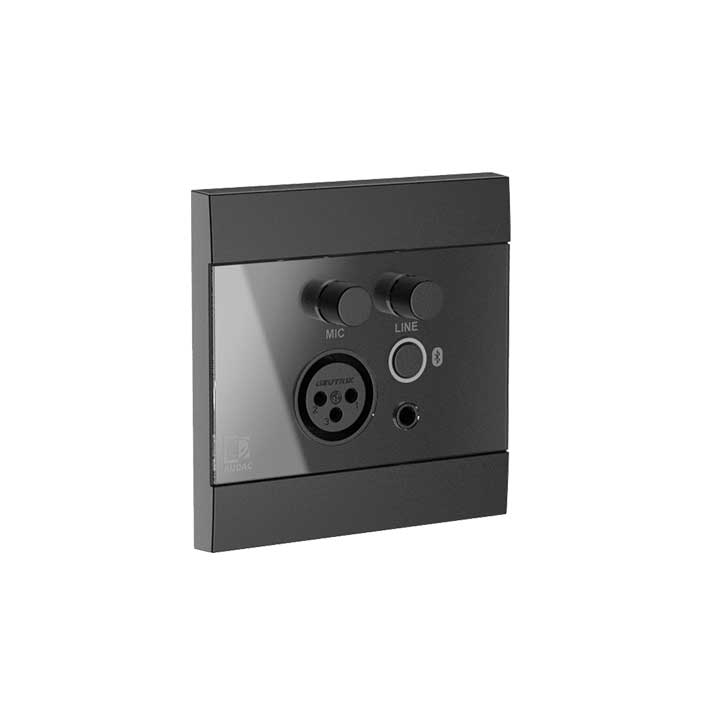

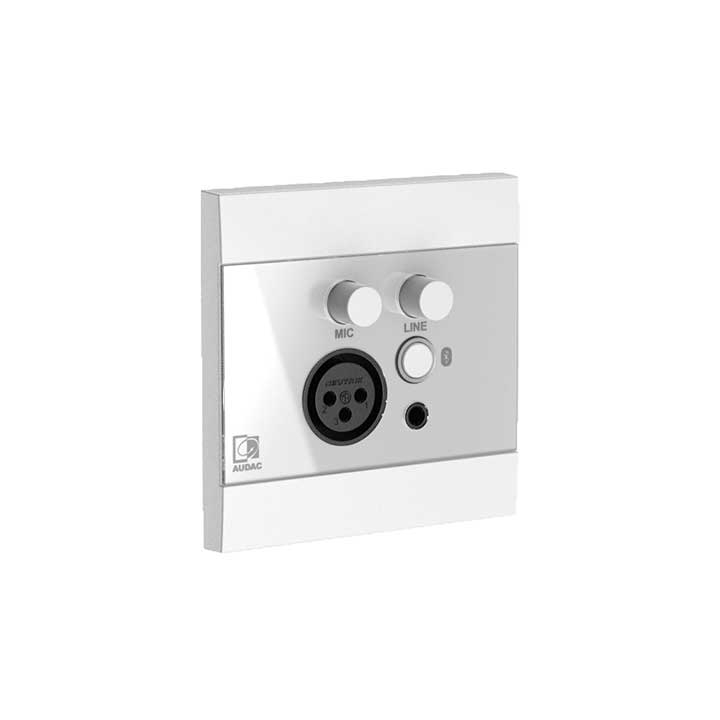

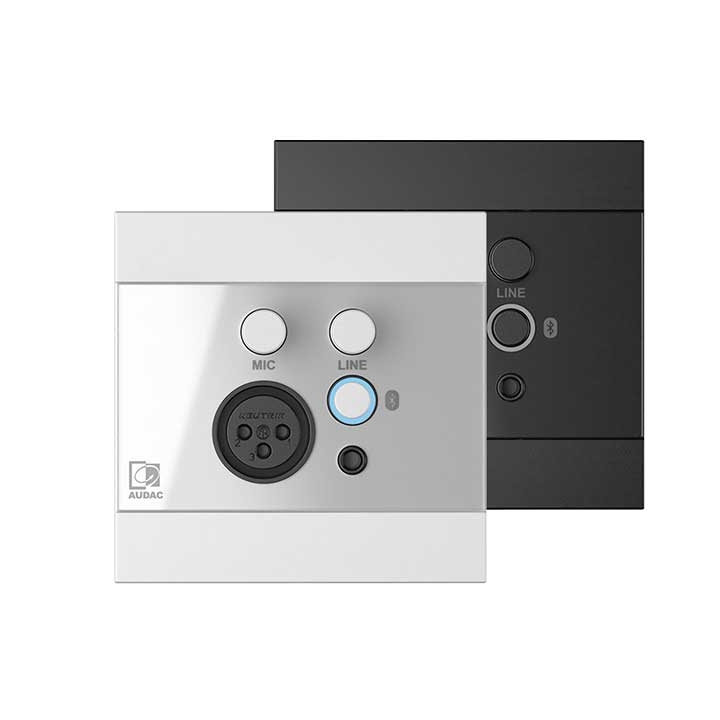

The WP225 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.

Variant MSRP
Black version AUWP225B POA
White version AUWP225W POA
Would you like a Demo?


  • Elegant design to blend in with any environment
  • Compatible with EU (80x80 mm) installation materials
  • Signal transmission over twisted pair (CAT5E) or better cabling
  • Signal transmission insensitive for interference and noise


  • Education
  • Retail
  • Bars & Restaurants
  • Corporate
Outputs Level +12 dB
    0 dB
Inputs Wall Panel Type 3.5 mm jack stereo line input connection
      XLR microphone input connection
      Mic & Line inputs on rear for permanent connections
      Bluetooth receiver (Version 5.0)
Control Individual input level control for Mic & Line
  Bluetooth pairing button with LED
  Phantom power (DIP switch on rear)
  Low-cut (Mic) enable / disable (DIP switch on rear)
  Output level +12 dBV enable / disable (DIP switch on rear)
  Bluetooth enable/disable (DIP switch on rear)
  Mono / Stereo (DIP switch on rear)
Connection 3.5 mm jack input (Stereo line input)
  Female XLR input connector (Microphone input)

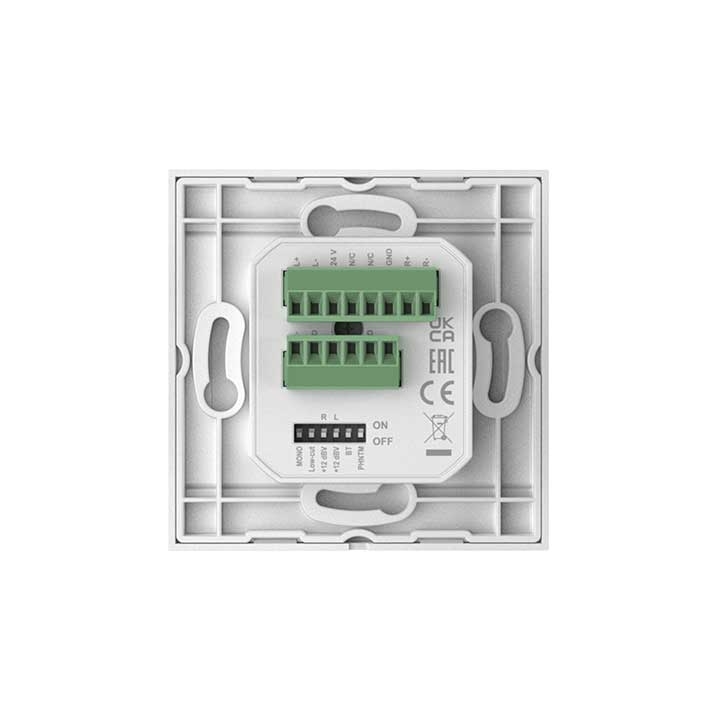

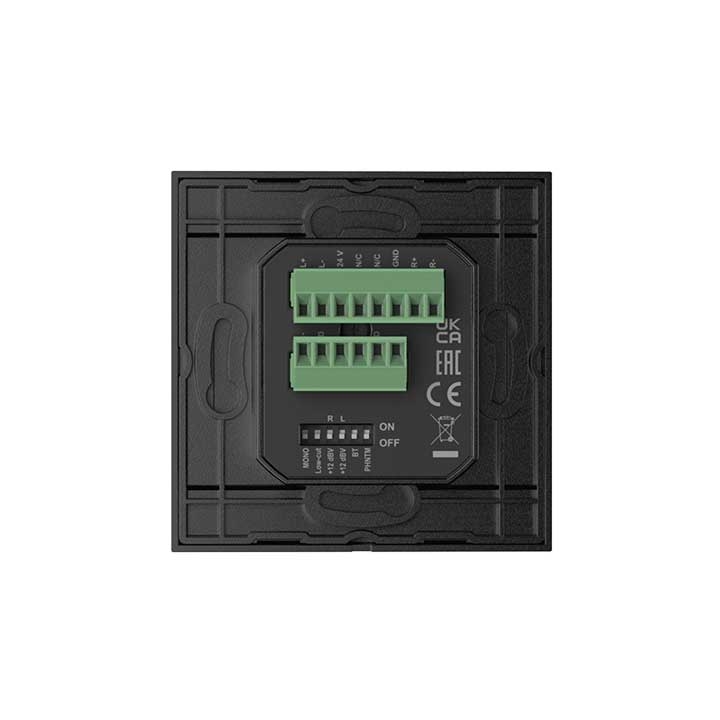

  6-pin terminal block (3.81 mm pitch) input connection on the rear (duplicated line & mic inputs)
  8-pin terminal block (3.81 mm pitch) output connection
Dimensions 80 x 80 mm (3.14" x 3.14") (W x H) (Remote wall panel)
Colours Black (RAL9005) (WP225/B)
  White (RAL9003) (WP225/W)
Front finish Elegant ABS front panel with glass
Accessories Optional Surface mount Installation boxes WB200 - Surface mount wall box for WP & DWP series
    Flush mount Installation boxes Flush-mount box for 45 x 45 mm wall panel - Solid wall - WB45S/FS
      Flush-mount box for 45 x 45 mm wall panel - Hollow wall - WB45S/FG


In large operations, several WP2xx wall panels might be required. It may be difficult to keep a clear overview when all these wall panels are equipped with Bluetooth. Therefore it is possible to change the Bluetooth ID of a WP2xx to differentiate each wall panel. The Bluetooth ID can be changed in the ‘AUDAC Bluetooth rename ID’ app.

Please note: The application is currently only available for Android devices.

See the downloads tab for details.

Bluetooth Custom ID Naming

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
