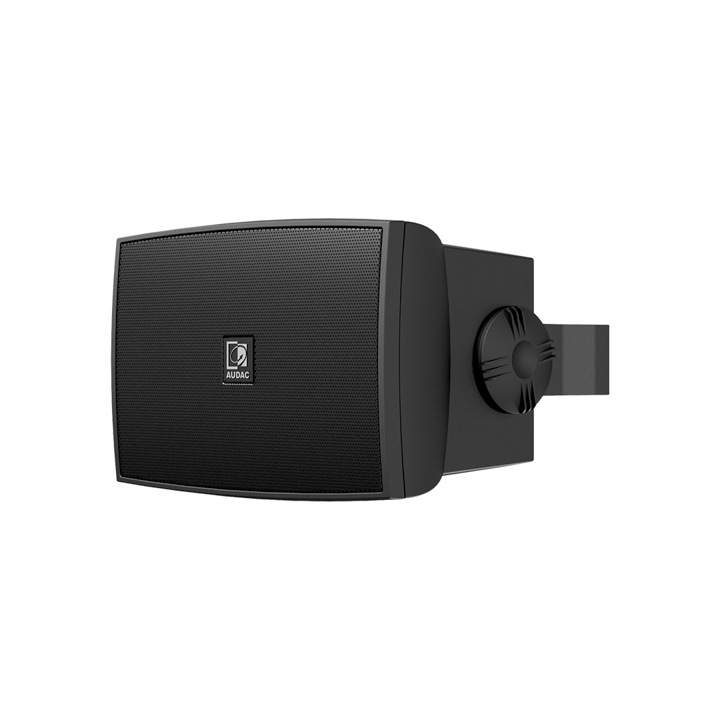

WX302 Universal wall speaker 3"

MSRP: POA
AUWX302MK2/B

Universal wall speaker 3"

The WX302 is a powerful 2-way performance speaker suitable for a wide variety of applications, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and a 3” low-frequency loudspeaker, capable of delivering a power of 30 Watt. It can be used in standard 8 Ohm systems but also in 100V PA systems with power taps for 20 Watt, 10 Watt, and 5 Watt. The elegant shaped synthetic enclosure is available in two different colors (black and white), making it blend into any environment going from standard indoor home to special indoor design interiors. The included steel mounting bracket allows horizontal and vertical mounting as well as focusing on the speaker and an integrated advanced protection network protects the tweeter against overload.

This new series retains all its strengths but has also been upgraded in a few specific areas with installer convenience and durability in mind. The connection of the indoor loudspeakers is changed to a terminal block, which makes it easier to install and connect the WX MK2 series wall speaker, while daisy-chaining is made more convenient through additional connection terminals (4-pin). Both indoor and outdoor versions are now equipped with an elegant rotatable AUDAC logo.

Variant MSRP
Black version AUWX302MK2/B POA
White version AUWX302MK2/W POA
Would you like a Demo?

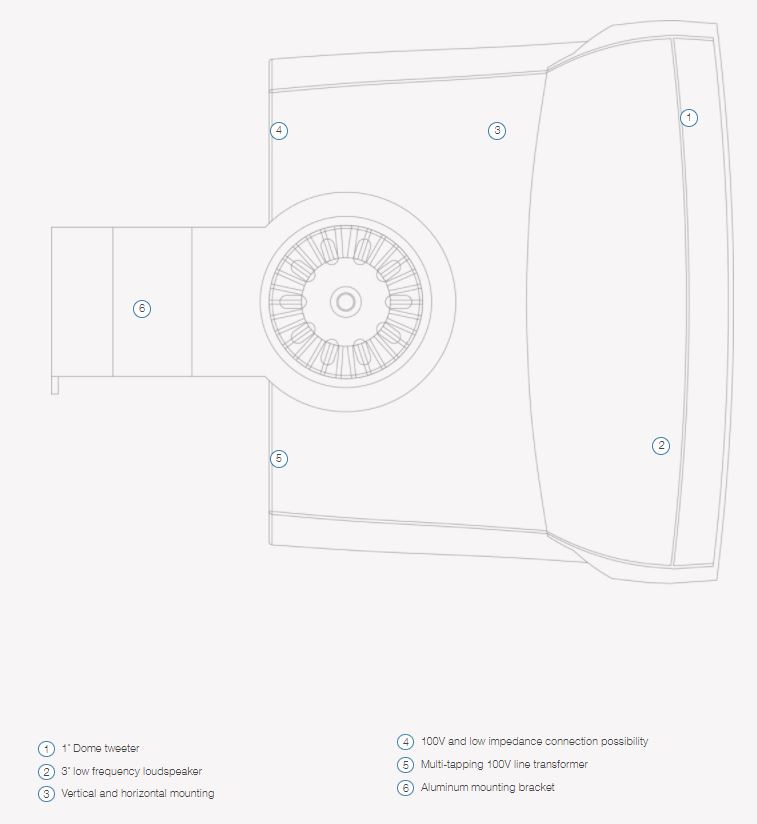

  • 1" Dome tweeter
  • 3" Low-frequency loudspeaker
  • Vertical and horizontal mounting

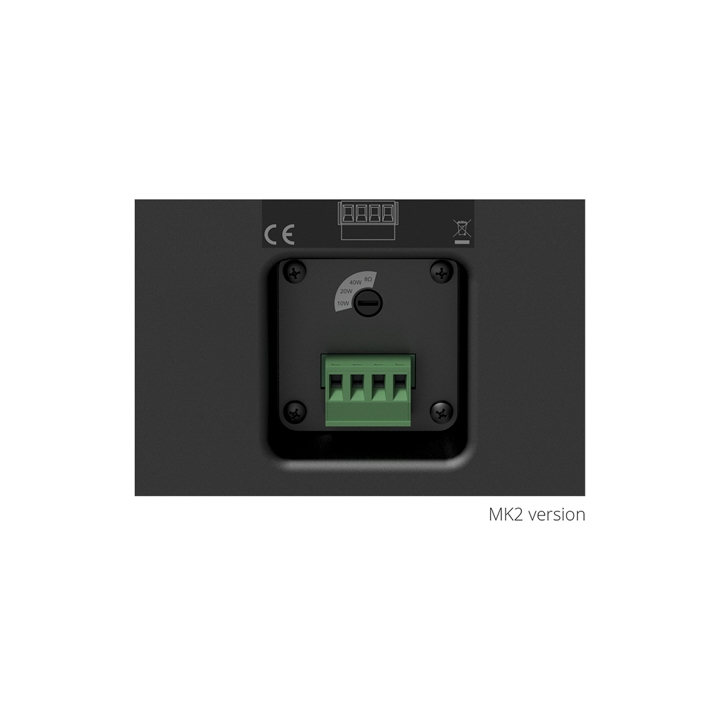

  • Terminal block connection (MK2 version)
  • 100V and low impedance connection possibility
  • Multi-tapping 100V line transformer

100V 8 Ohm

Note: Sold in pairs, priced per speaker

Crossover Frequency : 2.5 kHz
Crossover Type : Passive built-in
Drivers HF : 1”
Drivers LF : 3”
Frequency Range (-10 dB) : 60 Hz - 20 kHz
Frequency Response (± 3 dB) : 90 Hz - 18 kHz
Impedance : 8 Ω
Ingress Protection rating : IP40
Line Transformer Tappings 1 : 250 Ω - 100 V / Not used - 70 V / 20 W
Line Transformer Tappings 2 : 500 Ω - 100 V / 20 W - 70 V / 10 W
Line Transformer Tappings 3 : 1000 Ω - 100 V / 10 W - 70 V / 5 W
Line Transformer Tappings 4 : 2000 Ω - 100 V / 5 W - 70 V / 2.5 W
Max. Power : 60 W
Sensitivity (1W/1m) : 85 dB
Sound Pressure (Max. W/1m) @ 100 V : 95 dB
Sound Pressure (Max. W/1m) @ 8 Ω : 100 dB
Speaker type : 2-way
RMS Power : 30 W
Dispersion Horizontal : 100°
Dispersion Vertical : 100°

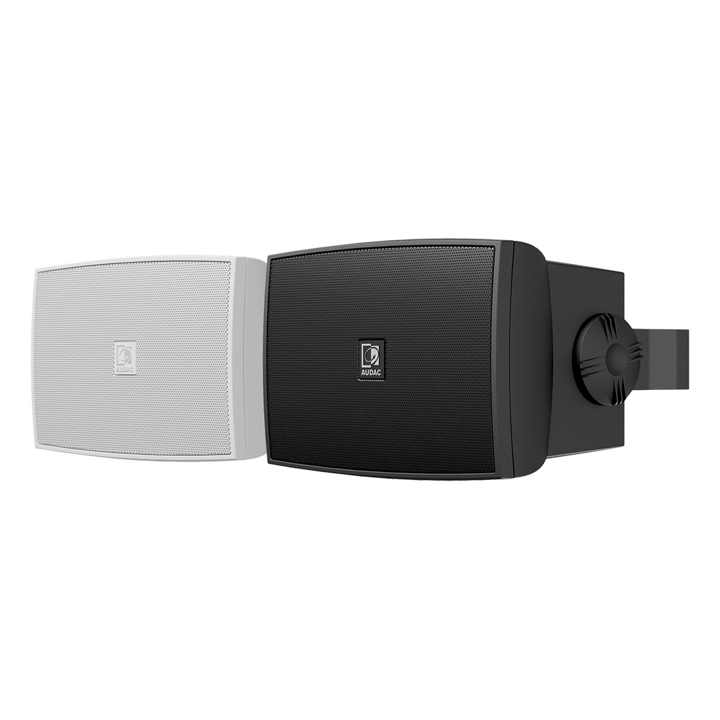

Colours : Black (RAL9005) (WX302MK2/B)
Colours : White (RAL9003) (WX302MK2/W)
Construction : ABS
Dimensions : 7.4" x 5.07" x 6.48" (188.4 x 129 x 164.8 mm) (W x H x D) (Incl. bracket)
Front finish : Aluminium grill
Mounting & handling : Mounting bracket
Operating temperature : -13 °F ~ 158 °F  (-25 °C ~ 70 °C)
Weight : 3.65 lbs (1.66 kg)
Accessories Included : Mounting bracket

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
