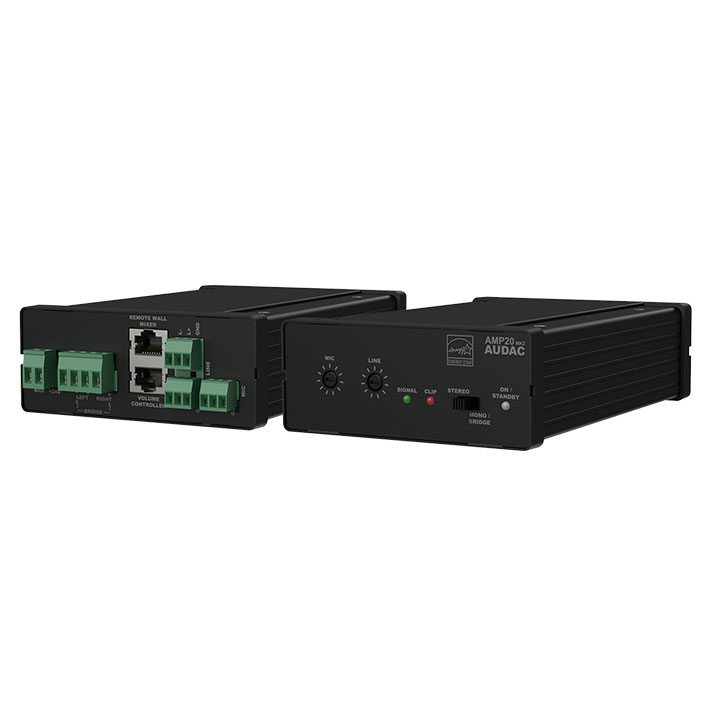

AMP20 Mini stereo amplifier 2 x 15W
MSRP:
POA
AUAMP20MK2
The AMP20 is a mini stereo power amplifier with a power rating of 2 x 15 Watt, that lends itself perfectly to small speaker systems requiring compact and economical audio solutions. It offers the ideal solution for applications such as classrooms, offices, and meeting rooms where only a small amount of speakers are required. The compact size and very high efficiency make it perfectly suited to be hidden in a closet, on a false ceiling or mounted under a desk or table. The combination of the stereo balanced line, with microphone input, makes it perfectly suited for applications where it should be used in combination with projection screens and video sources while a microphone is connected. Two gain potentiometers make it possible to control the sensitivity and balance between music and speech, while a switch allows bridging of the output channels to obtain one channel with merged output power. A remote wall mixer can be connected for applications where local mixing for the inputs is desirable, while large distances can be covered between the source and amplifier using simple CAT5 twisted-pair cabling. The volume controller input allows the connection of an additional wall controller for overall volume control. The Class-D amplifier technology, standby mode and included switching power supply makes this device compliant to the highest energy efficiency and environmental requirements. A variety of optionally available mounting brackets for the AUDAC S-Box product range are allowing desk, closet, or 19” equipment rack installation.
- Compact design
- Energy-star certified (version 3.0)
- Balanced stereo line input
- 1 x Microphone input
- Remote wall mixer & volume controller option
- Standby energy-saving mode
- Stereo & bridged mode
| Inputs Balanced Stereo Type : | 1 x Stereo Balanced Line |
| Inputs Balanced Stereo Connector : | 2 x 3-pin Euro Terminal Block (Pitch - 3.81 mm) |
| Inputs Balanced Stereo Impedance : | 20 kΩ |
| Inputs Balanced Stereo Sensitivity (1W/1m) : | -12 dBV ~ +12 dBV |
| Inputs Balanced Microphone Type : | 1 x Balanced Microphone |
| Inputs Balanced Microphone Connector : | 3-pin Euro Terminal Block (Pitch - 3.81 mm) |
| Inputs Balanced Microphone Impedance : | 47 kΩ |
| Inputs Balanced Microphone Sensitivity (1W/1m) : | -50 dBV ~ -18 dBV |
| Inputs Other Connector : | RJ45 |
| Inputs Other Connector : | RJ45 |
| Outputs Type : | 1 x Stereo Loudspeaker |
| Outputs Connector : | 4-pin Euro Terminal Block (Pitch - 5.08 mm) |
| THD+N (@ 1 kHz) : | < 0.1% |
| Crosstalk (@ 1 kHz) : | < -75 dB |
| Signal / Noise : | > 95 dB |
| Power Consumption Standby : | 0.8 W (PSD241 included) |
| Power Supply : | 24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz) |
| Efficiency : | 87% |
| Cooling : | Convection cooled |
| Protection : | Over heating |
| Protection : | Over load |
| Protection : | Signal limiting |
| Energy certification : | Energy Star 3.0 |
| Inputs Other Type : | 1 x Remote Volume controller |
| Protection : | DC Short circuit |
| RMS Power @ 4 Ω Stereo : | 2 x 15 W |
| RMS Power @ 8 Ω Bridge : | 30 W |
| RMS Power @ 8 Ω Stereo : | 2 x 7.5 W |
| Dimensions : | 108 x 44 x 165 mm (W x H x D) |
| Weight : | 0.800 kg |
| Accessories Included : | PSD241 - Power supply 24V / 1.67 A (Efficiency Level V) |
| Accessories Optional : | VC3208 Remote volume controller |
| Accessories Optional : | WP523 Remote wall mixer |
| Accessories Optional : | MBS1xx Optional Wall mounting brackets |
| Accessories Optional : | TR3030 100V Transformer 30 W |
*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
