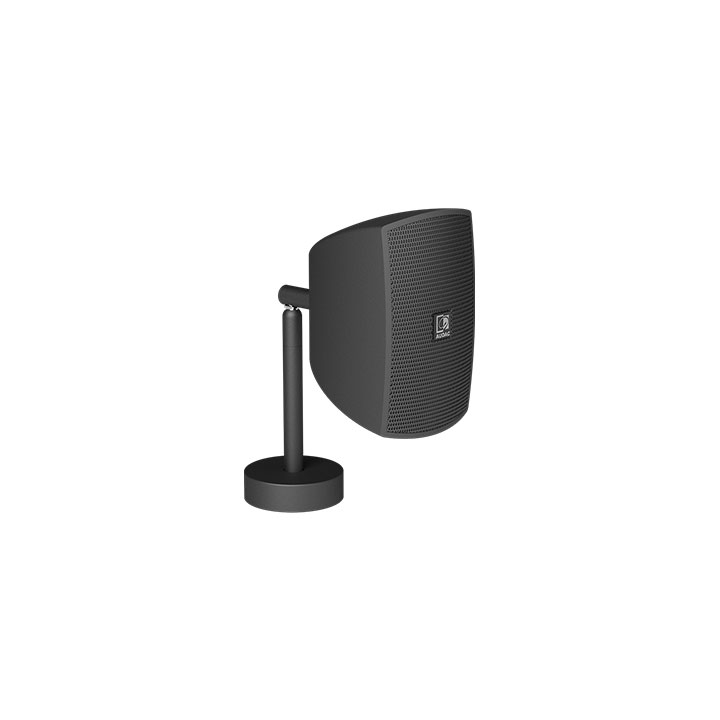

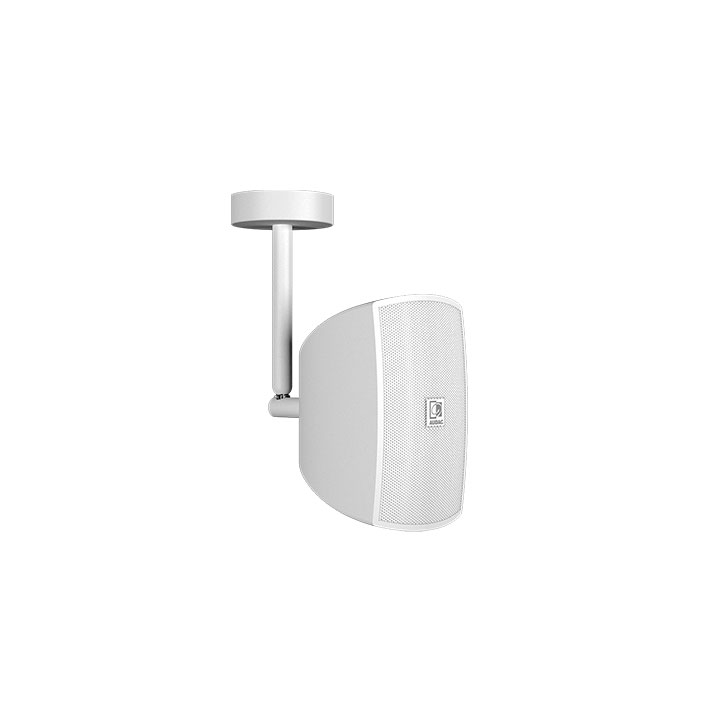

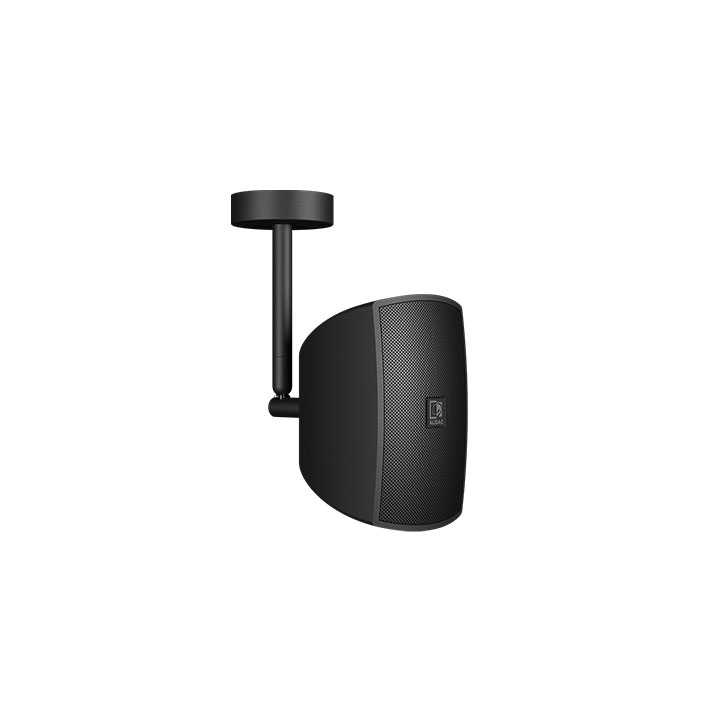

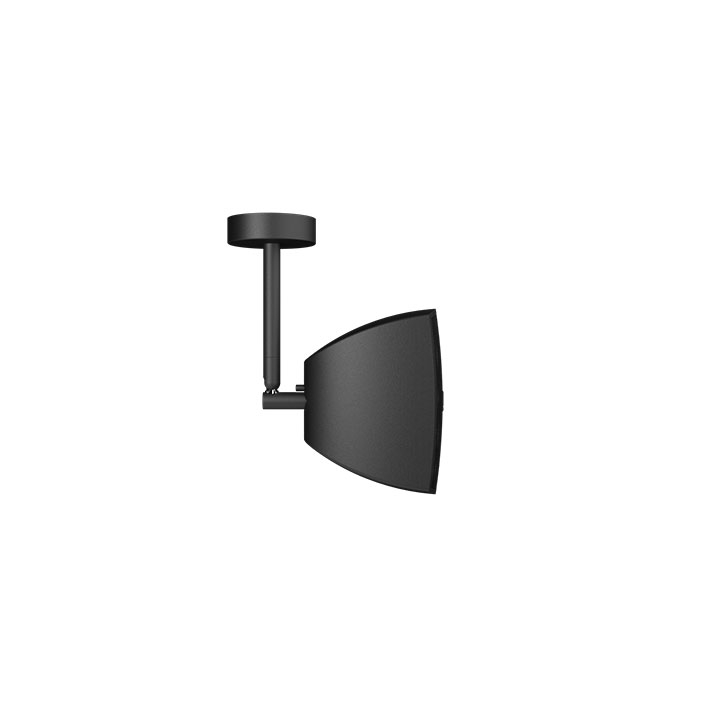

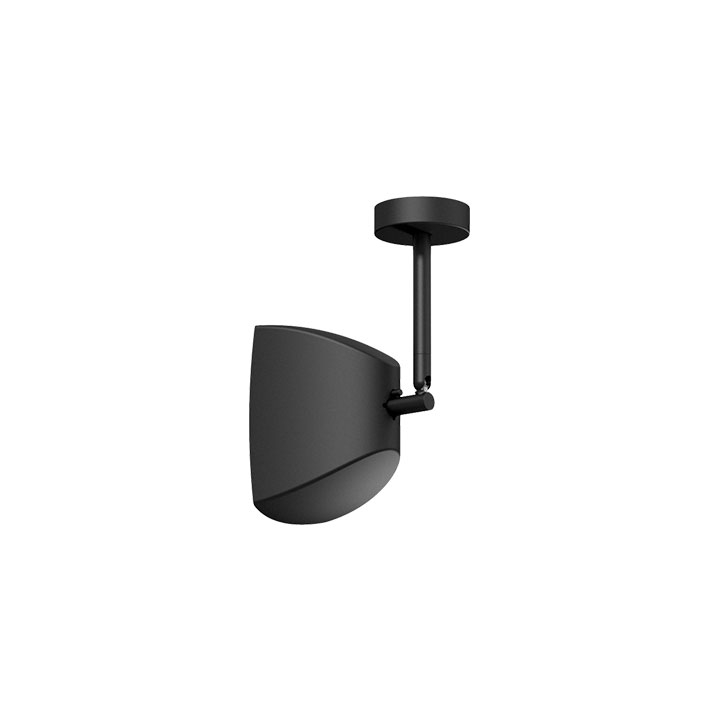

ATEO2S ATEO2 with surface ceiling mount
MSRP:
POA
AUATEO2S/B

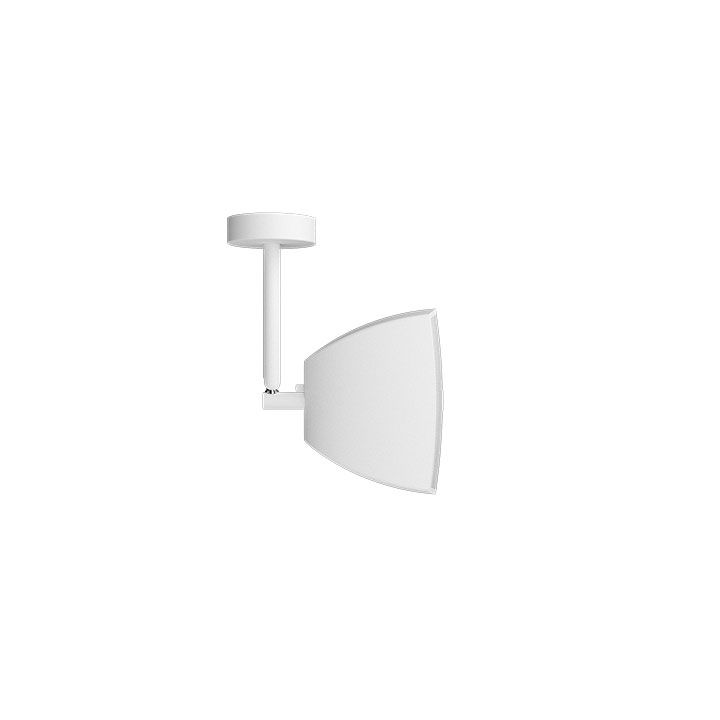

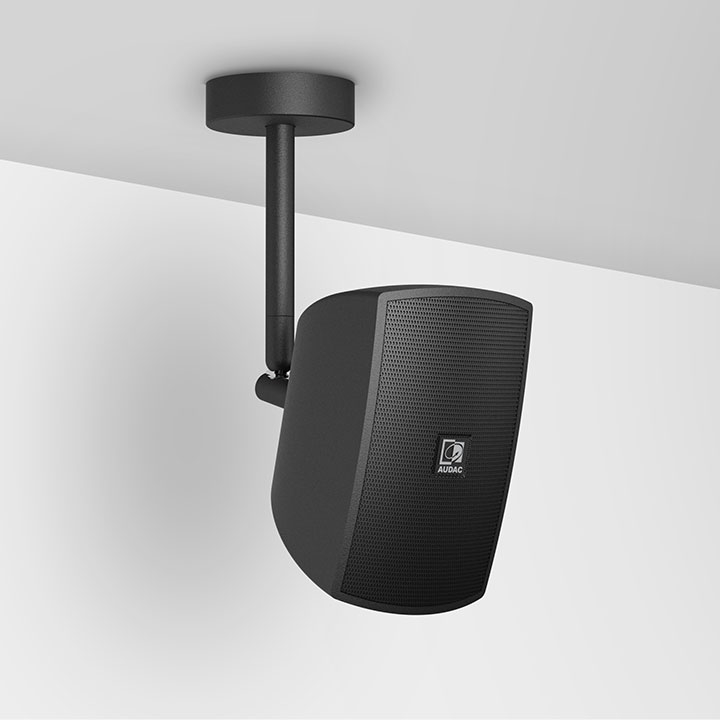

ATEO2 with surface ceiling mount
A combination of your trusted ATEO2 speaker and a specially designed surface ceiling mount with ClickMount™ technology*.
The ATEO is a series of extraordinary loudspeakers especially designed for fixed installation in indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants, or even clubs.
The ATEO2 is the ultra-compact model of this series which smoothly integrates into any interior like no other loudspeaker. The sound originates from a 2” aluminum cone driver which provides a full-range, warm and detailed sound, with an improved response in the low frequencies due to the ported design. This way, smooth sound reproduction with clear and crisp sound is guaranteed.
The internal self-resetting network provides optimal overload protection. It features a stunningly designed and elegant looking ABS housing that is fitted with high-quality components.
*The ATEO2S is not compatible with the CleverMount™ mounting system.
- Vertical and horizontal mounting
- 2" full-range aluminum driver
- Stunning designed and elegant looking ABS enclosure
- Patented ClickMount™ mounting system
Note: Sold in pairs, priced per speaker
-
Nothing to download.
| Drivers : | 2” Aluminium full range |
| Frequency Range (-10 dB) : | 100 Hz - 20 kHz |
| Frequency Response (± 3 dB) : | 120 Hz - 20 kHz |
| Incline angle Bottom : | 25° |
| Incline angle Left : | 25° |
| Incline angle Right : | 25° |
| Incline angle Top : | 15° |
| Max. Power : | 20 W |
| Sensitivity (1W/1m) : | 83 dB |
| Sound Pressure (Max. W/1m) : | 93 dB |
| Speaker type : | Full range |
| RMS Power : | 10 W |
| Dispersion Horizontal : | 145° |
| Dispersion Vertical : | 170° |
| Impedance : | 8 Ω (ATEO2) |
| Impedance : | 16 Ω (ATEO2D) |
| Construction : | ABS |
| Dimensions : | 3.14" x 5.35" x 4.52" (80 x 136 x 115 mm) (W x H x D) |
| Operating temperature : | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| Weight : | 0.859 lbs (0.390 kg) |
| Front finish : | Steel grill |

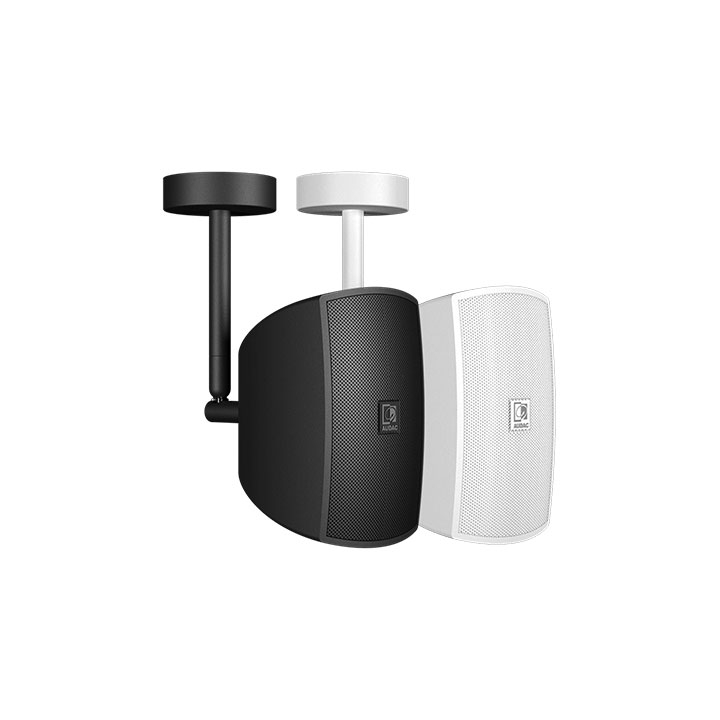

| Colours : | Black |
| Colours : | White |
A true plug-and-play mounting system.

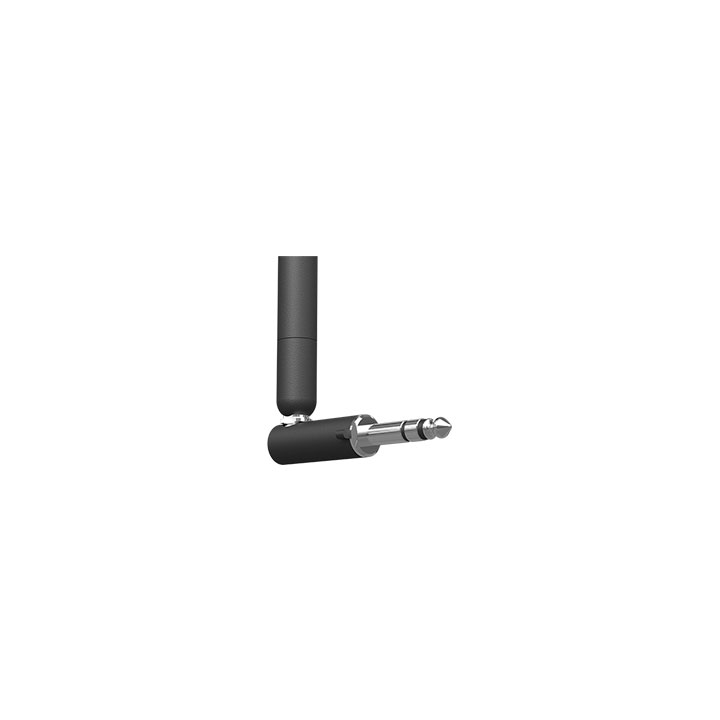

The ClickMount™ technology ensures a true plug-and-play user-friendly installation. This professional system has the advantage of making the speaker cabinet click onto its mounting bracket either horizontally or vertically via a 6.3mm jack connector. After installation, the speaker angle can be adjusted by using the bracket arm.

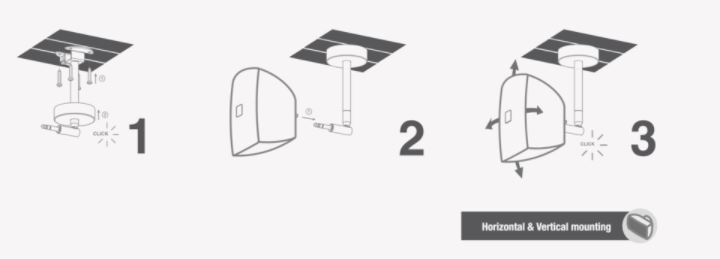

The ClickMount™ system installation procedure exists only of three simple steps:
Step 1:
Mount the ceiling bracket at the desired location using the supplied screws. Cabling can be connected with the spring clamp connector.
Step 2:

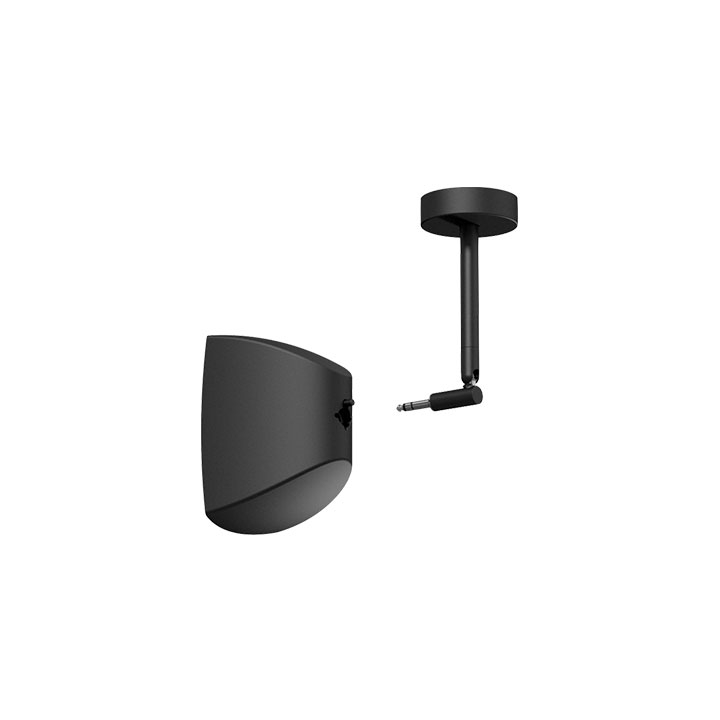

Mount the ATEO2S horizontally or vertically by sliding it on the ceiling mount equipped with a 6.3mm jack connector.
Step 3:
When you feel a click, the speaker is securely fixed in place. You can now adjust the speaker angle both vertically and horizontally by using the bracket arm.
*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
