ATEO4M In & outdoor surface mount loudspeaker with CleverMount+™
MSRP:
POA
AUATEO4M
The ATEOxM series are extraordinary loudspeakers especially designed for fixed installation in- & outdoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.
The ATEO4M is the 4” version with a 1” dome tweeter and a 4” Mid /Low-frequency driver, ensuring a true-to-nature, high-fidelity reproduction of music and speech, whilst maintaining an ultra-flat frequency response. It features a stunningly designed and elegant-looking weatherproof ABS housing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting system using the weatherproof CleverMount+™ technology, making the loudspeaker cabinet flow together with the mounting system providing great ease for installing the loudspeaker in one good-looking entity. This design loudspeaker forms the ideal solution for fixed-install in- & outdoor applications.
With the improved CleverMount+™ innovation, mounting and connection of the loudspeaker happens in seconds after attaching the wall mount to the desired location. During installation, the wires can easily be connected to the integrated WAGO connectors. For ease of installation & modification, the ATEOxM loudspeakers come with an external power tap selection switch located on the rear of the speaker. Like this, it’s really child’s play to install a large number of loudspeakers in no time.

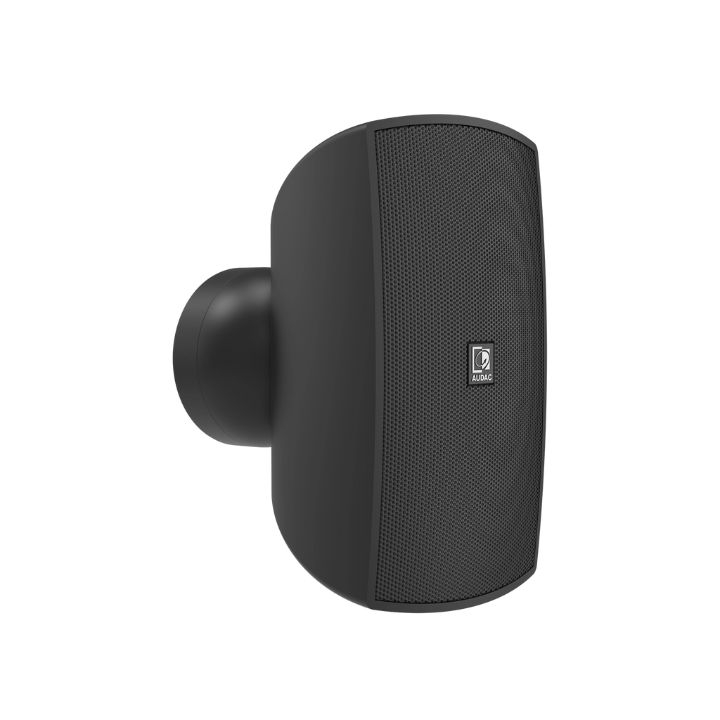

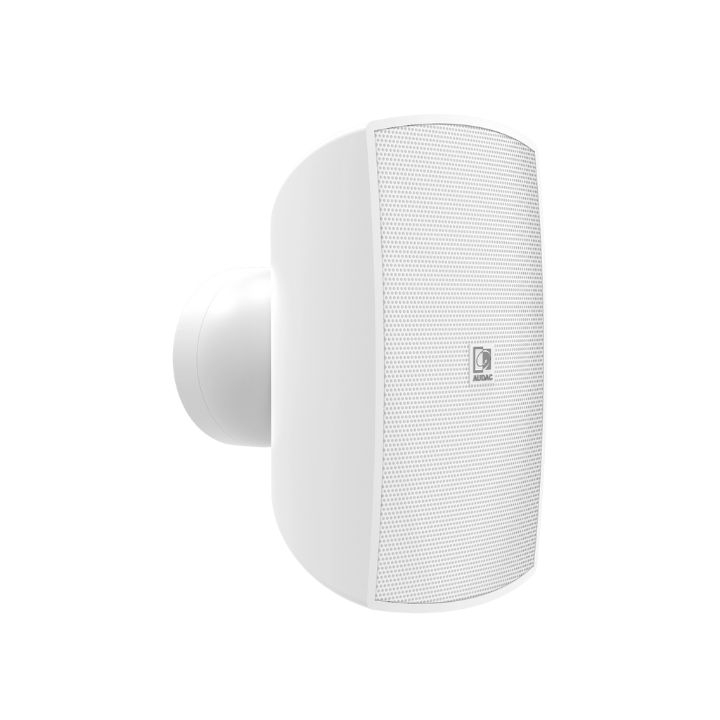

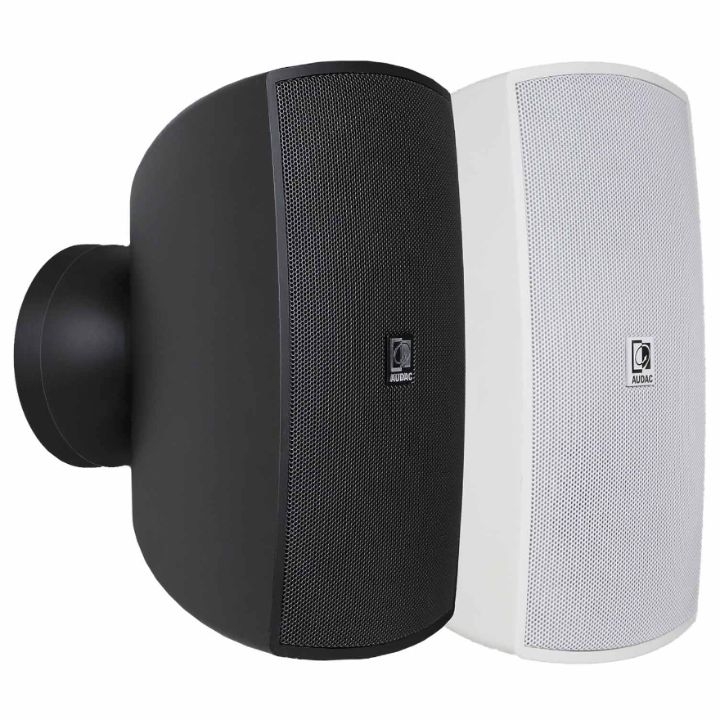

All ATEOxM series speakers are available in black (/B) or white (/W).
- Unmatched sonic brilliance
- Ultra-flat frequency response
- Weatherproof - IP66 rating
- 720 Hours salt spray test
- Marine grade build quality & UV resistant
- Hydrophobic cloth behind aluminum grill
- Save up to 50% installation time thanks to CleverMount™+
- External power tap selection
- Screwless WAGO connections for quick & safe connection with linktrough up to 4mm²
- No wires or bracket visible from the back
- Extremely firm fixation from front, allowing swift and accurate inclination
- Optional mounts for inclination angle or light track mounting
 |
 |
 |
|
 |
 |
 |
|
| Speaker type | Full range | |
| Peak power handling | 140 W | |
| Program power handling | 70 W | |
| RMS/AES power handling | 35 W | |
| Impedance | 8 Ω (ATEO4M) | |
| 16 Ω (ATEO4DM) | ||
| Incline angle | Left | 30° |
| Right | 30° | |
| Bottom | 30° | |
| Top | 5° | |
| Sensitivity (1W/1m) | 86 dB | |
| Sound Pressure (Max. W/1m) | @ 8 Ω | 101 dB |
| @ 100 V | 100 dB | |
| Frequency | Response (± 3 dB) | 100 Hz - 20 kHz |
| Range (-10 dB) | 65 Hz - 20 kHz | |
| Dispersion | Horizontal | 130° |
| Vertical | 130° | |
| Connectors | 2 x WAGO terminal block connections | |
| Drivers | 1” Dome tweeter | |
| 4” MF / LF Woofer | ||
| Line Transformer Tappings | 1 | 208 Ω - 100 V / Not used - 70 V / 24 W |
| 2 | 417 Ω - 100 V / 24 W - 70 V / 12 W | |
| 3 | 833 Ω - 100 V / 12 W - 70 V / 6 W | |
| 4 | 1667 Ω - 100 V / 6 W - 70 V / 3 W | |
| Ingress Protection rating | IP66 | |
| Dimensions | 136 x 244 x 153 mm (W x H x D) | |
| Weight | 2.050 kg | |
| Operating temperature | -20 °C ~ 60 °C | |
| Accessories | Included | Allen-key wrench |
| Mounting | Weatherproof CleverMount+™ | |
| Construction | ABS | |
| Front finish | Aluminium grill with hydrophobic cloth | |
| Colours | Black (RAL9005) (ATEO4M/B, ATEO4DM/B) | |
| White (RAL9003) (ATEO4M/W, ATEO4DM/W) | ||
 |
IP66 rated - all-weather resistantAn optimized loudspeaker design with an aluminum grill with hydrophobic mesh, to achieve an IP66 rating. Thanks to its elegant ABS housing, ATEOxM is also 720-hour salt spray certified and UV resistant. |

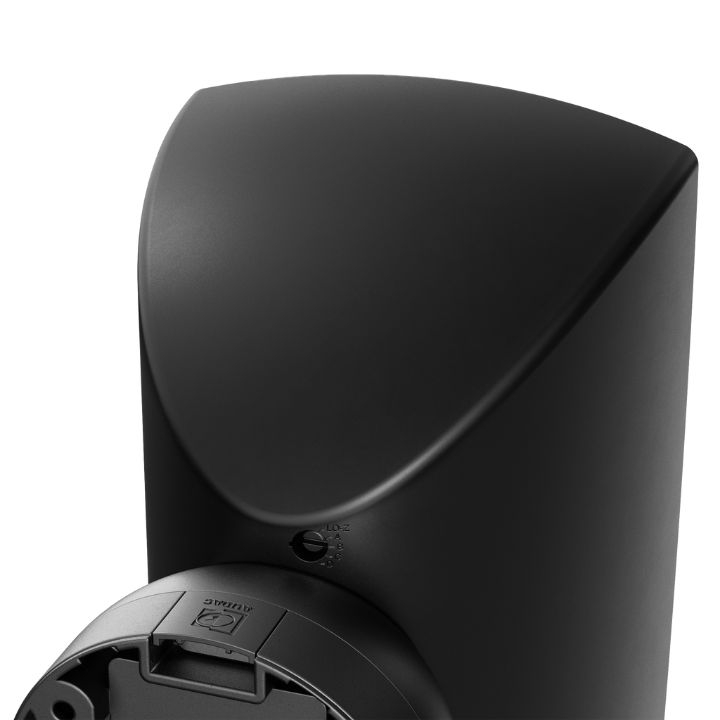

External power tap selectionNeed to tweak the loudspeaker settings after installation? No problem, the ATEOxM has an integrated external power tap selector hidden on the rear. Easy and quick access in seconds! |
|
 |

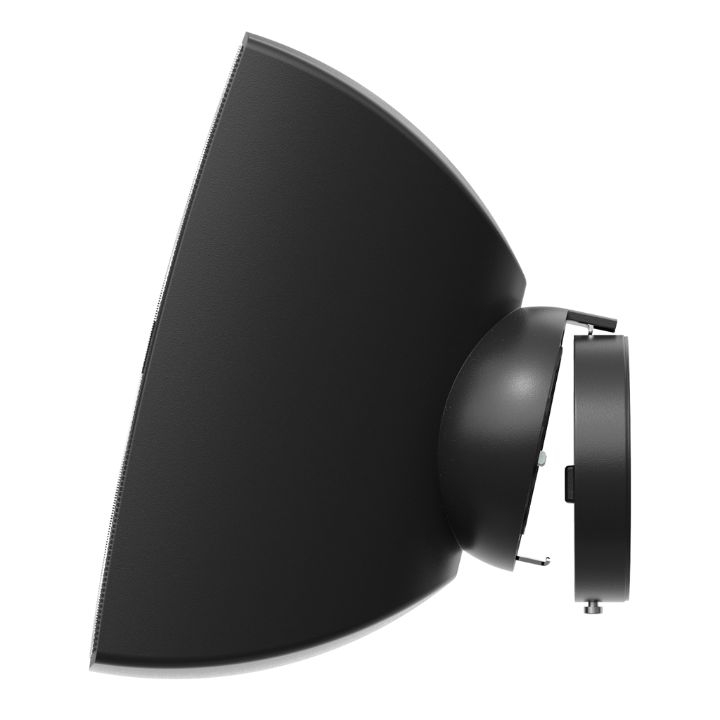

Save up to 50% on installation timeThanks to the patented CleverMount+™ mounting technology these loudspeakers have the advantage of making the speaker cabinet flow together with the mounting bracket providing a great ease for installing the loudspeaker in one good-looking entity. A safe installation of the loudspeaker is acquired thanks to the separate bracket base. |
WAGO connectionsThese design loudspeakers come with official WAGO connectors for the perfect high-quality and reliable electrical installation. WAGO connectors allow up to 4.0 mm2 cable section. Great installer convenience is provided with the WAGO spring cage terminals, no additional tools are needed! |
|
