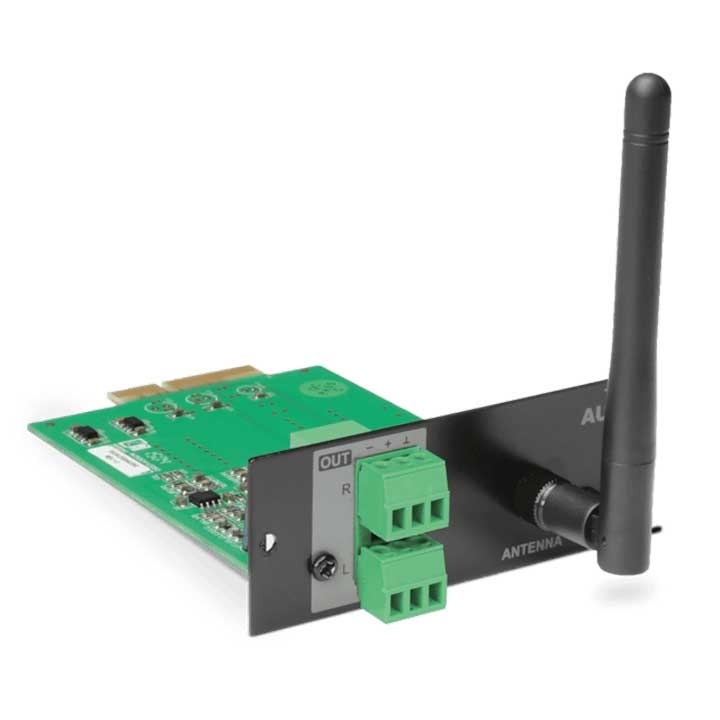

BMP40 SourceCon™ professional Bluetooth module

MSRP: POA
AUBMP40-

SourceCon™ professional Bluetooth module

The BMP40 receiver offers wireless connection possibilities for audio playback from any Bluetooth-compatible portable device including laptops, smartphones, tablets, or any other. A long-range transmission distance (up to 30 meters) is possible depending on the installed environment.

Device discovery and pairing protection with storage of up to 8 authorized devices shall prevent playback from unauthorized users in public areas. All media information such as track and artist information can be retrieved from the BMP40 (if supported by the connected device), while playback control is possible from the connected device or remote control.

Would you like a Demo?
  • Works with any SourceCon™ enabled device
  • Up to 30-meter Bluetooth transmission
  • 8 devices pairing memory
  • Pin code protection
  • Extendable antenna
  • Version 4.1 /output class 2

Discover more about our modular audio players

Connection : SourceCon™ interface card slot
Inputs : Bluetooth receiver
Outputs Type : Balanced stereo line outputs (3-pin Euro Terminal Block (Pitch - 3.81 mm))
Outputs Level : 8 dB ~ 82 dB
Bluetooth specification : V4.1
Bluetooth specification : Class 2 output power
THD+N (@ 1 kHz) : < 0.07%
Crosstalk (@ 1 kHz) : 80 dB
Power Consumption : 0.5 W
Dimensions : 87 x 34.5 x 114 mm (W x H x D)
Weight : 0.075 kg
Mounting : SourceCon™ interface card slot
Accessories Included : 2.4 GHz bluetooth antenna (SMA)
Accessories Optional : BAE100 Antenna extender kit

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
