CALI660 Safelatch™ 2-way 6.5" ceiling speaker with Twist-Fix™ grill


Safelatch™ 2-way 6.5" ceiling speaker with Twist-Fix™ grill

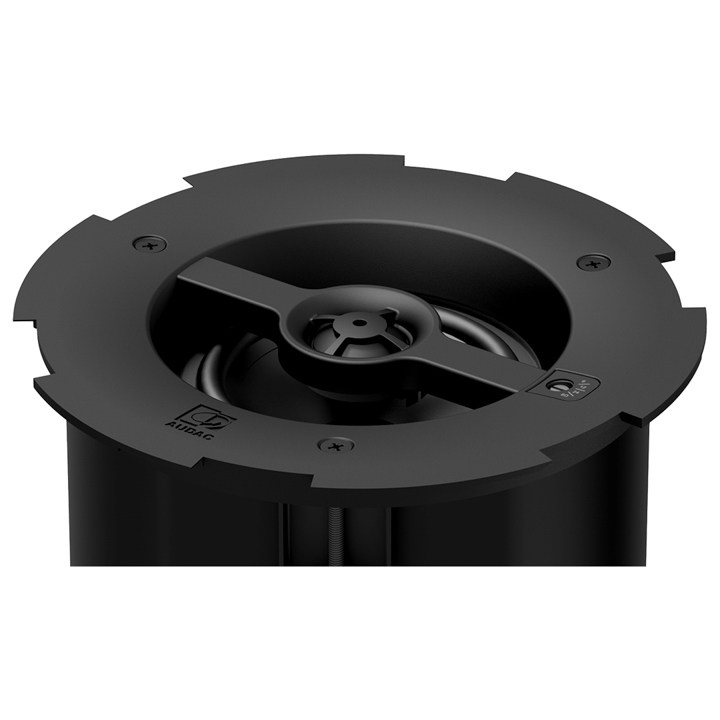

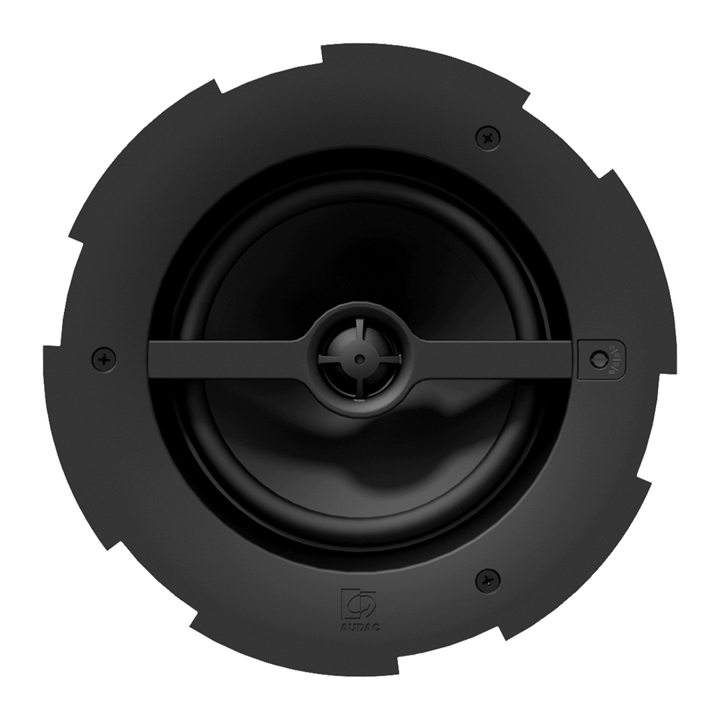

The CALI660 is a 2-way ceiling speaker with rear dome, constructed using a 6.5” cone driver, combined with a coaxially mounted 1” soft dome tweeter which is fitted with a phase plug for excellent off-axis performance up to 145°.

The 2-way construction combination with metal rear-dome guarantees premium performance for demanding applications. A continuous power handling of 60 Watt (RMS) and maximum power handling of 120 watts is achieved, while fitted with a rotary switch for tapping of the 100V line transformer with tappings for 60W, 30W, 15W and an 8 Ohm bypass connection.

Would you like a Demo?
  • Secure SafeLatch™ system
  • Ceramic terminal block
  • Excellent off-axis performance (up to 145°)
  • Unique TwistFix™ grill design
  • Borderless grill design
  • Rotary switch for 16W, 32W, 64W and an 8 Ohm tappings
  • Shallow built-in depth (120 mm)

100V 8 Ohm

Max. Power : 120 W
RMS Power : 60 W
Sound Pressure (Max. W/1m) @ 100 V : 106 dB
Sensitivity (1W/1m) : 86 dB
Frequency Response (± 3 dB) : 90 Hz - 20 kHz
Line Transformer Tappings 1 : 60 W / 167 Ω
Line Transformer Tappings 2 : 30 W / 333 Ω
Line Transformer Tappings 3 : 15 W / 667 Ω
Speaker type : 2-way coaxial

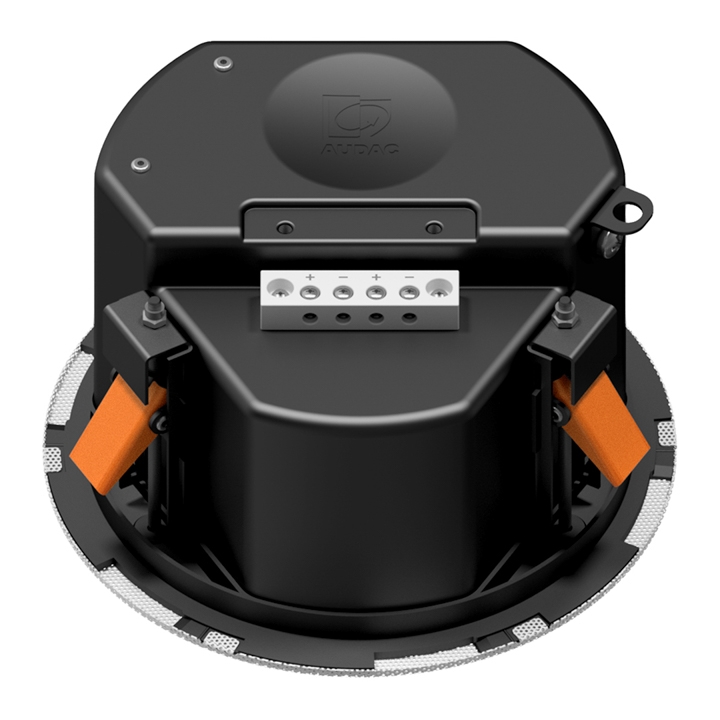

Connection : Ceramic screw terminal with link through
Frequency Range (-10 dB) : 65 Hz - 20 kHz
Dispersion Conical : 145°
Cut-out measurement : 220 mm (Ø)
Dimensions : 242 x 120 mm (Ø x D)
Built-in depth : 120 mm
Operating temperature : -20 °C ~ 60 °C
Construction : ABS and powder coated steel
Mounting : SafeLatch™ mounting system
Weight : 3.42 kg


Tight and secure latching system

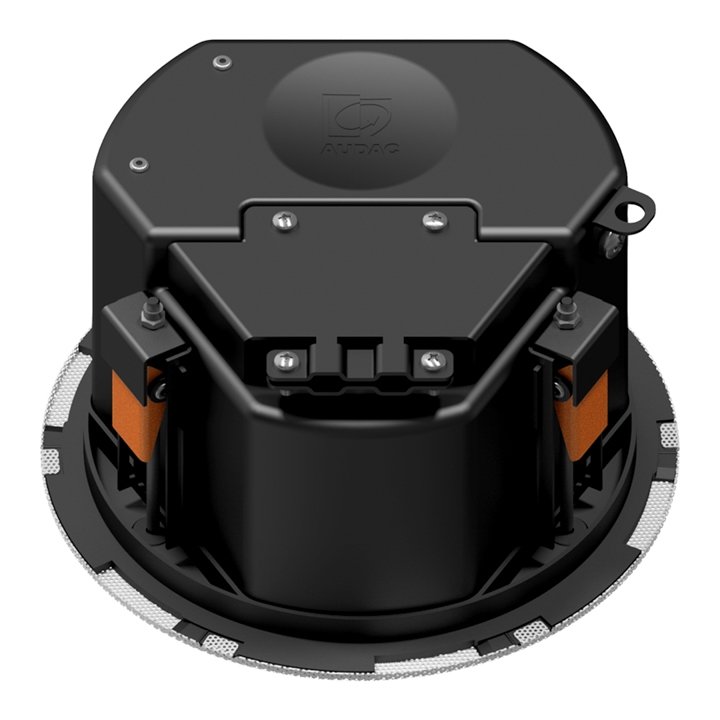

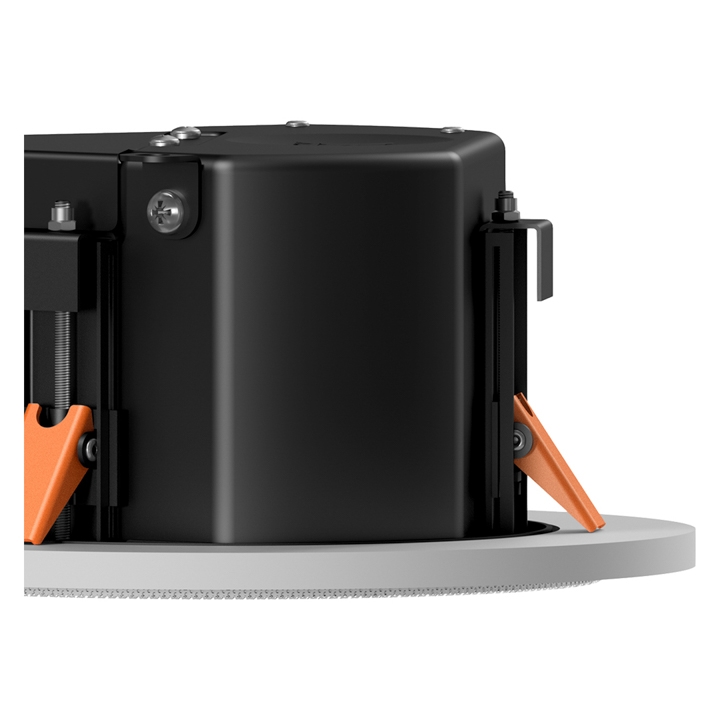

The patented SafeLatch™ mounting system guarantees the most convenient installation for the CALI series speakers. The latching arms automatically lock in place once inserted through the cutout hole. This gives the installer both hands available for directional placement and tightening of the fixation.

Position 1
Connect and insert the ceiling speaker with SafeLatch™ through the installation hole.
The latching arms will automatically lock the ceiling speaker in place.

Position 2
Fix the ceiling speaker in position by tightening the screws of the SafeLatch™ mounting system.

Position 3
Release the screws of the SafeLatch™ system to the maximum for bending the latching arms inwards, which allows removal of the ceiling speaker.



Installing a speaker grill has never been so easy

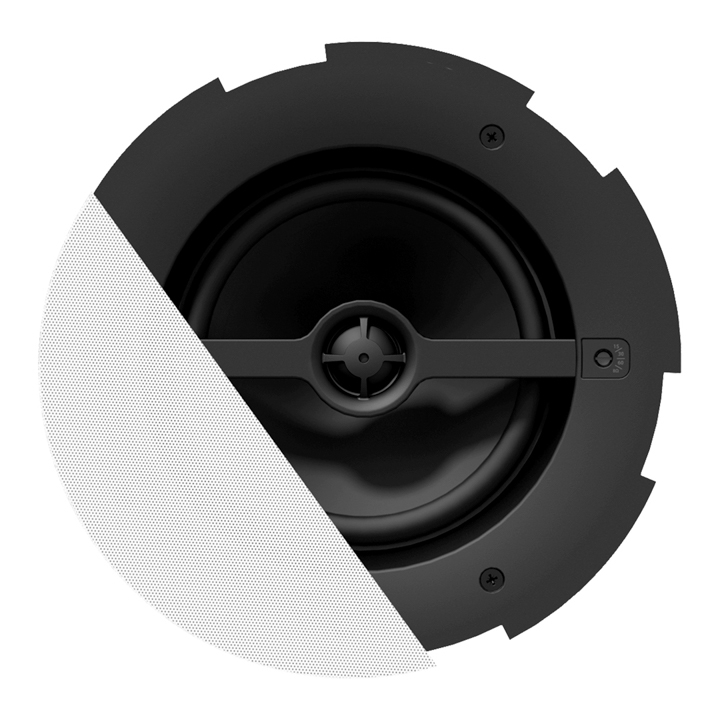

The TwistFix™ system assembles the speakers’ grill through twisting. A bayonet-type locking with lips on the grill side gets fixed through insertion to slots on the speakers housing and giving it a partial turn. This system guarantees lifetime stable mounting while fixation can be done in record-breaking time.

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
