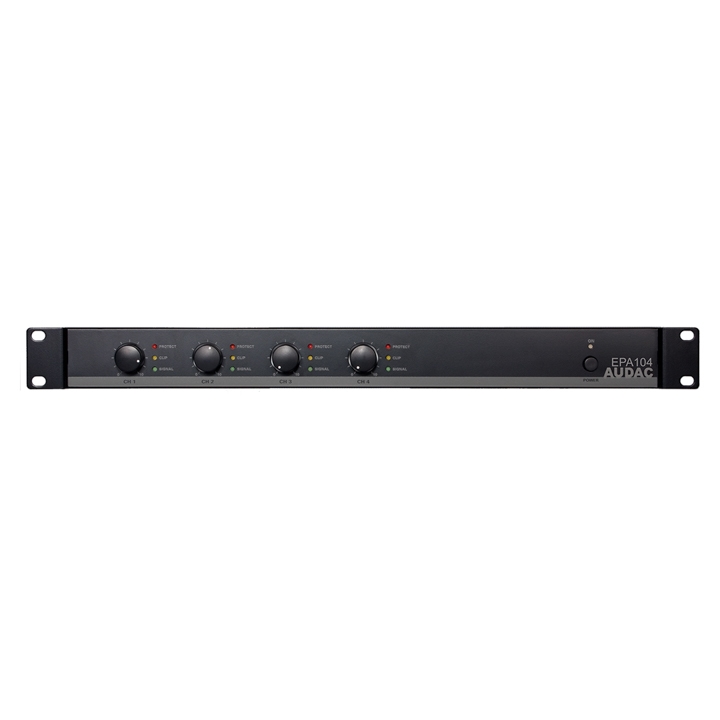

Quad-channel Class-D amplifier 4 x 100W - crossover

This energy-efficient stereo amplifier will automatically switch to a standby mode when no audio signals are detected (less than 1Watt power consumption in standby mode). Their weight and compact size make these single rack space amplifiers ideal for both fixed and mobile installations. Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality. Thanks to the complete passively cooled entity only minimal maintenance is needed while ensuring maximum reliability. The quad-channel construction consists of four channels with the possibility to use two independent stereos. In combination with the integrated active crossover network, it offers a complete solution for compact stereo applications with a bass cabinet. Various specific functions and advanced circuitry guarantee optimal protection against DC malfunctioning, short circuits, overheating, and overload. Signal input connections are integrated with balanced XLR connectors. Outputs are connected using terminal block connectors.

Would you like a Demo?
  • Lightweight Class-D amplifier
  • Terminal block output connections
  • XLR input connections with crossover operation mode switch
  • Energy-star certified
  • Standby energy-saving mode
  • Integrated crossover
  • Convention cooled

Energy Star

Frequency Response (± 3 dB) : 20 Hz - 20 kHz
Signal / Noise : > 90 dB
THD+N (@ 1 kHz) : < 0.1% (1/2 Rated Power)
Crosstalk (@ 1 kHz) : > 70 dB
Technology : Class-D
Power Supply : Switching mode
Power Supply : 100 ~ 240 V AC / 50 ~ 60 Hz
Inputs Sensitivity (1W/1m) : 0 dB (1V RMS)
Inputs Impedance : 12 kΩ balanced
Protection : DC Short circuit
Protection : Over heating
Protection : Over load
Protection : Signal limiting
Cooling : Convection cooled
Operating temperature : 0° ~ 40° @ 95% Humidity

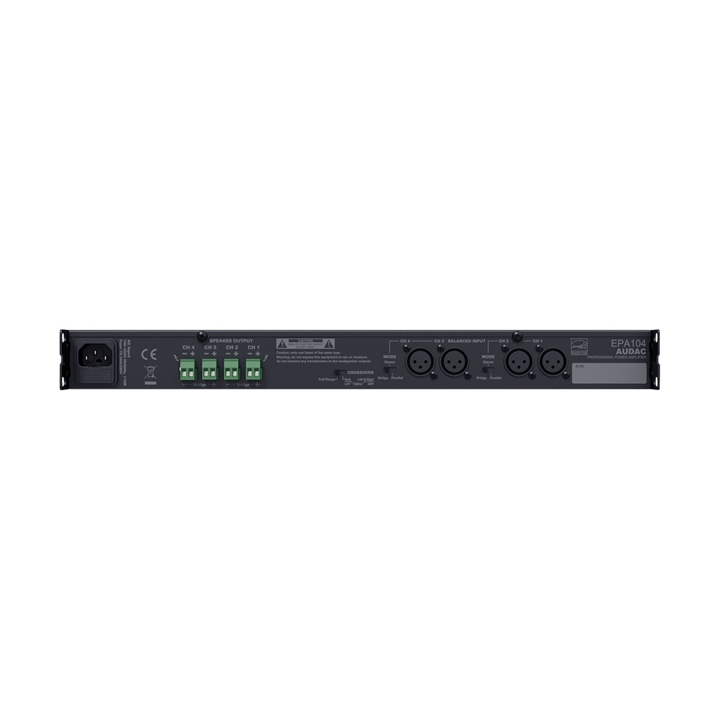

Inputs Connector : 3-pin XLR female
Outputs Connector : 2-pin Euro Terminal Block (Pitch - 5.08 mm)
Power Consumption : 188 W
Power Consumption Standby : 0.8 Watt (30 min standby time)
RMS Power @ 4 Ω Stereo : 4 x 100 W
RMS Power @ 8 Ω Bridge : 2 x 200 W
RMS Power @ 8 Ω Stereo : 4 x 50 W
Dimensions : 482 x 44 x 330 mm (W x H x D)
Weight : 4.500 kg
Mounting : 19”
Unit height : 1 RU
Construction : Steel
Colours : Black

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
