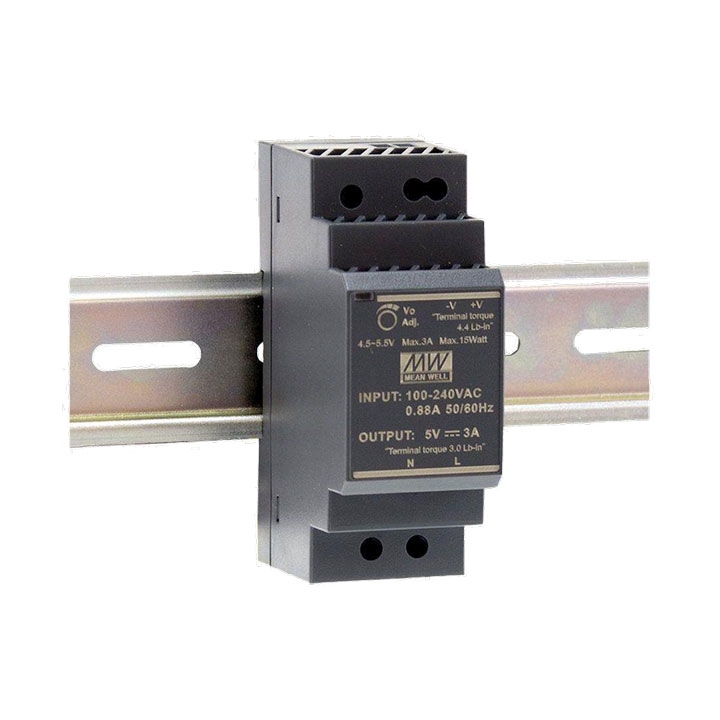

AC-DC Ultra Slim DIN Rail Power Supply

HDR-30 is one economical ultra slim 30W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 35mm (2SU) in width, which allows space-saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC (277VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.

HDR-30 is designed with a plastic housing that it can effectively prevent the user from electric hazards. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -30°C and 70°C under air convection. The complete protection functions and relevant certificates for home automation and industrial control apparatus (IEC60950-1, UL508, UL60950-1, EN61558-2-16) make HDR-30 a very competitive power supply solution for household and industrial applications.

Would you like a Demo?
  • Accessory for ARU204 and ARU208 Relay Group.
  • Technology: AC/DC
  • Output Power: 30W
  • Output Voltage: 24V
  • Output Current: 1.5A
  • Input Voltage: 85 - 264V
  • Universal Input: 110 / 230V
  • Dimensions: 35 x 90 x 54.5 mm (W x H x D)
    Nothing to download.

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
