Full range horn speaker 12" 100V

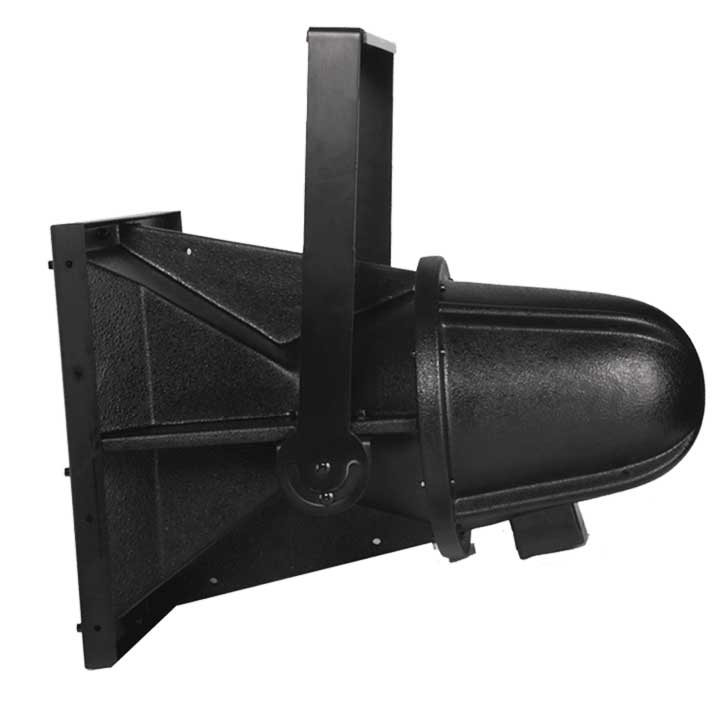

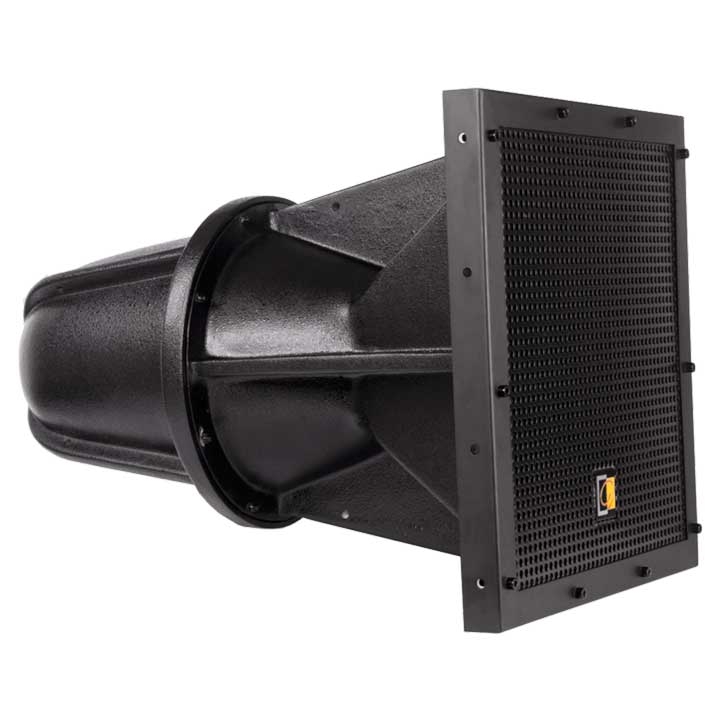

The AUDAC HS212T is a full-range loudspeaker system engineered to provide long-throw, full-range sound projection in a variety of fixed in- and outdoor applications. Its wide, smooth frequency response and high efficiency ensure high-fidelity music reproduction along with a superb projection of clear, intelligible speech at very low distortion. The HS212T features a 1,8” HF driver with a 12” LF loudspeaker combination for the best sound reproduction and has a very special coverage pattern of 40° horizontally and vertically. The HS212T contains the possibility to choose from power tapping for: - 240 Watt, 120 Watt, 60 Watt @ 100V - 8 Ohm impedance. The construction of the HS212T is made of polyester with textured EDPM black coating and a perforated aluminum grill front finish. Behind the aluminum grill, there’s an acoustic foam assembled, which prevents rain from coming into the speaker. Due to an Ingress Protection rating (IP) of 65, this speaker is suitable for any environment where humidity or moisture is present. At the rear, you’ll find cable clamps to select the line transformer as desired. The cable clamps are shielded to obstruct moisture and humidity. Mounting brackets: - MBK212Z (Stainless Steel)

Would you like a Demo?
  • Multi-Layer glass composite material with textured EPDM black coating
  • IP54 Ingress protection
  • Weatherproof speakON connector
  • Multi-tapping 100V line transformer
  • 12" high output woofer with a 1.8" voice coil

100V IP65

Speaker type : 2-way horn speaker
Max. Power : 700 W
RMS Power : 350 W
Impedance : 8 Ω
Line Transformer Tappings 1 : 240 W / 42 Ω
Line Transformer Tappings 2 : 120 W / 83 Ω
Line Transformer Tappings 3 : 60 W / 167 Ω
Sensitivity (1W/1m) : 95 dB
Frequency Response (± 3 dB) : 80 Hz - 18 kHz
Frequency Range (-10 dB) : 65 Hz - 20 kHz
Crossover Frequency : 1.5 kHz
Crossover Type : Passive built-in
Dispersion Horizontal : 40°
Dispersion Vertical : 40°
Ingress Protection rating : IP65
Connectors : Barrier terminal block in waterproof connection box
Drivers HF : 1.8” Neodymium compression driver
Drivers MF : 12”
Dimensions : 508 x 508 x 732 mm (W x H x D)
Weight : 34.500 kg
Construction : Multi-Layer glass composite material with textured EPDM black coating
Front finish : Powdercoated aluminium with lining
Mounting & handling : Mounting bracket fixing holes
Colours : Black
Accessories Optional : MBK212Z Wall mounting bracket

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
