LINO4 Column speaker 4 x 2"

MSRP: POA
AULINO4/B

Column speaker 4 x 2"

The LINO series are column speaker series designed for a wide variation of general-purpose applications in acoustic difficult environments, ranging from speech and announcement applications to background music systems. Typical applications are houses of worship, auditoria, presentation rooms, public transportation hubs, … and many more. They are solidly constructed using solid aluminum materials and finished through a rigid finely perforated front grill.

The LINO4 column speaker consists of 4 x 2” low/mid-frequency drives with a 1” central positioned tweeter for the high frequencies. It reaches a power handling of 20 Watt, while a multi-tapping line transformer allows it to be connected in 70V/100V public address systems with power taps for 20W, 10W, and 5W (2.5 W for 70V use only). It offers solutions for uniform acoustic performance in any type of system in reverberant venues while reducing echo and microphone feedback to optimizes the intelligibility of music & speech.

Mounting is done through an L-shaped bracket on top and bottom, offering optimal flexibility for fixation and directional placement. The distance from the speaker to the wall is 10mm, while it can be vertically inclined 4°. Connections are made through a multi-tapping terminal block connector and A multi-tapping line transformer allows them to be connected to 70/100V public address systems with various power tapping settings, while connections in low impedance systems are also possible.

*Given dispersion values are the average beamwidth within the 1 kHz – 4 kHz frequency range (-6 dB - 1/3 oct), which are critical for the speech intelligibility in the main application field of these loudspeakers.

Variant MSRP

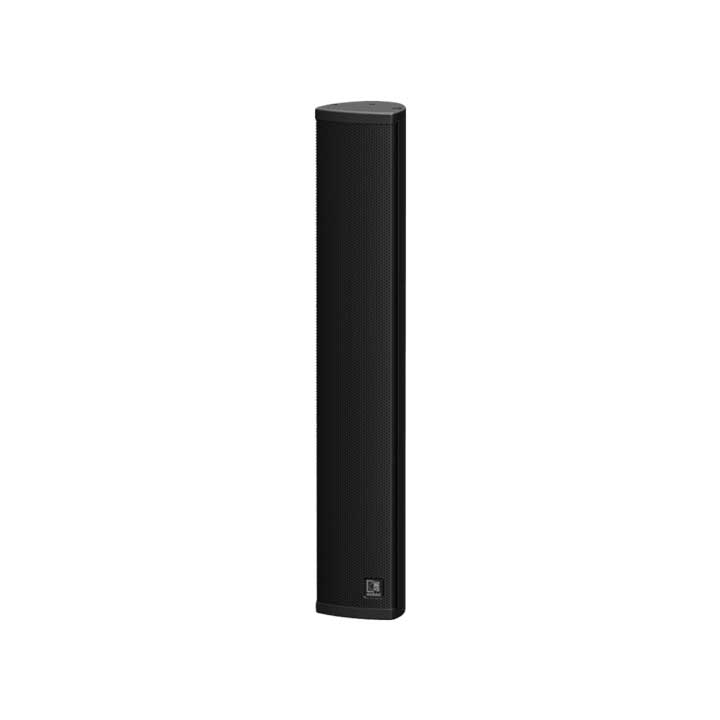

Black version AULINO4/B POA

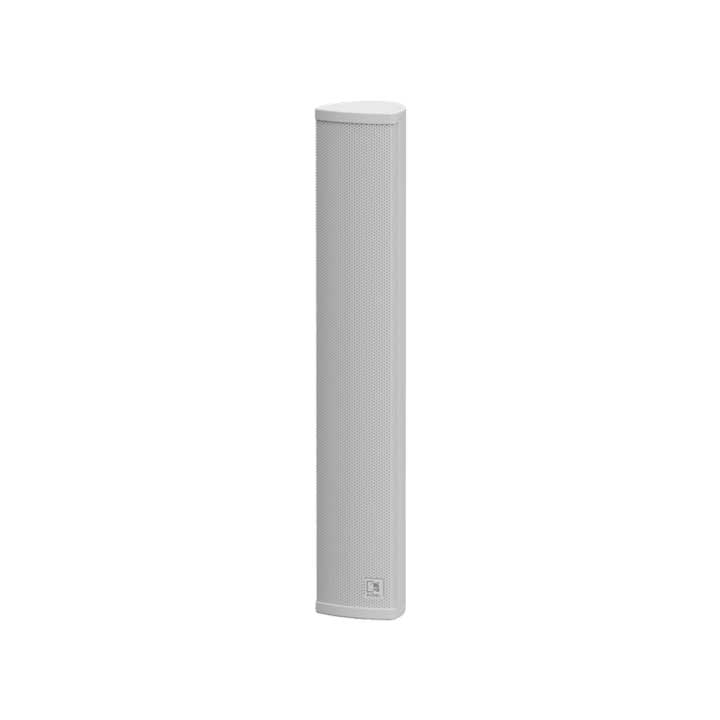

White version AULINO4/W POA
Would you like a Demo?
  • 4 x 2" high-quality broadband speakers
  • Multi-functional wall bracket allowing swiveling and down-tilting
Speaker Type Column Speaker
Max. Power 40 W
RMS Power  20 W
Impedance  8 Ω
Sensitivity (1W/1m) 88 dB
Sound Pressure (Max. W/1m)  101 dB
Drivers  4 x 2"
Connectors 6-pin Euro Terminal Block
Frequency Range (-10 dB) 120 Hz - 20 kHz
Frequency Response (± 3 dB) 170 Hz - 15 kHz
Line Transformer Tappings 1 250 Ω - 100 V / Not used - 70 V / 20 W
Line Transformer Tappings 2 500 Ω - 100 V / 20 W - 70 V / 10 W
Line Transformer Tappings 3 1000 Ω - 100 V / 10 W - 70 V / 5 W
Line Transformer Tappings 4 2000 Ω - 100 V / 5 W - 70 V / 2.5 W
Drivers (HF)  1"
Temperature Operating -20 - 50 °C
Dispersion (Horizontal) 160° (-6 dB avg. 1 kHz - 4kHz)
Dispersion (Vertical) 33° (-6 dB avg. 1 kHz - 4 kHz)

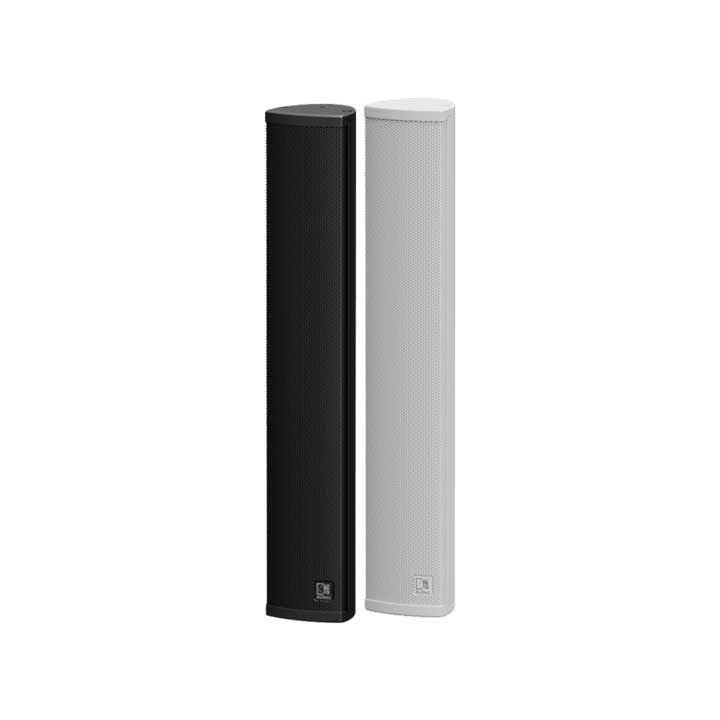

Colors Black & White
Construction  Aluminum
Front Finish Aluminum Grille
Dimensions 72 x 414 x 68.3 mm (W x H x D)
Weight 4 lbs / 1.81 kg
Accessories Included 1 x 6-pin Euro Terminal Block Input Connector(s)
Accessories Included Mounting bracket



ADVANCED MOUNTING POSSIBILITIES

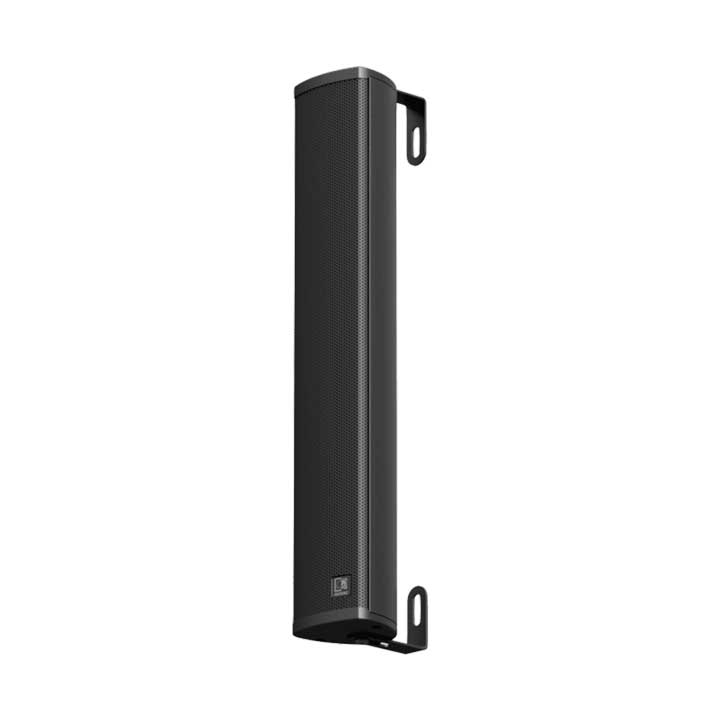

The L-shaped mounting brackets on the top and bottom of the LINO series ensure optimal flexibility for fixation and directional placement. The loudspeaker can be tilted in a vertical direction and rotated in a horizontal direction, creating an optimal sound dispersion.

CRYSTAL CLEAR SOUND PRODUCTION

The acoustical composition of the LINO series is developed to reproduce an extremely detailed sound. Due to its two-way design, which consists of 4 or 10 x 2" low/mid-frequency drivers and a 1" central positioned tweeter for high frequencies, the loudspeaker will leave its listeners stunning within his range.

SLEEK ALUMINUM DESIGN

With the use of solid aluminum materials and a rigid and finely perforated front grill combined with a width of just 72mm, this column speaker proves to be an elegant solution in acoustic difficult environments.

EASE Focus 3EASE FOCUS 3

UNIVERSAL SOUND SYSTEM MODELING IN 3D

EASE Focus 3 is an acoustic simulation program for 3D modeling of line arrays, sub arrays, columns, and conventional loudspeakers.

Find out more about EASE Focus 3

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
