MERO5 High-end 2-way in-wall speaker 5"


High-end 2-way in-wall speaker 5"

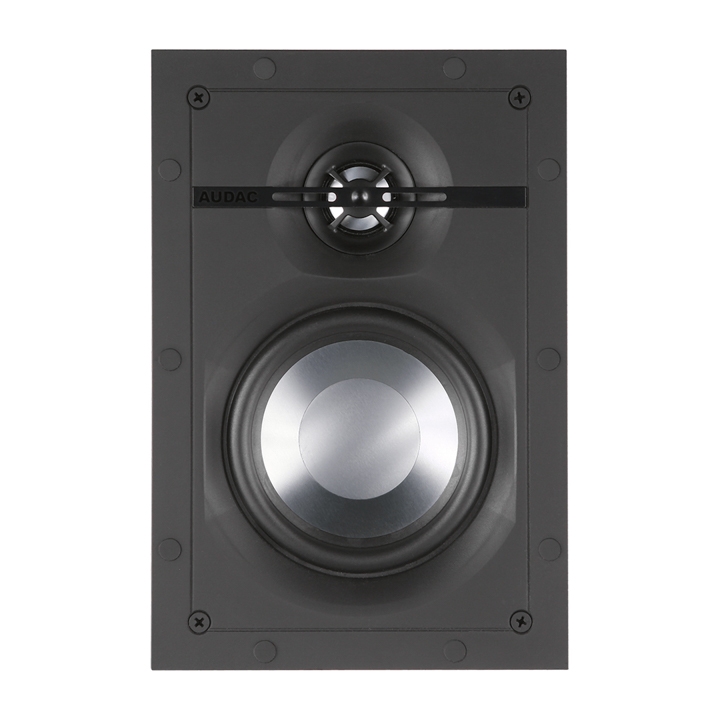

The selection of high-grade materials in combination with accurate acoustics craftsmanship makes the MERO speakers superior in their class. The medium sized MERO5 consists of a 5” aluminum cone woofer and complementary 1” dome tweeter that are smoothly matched and optimized using a high-quality crossover network. An acoustically optimized waveguide matches the dispersion of woofer and tweeter, while a phaseplug reduces diffraction and enhances off-axis high frequency response. All these details share their part to its pure sound. An elegant look with minimal visual impact is created by the slim grill with very thin border, while great ease and installers convenience is guaranteed using the quick-fix mechanism with Gold-CON connectivities. The grill is held in place using neodymium magnets, providing a quick and stable assembly. Installation can be done in both vertically and horizontally, while the rotatable tweeter allows optimal orientation positioning.

Would you like a Demo?
  • 1" + 5" Aluminum membrane drivers
  • SlimLine™ grill with 1mm thin border
  • Gold-Con™ spring clamps

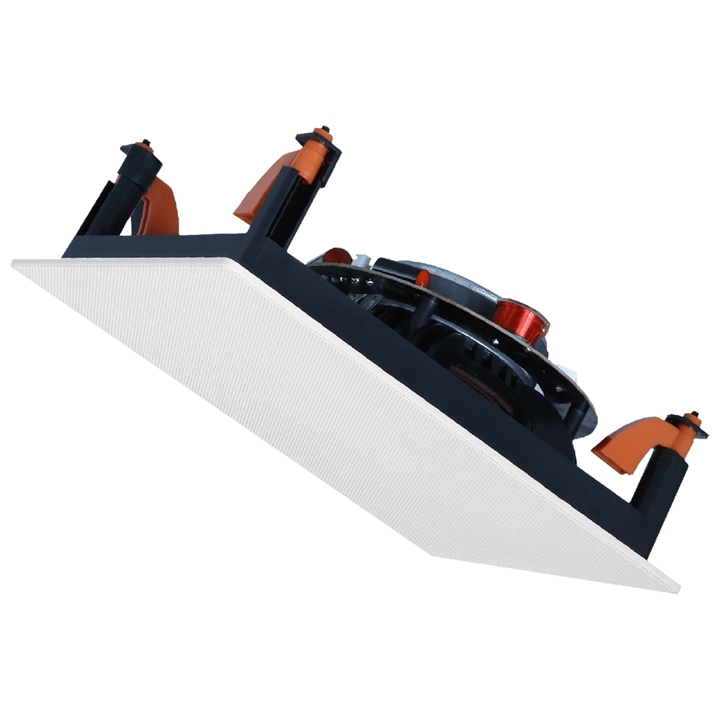

  • QuickFix installation system

8 ohm

Speaker type : 2-way
Max. Power : 100 W
RMS Power : 50 W
Impedance : 8 Ω
Sensitivity (1W/1m) : 85 dB
Sound Pressure (Max. W/1m) : 102 dB
Frequency Response (± 3 dB) : 70 Hz - 20 kHz
Frequency Range (-10 dB) : 55 Hz - 20 kHz
Crossover Frequency : 3 kHz
Crossover Type : Passive built-in
Dispersion Horizontal : 160°
Dispersion Vertical : 140°
Connectors : Gold-Con™ spring clamps
Drivers HF : 1” Aluminium membrane
Drivers LF : 5” Aluminium membrane (coaxial)
Dimensions : 161.5 x 236.5 x 74.1 mm (W x H x D)
Weight : 1 kg
Construction : ABS
Front finish : Thin edged white grill (RAL9003)
Cut-out measurement : 139 x 214 mm
Built-in depth : 71 mm
Mounting & handling : 4 Screw quick-fixing mechanism
Colours : Black frame & white grill
Operating temperature : -20 °C ~ 60 °C
Accessories Included : Cut-out template
Accessories Included : GLM05/W - White grill (RAL9003)
Accessories Optional : WTR24 - 24W 100V line transformer
Accessories Optional : GLM05/B - Black grill (RAL9005)
Accessories Optional : GLM05/P - Paintable grill

The missing link in speaker systems

These high quality loudspeaker connections are treated with an additional conductive Gold plating that ensures the best sound quality and creates the superior connection between the speaker and the audio cable. The spring clamp connector ensures a rapid installation time without the need of additional tools.

Allow your ears to spark your attention, not your eyes

Due to its slim design with a very thin border of only 1 mm and a limited grill depth which extrudes from the ceiling surface by only 3.2 mm, loudspeakers with SlimLine™ technology will become nearly invisible when mounted. This elegant and unobtrusive grill is held in place by means of powerful neodymium magnets, making assembly and disassembly very easy, while also providing an extremely reliable solution for keeping the grill in place during the complete lifetime of the loudspeaker.

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
