MPX88 SurfaceTouch™ paging microphone 8 zones


SurfaceTouch™ paging microphone 8 zones

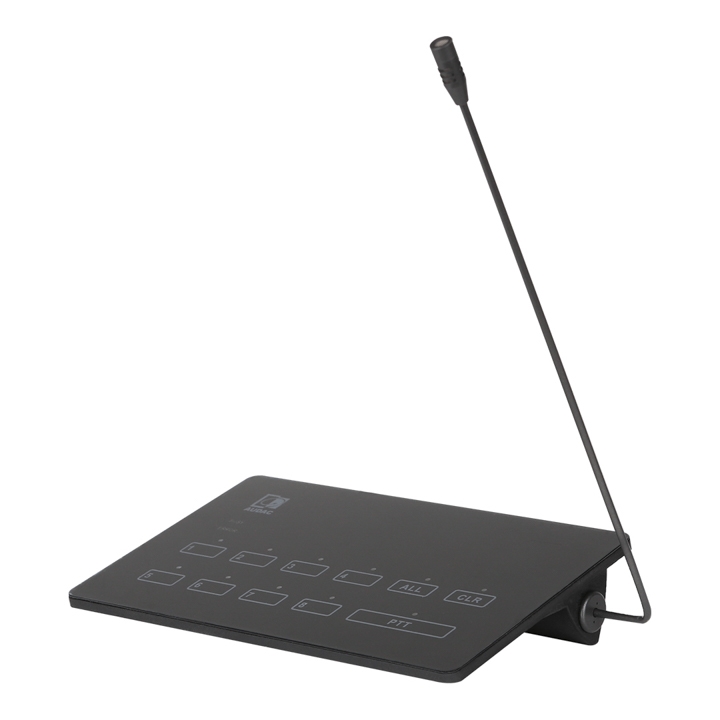

The MPX series are paging microphones specifically designed for use in combination with MTX series audio matrix systems. The MPX88 is the 8-zone system allowing it to be used in combination with an MTX88 8-zone audio matrix system. The modern shaped enclosure is finished with a real glass front panel provided with an anti-glare coating. This offers a microphone with an elegant outlook which will be appreciated in any office or even designed interior environment. The controls are integrated into the glass panel through a capacitive touch button principle without any mechanically moving parts, same as the indicator LED’s which are completely blended. This guarantees a real high-end outlook and user experience. An integrated chime tone is audible before each announcement. Announcements are made through the integrated pipe-neck microphone with a cardioid pickup pattern, which can be tilted to the desired angle. Both zone selection and data bus indicators are implemented, giving an overview of the system's current operation mode and data bus occupation. A quick operation is made possible using the ‘select’ & ‘clear all’ buttons, while the ‘push-to-talk’ (PTT) button must be pressed during announcements. Connection to the matrix system is done through a fixed connection cable with a length of 2 meters. This distance can be extended to a maximum length of 300m using standard CAT5E (or better) twisted-pair cabling. Cascading multiple paging stations is possible using the priority-based (user-configurable) databus when using the additional junction box ARJ03P.

Would you like a Demo?
  • High-quality back electret condenser capsule with cardioid pickup pattern

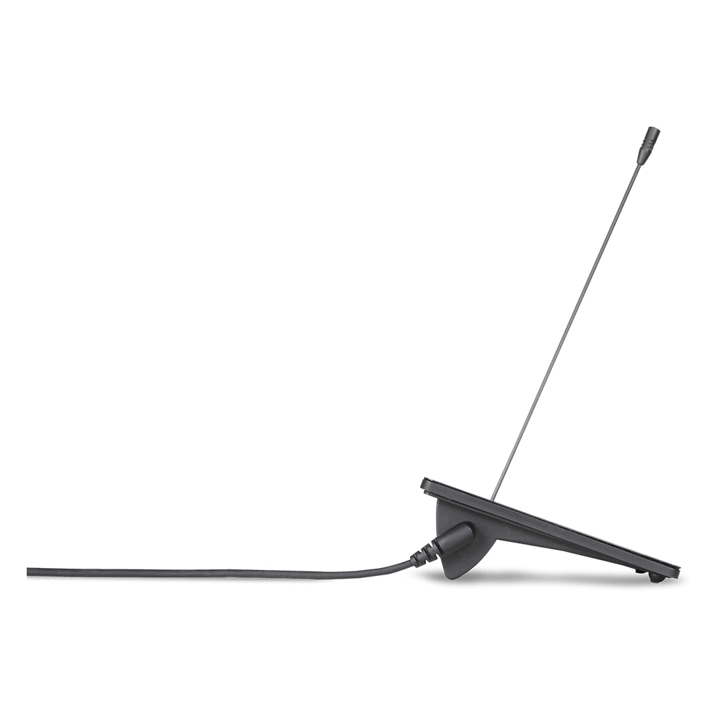

  • Tiltable pipe-neck microphone
  • SurfaceTouch™ front panel
  • Capacitive & illuminated selection buttons (8x)
  • Level & status indication LED’s
Microphone Type : Back electret condenser
Microphone Length : 250 mm
Frequency Response (± 3 dB) : 50 Hz - 16 kHz
Sensitivity (1W/1m) : 45 dB
Sound Pressure (Max. W/1m) : 130 dB
Power Consumption : 1.5 W
Power Supply : 24 V DC (from MTX)
Connectors : RJ45 (Fixed 2 m cable)
Polar Pattern : Cardioid
Dimensions : 221.5 x 43 x 111.6 mm (W x H x D)
Weight : 0.330 kg
Construction : ABS
Databus Control : RS-485
Databus Audio : Differential analogue
Colours : Black (RAL9004)
Paging Zones : 8 Zones (use with MTX88)
Accessories Included : Windscreen
Accessories Included : Connection cable 2 meter(fixed)

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
