POW2 Power amplifier kit


Note: Limited Stock - Clearance

Power amplifier kit

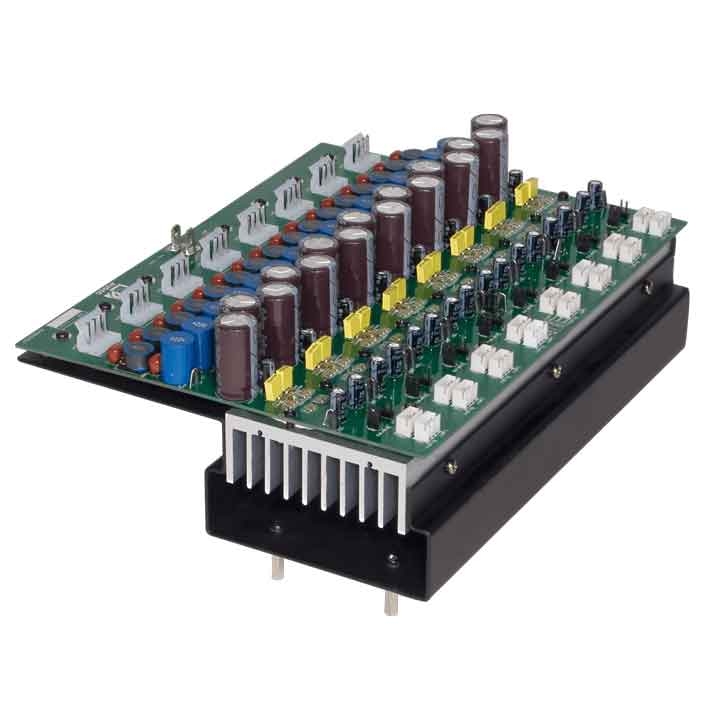

The POW2 is an optional power amplifier kit that can be installed inside the R2 and M2 Multi-Zone Digital Audio Matrix housing. In its standard configuration, the R2 or M2 is equipped with 8 line-level output channels on which the appropriate amplifiers can be connected, depending on the required power for the specific application. For certain applications where no large power capacities are required, the optional power amplifier kit can be installed, resulting in a multifunctional matrix and power amplifier merged into one single housing. The POW2 consists of a 16 channel (8 Stereo channel) Class-D amplifier, delivering a power of 60 Watt to every channel at 4 Ohm. In bridge mode, an output power of 8 x 120 Watt can be obtained at 8 Ohm. It features an advanced protection circuit that protects against DC malfunctioning, short circuit, overheating, and overload while a large heatsink and speed-controlled ventilation fan ensure a proper operating temperature is continuously maintained. The POW2 power amplifier kit includes the power amplifier module, a switching power supply, and all necessary connection and installation accessories to properly install the kit inside the R2 or M2’s housing. Note: The POW2 replaces the older R2POW model, which offered comparable functionality and performance.

Would you like a Demo?


  • Lightweight Class-D amplifier
  • High efficiency
  • 16 x power amplifier outputs
  • Stereo & bridged mode
  • Advanced protection circuit


  • Hotels
  • Public facilities
  • Corporate spaces
  • Residential
  • Houses of worship
  • Clubs, bars, restaurants
Load impedance Stereo : 4 Ω
Load impedance Bridge : 8 Ω
Inputs Connector : Internal linked
Outputs Connector : 4-pin Euro Terminal Block (5.08 mm / On Matrix Chassis)
Frequency Response (± 3 dB) : 20 Hz - 20 kHz
Signal / Noise : > 100 dB
THD+N (@ 1 kHz) : < 0.1% (1/2 Rated Power)
Technology : Class-D
Cooling : Temperature controlled FAN
Protection : DC Short circuit
Protection : Over heating
Protection : Over load
Operating temperature : 0° ~ 40° @ 95% Humidity
Power Supply : Switching mode
RMS Power @ 4 Ω Stereo : 16 x 60 W
RMS Power @ 8 Ω Bridge : 8 x 120 W
RMS Power @ 8 Ω Stereo : 16 x 30 W
Weight : 3.900 kg
Mounting : Integrated in R2 or M2 housing

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
