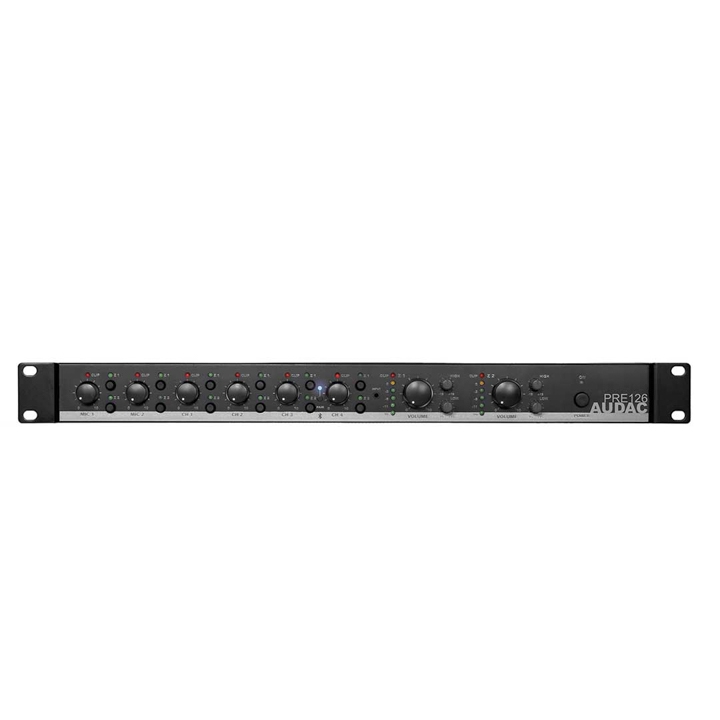

PRE126 Two zone - 6 Channel stereo preamplifier

MSRP: POA
AUPRE126-

Two zone - 6 Channel stereo preamplifier

The PRE126 is a two-zone 6 channel stereo preamplifier containing a variety of input possibilities for microphone and line-level audio signals, offering a possibility for a wide range of small to medium-sized audio installations in various kinds of applications with a two-zone audio distribution system. It features two balanced mono inputs with phantom power and three-band tone control allowing the connection of microphones or line level signal sources. The switchable talkover function suppresses background music if a priority signal is present, making it suitable for paging or voice file announcements. The four stereo line-level inputs are implemented as a balanced one fitted with XLR connectors and three unbalanced ones fitted with RCA connectors. Hereby, connection possibilities for a wide variety of line-level sources are guaranteed. Additionally, an integrated Bluetooth receiver (mixed with Ch 3) and a 3.5 mm jack connection on its front panel (mixed with Ch 4) are offering convenient wired or wireless connection possibilities for portable and handheld devices including laptops, smartphones, and tablets. A priority mute contact suppresses all (nonpriority) music sources in case of contact closure, allowing to link autonomous alarm systems. Input volume control is done using the corresponding rotary dials on the front panel, while routing is settings are made through zone selection buttons. Each output section features a 6-segment LED VU bar, a master volume control, and a 2-band tone control. Connections and input or output configurations such as gain adjustment and mono/stereo switching can be done through the provided controls on the back of the device.

Would you like a Demo?
  • 2 Balanced stereo line outputs
  • 3 unbalanced stereo line inputs
  • 1 Balanced stereo line input
  • 2 x Microphone input
  • Priority audio inputs with phantom power
  • Front 3.5mm Jack (mixed with Ch 4)
  • Integrated Bluetooth receiver
  • 1 x Priority mute contact
Inputs Balanced Microphone Type : 2 x Balanced Microphone
Inputs Balanced Stereo Type : 1 x Stereo Balanced Line
Inputs Unbalanced Stereo Type : 3 x Stereo Unbalanced Line
Inputs : Bluetooth receiver (mixed with Ch 3)
Inputs : Front 3.5mm Jack (mixed with Ch )
Inputs : Priority mute contact
Outputs Balanced Stereo Type : 2 x Balanced Stereo outputs
Inputs Balanced Microphone Sensitivity (1W/1m) : -6 dB ~ -50 dB
Inputs Line Sensitivity (1W/1m) : -20 dB ~ +4 dB
Inputs Balanced Microphone EQ High : 15 dB (12.5 kHz)
Inputs Balanced Microphone EQ Mid : 15 dB (2.5 kHz)
Inputs Balanced Microphone EQ Low : 15 dB (80 Hz)
Inputs Microphone Phantom Power : 15 V DC
Outputs EQ Treble : 15 dB (2.5~20 kHz)
Outputs EQ Bass : 15 dB (100 Hz)
Frequency Response (± 3 dB) : 20 Hz - 20 kHz
Crosstalk (@ 1 kHz) : > 70 dB
Power Supply : 100 ~ 240 V AC / 50 ~ 60 Hz
Power Consumption : 12 W
Signal / Noise : > 90 dB
THD+N (@ 1 kHz) : < 0.05%
Dimensions : 482 x 44 x 335 mm (W x H x D)
Weight : 4,10 kg
Unit height : 1 HE

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
