WX302_O Outdoor universal wall speaker 3"

MSRP: POA
AUWX302MK2/OB

Outdoor universal wall speaker 3"

The WX302/O speakers are specifically designed for outdoor use and lend themselves to a variety of applications, ensuring true-to-nature, high-fidelity reproduction of music and speech.

The material used for the mounting bracket on the outdoor versions has been improved by using aluminum, making the WX series MK2 even more resistant to extreme weather conditions. The bracket allows users to mount the WX302/O vertically as well as horizontally.

Special treatment with powder coating provides the necessary protection for all weather conditions. Because of the special powder coating, the brackets can pass the 96 hours salt-spray test, which has reached the standard for outdoor applications. A drain hole behind the aluminum grill allows rainwater to flow out. The waterproof AWX-5 connector at the backside makes sure that this speaker meets the IP55 standards.

Variant MSRP

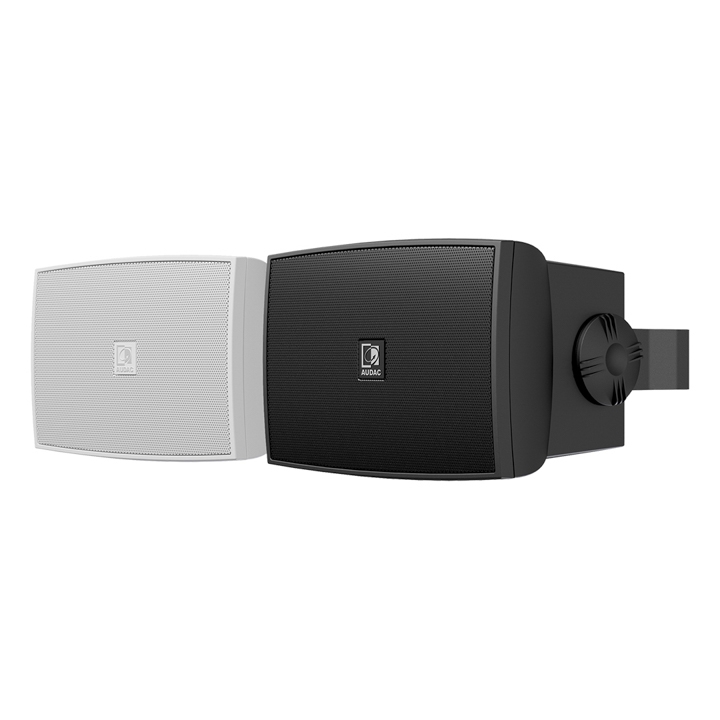

Outdoor black version AUWX302MK2/OB POA

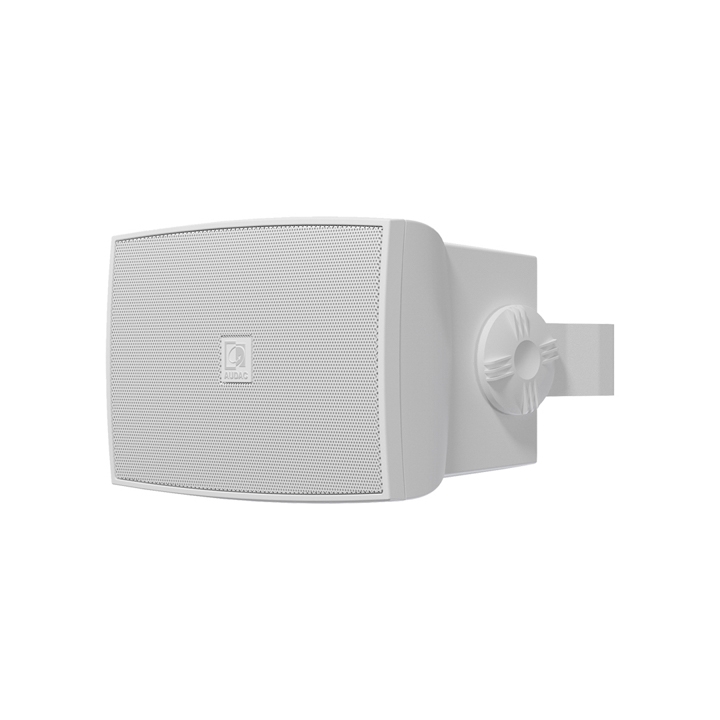

Outdoor white version AUWX302MK2/OW POA
Would you like a Demo?

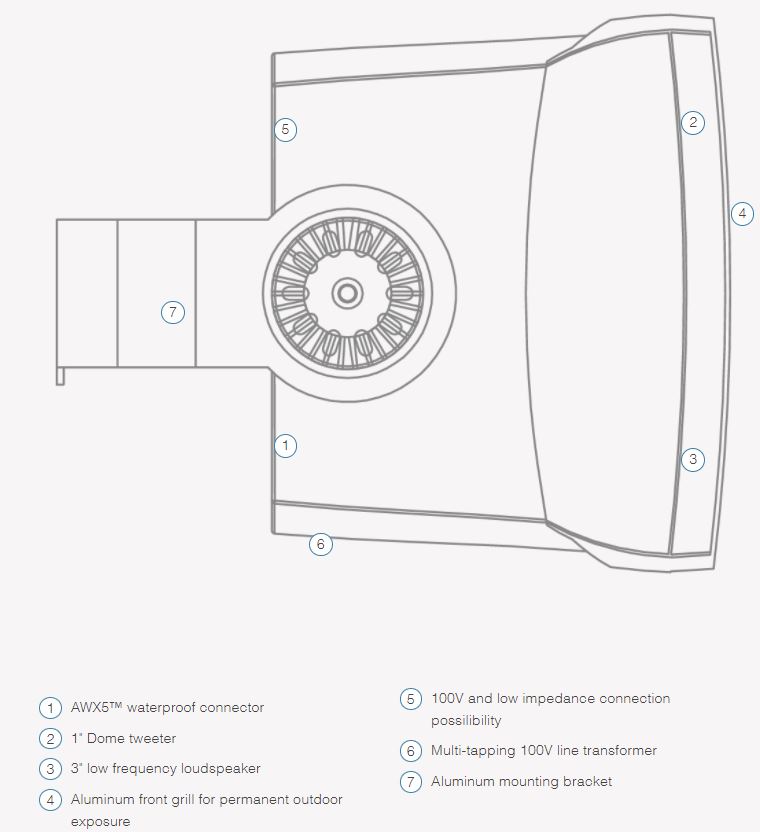

  • 1" Dome tweeter
  • 3" Low-frequency loudspeaker
  • Vertical and horizontal mounting
  • Aluminum grill
  • Aluminum mounting bracket (MK2 version)
  • Multi-tapping 100V line transformer
  • 100V and low impedance connection possibility
  • AWX5™ waterproof connector

IP55 100V 8 Ohm Waterproof

Note: Sold in pairs, priced per speaker

Connectors : Waterproof AWX-5 connector
Crossover Frequency : 2.5 kHz
Crossover Type : Passive built-in
Drivers HF : 1”
Drivers LF : 3”
Frequency Range (-10 dB) : 60 Hz - 20 kHz
Frequency Response (± 3 dB) : 90 Hz - 18 kHz
Impedance : 8 Ω
Ingress Protection rating : IP55
Line Transformer Tappings 1 : 250 Ω - 100 V / Not used - 70 V / 20 W
Line Transformer Tappings 2 : 500 Ω - 100 V / 20 W - 70 V / 10 W
Line Transformer Tappings 3 : 1000 Ω - 100 V / 10 W - 70 V / 5 W
Max. Power : 60 W
Sensitivity (1W/1m) : 85 dB
Sound Pressure (Max. W/1m) @ 100 V : 95 dB
Sound Pressure (Max. W/1m) @ 8 Ω : 100 dB
Speaker type : 2-way
RMS Power : 30 W
Dispersion Horizontal : 100°
Dispersion Vertical : 100°
Colours : Black (RAL9005) (WX302MK2/OB)
Colours : White (RAL9003) (WX302MK2/OW)
Construction : ABS
Dimensions : 7.8" x 5.07" x 4.7" (199 x 129 x 120) mm (W x H x D)
Front finish : Aluminium grille
Mounting & handling : Mounting bracket
Operating temperature : -13 °F ~ 158 °F (-25 °C ~ 70 °C)
Weight : 3.659 lbs (1.660 kg)
Accessories Included : 5-pin connection cable (70 cm)
Accessories Included : Mounting bracket
Accessories Optional : AWC07 - AWX5 cable 0.7 m
Accessories Optional : AWC25 - AWX25 cable 2.5 m
Accessories Optional : AWC50 - AWX50 cable 5 m

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
