AUDAC TOUCH™ 2

• AUDAC Touch™ 2 - Release notes Version 2.7
• AUDAC Touch™ 2 - Release notes Version 2.6
• AUDAC Touch™ 2 - Release notes Version 2.5
• Download All

Choose your native platform and get started!

Alternatively, visit AUDAC's website.

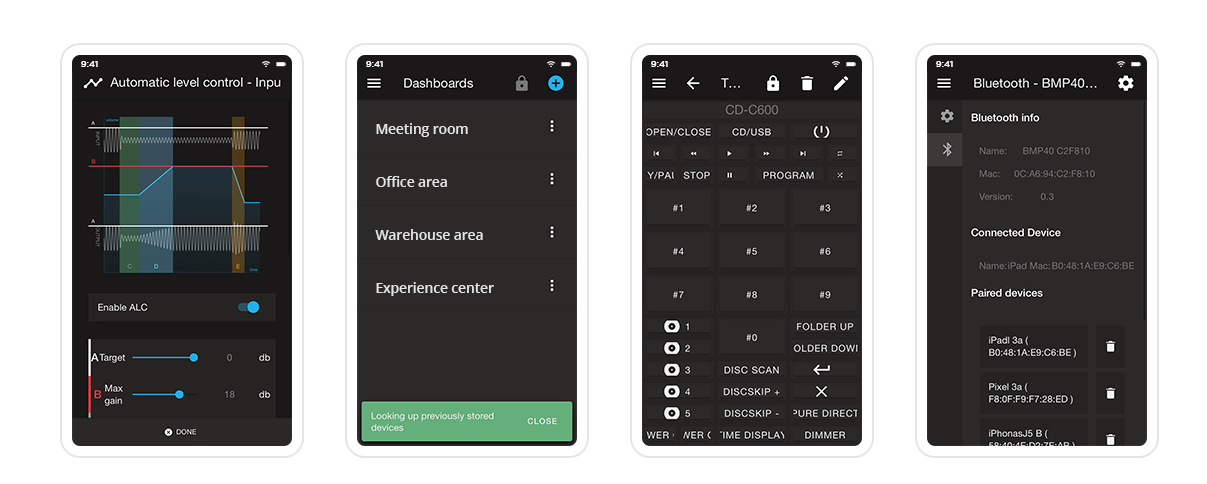

100% CUSTOMIZABLE

SELECT YOUR WIDGETS

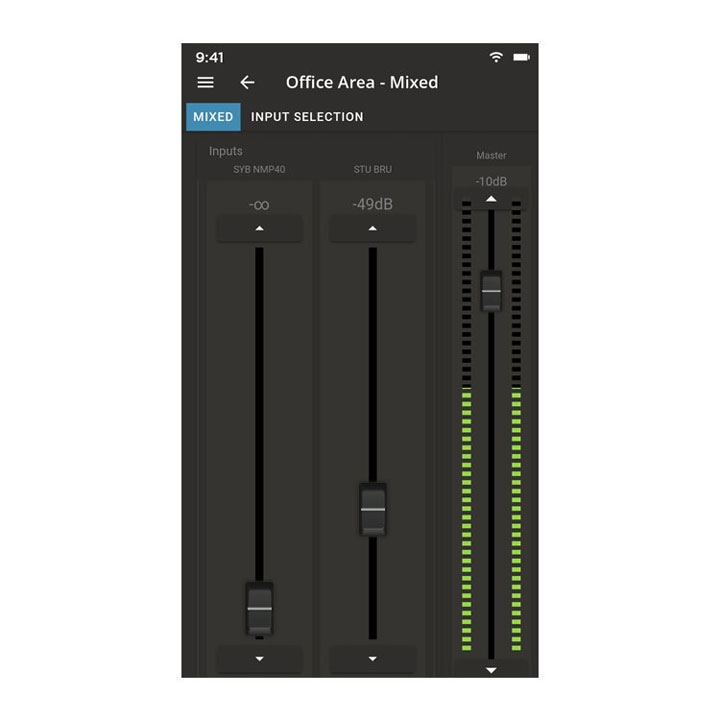

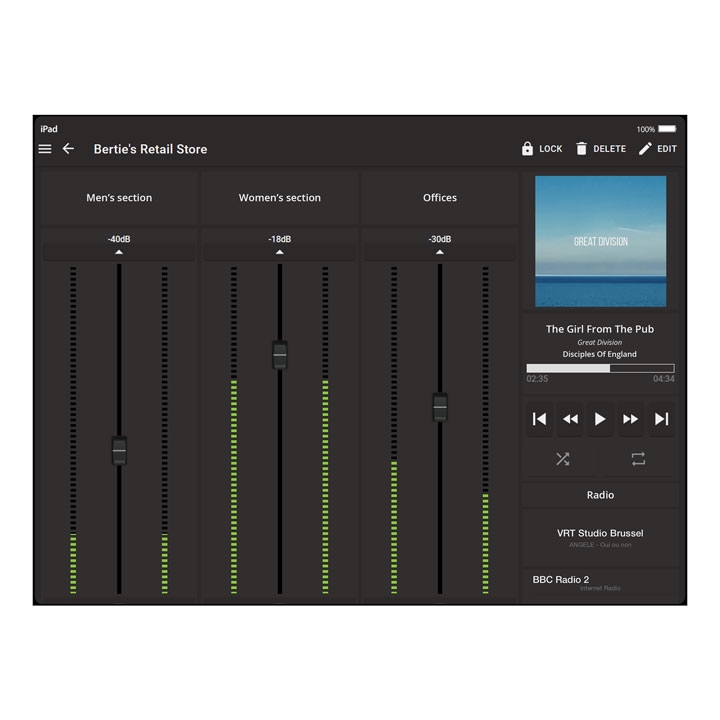

OUTPUT WIDGET

Input selection and output volume adjustment are made possible through graphical slide faders combined with drop-down menus.

LICENSED STREAMING*

The NMP40, a professional audio streaming SourceCon™ module for Spotify™ and Soundtrack Your Brand© is now supported, allowing you to easily integrate and control both streaming services from within the application.

*Always check with your local license regulations.

PROJECTION SCREEN

Relay unit controls or 3rd party equipment commands can get implemented, offering countless possibilities for expansion of your AV system to become a total system control platform.

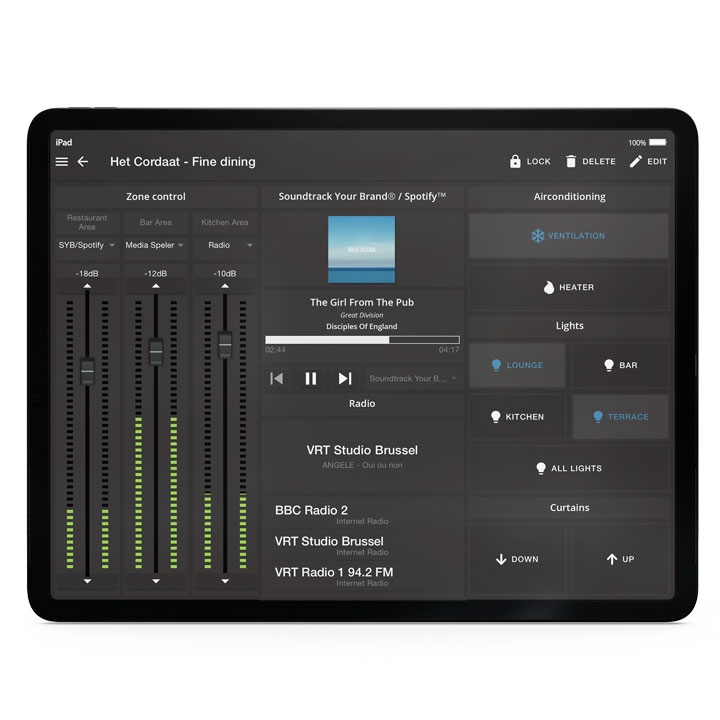

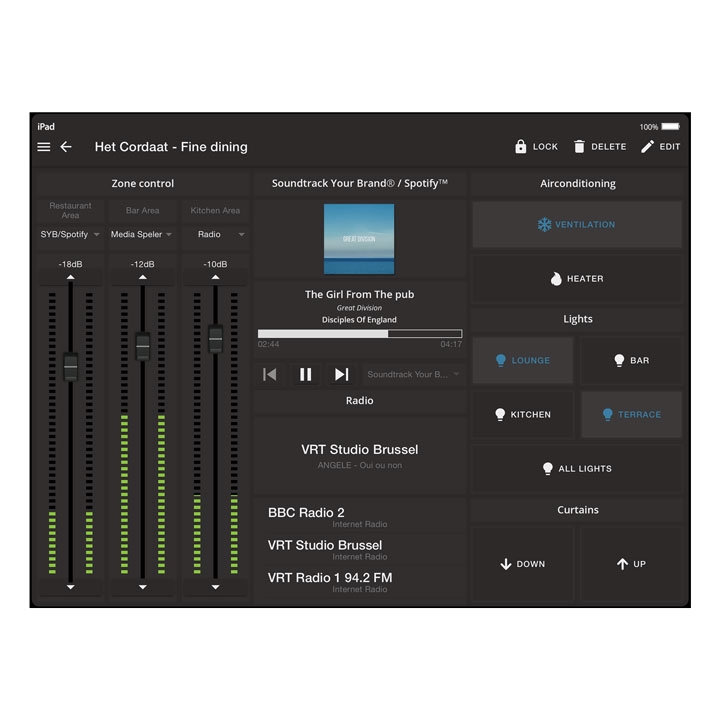

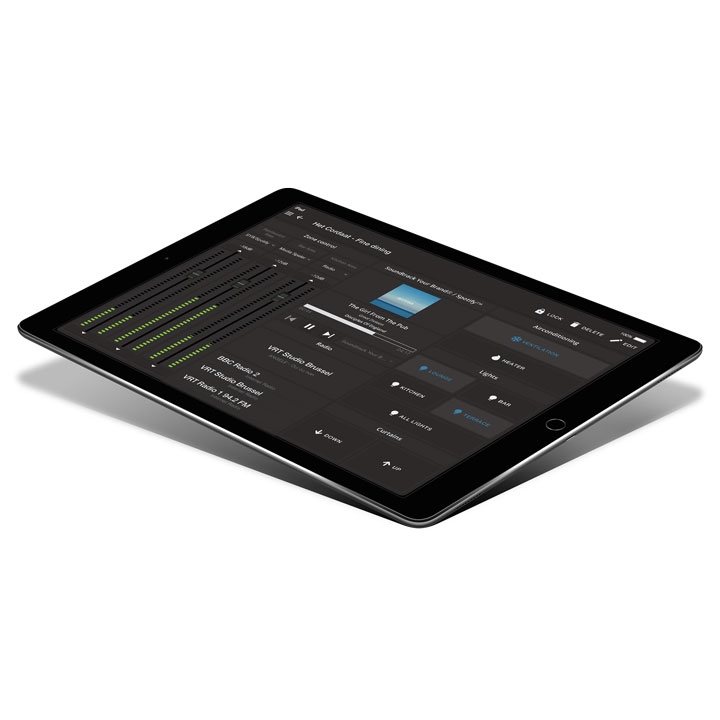

ADAPTIVE DASHBOARD

Fully flexible positioning and scaling allow you to design and group your dashboard according to your own preferences. Custom naming offers an intuitive and user-friendly interface according to project-specific requirements.

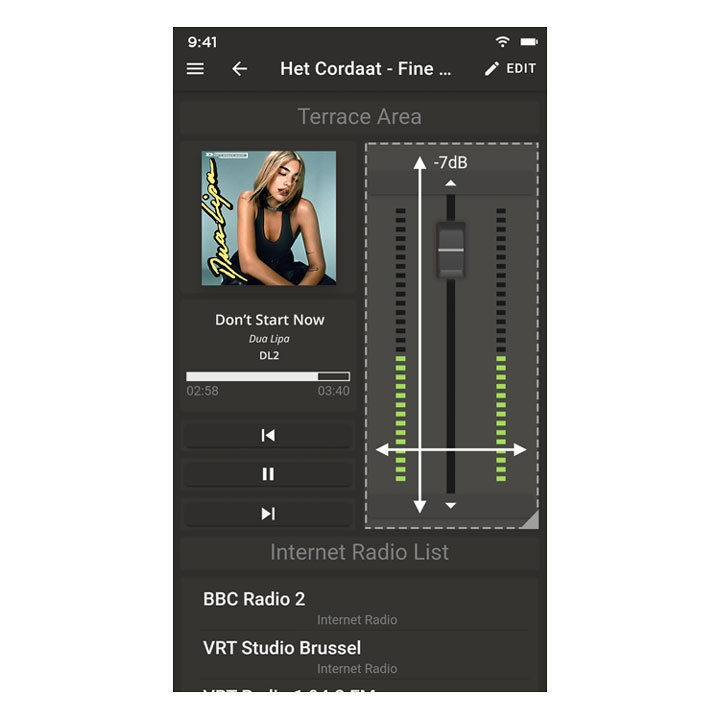

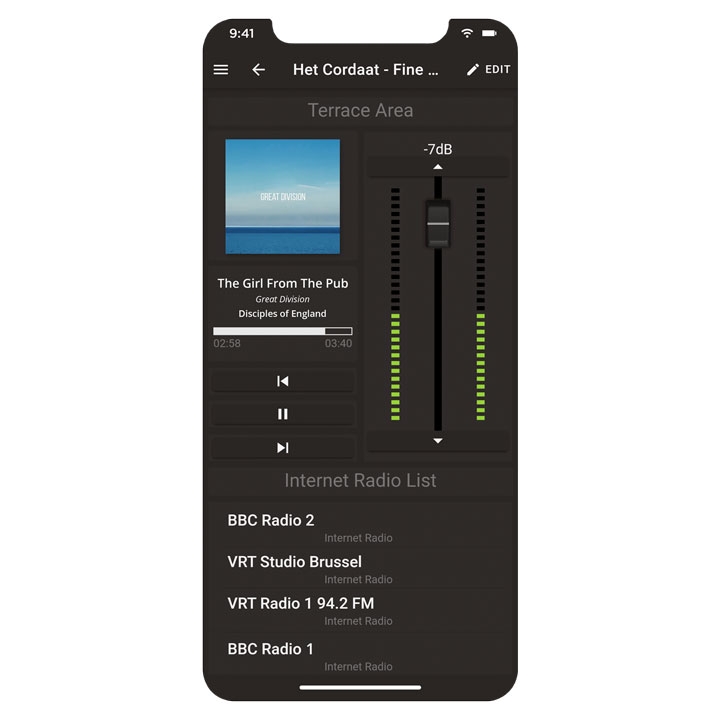

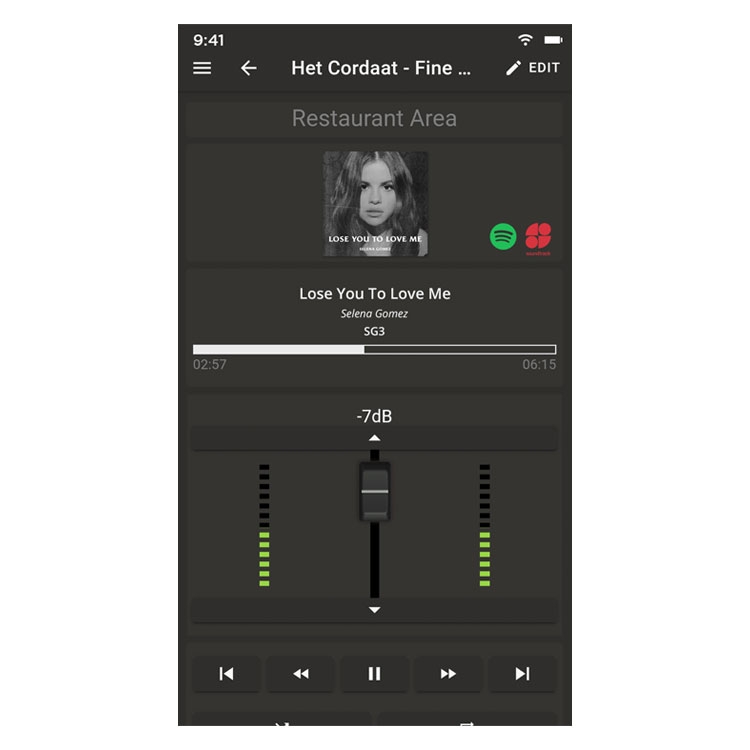

NOW PLAYING

Currently playing media player information including album covers and additional carried information can be displayed on the main dashboard. Additional widgets for control can be separately selected.

GENERAL

HOW DO I INSTALL AUDAC TOUCH™ 2 ON A MAC?

• To install the AUDAC Touch™ 2 app after downloading the app from AUDAC's website you have to go through a few steps first. These steps are described here.

IS AUDAC TOUCH™ 2 COMPATIBLE WITH ALL ANDROID VERSIONS?

• AUDAC Touch™ 2 is compatible with a vast amount of smart devices. Please check the Minimal system requirements

DOES AUDAC TOUCH™ 2 WORK WITH A PASSWORD MANAGER?

• For the moment only the password field will be recognized for the password manager. This means that you manually have to enter the username, yet the password can be saved in the password manager.

CAN WE CONFIGURE AND CONTROL AN AUDAC TOUCH™ 2 DASHBOARD WHEN WE DON'T HAVE ANY INTERNET CONNECTION?

• In order to control and configure your AUDAC Touch™2 dashboard, It is not necessary to be connected to the Internet, a connection to the local network (LAN) will be sufficient to recognize and configure the devices.

CAN I SHARE ANY PREMADE AUDAC TOUCH™ 2 DASHBOARDS WITH OTHER ACCOUNTS AS WELL?

• This functionality is not included in the current version of AUDAC Touch™ 2.4.2 yet but will be added in the near future.

DOES THE FIRMWARE OF AUDAC DEVICES NEED TO BE UPDATED FOR THE NEW TOUCH™ 2.4 FEATURES TO BE ENABLED?

• To guarantee the most user-friendly operation within AUDAC touch™2.4, we recommend keeping your devices always up to date.  These updates are currently done via the system manager, yet will soon be involved in AUDAC Touch™, which completes the solution even further.

WILL THE WINDOWS APPLICATION OF AUDAC TOUCH™ 2 AUTOMATICALLY UPDATE TO V2.4 OR DO WE NEED TO INSTALL IT MANUALLY?

• In order to benefit from the latest features within AUDAC Touch™ 2, the Windows app needs to be reinstalled manually.

IS THERE A WAY TO ACCESS A CUSTOMER'S SYSTEM VIA THE CLOUD SO THAT WE CAN MAKE CONFIGURATION CHANGES REMOTELY?

• For changing settings on the devices themself you need to be inside the network (or use a VPN connection) if you want to change the widgets on the dashboard, you don’t need a connection with the device itself, although it is handier to see the fully working result of the dashboard.

IS THERE A LIMIT ON THE NUMBER OF DASHBOARDS THAT CAN BE CREATED WITHIN AUDAC TOUCH™ 2?

• You can create an unlimited amount of dashboards within the AUDAC Touch™ 2 app.

IS IT POSSIBLE TO DELETE AN ACCOUNT IN AUDAC TOUCH™ 2?

• At the moment this is not implemented in your AUDAC Touch™ 2 account, In case it's still needed to delete an account, please contact support@pvs.global.

PRODUCT

HOW CAN YOU CONTROL THE AMP203 WITH THE TOUCH™ 2 APP OVER A WIFI NETWORK?

• To control the AMP203 with Audac Touch 2.0, the system uses multicast UDP packets to communicate. Depending on your setup this throughput speed can be limited on WiFi networks.
• To solve this network limitation you can configure a multicast to unicast translation on your access point.

IS IT POSSIBLE WHEN INSTALLING A MMP40 MODULE INTO YOUR INSTALLATION, TO BROWSE THE STORAGE AND SELECT A SPECIFIC FILE OR FOLDER IN AUDAC TOUCH™ 2?

• Unfortunately, at the moment it is not possible to browse into your media player folder. Yet it is possible to replay or skip a song using the AUDAC Touch™ 2 application.

ARE ALL SETTINGS CREATED IN THE OLDER WEB INTERFACE (FLASH) OF THE M2 AVAILABLE IN AUDAC TOUCH™2?

• All the settings you were accustomed to on the flash website are stored on the DSP of the M2 Multimedia digital audio mixer, allowing you to configure your preferred settings into your AUDAC Touch™2 dashboard.

HOW MANY SOCKETS CAN WE USE PER DEVICE IN AUDAC TOUCH™ 2 (NUMBER OF USERS THAT SIMULTANEOUSLY ACCESS A SINGLE DEVICE)?

• M2: 5
• R2: 5
• MTX: 5
• XMP: 5
• APC100: 2 (for controlling connected devices via RS232 or RS485), 1 for controlling the APC100 itself
• AMP523: 2
• MFA: 10
• AMP203: uses UDP connection so it's unlimited

Easy recognition with your entire system
Did you know AUDAC Touch™ 2 features automatic device discovery which allows the application to automatically recognize and control all the AUDAC devices installed in your custom setup?

Future proof
Did you know AUDAC Touch™ 2 is built on the most powerful software platforms available today, allowing the designers to participate easily to market developments?

Create your own dashboard

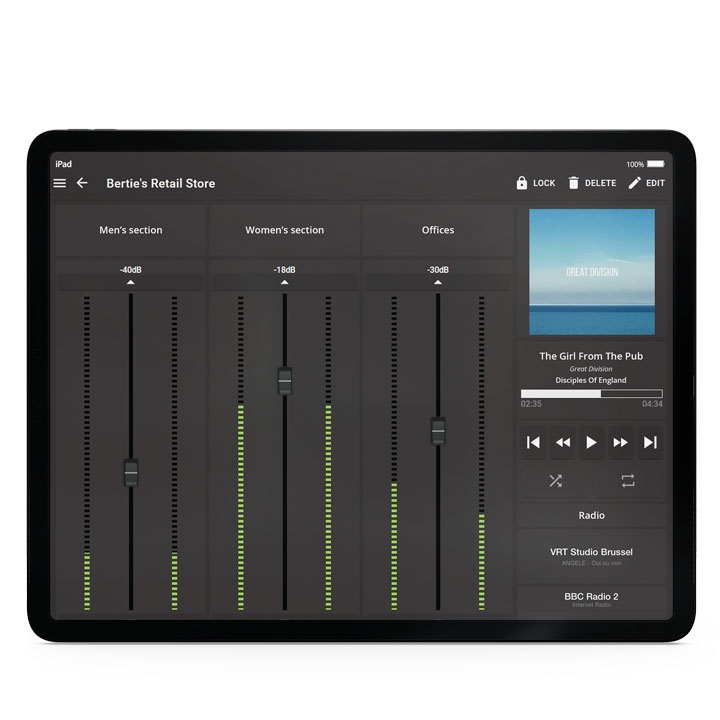

Did you know AUDAC Touch™ 2 is fully customizable by simply drag and drop your widgets on to your dashboard, without the need for any software knowledge?

Mix your sound
Did you know AUDAC Touch™ 2 allows you to use all possible control functions, including the most advanced mixing capabilities of the M2 multimedia digital audio mixer from any smart device?

Available on several platforms

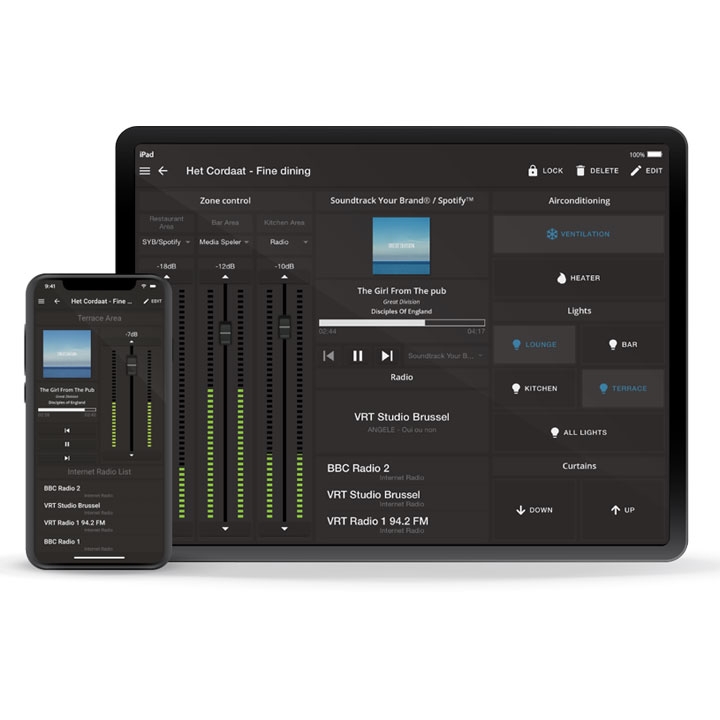

Did you know that AUDAC Touch™ 2 can be used from any Windows, Linux, iOS, Mac or Android powered device?

Cost-effectiveness
Did you know that you can use AUDAC Touch™ 2 free of charge?

With the release of the AUDAC Touch™ 2, we are introducing several ground-breaking new features. Aside from the powerful widgets controlling your system, AUDAC Touch™ 2 now also has several functions embedded that will aid system managers and installers. Here is a short list of everything that’s new.

- Version update 2.8 -

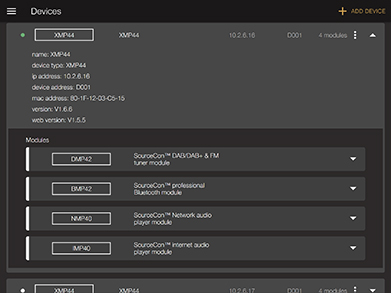

Expanding compatibility

With the recent announcement of our new SourceCon modules, we are happy to tell you that the new BMP42 (Bluetooth module) and DMP42 (Dab/Dab+ & FM tuner module) are now AUDAC Touch™ supported, meaning that they can be discovered within your device list. For even more user convenience we have added also the search term 'Touchlink', this will allow you to find all compatible devices for this innovation.

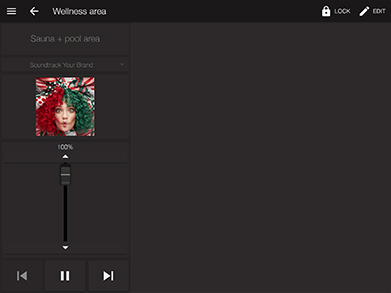

Updated dashboard layout functionality

The creation of dashboards with fewer panels is now possible, meaning that you can start making dashboards with only one single panel. A further enhancement to the functionality of your dashboard is that the screen no longer scrolls when all panels are visible.

Check out the complete release notes for all changes we introduced to the application.

- Version update 2.7 -

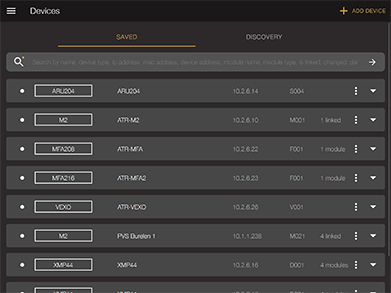

New device list & device discovery

The device ist is an important page in AUDAC Touch™ 2 that is used to show you all the devices that are located in your installation. However, we noticed that with more heavy users the device list could become long and obscure. The solution? AUDAC has split the device list into a device overview and a discovery page.

• Discovery page
• Saved page
• Search bar

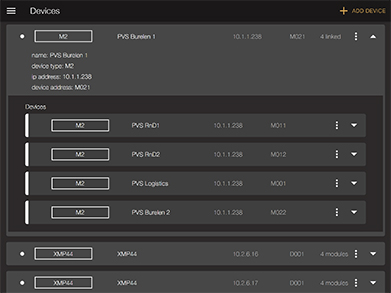

Linked devices

In this new update, we also have grouped linked devices within the direct device so the device list is much cleaner and organized.

• A direct device is a device that you control using the device's own IP address
• A linked device is a device that you control using the IP of another device. For example, an ARU that is connected to an M2.

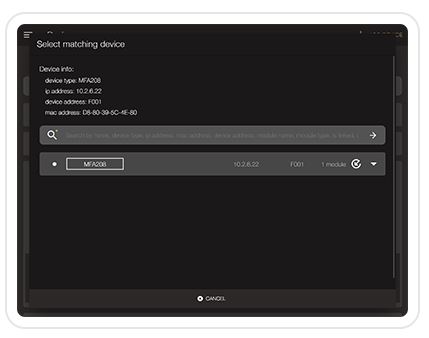

Probe devices

Another new handy feature is the device probe. Probing is used when we want to physically change a device for instance when you want to replace it with a new one. The probe will search for all devices with the same device type so you can update your AUDAC Touch database without having to manually change everything.

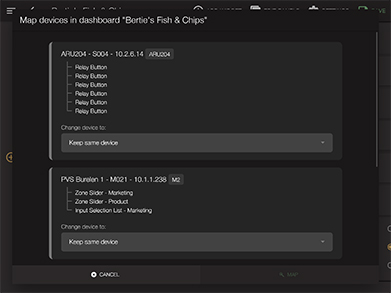

Mapping feature

This new feature is something we added to avoid lots of work when for example you accidentally remove a device from the app causing the widgets in your dashboard related to that device to stop working. We made it possible to map your desired device again in the settings of your dashboard.

Newer user interface design

AUDAC has changed the color scheme of the application to our new company brand style.


- Version update 2.6 -

So what does AUDAC have in store for you with the AUDAC Touch™ v2.6. update? Here a few new features that you will love.

Expanded the Touchlink™ technology

TouchLink™, our ingenious technology for creating virtual zones by linking multiple compatible devices with each other has been expanded with new features.

Main functionalities:

Setting up (virtual) zones by grouping devices.
In AUDAC Touch™ 2 or directly on the device you can select up multiple compatible devices or outputs that should react to the user as one zone by assigning it the same TouchLink™ zone ID (e.g. 1, 2, 3, ...). All devices with the identical TouchLink™ ID will then virtually work as one zone.


Share input, volume & mute settings
In these virtual zones, you can share the inputs, volume & mute settings between the different devices so that they actually act as one (physical) zone.

Priority settings.
Last but not least, you can also send priority messages with the MFA to these zones. The priority settings are shared among the different devices within the zones and can be triggered via the SourceCon™ module, Mic input, or Line in.

Compatible devices:

• AMP203
• MFA series
• SMA series
• SMQ series
• PMQ series
• VEXO series
• And more to come

Renamed offline mode to direct mode

Last update (v2.5) we have introduced a mode that enables you to control and configure AUDAC devices without authenticating to AUDAC Touch Cloud. We clarify this we renamed this mode to Direct mode.

Other changes

Furthermore, we have also made many other adjustments and additions:

• New widgets for TMP40 & DMP40
• You are now able to log out from AUDAC devices.
• Improved the design of the player control widget.
• Much more

Check out the complete release notes (in downloads) for all changes we introduced to the app.

- Version update 2.5 -

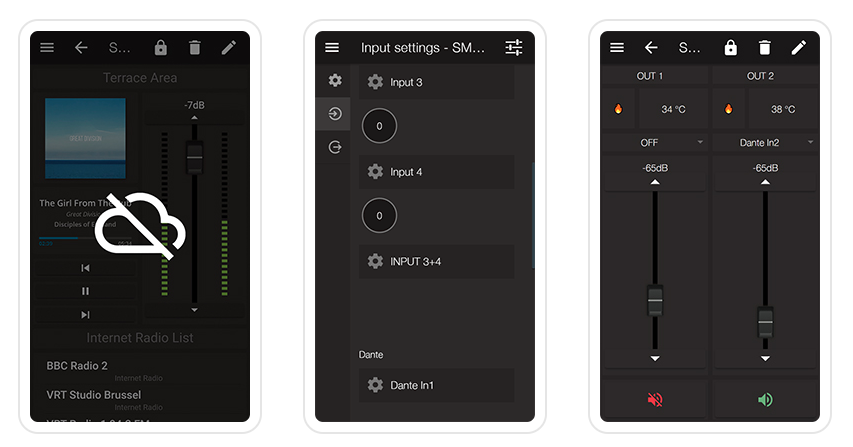

Offline Mode

We have introduced an offline mode that enables you to control and configure AUDAC devices without authenticating to AUDAC Touch™ Cloud allowing you to:

• Control & configure installations without the need for an active internet connection
• Setting up installations at companies with strict IT requirements
• Setting up quick and easy offline demos at customers

Easily control SMA & SMQ series

If the SMA or SMQ is equipped with the ANI44XT Dante™ audio network interface you can now control and configure it directly from the AUDAC Touch™ application.

Show Temperatures

When supported by the device it’s now possible to read its temperature directly on the app. You can simply add the temperature widget to your dashboard.

Supported devices are:

• PMQ series
• SMA series
• SMQ series

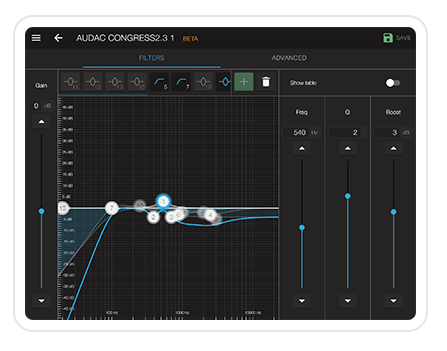

Complete WaveDyamics™ integration

The WaveDynamics™ configurator, our tool in the AUDAC system manager to quick and easy edit presets is now available in the application. Therefore, it’s now possible to carry out the following actions directly in the application:

• Import and export SOL and SPF files as presets
• Access to AUDAC SOL files directly
• Edit and configure presets

* This feature is not available on smaller screens.

- Version 2.4 Update -

A New Approach to Configure your Installation

We have integrated most of the functionalities of our products with a Flash web interface into AUDAC Touch™. So now you have the full flexibility to fully control our hardware from one location. This also means that we are prepared for the end of the support for Flash by Adobe.

Improved User Interface

As you know, at AUDAC we don't settle for 'just'. So we didn't just integrate these functionalities, we also greatly improved the looks and usability. The result is an impeccable experience on any device.

Third-party Control through TCP/IP

3rd party equipment commands now can get implemented through TCP, offering countless possibilities for expansion of your AV system to become a total system control platform.

BMP40 - Bluetooth module support

We've added support of the BMP40 SourceCon™ professional Bluetooth module. Pairing a new device, seeing connected devices, and overall use of the BMP40 can be done directly from the application.

Learn More

AUDAC Touch TM 2 is compatible with a vast amount of AUDAC products. For the most recent list of compatible AUDAC products, you can visit AUDAC's website.

Minimal system requirements:

• Any iOS device running iOS  13.1 or higher.

• Any Apple device running MacOS 10.10 (x64) or higher.

• Any Android device running official builds of Android 7.1.2 or higher

• Any Windows device running Windows 7 (x64) or higher.

• Any Linux device running Linux (x64).

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
