CASY001/B
MSRP:
POA
CYCASY001-b

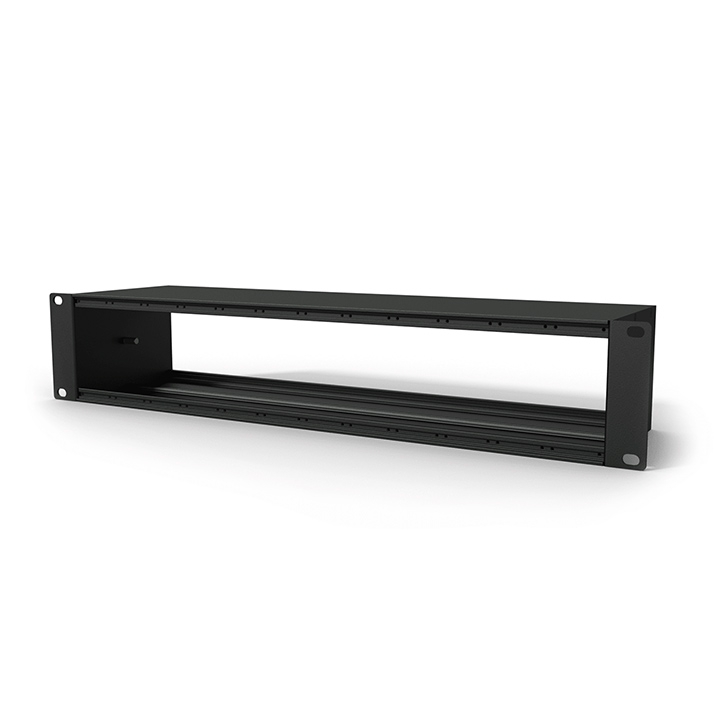

The CASY001 is a 19” rack mountable chassis that can be fitted with 2 x 12 modules from the CASY range. The flexible and modular structure ensures maximum versatility, allowing the system to be adapted to project-specific requirements. Possibilities range from audio, video, and data interconnection, to power distribution, internal rack supplies, and many more. The aluminum top and bottom construction feature a pre-threaded hole insert allowing module installation, with a maximum of 12 units, on both the front and rear sides. Modules can be fixed inside the unit using the included M3 screws, while the side ears are fitted with holes for fixation to a 19” equipment rack. The side ears are constructed out of cold-rolled steel with internal pillars for chassis grounding. The overall construction is finished in a black (RAL9004) structured and scratch-resistant powder coating.
Features:
- Flexible structure for system integration & connectivity
- Wide variation of compatible modules available
- Stores 12 units of CASY modules on the front & rear
- 19” Rack mountable (2 RU)
- 120 mm usable depth
- Pre-threaded mounting profile for easy assembly
- Aluminum extruded construction with steel side ears
- Structured and scratch-resistant black powder coating
| Product Features | ||||
|---|---|---|---|---|
| Dimensions | 19.02" x 3.46" x 4.72" (483 x 88 x 120 mm) (W x H x D) | |||
| Weight | 3.26 lbs (1.480 kg) | |||
| Construction | Aluminum extrusion with steel side ears | |||
| Module | Units | 12 x front side & 12 x rear side | ||
| Assembly | Pre-threaded M3 screw holes | |||
| Mounting | 19” Rackmount (2HE) | |||
| Finish | Structured powder coating | |||
| Colors | Black (RAL9004) | |||
| Accessories | Optional | CASY021/B - 12 space strain relief | ||
| CASYx0x - Blind/connector hole plates | ||||
| CASYx2x - XLR connector plates | ||||
| CASYx3x - Audio signal connector plates | ||||
| CASYx4x - Loudspeaker connector plates | ||||
| CASYx5x - Video connector plates | ||||
| CASYx6x - Data connector plates | ||||
| CASYx8x - Power connector plates | ||||
| CASYx9x - Other plates | ||||
*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
