CASY048S/B
MSRP:
POA
CYCASY048S-B
CASY stage box - 8 space - With shock bumper

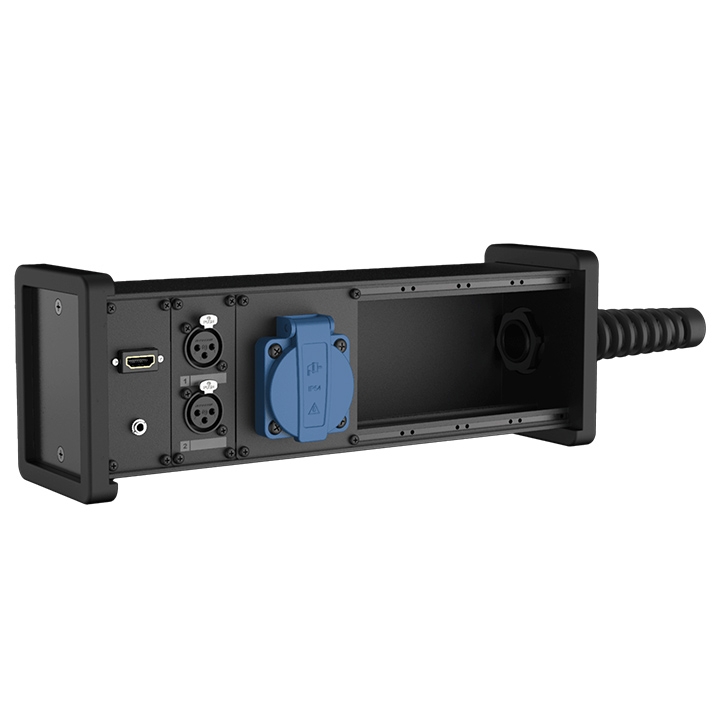

The CASY048 is a modular stage box that can be fitted with 8 modules from the CASY range. The flexible and modular structure ensures maximum versatility, allowing to adapt of the system to each project's specific requirements. Possibilities are ranging from audio, video, and data interconnection to power distribution, control panels, power supplies, and many more.

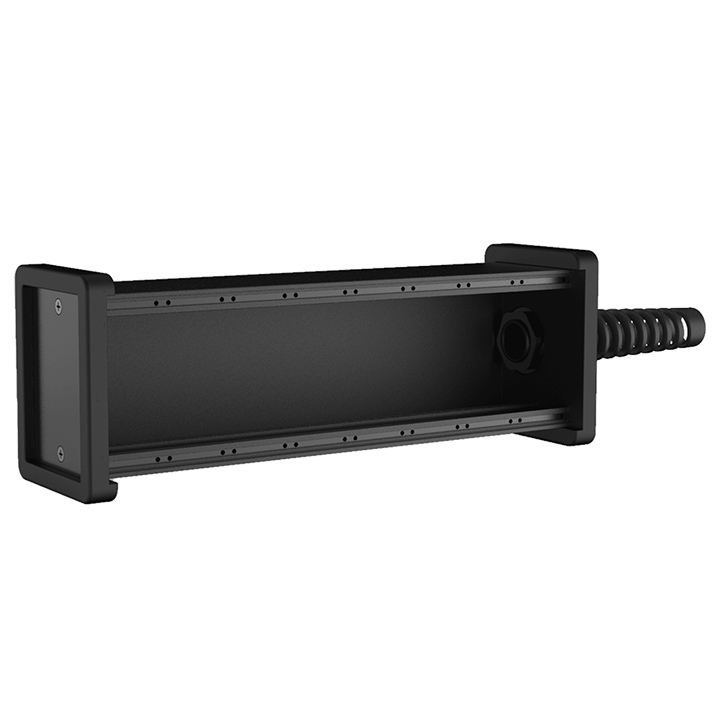

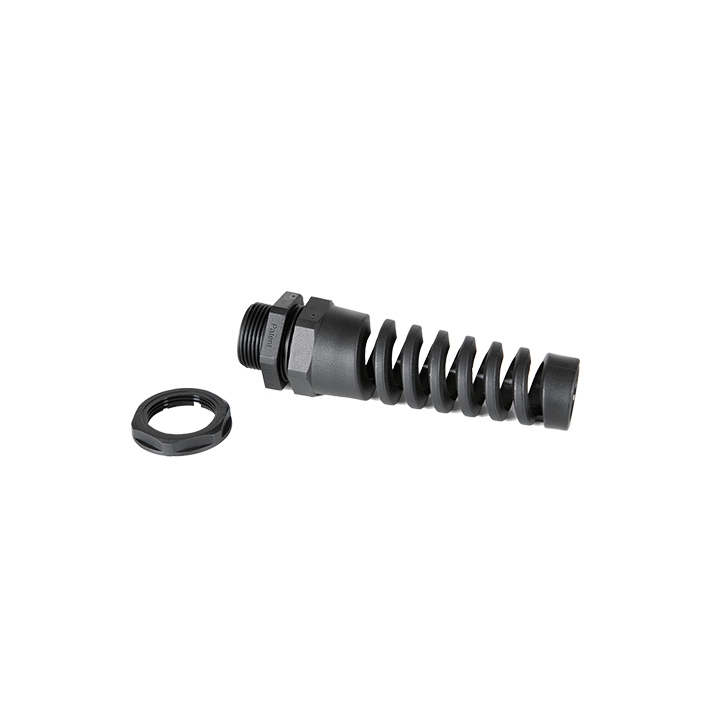

The aluminum construction features pre-threaded hole inserts allowing module installation with a maximum of 8 units with a built-in depth of up to 60 mm. It is fitted with a cable gland with strain relief accepting diameters in a range of 9 to 16 mm, which can be removed for assembly of a D-sized connector type (e.g. PowerCON). The sides are constructed out of cold-rolled steel protected with rubber shock bumpers perfect for all use and abuse. Modules can be fixed inside the unit using the included M3 screws. The overall construction is finished in a black (RAL9004) structured and scratch-resistant powder coating.
Features:
- Included shock bumpers
- Aluminum extruded construction with cold rolled steel sides
- Flexible structure for system integration & connectivity
- Wide variation of compatible modules available
- Pre-threaded mounting profile for easy assembly
- Structured and scratch-resistant black powder coating
- Removable cable gland for D-size connectors at choice
- Stores 8 units of CASY modules
- Long cable gland provided
| Product Features | ||||
|---|---|---|---|---|
| Module | Units | 8 x front side | ||
| Dimensions | 12.17" x 4.27" x 3.36" (309 x 108.5 x 85.4 mm) (W x H x D) | |||
| Weight | 1.81 lbs (0.82 kg) | |||
| Construction | Alu extrusion with steel side panels | |||
| Protected with rubber shock bumpers perfect for all use and abuse | ||||
| Connection | 9 ~ 16 mm cable gland (standard) (0.35" ~ 0.63") | |||
| 1 x D-size hole | ||||
| Finish | Structured powder coating | |||
| Colours | Black (RAL9004) | |||
| Max. usable depth | 60 mm (2.36") | |||
*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
