CASY191/B
MSRP:
POA
CYCASY191-B
CASY 1 space stereo galvanic isolator shielded

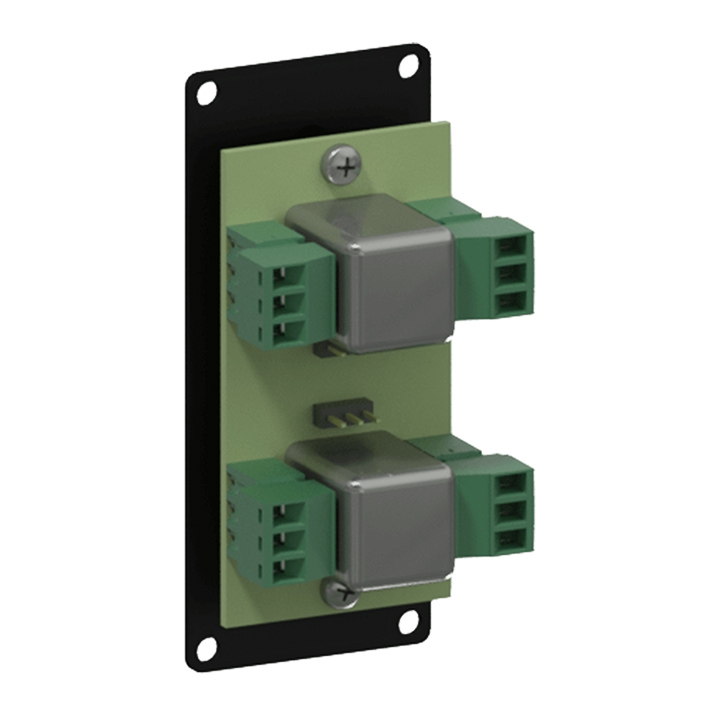

The CASY191 is fitted with two stereo galvanic isolators on the back side of the module. Connection with the galvanic isolators is possible with 3-pin terminal block connectors. This flexible structure for system integration & connectivity can easily be implemented in a wide variety of CASY chassis.
Features:
- 1.5 mm thick cold rolled steel frame
- Structured and scratch-resistant black powder coating
- Assembly screws included
- Compatible with any CASY chassis
- Solderless connections
- Flexible system for system integration & connectivity
| Product Features | ||||
|---|---|---|---|---|
| Dimensions | 1.4" x 3.23" (35.5 x 82.1 mm) (W x H) | |||
| Connection | Stereo galvanic isolator Terminal block to terminal block (3-pin - 3.81mm pitch) | |||
| Module | Space | 1 | ||
| Weight | 0.088 (0.04 kg) | |||
*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
