Ethernet DMX4 with Truss and PoE

MSRP: POA
LU0100029-POE

An extremely powerful Ethernet-to-DMX converter with a custom merging engine for pro lighting solutions.

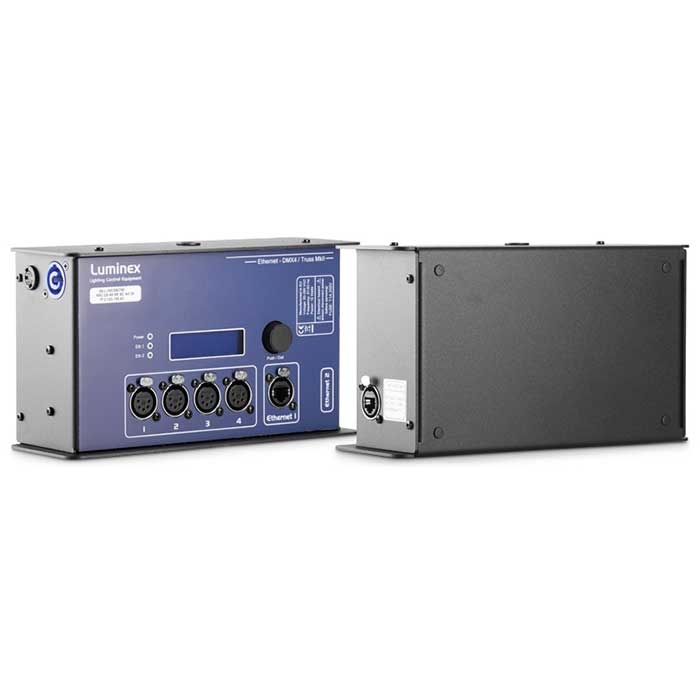

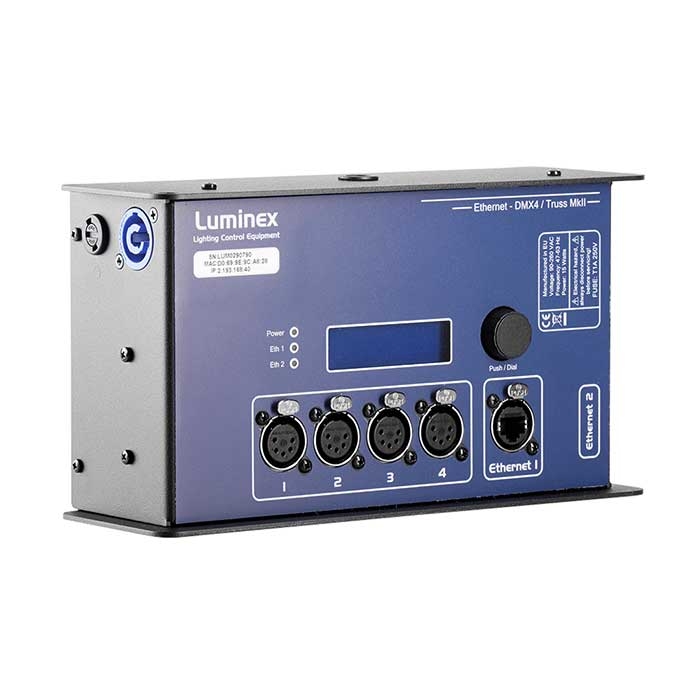

The Ethernet-DMX4 Truss MkII is the truss version of the Ethernet-DMX4 MkII. Equipped with one M10 insert for truss mounting, and fitted with a rugged enclosure that allows using the device for wall or truss mounted applications. The unit serves 2 Ethercon connectors for an easy network connection. The Ethernet-DMX4 Truss MkII is the perfect bridge for mid-size installations or tours.

Would you like a Demo?

Note: Available while quanties last. This product is being replaced by LumiNode 4.

Stream Up to 300 Universes

  • Convert ArtNet, sACN, RTTrPL (BlackTrax) … to DMX and easily come with up to 300 universes.

Easy Set-Up with Front Display

  • Load pre-configured set-up profiles through the front-end display or the easy-to-use web interface.

Touring Approved

  • Metal housing, ruggedized Ethercons and shielded DMX connectors, ideal for touring and live events.

Custom Merging Engine

  • With custom merging you can control specific parameters of fixtures with different sources.

Full RDM Support

  • Setup, manage and monitor all your lighting devices from one central place: LumiNet Monitor.

PoE Powered

  • This Ethernet-DMX unit can be powered over Ethernet (PoE) or with a standard power cable.

Power Up Your Creativity.

  • Stop limiting your creativity by technical restrictions. Luminex Ethernet-DMX converters are extreme powerful nodes designed for professional lighting projects. The powerful processor that can cope with up to 300 universes, the engine for custom merging and the re-routing feature for visualising merged results make the Ethernet-DMX converters very high-end and truly unique products.

Don’t Worry About Power Plugs.

  • All our truss mounted and DIN-rail Ethernet-DMX converters can be powered through PoE or/and with direct power. Just connect everything over ethernet and don’t worry about power cables anymore. (Rack mounted converters have optional PoE while wall mounted units can only be powered over Ethernet)

Full RDM Support: Never Climb the Truss Again.

  • All Ethernet-DMX units fully support all RDM features, which enable users to setup, manage and monitor every connected unit directly from LumiNet Monitor or any other RDM controller.

Free Software Included

  • LumiNet Monitor is a free software pack that will increase the comfort of working with Luminex equipment and together with the easy-to-use web interface for Ethernet-DMX converters, it adds high value to your project monitoring and preparation.
  • Merging engine: Yes
  • Softpatch: Yes
  • Trigger system: Yes
  • ReRoute: Yes
  • Profile manager: Yes
  • Snapshot: Yes
  • Monitoring software: LumiNet Monitor V2 (free)
  • DMX port direction: Input or output (configurable)
  • DMX port isolation: Optical and galvanic isolation per port
  • DMX Port termination/biasing: Yes
  • DMX timing: Framerate: 10-40fps - break: 176-352µs
  • Ethernet port speed: 100Mbps
  • Port sensing: Auto-negociation, MDI / MDIX
  • DMX connectivity: 4x shielded & gold plated Neutrik 5 pin XLR (female)
  • Ethernet connectivity: 2x shielded Neutrik Ethercon connector
  • Rear connectivity: Not applicable
  • Power connectivity: 1x Neutrik powerCON inlet
  • Power input: 100-240VAC / 50-60Hz
  • Power consumption: Maximum 15W
  • Fuse: 1A 250V Slow Blow
  • PoE powered: Yes (class 0 rated)
  • DMX protocols: DMX512 (1986 & 1990), DMX512-A, RDM ANSI E1.20
  • Ethernet protocols: Art-Net™ (1-4), sACN ANSI E1.31, RTTrPL (BlackTraX)
  • Display and jog: Yes
  • Configuration: Through the built-in web server or with the front end display menu
  • Status LEDs: Power LED, Ethernet Port LED (link and activity)
  • Mounting: Wall or truss (1x M10 insert)
  • Enclosure: Robust metal housing
  • Dimensions (W x D x H): 9.3" x 5.1" x 3.2" (235 x 129.5 x 82 mm)
  • Weight: 5.1 lbs (2.3 kg)
  • Packaging: 10.2" x 6.5" x 4" (260 x 164 x 100 mm)
  • Environment:
    • Operating temperature: 32 - 140°F (0 - +60°C)
    • Storage temperature: 14 - 158°F (-10 - +70°C)
    • Humidity (non condensing): 5 to 95% RH
  • Certificates/Approvals: CE
  • Standards: EN 60950-1, EN 55022, EN 55024

*Note: Luminex LCE operates a policy of continuous development. Luminex LCE reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details. www.luminex.be

For the most up to date Software and Firmware vist www.luminex.be/support/product-support/.
