GigaCore 12

MSRP: POA
LU0100036

Please note that this product was discontinued in January 2024. This product will be replaced by the GigaCore 16t

A pre-configured ethernet switch designed for professional AV solutions, perfect for touring and live events.

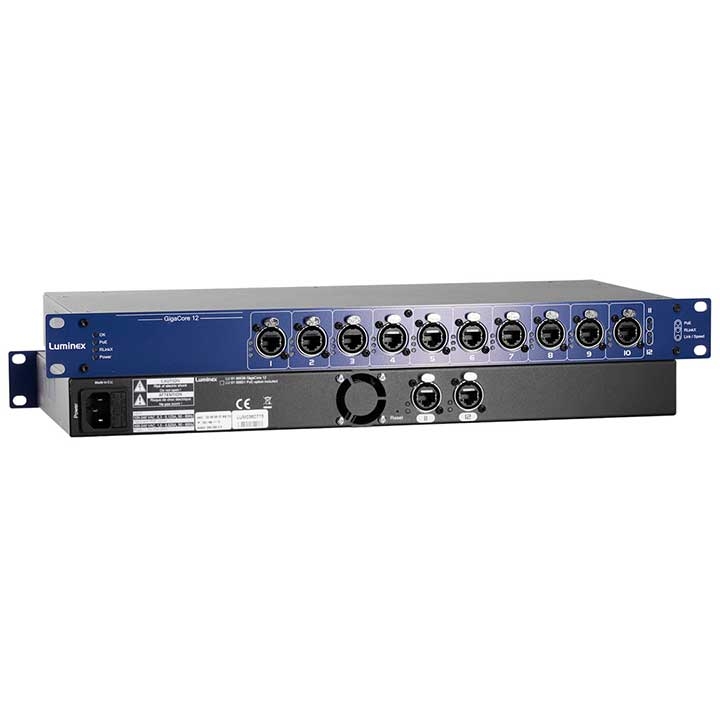

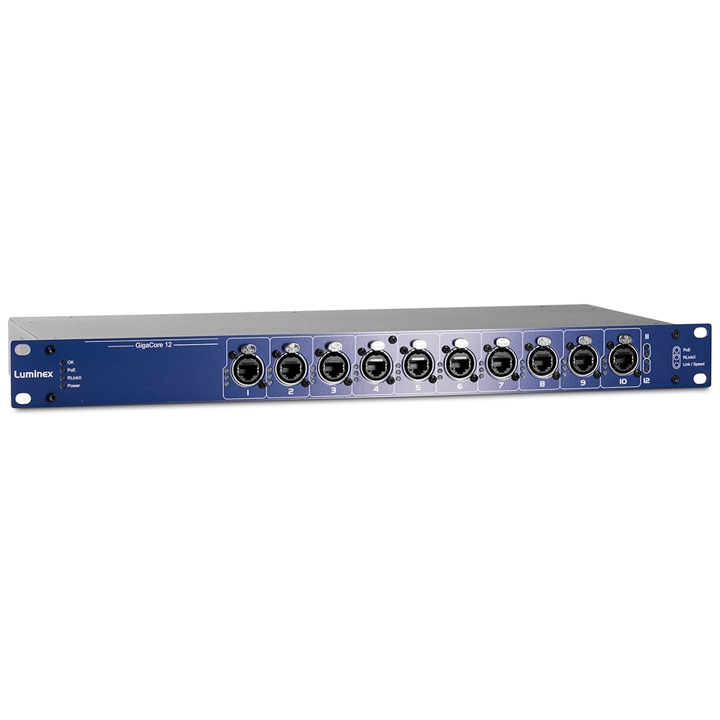

The GigaCore 12 is a managed Gigabit Ethernet switch designed to set up professional lighting and AV networks but in a truly user-friendly way. The unit offers 12 Gigabit ports on shielded Neutrik Ethercon ports, ensuring that the communication signals are free from interference and physical harm in the immediate environment.

Would you like a Demo?

Tailored for AV Industry

  • Pre-configured settings that are common in the AV industry, such as QoS and IGMP snooping.

Easy Set-Up

  • Easy group function with pre-configured VLAN’s for a quick set-up (without IT knowledge).

Touring Approved

  • Metal housing and ruggedized Ethercon connectors, ideal for touring and live events.

Converged Networking

  • Transfer multiple protocols (Dante™, RAVENNA/AES67®, ArtNet, MANet 1&2, sACN,Q-LAN …)

Ultimate Link Redundancy

  • RlinkX redundancy protocol automatically takes over signal in milliseconds in case of a link failure.

PoE+ (optional)

  • Don’t worry about power plugs anymore. PoE+ powers-up all compatible devices within the network.

Focus on Being Creative Again.

  • Stop wasting time on programming your network or spending money on IT consultants to do it for you. With Luminex GigaCore switches and only some basic AV knowledge, you can do it all by yourself in just the blink of an eye. Now you can finally focus on your core business as an AV technician or designer: “being creative”!

Free Software Included

  • LumiNet Monitor is a free software pack that will increase the comfort of working with Luminex equipment and together with the easy-to-use web interface for GigaCore’s, will be of high value to your project monitoring and preparation solution.



  • Most suitable applications: Touring and live events
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • MultiLinkX (Link aggregation): Yes
  • Profile manager: Yes
  • Memory: 4Mb
  • MAC address table:
  • Address learning / Aging: Self-learning, Auto aging
  • Switching throughput: 32Gbps
  • Jumbo frames: MTU up to 9600
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto-negotiation
  • Auto crossover: MDI / MDIX
  • Auto-sensing: Full or Half-Duplex (Gigabit is Full Duplex)
  • Ethernet connectivity: 12 x Shielded Neutrik Ethercon connectors
  • Fiber connectivity: None
  • Ethernet port speed: 1Gbps
  • Serial: None
  • Power connectivity: 1 x IEC inlet with fuse holder
  • Power input: 100-240VAC, 50-60Hz
  • Power consumption: Maximum 30W, Maximum 180W with PoE
  • Fuse: 3.15A 250V Slow Blow
  • Backup power input: None
  • Backup PoE power input: None
  • PoE
  • Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
  • Sound protocol compliance: Yes (low jitter)
  • Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet
  • Display and jog: None
  • Configuration: Through the built-in web server
  • Status LEDs:
    • Global status LEDs: Device, power, PoE power, RLinkX
    • Port status LEDs: PoE, RLinkX, link/activity, and port speed



  • Colored RGB LEDs: No
  • Mounting: Rack
  • Enclosure: Robust metal housing
  • Dimensions (W x D x H): 19" x 8.04" x 1.73" (482 x 204.3 x 44 mm)
  • Weight: 6.17lbs (2.8 kg )
  • Packaging: 21.5" x 13.2" x 3,15" (545 x 335 x 80 mm)
  • Environment:
    • Operating temperature: 32 to 122 °F (0 to +50 °C)
    • Storage temperature: 14  to 158 °F (-10 to +70 °C)
    • Humidity (non condensing): 5 to 95% RH



  • Noise level @1m:
    • Max 30dBA (PoE or Non PoE, Ambient: 0 – 35°C)
    • Max 39dBA (PoE or Non PoE, Ambient: 35 – 50°C)



  • Certificates/Approvals: CE, RoHS
  • Standards: EN 60950-1, EN 55022, EN 55024

*Note: Luminex LCE operates a policy of continuous development. Luminex LCE reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details. www.luminex.be

For the most up-to-date Software and Firmware visit https://www.luminex.be/support-2/
