GigaCore 16RFO
MSRP:
POA
LU0100056-02
Please note that this product is being discontinued. *Available models include LU0100056-02 Neutrik DUO MMF, LU0100056-03 Neutrik DUO MMF + POE, LU0100056-04 Neutrik QUAD MMF, LU0100056-06 Neutrik DUO SMF. The replacement product is the GigaCore 20t.
A pre-configured ethernet switch designed for professional AV solutions, perfect for touring and live events.

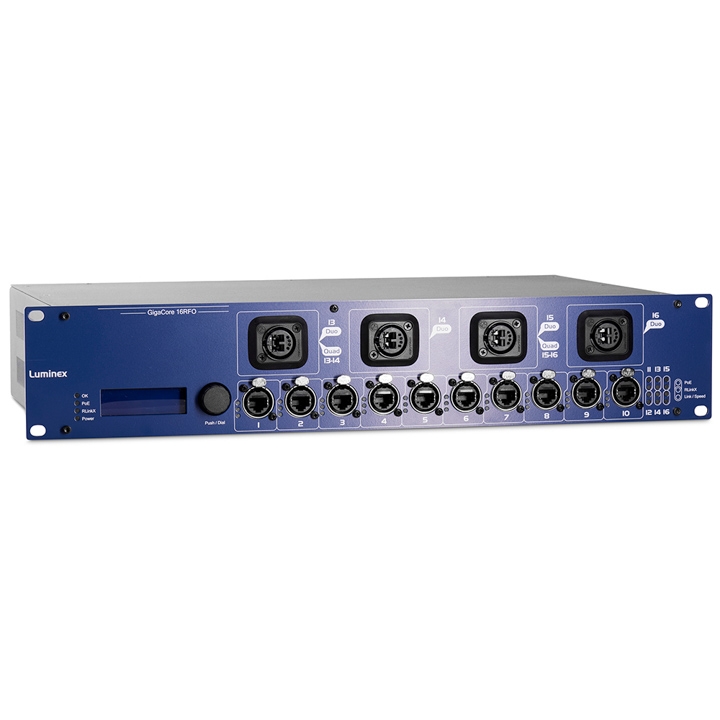

The GigaCore 16RFO is a unit designed without compromises, specifically with touring applications in mind and with the feedback of key industry players. The unit comes with all the advanced functionalities of the GigaCore Ethernet switches range, in a fully touring-oriented package. The 2U high device offers rugged optical connector options such as OpticalCon, installable at the front or the rear of the unit, making it a flexible solution. Full backup on power supply is available, bringing true redundancy at power level. Front-end display, rugged connectors, and the easiest managed switch interface available on the market make this product the ideal companion for a stressless tour!

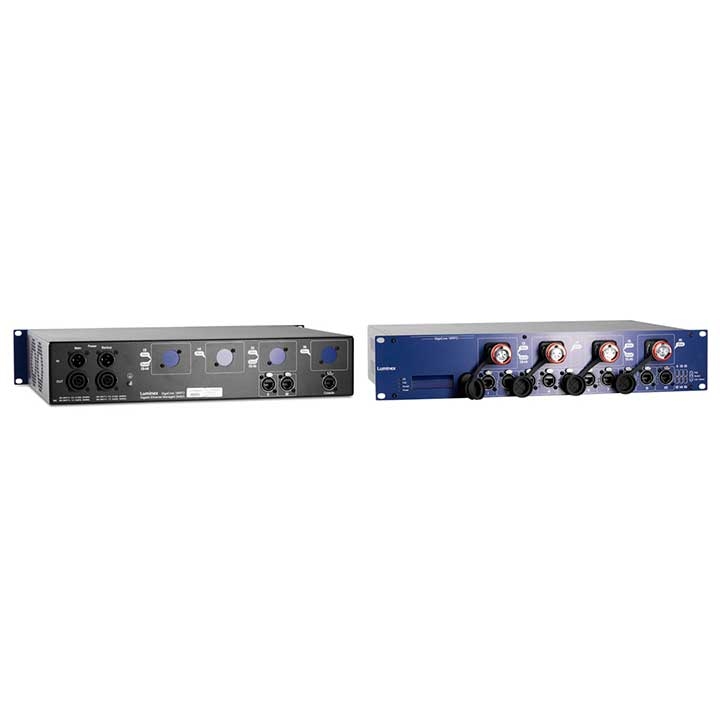

Note: The product image is model LU0100056-02. Product variations may not be represented by this image.
Tailored for AV Industry
- Pre-configured settings that are common in the AV industry, such as QoS and IGMP snooping.
Easy Set-Up with Front Display
- Easy group function with pre-configured VLAN’s for a quick set-up (without IT knowledge).
Touring Approved
- Metal housing and ruggedized Ethercon and OpticalCon connectors, ideal for touring and live events.
Converged Networking
- Transfer multiple protocols (Dante™, RAVENNA/AES67®, ArtNet, MANet 1&2, sACN,Q-LAN …)
Ultimate Link Redundancy
- RlinkX redundancy protocol automatically takes over signal in milliseconds in case of a link failure.
PoE+ (optional)
- Don’t worry about power plugs anymore. PoE+ powers-up all compatible devices within the network.
Focus on Being Creative Again.
- Stop wasting time on programming your network or spending money on IT consultants to do it for you. With Luminex GigaCore switches and only some basic AV knowledge, you can do it all by yourself in just the blink of an eye. Now you can finally focus on your core business as an AV technician or designer: “being creative”!
Built-In Redundant Power Supply.
- The GigaCore 16RFO has an internal redundant power supply for ultimate redundancy on power level (and PoE). If for some reason the main power supply fails, the redundant supply keeps your system up and running.
The Ultimate Touring Companion with Rugged Fiber.
- The GigaCore 16RFO has four slots for rugged Fiber connectors (option between Neutrik of Fiberfox) for long-distance coverage. So when harsh environments such as tours and live events are your daily life, the GigaCore 16RFO is likely to become your best friend you can always rely on.
Free Software Included
- LumiNet Monitor is a free software pack that will increase the comfort of working with Luminex equipment and together with the easy-to-use web interface for GigaCore’s will be of high-value for your project monitoring and preparation solution.
- GigaCore 16RFO Spec Sheet (Luminex)
- GigaCore 16RFO Manual (Luminex) v2.4.0
- GigaCore 16RFO User Manual (Luminex) v2.8.4
- GigaCore 16RFO Quick Start Guide (Luminex)
- GigaCore Firmware Release Notes V3.1.3
- GigaCore 16RFO Technical Drawing (Luminex) v1.0
- GigaCore 16RFO Technical Drawing (Luminex) (zip)
- Download All
- Most suitable applications: Touring and live events
- RLinkX (Link redundancy): Yes
- Groups (VLAN segmentation): Yes
- MultiLinkX (Link aggregation): Yes
- Profile manager: Yes
- Memory: 4Mb
- MAC address table:
- Address learning / Aging: Self-learning, Auto aging
- Switching throughput: 32Gbps
- IGMP support: Yes (V1/V2/V3)
- IGMP snooping: Yes, enabled by default
- Port sensing: Auto-negotiation
- Auto crossover: MDI / MDIX
- Auto-sensing: Full or Half-Duplex (Gigabit is Full Duplex)
- Ethernet connectivity: 12 x Shielded Neutrik Ethercon connectors
- Fiber connectivity: 4 x slot for rugged fiber connectors
- Ethernet port speed: 1Gbps
- Serial: 1 x serial RJ45 console port
- Power connectivity: 2x Neutrik powerCON TRUE1 In/Out
- Power input: 100-240VAC, 50-60Hz
- Power consumption: Maximum 30W, Maximum 180W with PoE
- Fuse: 3.15A 250V Slow Blow
- Backup power input: 100 - 240VAC
- Backup PoE power input: 100 - 240VAC (same connector as backup power input)
- PoE
- Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
- Sound protocol compliance: Yes (low jitter)
- Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet
- Display and jog: Yes
- Configuration: Through the built-in web server or with the front end display menu
- Status LEDs:
- Global status LEDs: Device, power, PoE power, RLinkX
- Port status LEDs: PoE, RLinkX, link/activity, and port speed
- Colored RGB LEDs: No
- Mounting: Rack
- Enclosure: Robust metal housing
- Dimensions (W x D x H): 19" x 11.5" x 3.5" (482 x 294.15 x 88.45 mm)
- Weight: 13.4 lbs (6.1 kg)
- Packaging: 21.5" x 16.5" x 5.5" (545 x 420 x 140 mm)
- Environment:
- Operating temperature: 32 - 122 °F (0 to +50 °C)
- Storage temperature: 14 - 158 °F (-10 to +70 °C)
- Humidity (non condensing): 5 to 95% RH
- Noise level @1m:
- Certificates/Approvals: CE, RoHS
- Standards: EN 60950-1, EN 55022, EN 55024
| GigaCore 16RFO Product Code | Luminex Part Number | GigaCore 26i Description | Replacement Product Code | Replacement Product Description |
|---|---|---|---|---|
| LU0100056-03 | LU0100056 | Luminex GigaCore 16RFO (Neutrik DUO MMF + POE | LU0100095-10G-P500 | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) – PoE++ |
|
LU0100056-04 |
LU0100056 | Luminex GigaCore 16RFO (Neutrik QUAD MMF) | LU0100095-10G | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) |
| LU0100056-06 | LU0100056 | Luminex GigaCore 16RFO (Neutrik DUO SMF) | LU0100095-10G | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) |
| LU0100056-02 | LU0100056 | Luminex GigaCore 16RFO (Neutrik DUO MMF) *Discontinued | LU0100095-10G | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) |
| LU0100056-05 | LU0100056 | Luminex GigaCore 16RFO (Neutrik QUAD MMF + PoE) *Discontinued | LU0100095-10G-P500 | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) – PoE++ |
| LU0100056-07 | LU0100056 | Luminex GigaCore 16RFO (Neutrik DUO SMF + PoE) *Discontinued | LU0100095-10G-P500 | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) – PoE++ |
| LU0100056-08 | LU0100056 | Luminex GigaCore 16RFO (Neutrik QUAD SMF) *Discontinued | LU0100095-10G | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) |
| LU0100056-09 | LU0100056 | Luminex GigaCore 16RFO (Neutrik QUAD SMF + PoE) *Discontinued | LU0100095-10G-P500 | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) – PoE++ |
| LU0100056-10 | LU0100056 | Luminex GigaCore 16RFO (FiberCo Mini 2 ch MMF) *Discontinued | LU0100095-10G | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) |
| LU0100056-11 | LU0100056 | Luminex GigaCore 16RFO (FiberCo Mini 2 ch MMF + PoE) *Discontinued | LU0100095-10G-P500 | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) – PoE++ |
| LU0100056-12 | LU0100056 | Luminex GigaCore 16RFO (FiberCo Mini 4 ch MMF) *Discontinued | LU0100095-10G | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) |
| LU0100056-13 | LU0100056 | Luminex GigaCore 16RFO (FiberCo Mini 4 ch MMF + PoE) *Discontinued | LU0100095-10G-P500 | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) – PoE++ |
| LU0100056-14 | LU0100056 | Luminex GigaCore 16RFO (FiberCo Mini 2 ch SMF) *Discontinued | LU0100095-10G | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) |
| LU0100056-15 | LU0100056 | Luminex GigaCore 16RFO (FiberCo Mini 2 ch SMF + PoE) *Discontinued | LU0100095-10G-P500 | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) – PoE++ |
| LU0100056-16 | LU0100056 | Luminex GigaCore 16RFO (FiberCo Mini 4 ch SMF) *Discontinued | LU0100095-10G | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) |
| LU0100056-17 | LU0100056 | Luminex GigaCore 16RFO (FiberCo Mini 4 ch SMF + PoE) *Discontinued | LU0100095-10G-P500 | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) – PoE++ |
| LU0100056-18 | LU0100056 | Luminex GigaCore 16RFO (Fiberfox 2 ch MMF) *Discontinued | LU0100095-10G | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) |
| LU0100056-19 | LU0100056 | Luminex GigaCore 16RFO (Fiberfox 2 ch MMF + PoE) *Discontinued | LU0100095-10G-P500 | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) – PoE++ |
| LU0100056-20 | LU0100056 | Luminex GigaCore 16RFO (Fiberfox 4 ch MMF) *Discontinued | LU0100095-10G | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) |
| LU0100056-21 | LU0100056 | Luminex GigaCore 16RFO (Fiberfox 4 ch MMF + PoE) *Discontinued | LU0100095-10G-P500 | Luminex GigaCore 18t (10 Gb) – 16x1G – 2x10G (SFP+) – PoE++ |
