NWP222 Network in- & output panel - 2 x XLR in- & out + BT (4 x 2 CH)

MSRP: POA
AUNWP222

The NWP222 is a Dante™/AES67 network input panel featuring two XLR input and output connectors and an integrated Bluetooth receiver, which can transmit or receive audio signals in a Dante™ audio network. The audio inputs can be switched between line-level and microphone-level audio signals, and phantom power (+48 V DC) can be applied to the XLR input connectors for powering condenser microphones.

Various further integrated functions, such as integrated equalising, automatic level control and other device settings, can be configured through the AUDAC Touch™ app.

The front panel is finished with high-grade materials such as hardened glass, making them blend into any environment. These wall panels are compatible with standard EU-style in-wall boxes, which are ideal for solid and hollow walls.

The IP-based communication makes it future-proof while being backwards compatible with many existing products. In contrast, the limited PoE power consumption makes it compatible with any PoE network-based installation.



Variant MSRP

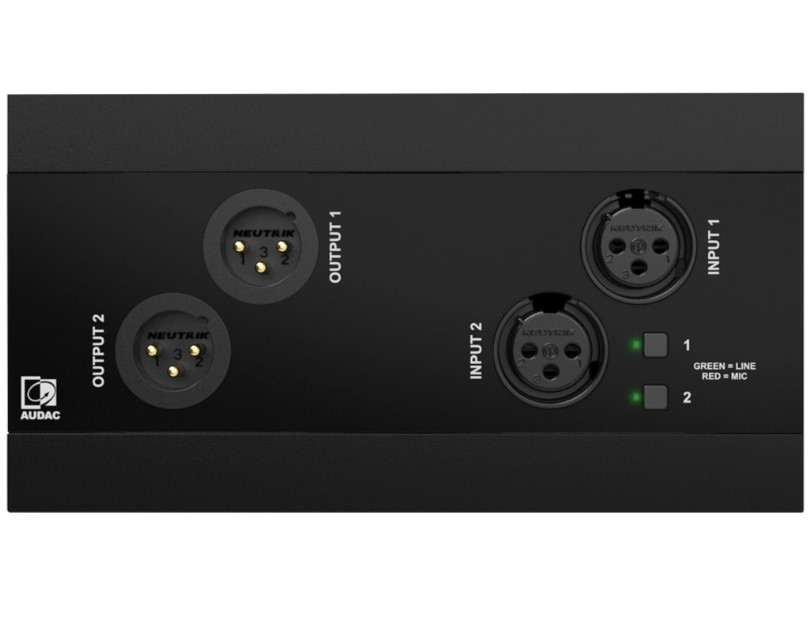

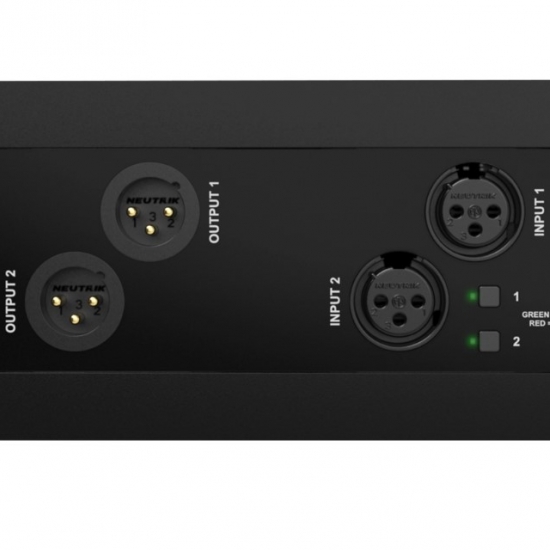

BLACK - NWP222 Network in- & output panel - 2 x XLR in- & out + BT (4 x 2 CH) AUNWP222 POA

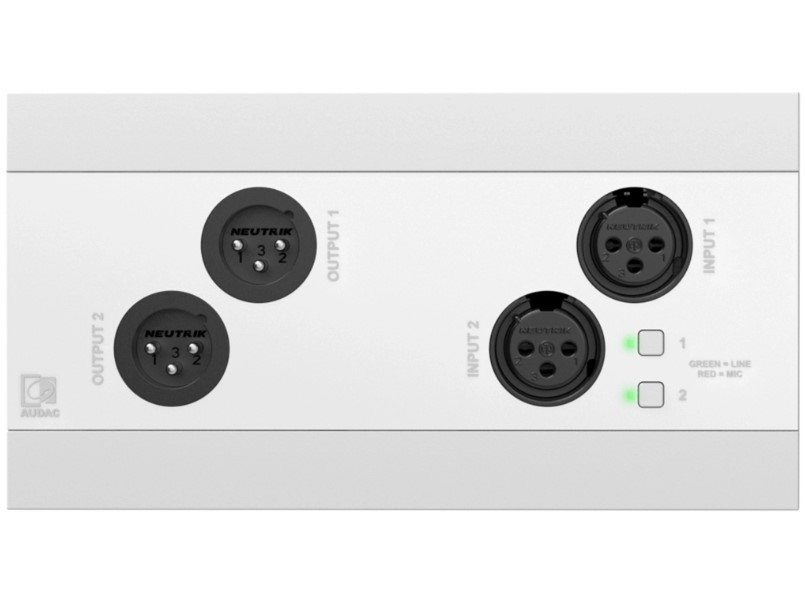

WHITE - NWP222 Network in- & output panel - 2 x XLR in- & out + BT (4 x 2 CH) AUNWP222US_W POA
Would you like a Demo?

Highlights

  • 2 x XLR inputs & outputs
  • Integrated Bluetooth receiver
  • 4-channel Dante™/AES67
  • Internal mixing & DSP processing

3 years   PoE powered   Dante™/AES67  Internal mixing and EQ   Bluetooth

System specifications
Inputs 2 x XLR female (in)
  2 x XLR male out
Control 2 buttons - Mic / Line switching
Indicators 2 LED’s (RGB) - Input status
Configurable settings IP settings
  Device name
  Input range (Mic / Line)
  Gain
  Phantom power
  DSP (EQ)
  Mixing
Configuration Audac Touch™
Integrated DSP Yes (EQ)
Automatic level control Yes
Phantom power +48 V DC

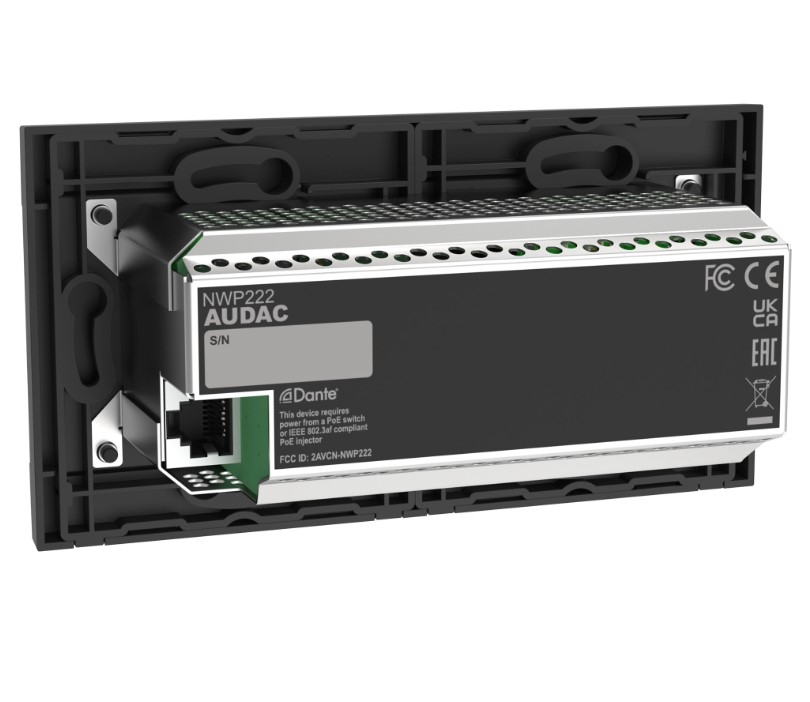

Power Supply PoE powered (IEEE 802.3at)
Connectors XLR Female (mic in)
  RJ45 (network + PoE)
  1 x XLR male (audio out)
Product Features
Construction ABS
Front finish Elegant ABS front panel with glass
Dimensions 160 x 88 mm (W x H) (Remote wall panel)
Colours White (RAL9003) (DWP240/W)
  Black (RAL9005) (DWP240/B)
Compatible devices Any Dante™/AES67 compatible audio device
Installation standard Compatible with EU installation materials

Block schematic

Dante™/AES67 networked audio input panel featuring various in- & output connections, ranging from XLR to Bluetooth and even USB Type-C. Powered over Ethernet and with their own internal mixing & EQ functionalities. True flexibility; the choice is yours.

A brief overview

Decentralized TouchLink™ setup

Centralized setup

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
