OPR509A/B

MSRP: POA
CYOPR509A-B

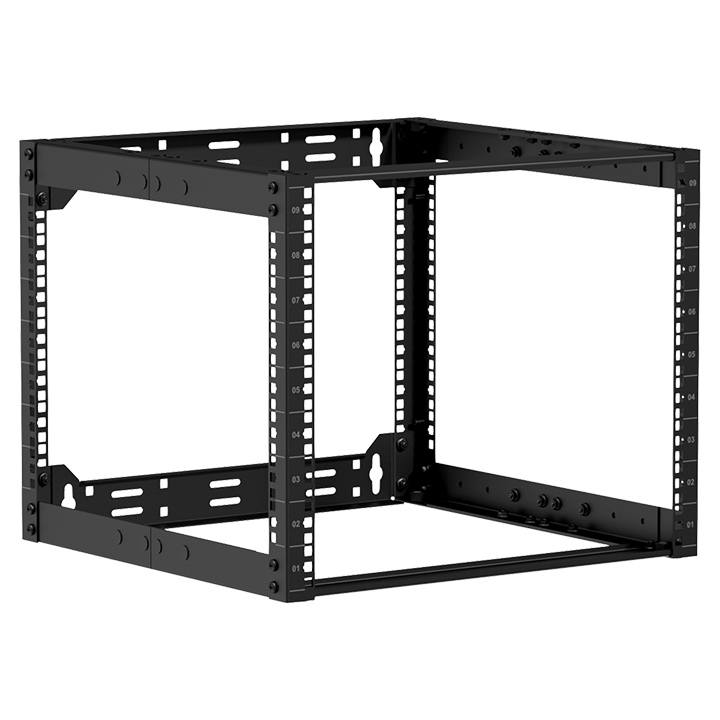

19" in depth adjustable open frame rack - 9 unit - 500 ~ 700 mm

The OPR509A is an in depth adjustable professional and solid constructed open-frame rack for 19” equipment compliant with ANSI/EIA RS-310D, DIN41491, and IEC60297 standards which is suitable for wall-mounted or floor-standing installation. It ensures maximum installation, connectivity, and maintenance ease storing up to 9 units of 19” equipment.

The open frame rack has an adjustable depth of 500 to 700 mm for easy installation and fitment in existing furniture. The rugged construction made of 2 mm thick steel allows for pre-loading of the equipment before transportation to the installation site. Finishing is done in a black (RAL9004) powder coating with fine structure while punched equipment mounting profiles on the front and both sides offer a multifunctional use of the cabinet. Delivered in a flat-down package, the simple structure allows assembly by a single person in a record-breaking time.

Would you like a Demo?

Features:

  • In depth adjustable
  • Stores up to 9 units of 19” Equipment
  • Punched square holes for use with snap-in cage nuts
  • 2 mm thick cold rolled steel frame
  • Easy assembly in 10 minutes
  • Floor standing & wall-mounted use
  • Unrestricted airflow due to open-frame design
  • Stand-alone & in-furniture integration
  • Systems are packaged unassembled for shipping and will require assembly after shipping.
Product Features
Unit height 9 RU
Max. usable depth 500 ~ 700 mm (19" ~ 27.56")
Dimensions 20.47" x 16.73" x 19" ~ 27.56" (520 x 425 x 500~700 mm) (W x H x D) (excl. rubber feet)
Colors Black (RAL9004)
Accessories Included 4 x Levelling feet
    4 x M8 expanding wall bolt
    20 x Cage nuts + screws
  Optional KM600 - M6 Cage nuts
Max. load standing 220.46 lbs (100 kg)
Max. load hanging 55.12 lbs (25 kg)
Weight 18.74 lbs (8.5 kg)

*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
