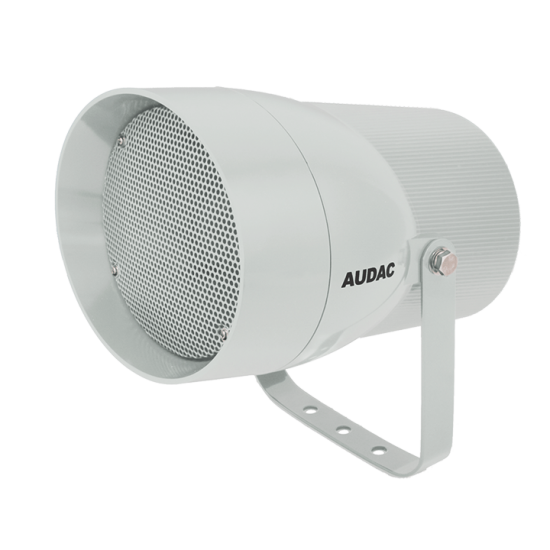

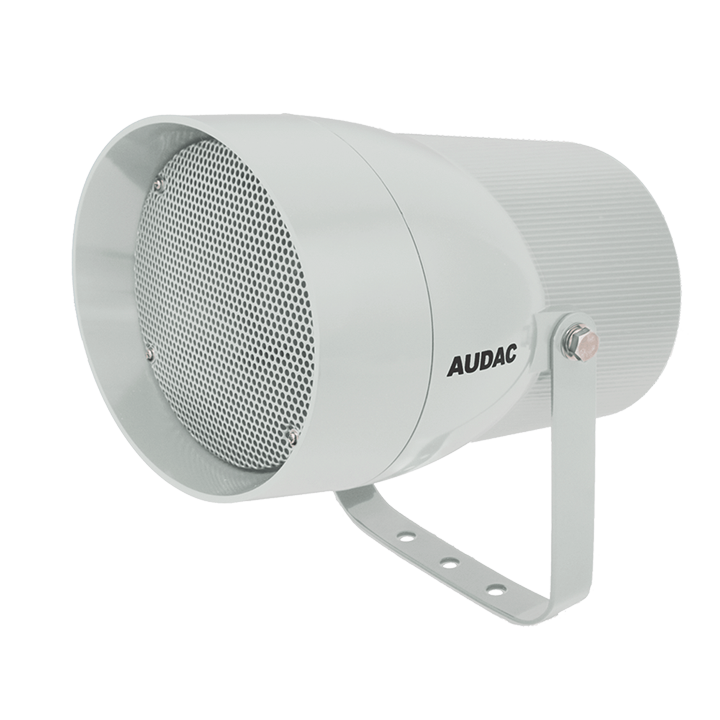

HS121 Outdoor sound projector 100V
MSRP:
POA
AUHS121-
The HS121 is a full range sound projector based on a 4" driver especially designed to provide quality sound with a long throw range in a wide variation of in- and outdoor applications. Its wide, smooth frequency response and high efficiency ensure high-fidelity music reproduction along with superb projection of clear and intelligible speech at very low distortion. It delivers a power of 20 Watt RMS in standard 8 Ohm systems with a maximum power of 40 Watt but it can also be used in 100V PA systems. The 100V line transformer has power taps for 20 Watt, 10 Watt and 5 Watt which can be selected by the special designed 5-pin waterproof connector. This connector allows selecting the desired power tapping depending on the angle of rotation of the connector. The housing is made of the strongest ABS material in a light-grey colour, ensuring a smooth blend of the loudspeaker in all different kinds of environments. The IP rating of IP65 makes it suitable for indoor as well as outdoor use. For safety reasons, the speaker is provided with an internal steel safety cable, which prevents the speaker from falling, even in situations where the housing of the speaker has been damaged or broken.
| Max. Power : | 40 W |
| RMS Power : | 20 W |
| Line Transformer Tappings 1 : | 20 W / 500 Ω |
| Line Transformer Tappings 2 : | 10 W / 1000 Ω |
| Line Transformer Tappings 3 : | 5 W / 2000 Ω |
| Impedance : | 8 Ω |
| Sensitivity (1W/1m) : | 96 dB |
| Sound Pressure (Max. W/1m) : | 109 dB |
| Frequency Response (± 3 dB) : | 180 Hz - 13 kHz |
| Frequency Range (-10 dB) : | 150 Hz - 15 kHz |
| Dispersion Horizontal : | 60° |
| Dispersion Vertical : | 80° |
| Connectors : | Waterproof AWX-5 connector |
| Drivers : | 4” Full Range |
| Dimensions : | 220 x 160 x 250 mm (W x H x D) |
| Weight : | 2 kg |
| Construction : | Fire retardant ABS |
| Front finish : | Aluminium grill |
| Mounting & handling : | Aluminium U bracket |
| Colours : | Grey (RAL 7035) |
| Operating temperature : | -10 °C ~ 50 °C |
| Accessories Included : | Mounting bracket |
| Accessories Included : | 5-pin AWX5 connection cable |
| Accessories Optional : | AWC07 - AWX5 cable 0.7 m |
| Accessories Optional : | AWC25 - AWX25 cable 2.5 m |
| Accessories Optional : | AWC50 - AWX50 cable 5 m |
*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
