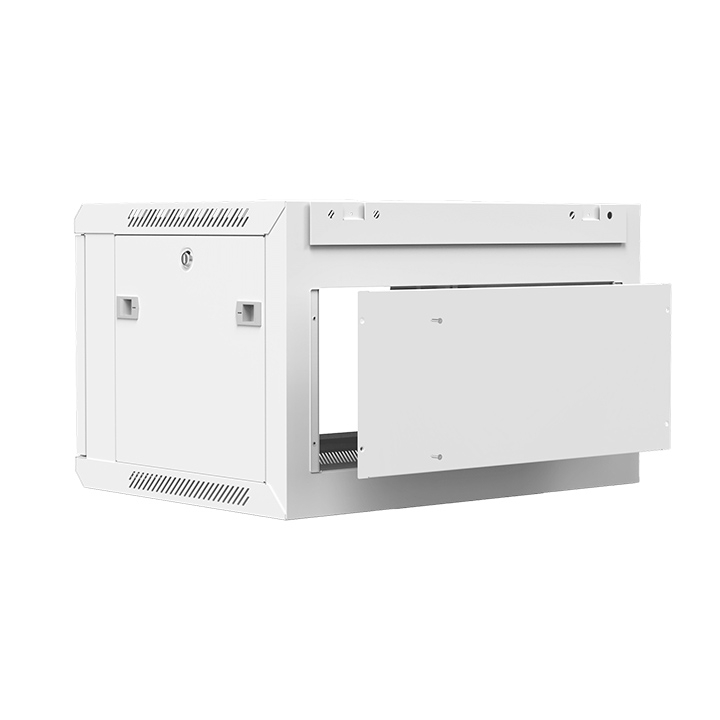

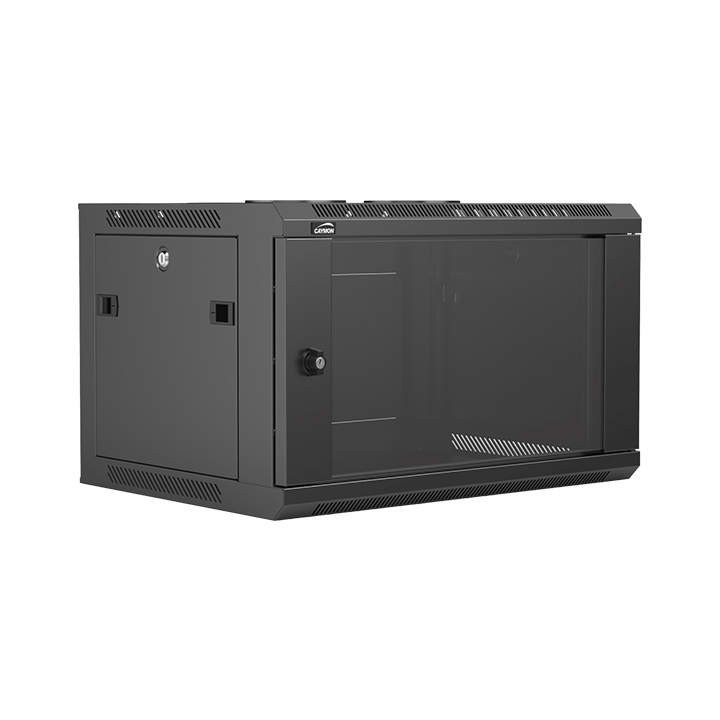

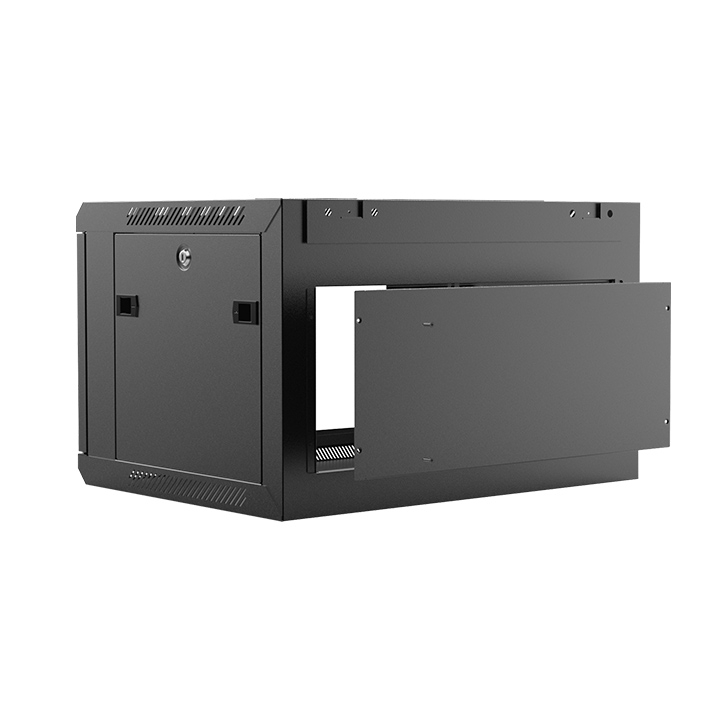

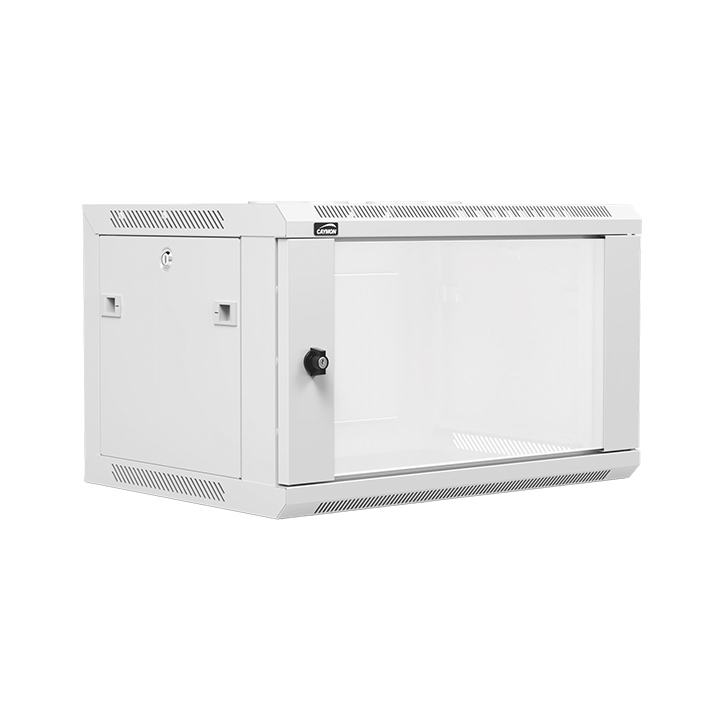

19” wall mount rack - 6 units - 450mm depth - Removable back

The WPR406R is a professional 19” wall mount metal rack compliant with ANSI/EIA RS-310D, DIN41491, and IEC 60297 standards. It is a solid construction with a cold rolled steel 1.5 mm thick frame and 1.2 mm thick plates. The WPR406R comes fully assembled and can easily be mounted on the wall. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensures easy fitting of the equipment. The tempered smokey grey glass door is fitted with a keylock to keep the equipment only accessible to authorized persons. The removable sides and back panel allow easy installation and cabling of the equipment while the in-depth adjustable 19” profiles provide great flexibility for installing equipment depending on its depth.

Variant MSRP
Black Version CYWPR406R-B POA
White version CYWPR406R-W POA
Would you like a Demo?


  • Stores up to 6 units of 19” Equipment
  • Integrated ventilation grid on top
  • Removable sides for easy installation & cabling
  • Punched square holes for use with snap-in cage nuts
  • Front in depth adjustable 19” profiles (max 410 mm)
  • Loading capacity of 60 kg
  • Cable entry on top, back & bottom (closable)
  • Removable rear panel
  • Keylock with butterfly handle
Product Features
Dimensions 20.62" x 14.49" x 17.72" (600 x 368 x 450 mm) (W x H x D)
Unit height 6 RU
Max. usable depth 16.14" (410 mm)
Max. load 132.28 lbs (60 kg)
Weight 40.79 lbs (18.5 kg)
Colors Black (RAL9004)
  White (RAL9003)
Accessories Included 2 x key for front door
    4 x Key for sidepanel lock
    10 x Cage nuts + screws
    1 x Allen key
    1 x WPR45LR
  Optional WPR45FS - Fixed shelf
    WPR45LR - L-Rail pair
    WPR10RF - Roof fan 120x120 mm
    SPR10DC - Dust cover brush
    KM600 - M6 Cage nuts
    KS600 - M6 x 16 mm bolt DIN7985 Black
    SS160 - Sliding shelf
