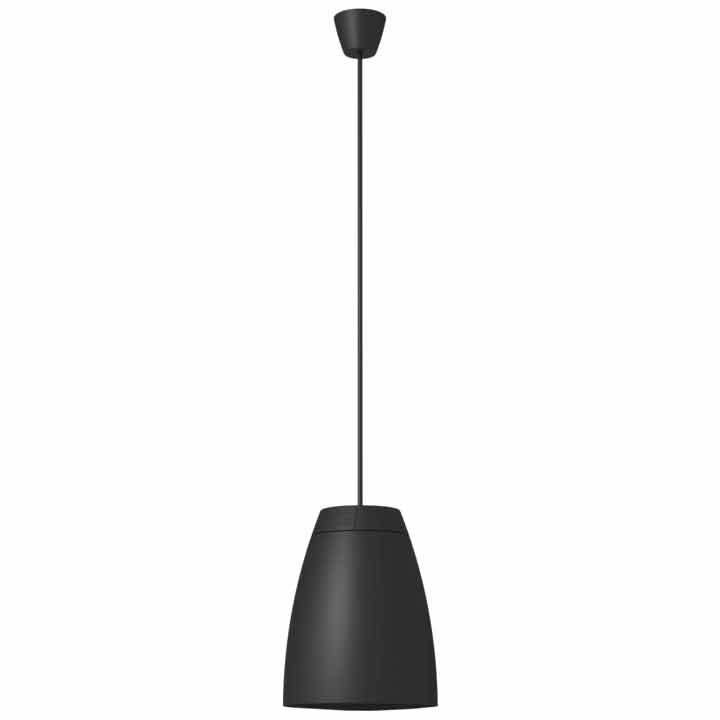

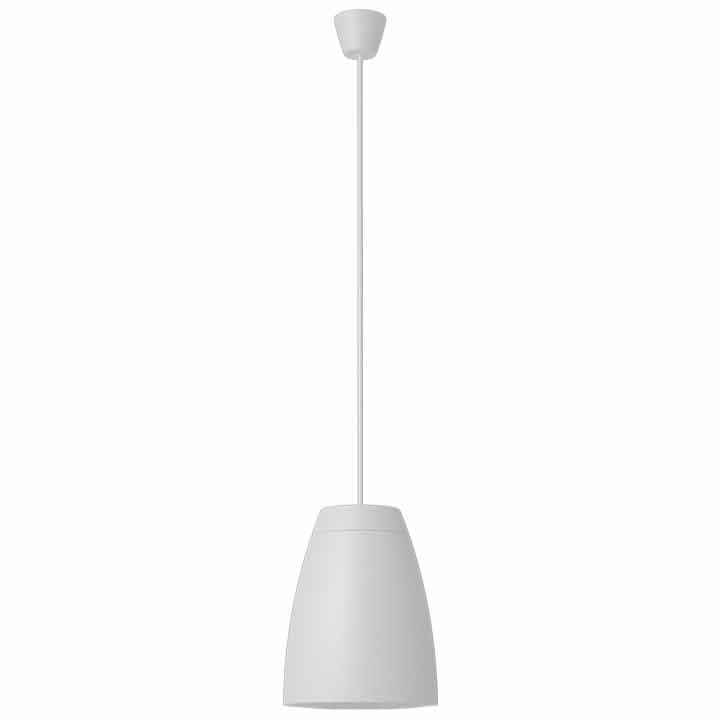

2-way 6" pendant speaker
"Pure sound, hanging around."
The ALTI6 is a 2-way pendant loudspeaker featuring a 6.5” driver combination with a coaxially mounted 1” soft dome tweeter and is fitted with a phase plug for excellent off-axis performance.

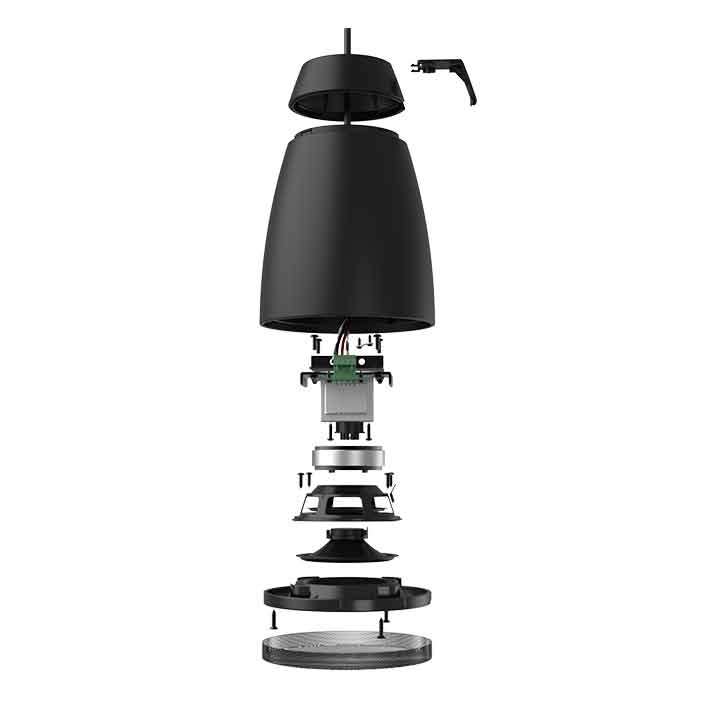

The 2-way combination with a high-quality polypropylene enclosure and acoustic engineering craftsmanship guarantees premium performance for demanding applications. A continuous power handling of 60 Watt (RMS) and maximum power handling of 120 Watt is achieved. Connections are made through a terminal block connector behind the rear cover, accompanied with a power tap selector switch for the tapping of a 70V/100V line transformer with tappings for 60W, 30W, 15W, and a 16 Ohm bypass connection.
Mounting the speaker is done through a connection cable with two integrated steel cores for suspending with an additional drop safety. Fixation is made through two snap-hooks on one end and a dual Gripple™ fixation on the other end. The included cable length of 3.5 meters offers possibilities for a wide variety of ceiling heights. An innovatively designed rear cover of the speaker can be placed after installation and hides the connection and suspension on the speaker end. The ceiling end connections are covered through a cable cover.
|Speaker type :||2-way coaxial|
|Max. Power :||120 W|
|RMS Power :||60 W|
|Impedance :||16 Ω|
|Dispersion Conical :||115° (average 500 Hz to 5 kHz @ -6 dB)|
|Line Transformer Tappings 1 :||83 Ω - 100 V / Not used - 70 V / 60 W|
|Line Transformer Tappings 2 :||167 Ω - 100 V / 60 W - 70 V / 30 W|
|Line Transformer Tappings 3 :||333 Ω - 100 V / 30 W - 70 V / 15 W|
|Line Transformer Tappings 4 :||667 Ω - 100 V / 15 W - 70 V / 7.5 W|
|Connectors :||4-pin Euro Terminal Block|
|Sensitivity (1W/1m) :||83 dB|
|Frequency Range (-10 dB) :||61.5 Hz - 20 kHz|
|Frequency Response (± 3 dB) :||75 Hz - 17 kHz|
|Sound Pressure (Max. W/1m) @ 16 Ω :||101 dB|
|Dimensions :||230 x 302 mm (Ø x H)|
|Connection cable length :||3.5 m|
|Mounting & handling :||Dual snap hook and dual Gripple™ hanger|
|Front finish :||Aluminium grill|
|Accessories Included :||Connection cable with dual copper and dual steel cores|
|Accessories Included :||2 Gripple™ hangers|

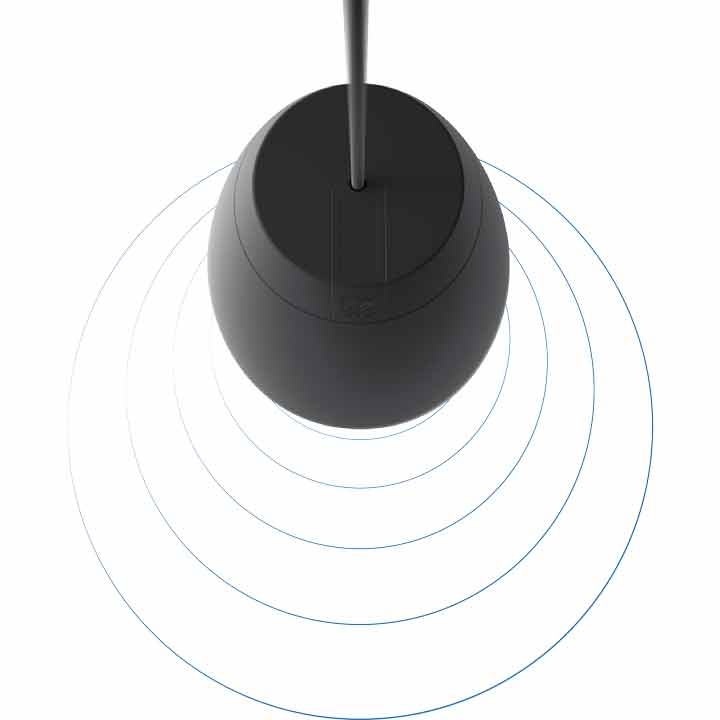

The wide opening angle of the speaker guarantees an exceptional dispersion in all different kinds of applications and locations with high ceilings and large open spaces. The carefully matched components and construction guarantee optimal coverage over the entire frequency range.

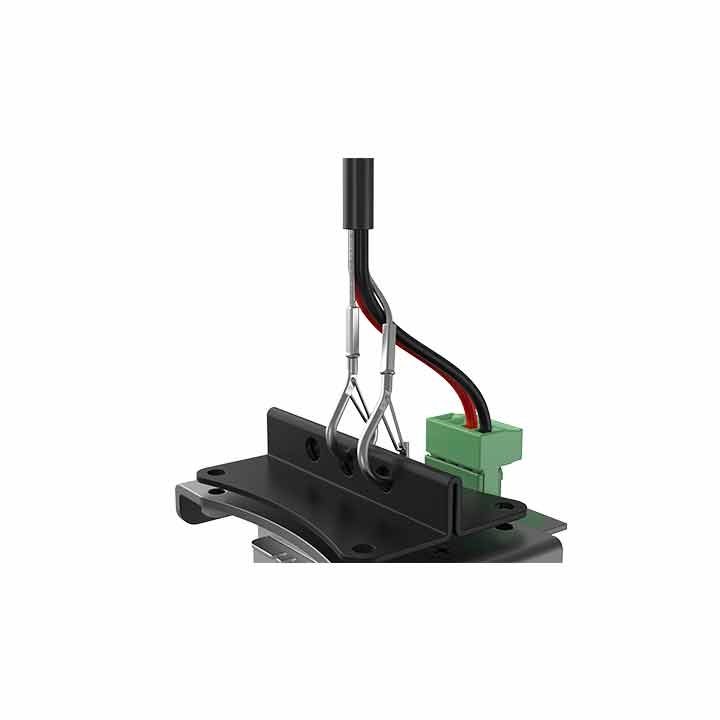

The ALTI series' connection cable, steel suspension, and safety wire are all stored in one single outer jacket. Fixation is made through two snap hooks on one end and a Dual Gripple™ locking system on the other end. The included cable length of 3.5 meters offers possibilities for a wide variety of ceiling heights.
See SLIDECAP™ Technology below.

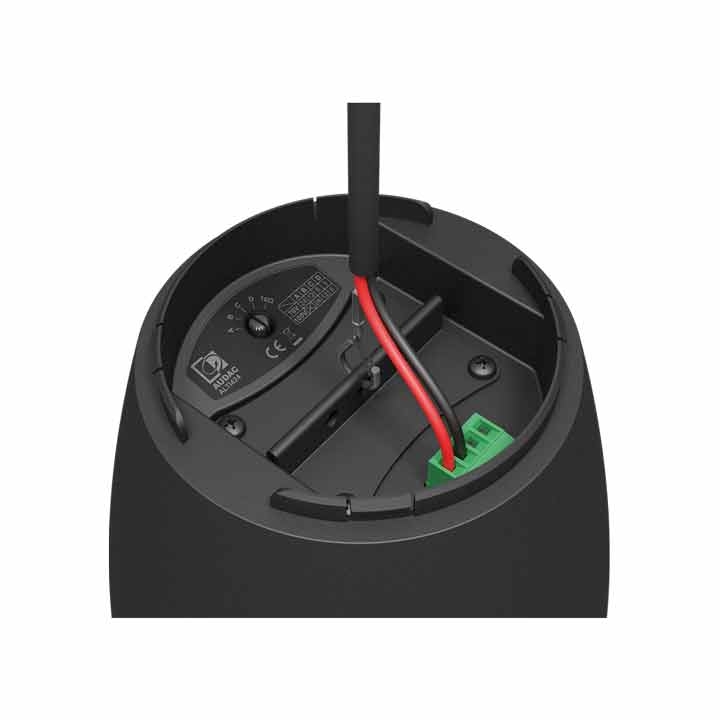

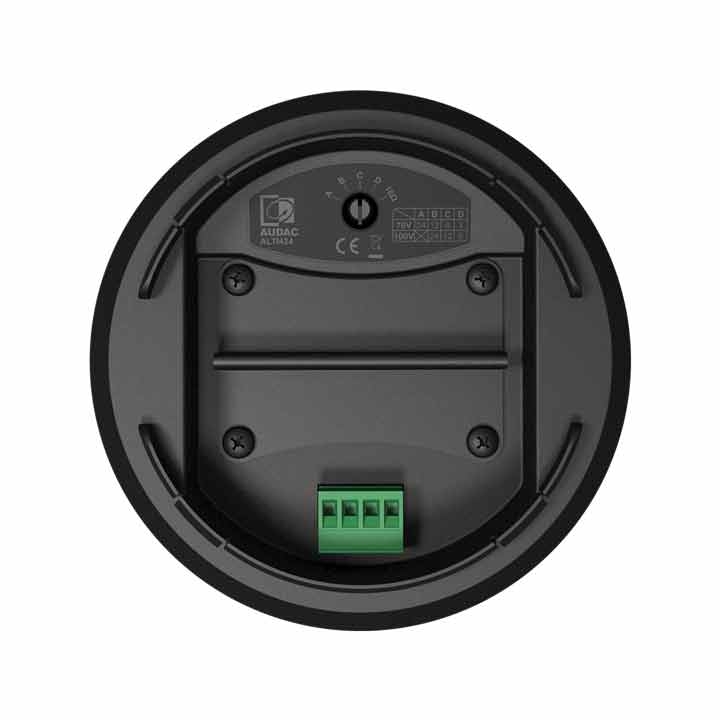

A rotary selector switch located behind the rear cover selects the setting between low impedance and 70V/100V use, while adjustments in tappings are easily made, even after already installed and connected.
An innovatively designed rear cover hides the connection and suspension on the speaker end. It can easily be attached and detached by sliding, even after installation. Leading to one neat and enclosed entity.
Mounting the speaker is done through a connection cable with two integrated steel cores for suspending with an additional drop safety. Fixation is made through two snap-hooks on one end and a dual Gripple™ fixation on the other end. A cable of 3.5 meters comes included with the ALTI series, other cable lengths and colors are also optionally available for purchase (DSC70 and DSC100).
An innovatively designed rear cover of the speaker can be placed after installation and hides the connection and suspension on the speaker end. The ceiling end connections are covered through a cable cover with the SlideCap™ latching system.
Position the speaker cover around the cable and over the cabinet.
Click and latch the speaker cover in place.
Once assembled, the sliding tab can be inserted into the cover and can be slide into position.
You are now presented with a nice and clean one unit outlook of the cabinet.
Thanks to a special coating applied to the drivers, the ALTI series are also suitable for use in applications with high levels of humidity such as outdoor terraces, bathrooms, or many more!
EASE Address is a software that allows the modeling of acoustic sources, distributed loudspeaker systems in particular, in two dimensions.
EASE Focus 3 is an acoustic simulation program for 3D modeling of line arrays, sub arrays, columns and conventional loudspeakers.
1) Premium acoustic components
Did you know that for the ALTI loudspeaker series, only the most premium acoustic components were used? The craftsmanship that went into the design guarantees top tier performance resulting in a clear speech intelligibility and warm and detailed music reproduction.
2) Wide beam coverage
Did you know that the wide opening angle of 165° for the ALTI4(M) loudspeaker series and 115° for the ALTI6(M) guarantee an exceptional dispersion in all different kinds of applications and locations with high ceilings and large open spaces?
3) Secure and fast mounting system
Did you know that the fixation of the ALTI loudspeaker series is done through 2 snap-hooks on one end and a dual Gripple™ fixation on the other end? This creates a safe & secure fixation and allows a finger quick installation.
4) Innovative & unique design
Did you know that thanks to its elegant design, the ALTI loudspeaker series is a perfect fit for places with modern interiors, high ceilings and large open spaces like beach bars?
5) All in one outer jacket
Did you know that the ALTI pendant loudspeaker series' connection cable, steel suspension and safety wire are all stored in a single outer jacket, resulting in a clean looking all-in-one entity?
6) Cable covers for a clean design
Did you know that an innovatively designed rear cover hides the connection and suspension on the speaker end of the ALTI pendant loudspeakers? This unique SlideCap™ innovation ensures the cover can easily be attached and detached by sliding, even after installation.
7) Wide variety of ceiling heights – cable lengths 3.5 meters
Did you know that the included cable length of the ALTI pendant loudspeakers is 3.5 meters, offering possibilities for a wide variety of ceiling heights? Optional connection cables of 7 and 10 meters expand your possibilities even more.
8) Moisture resistant
Did you know the drivers of both the ALTI pendant loudspeaker as the sound project variant are applied with a special coating allowing them to be suitable for applications with high levels of humidity?
9) Outdoor proof Construction
Did you know that the ALTIxM design wall sound projector, with an IP rating of 65, provides a great solution for various outdoor applications? Its elegant ABS enclosure together with the waterproof AWX5™ connector and weather and moisture-proof drivers make sure this design wall projector series shines in any weather condition.
10) Countless mounting possibilities
Did you know that the ALTIxM design wall sound projector features a die-cast mounting bracket for wall & ceiling mount purposes in any desired angle? This swiveling bracket allows the same audio system design and identity throughout the entire installation.
