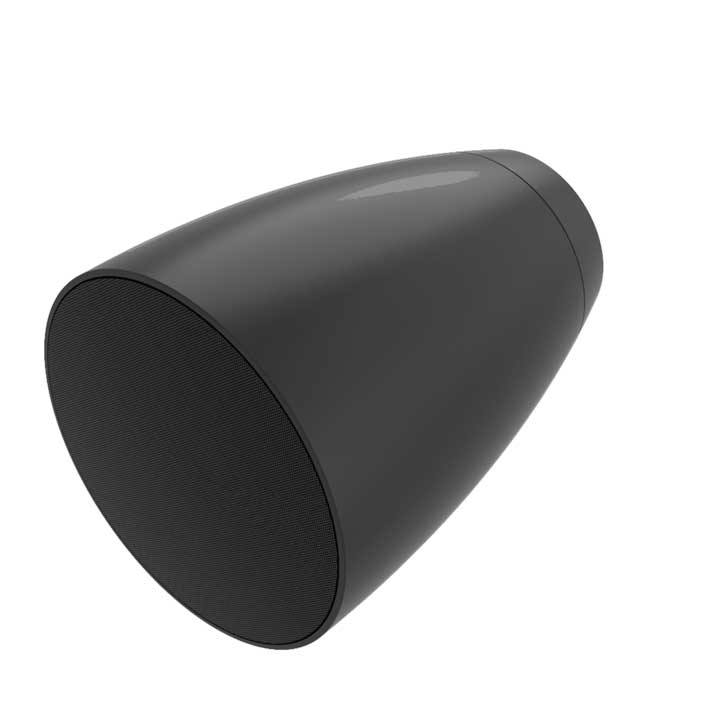

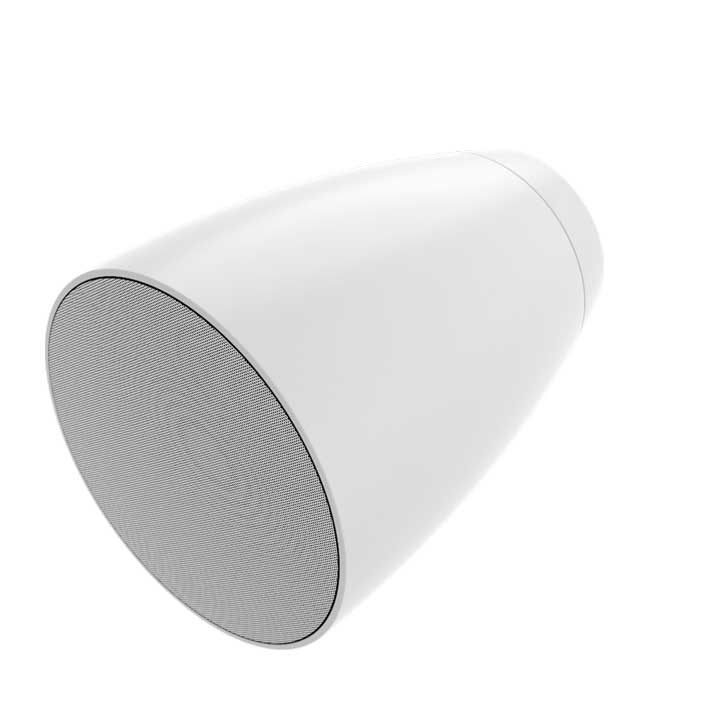

2-Way 6.5" Design wall sound projector
The ALTI6M is a variant of the ALTI pendant speakers, featuring a die-cast mounting bracket for wall & ceiling mount purposes. This allows the same audio system design and identity throughout the entire installation in case some areas are not allowing pendant solutions to be used due to the ceiling heights or structures. Acoustics and construction are identically crafted, while connections are made through weatherproof AWX5™ connectors, this construction has an IP65 rating.
The ALTI6M features a 2-way 6,5” driver combination with a coaxially mounted 1” soft dome tweeter and is fitted with a phase plug for excellent off-axis performance. The 2-way combination with a high-quality polypropylene enclosure and acoustic engineering craftsmanship guarantees premium performance for demanding applications. A continuous power handling of 60 Watt (RMS) and maximum power handling of 120 Watt is achieved.
|Max. Power :||120 W|
|RMS Power :||60 W|
|Speaker type :||2-way coaxial|
|Impedance :||16 Ω|
|Dispersion Conical :||115° (average 500 Hz to 5 kHz @ -6 dB)|
|Line Transformer Tappings 1 :||83 Ω - 100 V / Not used - 70 V / 60 W|
|Line Transformer Tappings 2 :||167 Ω - 100 V / 60 W - 70 V / 30 W|
|Line Transformer Tappings 3 :||333 Ω - 100 V / 30 W - 70 V / 15 W|
|Line Transformer Tappings 4 :||667 Ω - 100 V / 15 W - 70 V / 7.5 W|
|Connectors :||Waterproof AWX-5 connector|
|Sensitivity (1W/1m) :||83 dB|
|Sound Pressure (Max. W/1m) @ 16 Ω :||101 dB|
|Frequency Range (-10 dB) :||61.5 Hz - 20 kHz|
|Frequency Response (± 3 dB) :||75 Hz - 17 kHz|
|Line Transformer Tappings||IP65|
|Dimensions :||9.05" x 11.88" (230 x 302 mm) (Ø x H)|
|Connection cable length :||0.7 m / 2.29 feet|
|Mounting & handling :||2-way Revolving mounting bracket|
|Front finish :||Aluminum grill|
|Accessories Included :||2-way Revolving mounting bracket|
|Accessories Included :||5-pin connection cable (70 cm / 27.55")|

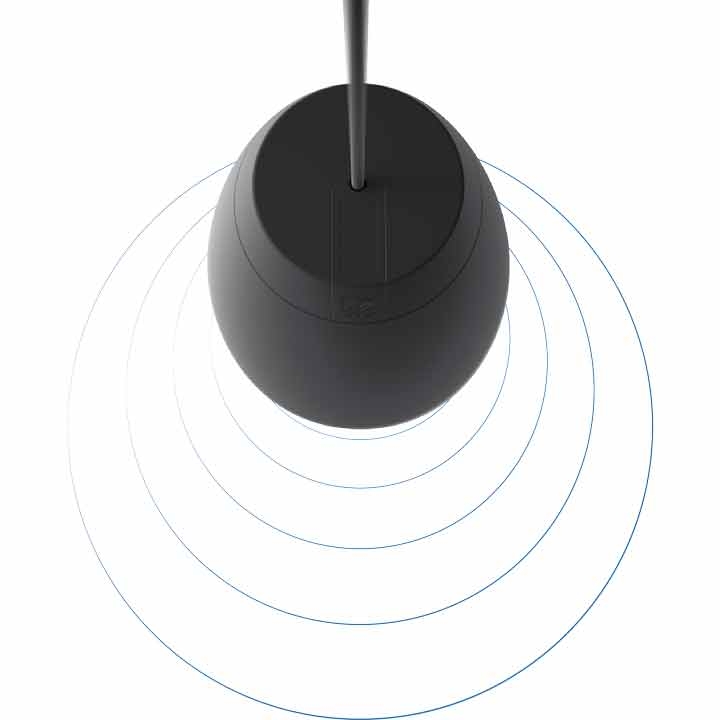

The wide opening angle of the speaker guarantees an exceptional dispersion in all different kinds of applications and locations with high ceilings and large open spaces. The carefully matched components and construction guarantee optimal coverage over the entire frequency range.

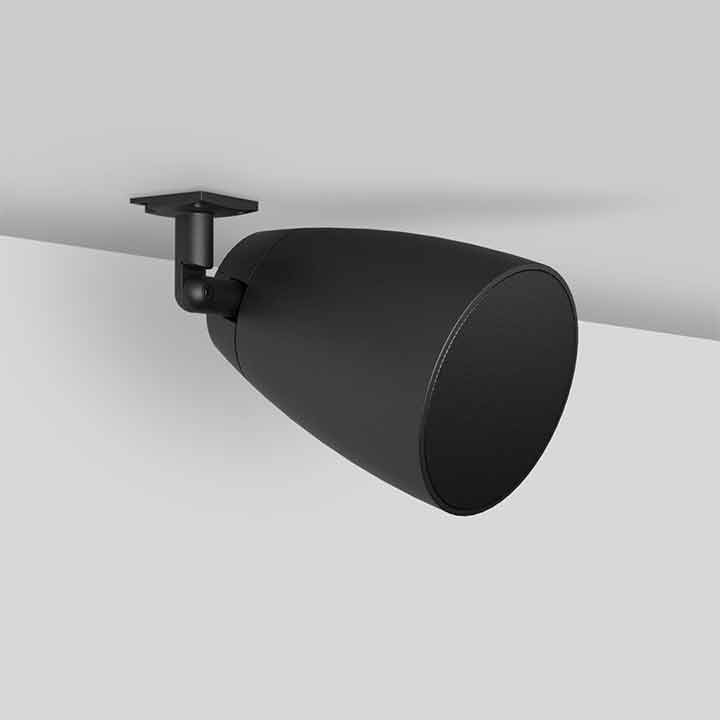

A die-cast mounting bracket makes wall & ceiling mounting possible at any desired angle. This swiveling bracket allows the same audio system design and identity throughout the entire installation. Some areas do not allow pendant solutions to be used due to the ceiling heights or other structures.
Thanks to a special coating applied to the drivers, the ALTI series are also suitable for use in applications with high levels of humidity such as outdoor terraces, bathrooms, or many more!
EASE Address is a software that allows the modeling of acoustic sources, distributed loudspeaker systems in particular, in two dimensions.
EASE Focus 3 is an acoustic simulation program for 3D modeling of line arrays, sub arrays, columns, and conventional loudspeakers.
Weatherproof connectivity and adjustments in one connection

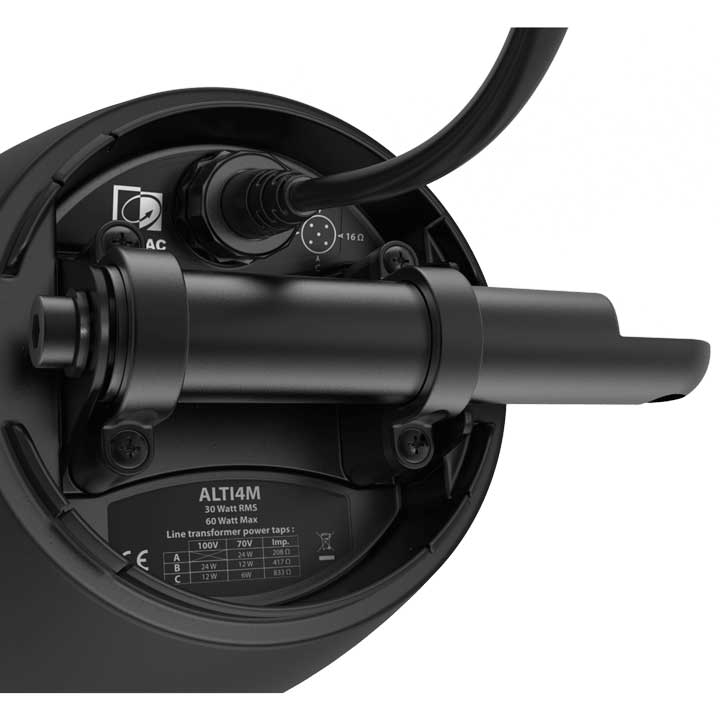

The AWX5™ connector is a specially designed connector that prevents the use of extra equipment and adjusting to a speaker system for setting the desired power tapping and maintaining an IP55 waterproof connection. The power setting can be made by simply rotating the connector. On the cable part of the connector is a white dot displayed. Depending on the position of the white dot, the desired power can be selected. When inserted a screwable outer ring with an inner rubber seal guarantees a superior connection in any type of weather condition. The power tapping can be set in 3 adjustable steps for 100V and one step for 8 Ohm standard low impedance applications.

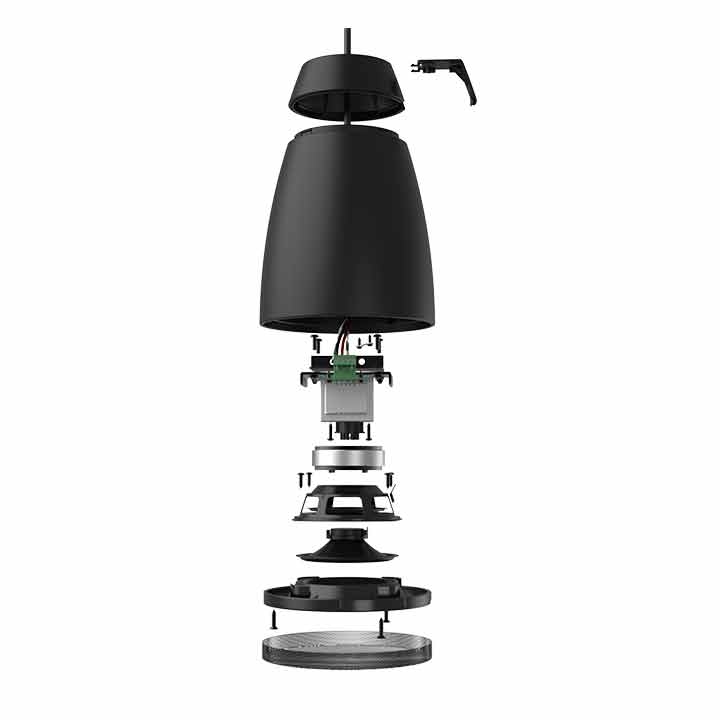

1) Premium acoustic components
Did you know that for the ALTI loudspeaker series, only the most premium acoustic components were used? The craftsmanship that went into the design guarantees top tier performance resulting in a clear speech intelligibility and warm and detailed music reproduction.
2) Wide beam coverage
Did you know that the wide opening angle of 165° for the ALTI4(M) loudspeaker series and 115° for the ALTI6(M) guarantee an exceptional dispersion in all different kinds of applications and locations with high ceilings and large open spaces?
3) Secure and fast mounting system

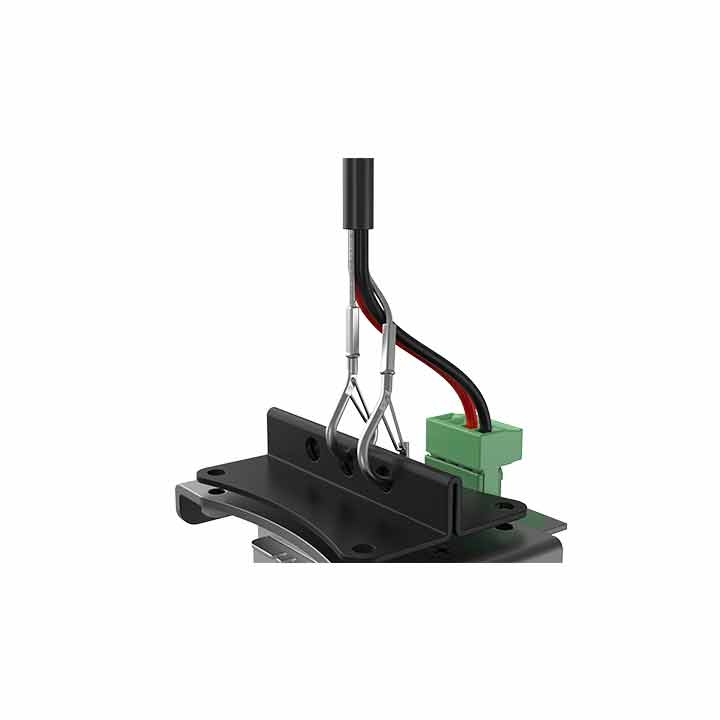

Did you know that the fixation of the ALTI loudspeaker series is done through 2 snap-hooks on one end and a dual Gripple™ fixation on the other end? This creates a safe & secure fixation and allows a finger quick installation.
4) Innovative & unique design
Did you know that thanks to its elegant design, the ALTI loudspeaker series is a perfect fit for places with modern interiors, high ceilings and large open spaces like beach bars?
5) All in one outer jacket
Did you know that the ALTI pendant loudspeaker series' connection cable, steel suspension, and safety wire are all stored in a single outer jacket, resulting in a clean-looking all-in-one entity?
6) Cable covers for a clean design
Did you know that an innovatively designed rear cover hides the connection and suspension on the speaker end of the ALTI pendant loudspeakers? This unique SlideCap™ innovation ensures the cover can easily be attached and detached by sliding, even after installation.
7) Wide variety of ceiling heights – cable lengths 3.5 meters
Did you know that the included cable length of the ALTI pendant loudspeakers is 3.5 meters, offering possibilities for a wide variety of ceiling heights? Optional connection cables of 7 and 10 meters expand your possibilities even more.
8) Moisture resistant
Did you know the drivers of both the ALTI pendant loudspeaker and the sound project variant are applied with a special coating allowing them to be suitable for applications with high levels of humidity?
9) Outdoor proof Construction
Did you know that the ALTIxM design wall sound projector, with an IP rating of 65, provides a great solution for various outdoor applications? Its elegant ABS enclosure together with the waterproof AWX5™ connector and weather and moisture-proof drivers make sure this design wall projector series shines in any weather condition.
10) Countless mounting possibilities

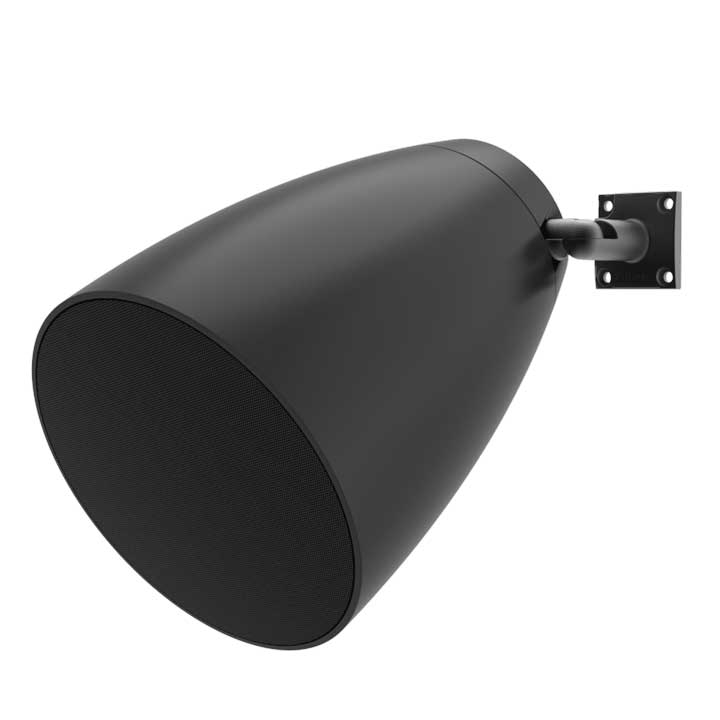

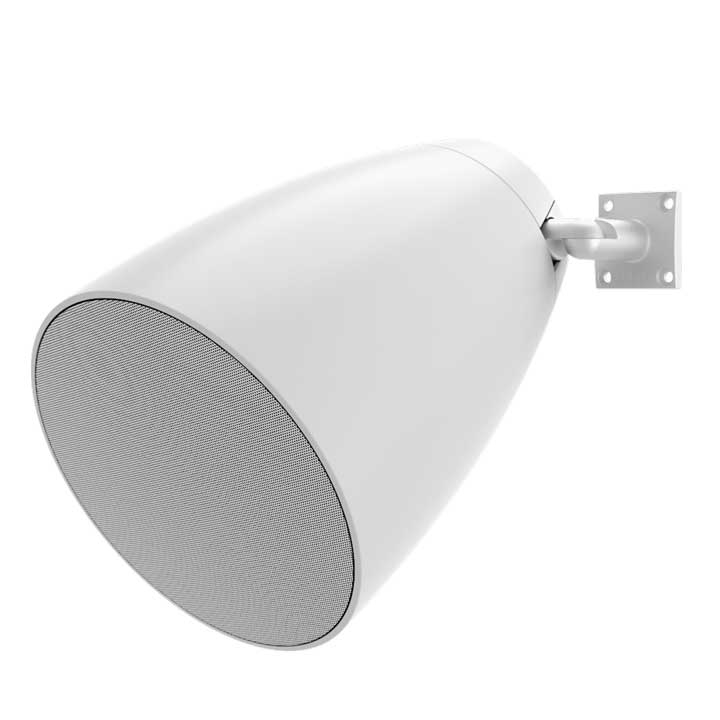

Did you know that the ALTIxM design wall sound projector features a die-cast mounting bracket for wall & ceiling mount purposes at any desired angle? This swiveling bracket allows the same audio system design and identity throughout the entire installation.
