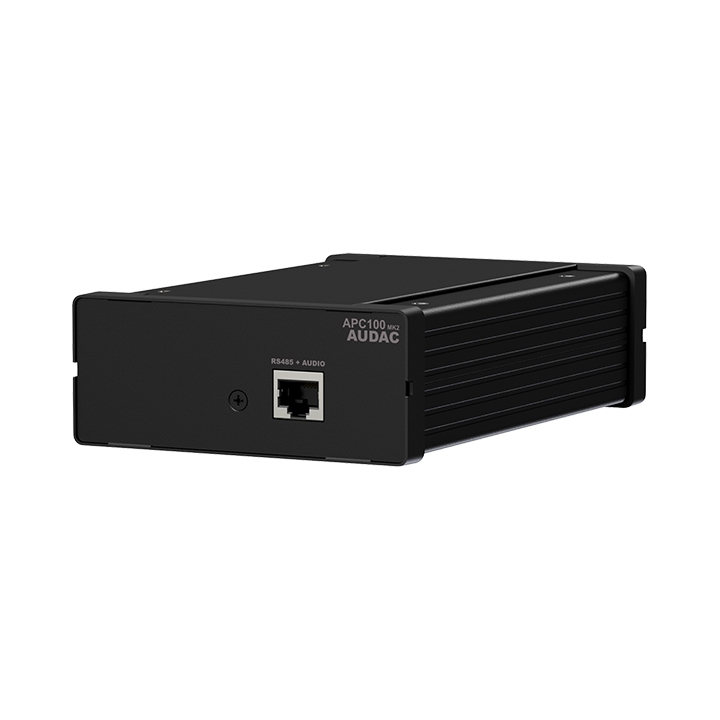

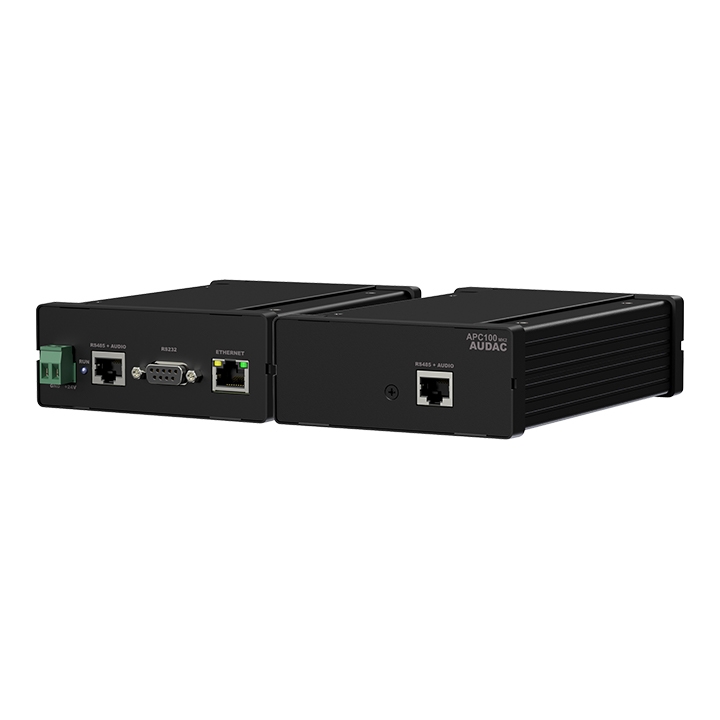

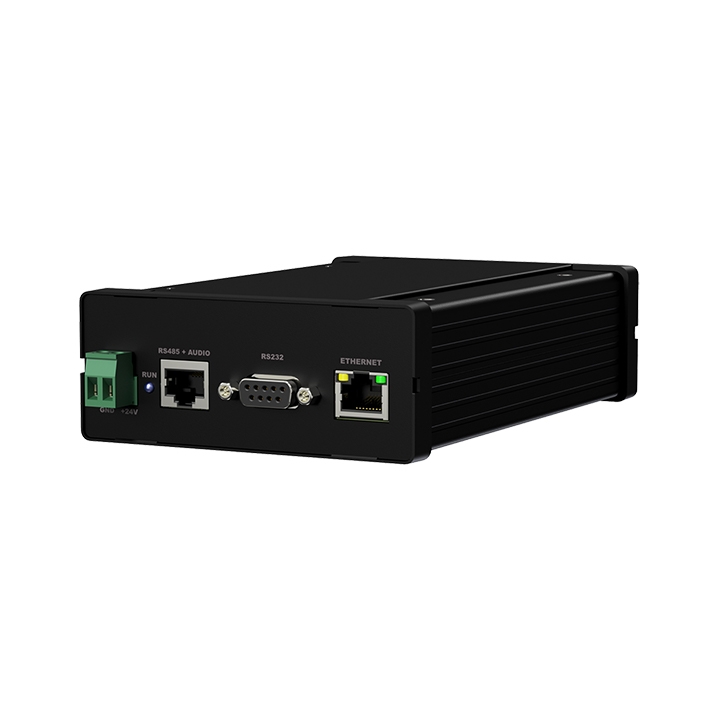

APC100MK2 Universal configuration & control unit


Universal configuration & control unit

The APC100 is a configuration and control unit that can be used in combination with a wide variation of 'smart' AUDAC devices, ranging from matrix systems and mixers to paging consoles and wall panels. It features different types of communication ports, such as TCP/IP, RS-232 & RS-485. This way, it can communicate with every 'smart' device connected to your installation and establish the missing link between them. This makes the installers' life easier and time-saving. Complex system configurations and updates can be made in a moment, as well as back-ups and duplicates. Specific files such as voice-file messages and screensavers can be uploaded without requiring no more than the APC100 and a computer. An internal real-time clock allows synchronizations for time-controlled events in external devices. (When synchronized with internet time server).

The AUDAC system manager software application allows the user to manage and control APC100's functions together with full configuration functionalities for any 'smart' connected devices. (through TCP/IP, RS-232, or RS-485 In addition it can also be used as a standard gateway receiving serial communication and converting into TCP/IP format and reversed. This allows system integration for devices such as audio sources & power amplifiers without integrated network capabilities to be implemented into your automation system. A variety of optionally available mounting brackets for the AUDAC S-Box product range are allowing desk, closet, or 19” equipment rack installation.

Would you like a Demo?
  • Compact construction
  • RS232 & TCP/IP control port
  • Digital communication bus (RS-485)
  • S-box™ modular multifunctional enclosure
Control : RS-485
Control : RS-232
Control : TCP/IP
Connectors : RJ45 (Ethernet)
Connectors : 2 x RJ45 (RS-485 + Audio)
Connectors : DB9 (RS-232)
Power Consumption : < 1 W
Power Supply : 24V DC (PSD242 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz)
Socket Connections (AUDAC Touch™) : 4 sockets

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
