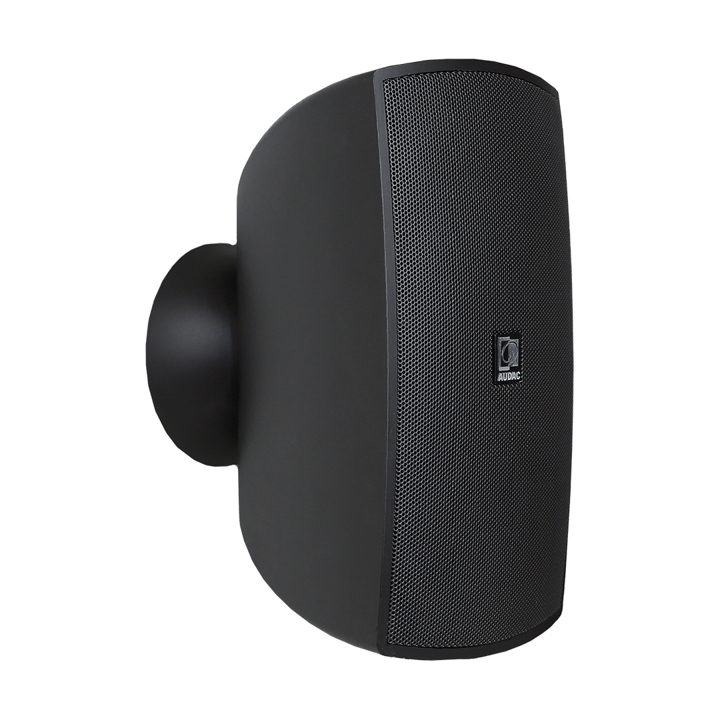

ATEO6 Wall speaker with CleverMount™ 6"
MSRP:
POA
AUATEO6/B
Wall speaker with CleverMount™ 6"
The ATEO is a series of extraordinary loudspeakers especially designed for fixed install indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants, or even clubs.
The ATEO6 is the 6” version, with a 1” dome tweeter and a 6” Mid / Low-frequency driver, ensuring a true-to-nature, high-fidelity reproduction of music and speech. It features a stunningly designed and elegant looking ABS housing that is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting bracket using the Clevermount™ technology, making the loudspeakers cabinet flow together with the mounting bracket providing great ease for installing the loudspeaker in one good-looking entity.
The mounting and connection of the loudspeaker simply happen by attaching the included metal wall plate to the desired location. When mounted, the wires must be connected to the desired terminal of the custom connection block. The desired power tap for 100 Volt or 8 Ohm can be selected by picking the right terminal. After this is done, only five seconds of work is left for clipping the loudspeaker onto the wall plate, tightening the safety screw and you’re ready to rock! This way, it’s really child’s play to install a large number of loudspeakers in no time.

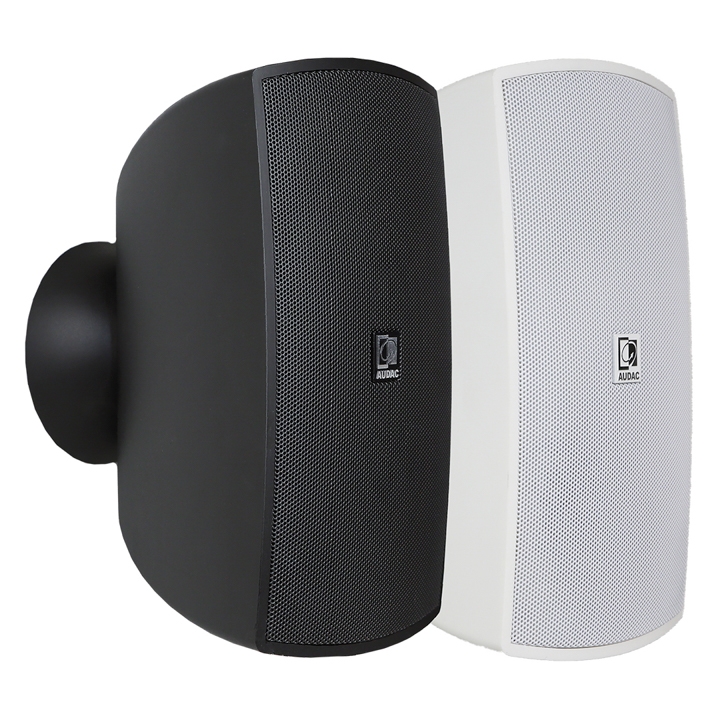

Even if you’re working all alone while people are watching your fingers or when installing the speakers up high when you’re standing on a ladder. All ATEO series speakers are available in black (/B) or white (/W).

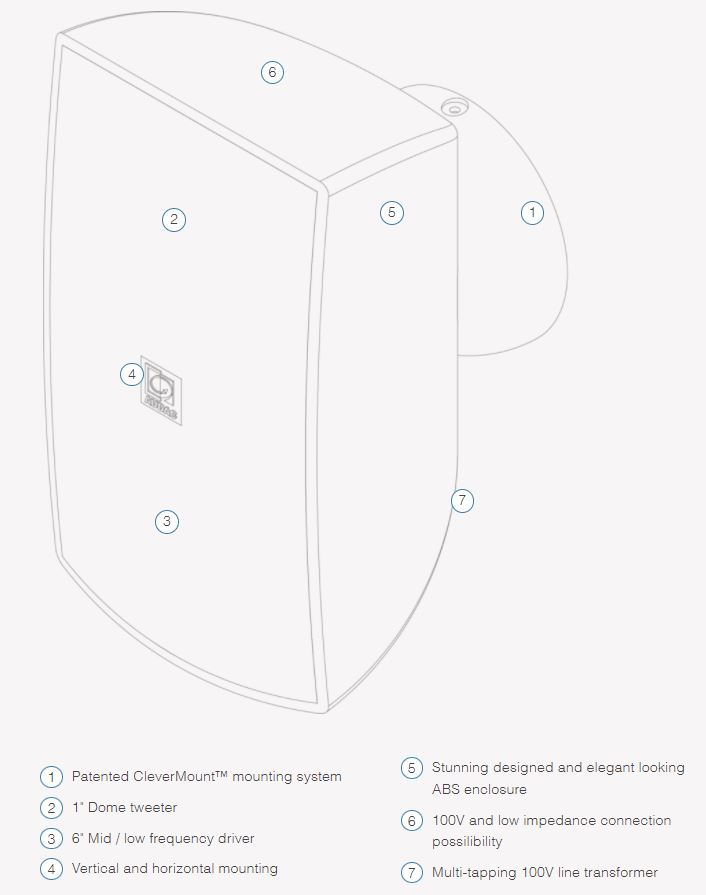

- Stunning designed and elegant looking ABS enclosure
- Patented CleverMount™ mounting system
- Multi-tapping 100V line transformer
- 100V and low impedance connection possibility
- Vertical and horizontal mounting (rotatable logo)
- 1" Dome tweeter
- 6" Low-frequency loudspeaker
Note: Sold in pairs, priced per speaker
| Connectors : | 6-pin Custom Terminal Block |
| Drivers : | 1” Dome tweeter |
| Drivers : | 6” MF / LF Woofer |
| Frequency Range (-10 dB) : | 55 Hz - 20 kHz |
| Frequency Response (± 3 dB) : | 65 Hz - 20 kHz |
| Incline angle Bottom : | 30° |
| Incline angle Left : | 30° |
| Incline angle Right : | 30° |
| Incline angle Top : | 5° |
| Line Transformer Tappings 1 : | 100 Ω - 100 V / Not used - 70 V / 50 W |
| Line Transformer Tappings 2 : | 200 Ω - 100 V / 50 W - 70 V / 25 W |
| Line Transformer Tappings 3 : | 400 Ω - 100 V / 25 W - 70 V / 12.5 W |
| Line Transformer Tappings 4 : | 800 Ω - 100 V / 12.5 W - 70 V / 6.25 W |
| Max. Power : | 120 W |
| Sensitivity (1W/1m) : | 89 dB |
| Sound Pressure (Max. W/1m) @ 100 V : | 105 dB |
| Sound Pressure (Max. W/1m) @ 8 Ω : | 106 dB |
| Speaker type : | Full range |
| RMS Power : | 60 W |
| Dispersion Horizontal : | 120° |
| Dispersion Vertical : | 120° |
| Impedance : | 8 Ω (ATEO6) |
| Impedance : | 16 Ω (ATEO6D) |

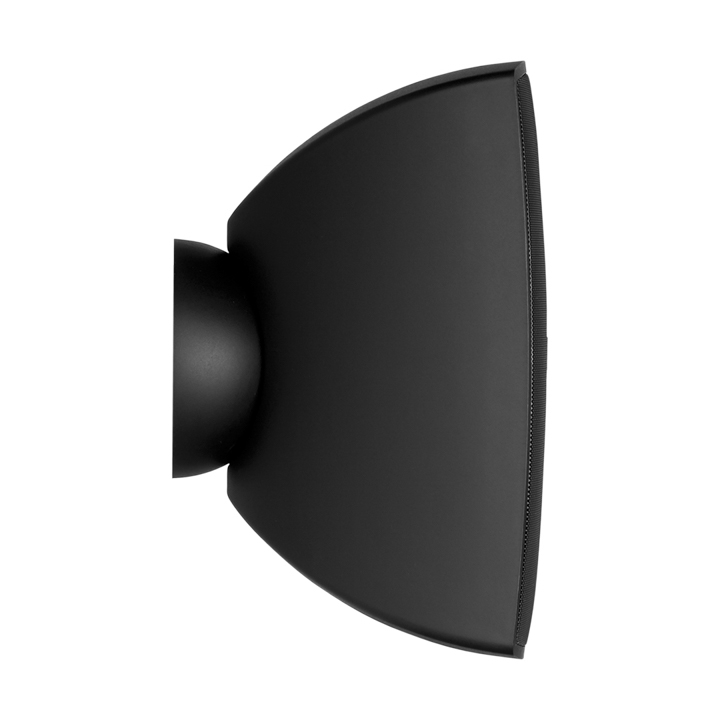

| Colours : | Black (RAL9005) (ATEO6/B, ATEO6D/B) |
| Construction : | ABS |
| Dimensions : | 7.6" x 13.68" x 8.47" (193.1 x 347.5 x 215.2) mm (W x H x D) |
| Mounting : | Clevermount™ |
| Weight : | 8.42 lbs (3.820 kg) |
| Front finish : | Steel grill |

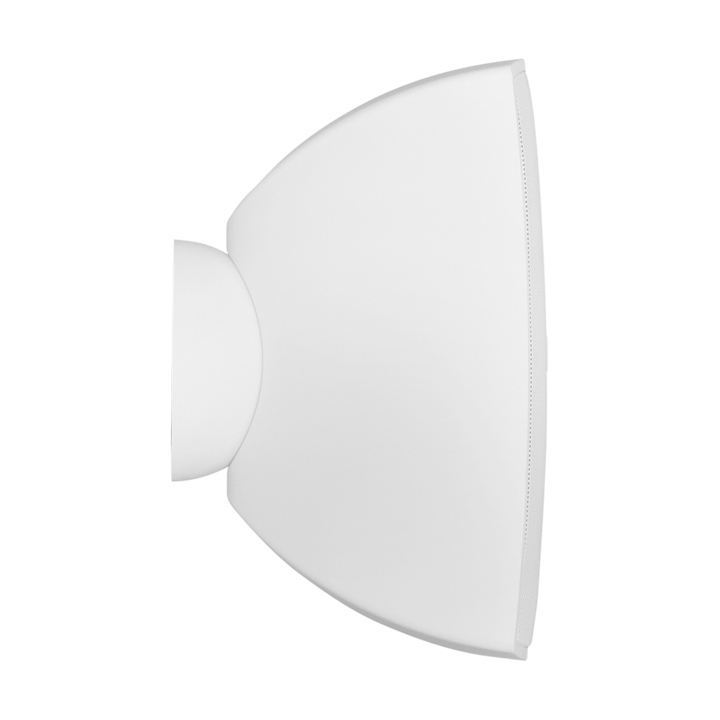

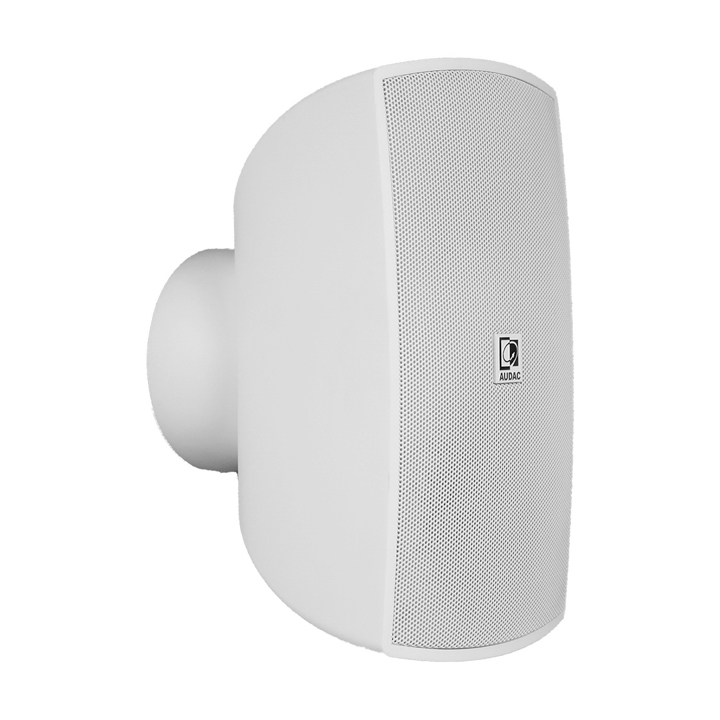

| Colours : | White (RAL9003) (ATEO6/W, ATEO6D/W) |
| Operating temperature : | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| Accessories Included : | Allen-key wrench |
FREE INCLINABLE IN EVERY DIRECTION
Thanks to the Clevermount™ innovation, the loudspeaker can be placed in any horizontal or vertical direction with a simple Allen key twist. This makes the loudspeaker step-less inclinable in every direction.
CEILING MOUNT
The optional WMA incline bracket adds an extra 30° angle to the already existing incline angle of ATEO speakers. This opens the possibility to place the speaker horizontally or vertically at an angle up to 60° and ensure a perfect sound experience.
WALL MOUNT
The connection of the loudspeaker simply happens by attaching the included wall plate to your desired location and wiring the cables to this wall plate. The Clevermount™ innovation ensures the installer has both hands free to slide the loudspeaker cabinet into the bracket.
CLEVERMOUNT™
The only loudspeaker mount where functionality and elegance truly meet.
Loudspeakers that are equipped with the CleverMount™ technology have the advantage of making the speaker cabinet flow together with the mounting bracket providing great ease for installing the loudspeaker in one good-looking entity. The safe installation of the loudspeaker is acquired thanks to the separate bracket base. This base can easily be installed and connected without the help of a second person. Once the bracket base is firmly mounted to a wall, the loudspeaker cables can be connected to its desired breakout points. The loudspeaker can now slide onto the bracket base with the use of only one hand. Thanks to this system, the loudspeaker placement and connection can be made before the final delivery of the project.
CleverMount™ also enables you to angle the loudspeaker in both vertical and horizontal directions from the front side so that the perfect angle is achieved. This way, it’s really child’s play to install a large umber of loudspeakers in no time.
VIDEO
*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
