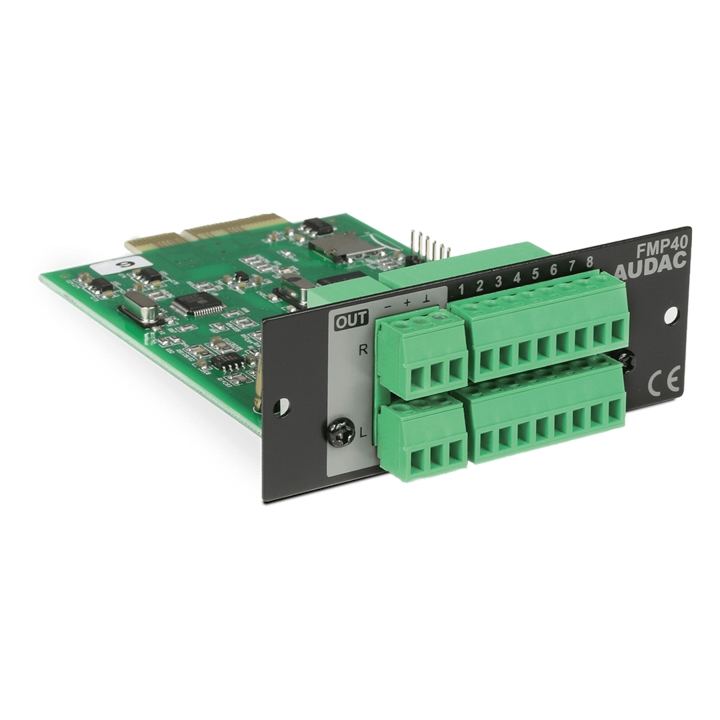

FMP40 SourceCon™ voice file media player module

MSRP: POA
AUFMP40-

SourceCon™ voice file media player module

The FMP40 is a professional voice file media player featuring SourceCon™ modular technology. This unique technology guarantees true plug & play implementation to any compatible device. When inserted into a supporting slot, the module is instantly installed, discovered, and ready for operation without requiring any additional internal wiring or complex configuration. The FMP40 features 50 programmable (timer and/or contact) triggers which can be used for triggering music/voice file messages stored on various types of media carriers. Media playback from USB storage drives is possible when inserted into the controlling device, while an internal Micro SD card slot safely locks the carrier inside for applications where frequent media changes are not required. Media playback is supported in MP3, WMA, WAV, FLAC, OGG, and AAC filetypes with numerous supported bitrates. Each of the 15 contacts is individually configurable, offering a selection for the triggered media file and normal open (NO) or normally closed (NC) contact operation. The playback mode can be selected between pulse trigger (play complete track) or stop on release. Event triggering allows triggering at pre-defined moments. Other settings such as priority level assignment and repeat are making the FMP40 a complete and versatile solution for any application requiring voice file playback, ranging from advertisements and announcements to emergency calls.

VIDEO

Would you like a Demo?
  • Works with any SourceCon™ enabled device
  • Music / voice file audio playback
  • External (USB) and internal (Micro SD) media support
  • MP3, WMA, WAV, FLAC, OGG & AAC playback
  • 50 Programmable triggers (timer and / or contact)
  • 15 trigger contact inputs (NO or NC)
  • Momentary /continuous contact triggering
  • Priority & repeat functions
  • Balanced stereo line output

Discover more about our modular audio players

Connection : SourceCon™ interface card slot
Inputs Type : 15 trigger contact inputs (NO or NC)
Inputs Connector : 2 x 8-pin Euro Terminal Block (Pitch - 3.81 mm)
Outputs Type : Balanced stereo line outputs
Outputs Connector : 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Outputs Level : +8 dB ~ -91 dB
Compatible media Playback : USB memory
Compatible media Playback : USB HDD (external)
Compatible media Playback : Micro SD card (internal)
Compatible filesystems : FAT16
Compatible filesystems : FAT32
Supported filetypes Playback : MP3
Supported filetypes Playback : Ogg Vorbis
Supported filetypes Playback : FLAC
Supported filetypes Playback : WMA
Supported filetypes Playback : WAV
THD+N (@ 1 kHz) : < 0.07%
Crosstalk (@ 1 kHz) : 80 dB
Power Consumption : 1 W
Supported filetypes Playback : AAC
Dimensions : 87 x 34.5 x 114 mm (W x H x D)
Weight : 0.079 kg
Mounting : SourceCon™ interface card slot

The choice is yours

SourceCon™ technology guarantees true plug & play implementation for any compatible device, allowing your media player to be tailored to fit any specific application. The wide variation of compatible modules and extensive configuration possibilities allows flexible combinations for any application.

Installation is done by sliding the modules into guide rails, while connections are made using boardedge connections. This allows simple and fast installation without requiring additional internal wiring or complex configuration. When inserted to a supporting slot, the module is instantly installed, discovered and ready for operation.

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
