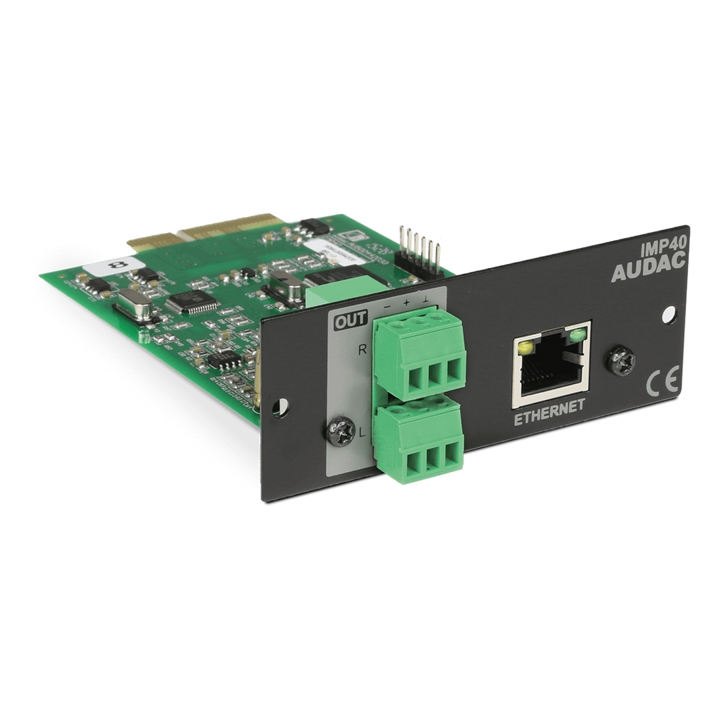

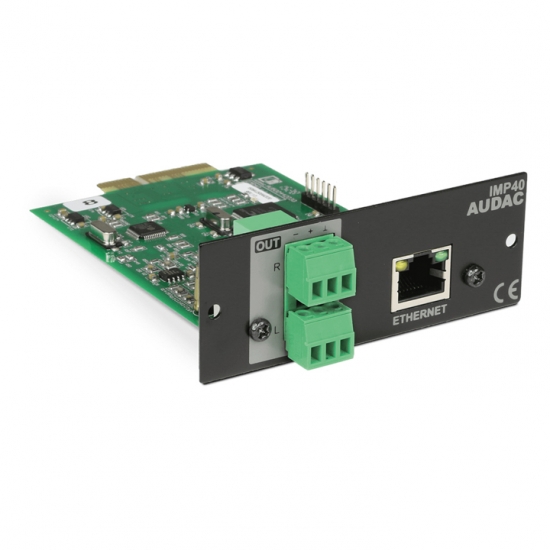

SourceCon™ internet audio player module

The IMP40 is a professional internet radio player featuring SourceCon™ modular technology. This unique technology guarantees true plug & play implementation to any compatible device. When inserted into a supporting slot, the module is instantly installed, discovered, and ready for operation without requiring any additional internal wiring or complex configuration. The IMP40 features the unique Linum™ technology which eliminates any unwanted behavior such as sudden channel hopping or music stops. When the connection is interrupted, automatic switching to inserted media carriers (USB drives) avoids unpleasant silences in background music applications. The audio stream will be automatically and seamlessly restored afterward. It synchronizes with the vTuner database which contains over 30.000 channels, allowing selection on different criteria such as genre, location, language, ... while custom streams can also be added to a preference list up to 100 entries. The input connection is implemented by an RJ45 type connector with indicator LED’s on its panel, allowing connection to any Ethernet network. The balanced stereo line output is connected through two 3-pin terminal block connections.

VIDEO

Would you like a Demo?

Linum™ technology
Works with any SourceCon™ enabled device
vTuner database sync (30,000+ Channels)
Custom audio stream selection
MP3, WMA & AAC radio station support
USB Media player backup (connection interruption)
Preferential station storage
Balanced stereo line output

Discover more about our modular audio players

Connection :	SourceCon™ interface card slot
Inputs :	RJ45 (Ethernet)
Compatible media Playback :	USB memory
Compatible media Playback :	USB HDD
Compatible filesystems Playback :	FAT16
Compatible filesystems Playback :	FAT32
Outputs Type :	Balanced stereo line outputs
Outputs Level :	+8 dB ~ -92 dB
Frequency Response (± 3 dB) :	20 Hz - 20 kHz
Crosstalk (@ 1 kHz) :	80 dB
THD+N (@ 1 kHz) :	< 0.07%
Power Consumption :	1.5 W
Supported filetypes Streaming :	MP3
Supported filetypes Streaming :	WMA
Supported filetypes Streaming :	AAC
Supported filetypes Playback :	MP3

Dimensions :	87 x 34.5 x 114 mm (W x H x D)
Weight :	0.070 kg
Mounting :	SourceCon™ interface card slot

AUDAC TOUCH™

DANTE SETUP

The choice is yours

SourceCon™ technology guarantees true plug & play implementation for any compatible device, allowing your media player to be tailored to fit any specific application. The wide variation of compatible modules and extensive configuration possibilities allows flexible combinations for any application.

Installation is done by sliding the modules into guide rails, while connections are made using boardedge connections. This allows simple and fast installation without requiring additional internal wiring or complex configuration. When inserted into a supporting slot, the module is instantly installed, discovered and ready for operation.

Never lose your connection again

Linum™ technology is setting new standards in the world of internet audio players. The technology eliminates any unwanted behaviors such as sudden channel hopping, while seamlessly restoring audio streams after power or connection interruptions occur.

Music playback will automatically switch to an inserted media carrier (USB drive) which avoids unpleasant silences or timeouts in background music applications. When the connection is recovered, the audio stream will be automatically and seamlessly restored afterward.
