KYRA6 Design column speaker 6 x 2"
MSRP:
POA
AUKYRA6/B
Design column speaker 6 x 2"
The KYRA column speakers range is the elegant result of research in the field of phased array acoustics. The selection of the highest quality materials including aluminum cone 2” drivers guarantee extraordinary detail and clarity for music and speech, which is uncommon for any kind of column speaker available from the market. It makes them perfectly lend themselves to a wide variety of applications in acoustic difficult environments such as churches, auditoria, presentations, and meeting rooms where audibility and intelligibility of music and speech have the highest importance.
They are housed in slim and elegant constructed enclosures made out of aluminum materials and finished with finely perforated grilles. An included mounting bracket with minimum distance to the wall allows swiveling and down-tilting for perfect directional placement.
The KYRA6 design column speaker consists of 6 x 2” high-quality aluminum cone full-range drivers, delivering extraordinary clarity and detailed sound. The overall continuous power handling reaches 60 Watt and the beamwidth of 174° x 28° (-6 dB avg 1 kHz - 4 kHz)* makes it the perfect match for acoustically difficult venues, reducing echo and microphone feedback which optimizes the speech intelligibility in reverberant venues.
A multi-tapping line transformer allows it to be connected to 70V/100V public address systems with different power taps for 20W, 10W and 5W and/or low impedance (12Ω) systems.
*Given dispersion values are the average beamwidth within the 1 kHz – 4 kHz frequency range (-6 dB - 1/3 oct), which are critical for the speech intelligibility in the main application field of these loudspeakers.
- Multi-tapping 100V line transformer
- Multi-functional wall bracket allowing swiveling and down-tilting
- Slimline aluminum design
- 6 x 2" high-quality broadband speakers
| Speaker Type | Broadband Column |
| Max. Power | 120 W |
| RMS Power | 60 W |
| Impedance | 12 Ω |
| Sensitivity (1W/1m) | 90 dB |
| Sound Pressure (Max. W/1m) | 106 dB |
| Drivers | 6 x 2" |
| Ingress Protection rating | IP3 |
| Frequency Range (-10 db) | 120Hz - 20 kHz |
| Frequency Response (± 3dB) | 150 Hz - 20 kHz |
| Line Transformer Tappings 1 | 20 W - 250 Ω (70V) |
| Line Transformer Tappings 2 | 500 Ω - 100 V / 20 W - 70 V / 10 W |
| Line Transformer Tappings 3 | 1000 Ω - 100V / 10 W - 70 V / 5 W |
| Line Transformer Tappings 4 | 2000 Ω - 100V / 5 W - 70 V / 2.5 W |
| Temperature Operating | -20 - +50 °C |
| Incline Angle (Left) | 42° |
| Incline Angle (Right) | 42° |
| Incline Angle (Bottom) | 13° |
| Dispersion (Horizontal) | 174° (-6 dB avg. 1 kHz - 4 kHz) |
| Dispersion (Vertical) | 28° (-6 dB avg. 1 kHz - 4 kHz) |
| Dimensions | 70 x 546 x 101 mm (W x H x D) |

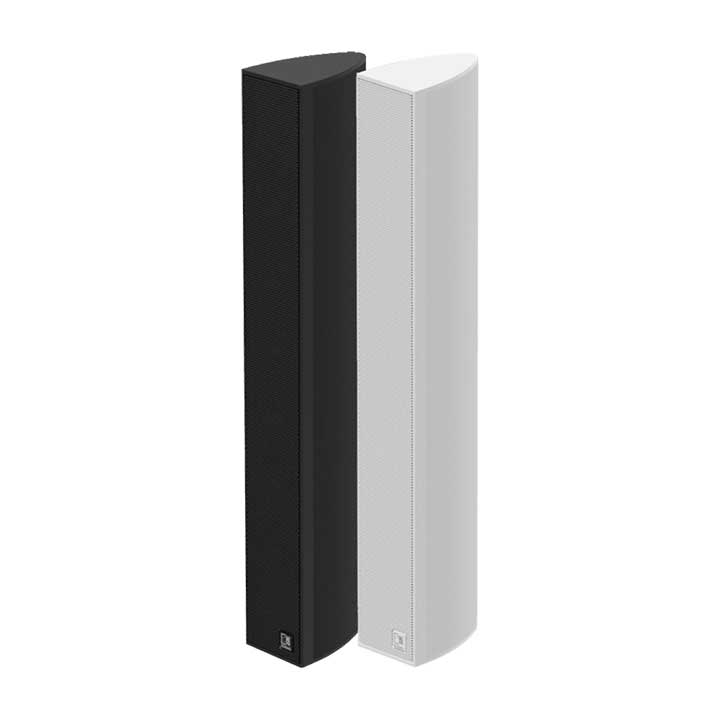

| Colors | Black (KYRA6/B - RAL9005) |
| Colors | White (KYRA6/W - RAL9003) |
| Front Finish | Steel Grille |
| Construction | Aluminum with Plastic side covers |
| Accessories Included | 1 x 3-pin Euro Terminal Block input connector(s) |
| Accessories Included | 2-way Revolving mounting bracket |

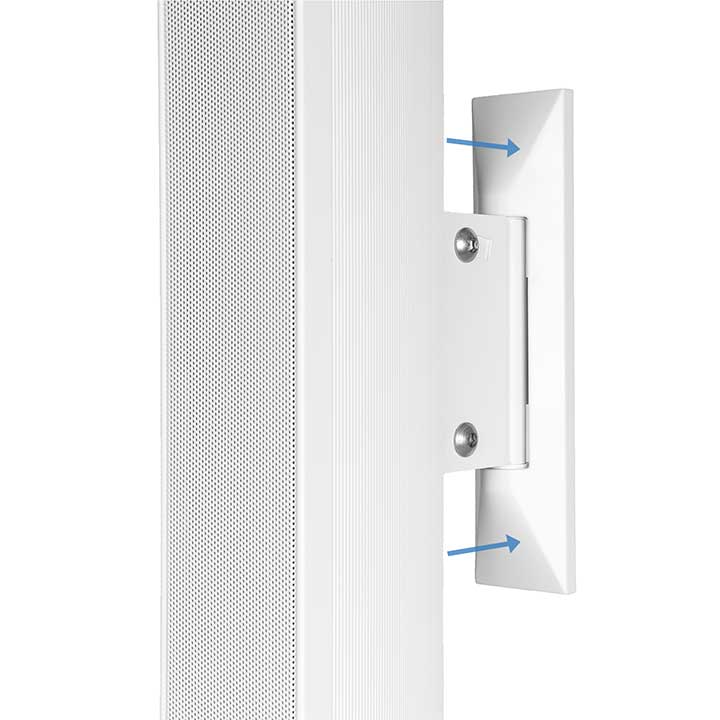

ADVANCED MOUNTING POSSIBILITIES
An included mounting bracket allows easy swiveling and down-tilting. The renewed bracket ensures that the distance from the wall mounting surface to the front of the loudspeaker is only 147mm, which is 22mm less than the previous version, allowing the column loudspeaker to blend even more esthetically into its surroundings.

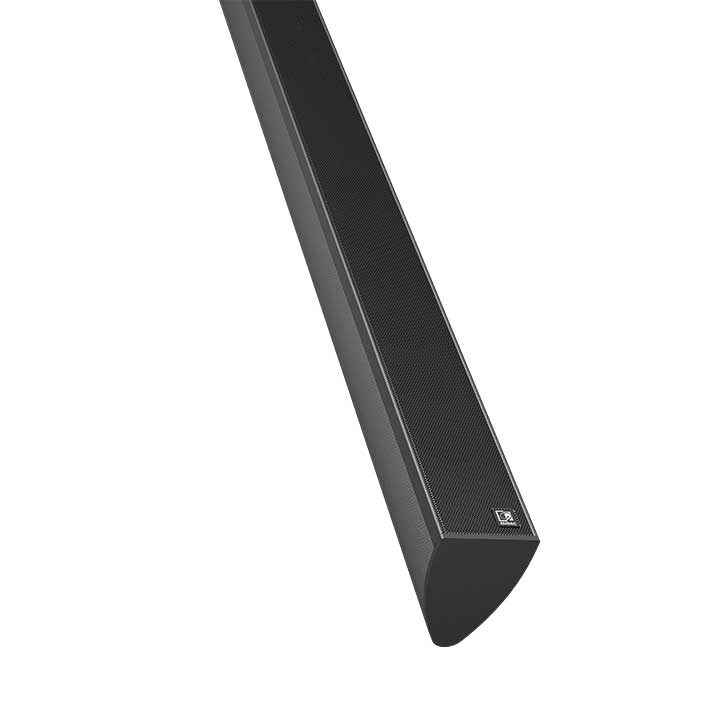

ONLY THE HIGHEST QUALITY MATERIALS
The KYRA column speakers are housed in slim and elegantly constructed enclosures made out of aluminum and finished with finely perforated grills.

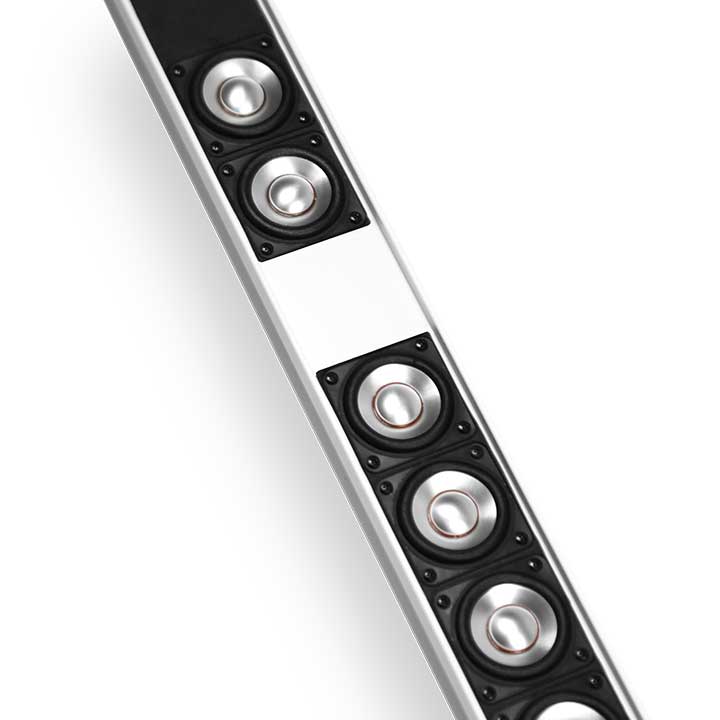

OPTIMIZED SPEAKER DRIVER PLACEMENT
The improved 2" drivers of the KYRA series are repositioned to provide an optimized coverage area.

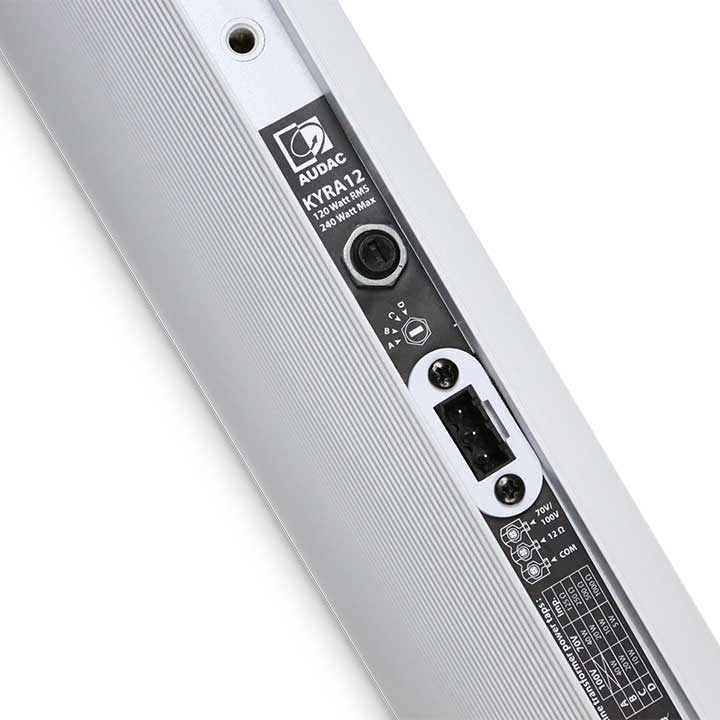

PLUG-AND-PLAY MULTI-TAPPING
The power tapping switch of the KYRA's indoor versions has been moved to the back of the speaker, allowing you to easily choose the right power tapping for the right 70V/100V application without removing the grill.
EASE FOCUS 3 - UNIVERSAL SOUND SYSTEM MODELING IN 3D
EASE Focus 3 is an acoustic simulation program for 3D modeling of line arrays, sub arrays, columns, and conventional loudspeakers.
*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
