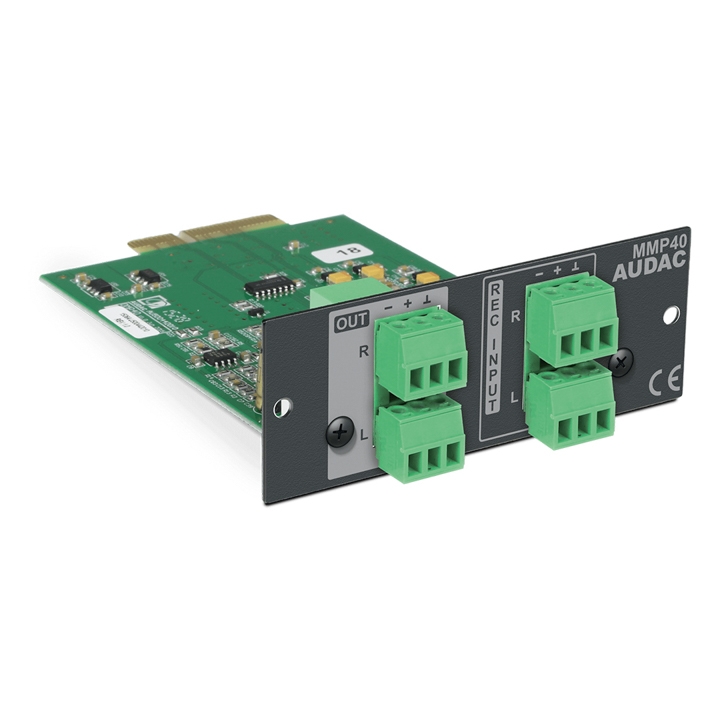

MMP40 SourceCon™ media player & recorder module
MSRP:
POA
AUMMP40-
SourceCon™ media player & recorder module
The MMP40 is a professional media player & recorder featuring SourceCon™ modular technology. This unique technology guarantees true plug & play implementation to any compatible device. When inserted into a supporting slot, the module is instantly installed, discovered, and ready for operation without requiring any additional internal wiring or complex configuration. The MMP40 supports media playback from USB storage drives for a wide variation of compressed and lossless audio formats. Media playback for MP3, OGG, AAC, FLAC, WMA, and WAV filetypes are possible, while recordings can be made in MP3, OGG, and WAV filetypes. All media information such as track, artist, playback mode, ... including even graphical album covers can be retrieved from the MMP40, allowing displaying it on the controlling device or software interface. Both the balanced stereo line output (playback) and the balanced stereo line input (recording) are implemented on its panel, using two 3-pin terminal block connections.
- Media information retrieval
- True plug & play solution
- Balanced stereo line output
- unbalanced stereo line input
- Works with any SourceCon™ enabled device
- MP3, WMA, WAV, FLAC, OGG & AAC playback
- MP3, WAV & OGG recordings
- Repeat, random, single & continuous modes
| Connection : | SourceCon™ interface card slot |
| Inputs Balanced Stereo Connector : | 3-pin Euro Terminal Block (Pitch - 3.81 mm) |
| Outputs Balanced Stereo Connector : | 3-pin Euro Terminal Block (Pitch - 3.81 mm) |
| Outputs Level : | 8 dB ~ -91 dB |
| Compatible media Playback : | USB memory |
| Compatible media Playback : | USB HDD |
| Supported filetypes Playback : | MP3 |
| Supported filetypes Playback : | Ogg Vorbis |
| Supported filetypes Playback : | FLAC |
| Supported filetypes Playback : | WMA |
| Supported filetypes Playback : | WAV |
| Supported filetypes Recording : | MP3 |
| Supported filetypes Recording : | Ogg Vorbis |
| Supported filetypes Recording : | WAV |
| Power Consumption : | 1 W |
| Compatible filesystems : | FAT32 |
| Compatible filesystems : | FAT16 |
| Supported filetypes Playback : | AAC |
| THD+N (@ 1 kHz) : | 0.07% |
| Crosstalk (@ 1 kHz) : | > 80 dB |
| Dimensions : | 87 x 34.5 x 114 mm (W x H x D) |
| Weight : | 0.075 kg |
| Mounting : | SourceCon™ interface card slot |
AUDAC TOUCH™
DANTE SETUP
The choice is yours
SourceCon™ technology guarantees true plug & play implementation for any compatible device, allowing your media player to be tailored to fit any specific application. The wide variation of compatible modules and extensive configuration possibilities allows flexible combinations for any application.
Installation is done by sliding the modules into guide rails, while connections are made using boardedge connections. This allows simple and fast installation without requiring additional internal wiring or complex configuration. When inserted into a supporting slot, the module is instantly installed, discovered and ready for operation.
*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
