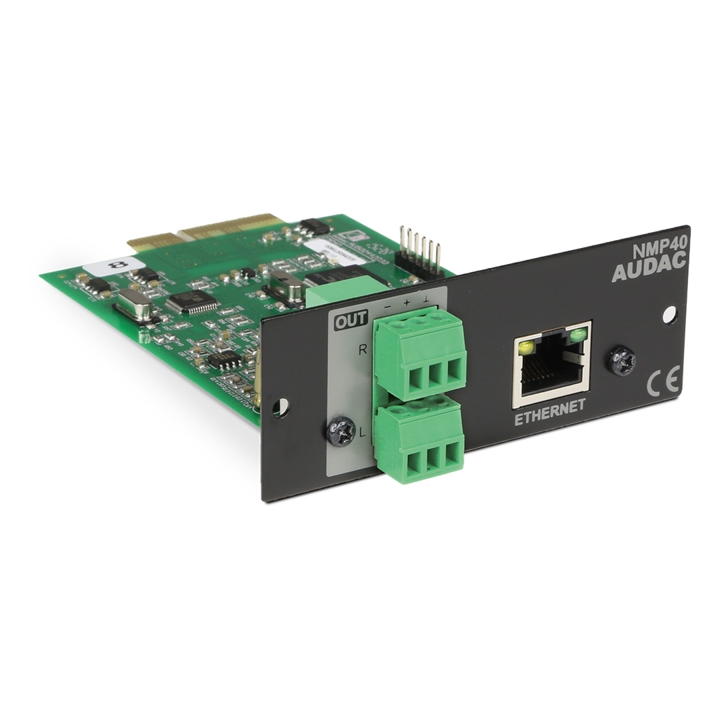

NMP40 Audio Streaming Sourcecon™ Module


Audio Streaming Sourcecon™ Module

The NMP40 SourceCon™ Network audio player module enables the possibility to stream audio files from a personal computer or mobile device directly to a professional audio system while maintaining the best available sound quality.

Compatible with various streaming technologies like Spotify Connect and Soundtrack Your Brand© you can stream music straight to your professional sound system directly from the cloud while using only your computer or mobile device as a controller. This avoids any unwanted interruptions and maintains higher sample rates, so you can also set the right ambient in all types of public places (Always check with your local license regulations).

*The NMP40 is not compatible with AUDAC Touch™ 1. It is only compatible with AUDAC Touch™ 2.

Would you like a Demo?
  • ompatible with AUDAC Touch™ 2
  • Spotify™ Connect certified
  • Soundtrack Your Brand© certified
  • True plug & play solution
  • Works with any SourceCon™ enabled device
  • Custom audio stream selection

Spotify Soundtrack your brand

Discover more about our modular audio players


Inputs : RJ45 (Ethernet)
Outputs Level : +7 dB ~ -92 dB
Frequency Response (± 3 dB) : 20 Hz - 20 kHz
Power Consumption : 2.5 W
Signal / Noise : 100 dB
Crosstalk (@ 1 kHz) : > 82 dB
Connection : SourceCon™ interface card slot
Outputs Type : Balanced stereo line outputs
Outputs Connector : 3-pin Euro Terminal Block (Pitch - 3.81 mm)
THD+N (@ 1 kHz) : 0.02%
Dimensions : 87 x 34.5 x 114 mm (W x H x D)
Mounting : SourceCon™ interface card slot

The choice is yours

SourceCon™ technology guarantees true plug & play implementation for any compatible device, allowing your media player to be tailored to fit any specific application. The wide variation of compatible modules and extensive configuration possibilities allows flexible combinations for any application.

Installation is done by sliding the modules into guide rails, while connections are made using boardedge connections. This allows simple and fast installation without requiring additional internal wiring or complex configuration. When inserted to a supporting slot, the module is instantly installed, discovered and ready for operation.

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
