VC3062 100V volume controller 60W 80 x 80 mm


100V volume controller 60W 80 x 80 mm

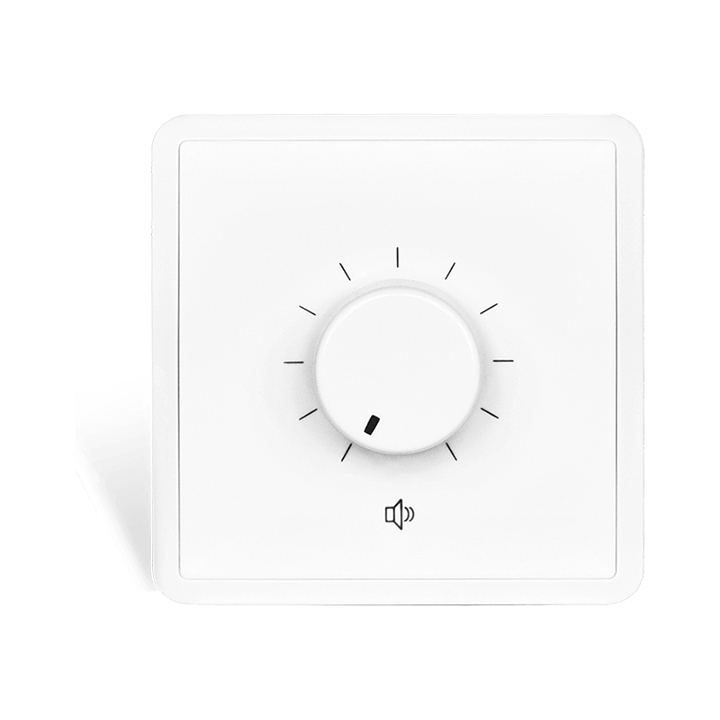

The VC3062 controllers are 100 Volt wall volume controllers whereby the volume for 100 V loudspeakers can be adjusted in 11 steps of 3 dB. They feature a slim and good looking design and are constructed out of sturdy ABS, making them suitable for big projects in industrial environments as well as standard home interiors. An integrated 24 Volt relay allows bypassing of the volume controller in priority situations, making sure the message is always clearly heard at maximum volume. Connections are made using screw terminal blocks, and flush and surface mount boxes (WB3102) are separately available.

Would you like a Demo?
Max. Power : 60 W
Max. operation Voltage : 100 V
Attenuation : 11 x 3 dB
Priority relay : 24 V / 25 mA
Dimensions : 80 x 80 x 50 mm (W x H x D)
Built-in depth : 46 mm
Weight : 0.340 kg
Construction : ABS
Colours : White
Accessories Optional : WB3102/FS Flush mount wall box
Accessories Optional : WB3102/SW Surface mount wall box

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
