VC3102 100V volume controller 100W 80 x 80 mm


100V volume controller 100W 80 x 80 mm

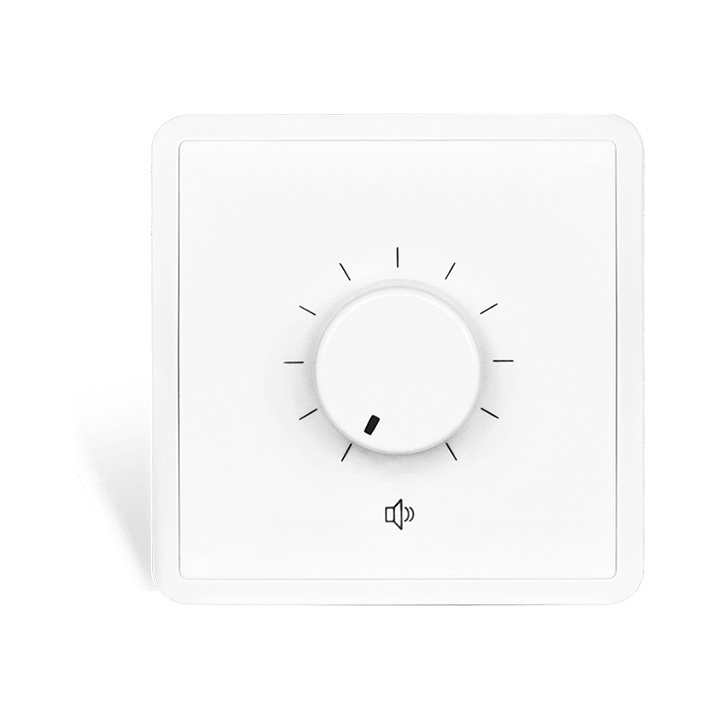

The VC3102 is a 100 Volt volume controller capable of handling a power up to 100 Watt. The volume is adjustable with a rotatable dial in 11 steps of 3 dB. It is equipped with a relay and separate input for the reception of 24V priority signals. This means that when a priority signal occurs, the volume will be automatically switched to the maximum level. This can be very useful for emergency and evacuation messages. Due to it’s slim and good looking design, these volume controls will blend into all kinds of different environments or interiors. The construction is made of sturdy ABS and therefore suitable for big projects in industrial buildings as well as standard home interiors. The dimensions are 80 mm x 80 mm, and a built-in depth of 46 mm is required. The connections are made at the back with screw terminal blocks.

Would you like a Demo?
Max. Power : 100 W
Max. operation Voltage : 100 V
Attenuation : 11 x 3 dB
Priority relay : 24 V / 25 mA
Dimensions : 80 x 80 x 50 mm (W x H x D)
Built-in depth : 46 mm
Weight : 0.340 kg
Construction : ABS
Colours : White
Accessories Optional : WB3102/FS Flush mount wall box
Accessories Optional : WB3102/SW Surface mount wall box

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
