VEXO110 10" High performance 2-way loudspeaker

MSRP: POA
AUVEXO110B

10" High performance 2-way loudspeaker

The VEXO series are compact high-performance 2-way loudspeakers and come in 3 different models, each of them with different sizes and performances meeting the requirements of every application. The VEXO series loudspeakers consist of active and passive versions. The low-frequency transducer, which is made out of high-quality materials, is combined with a 1.7” voice coil compression driver, enabling high sound pressure levels and a tight driver response with a rotatable 90° x 70° coverage pattern for a wide range of applications.

Thanks to the unique driver composition, the VEXO110 delivers a clear and natural sound with an RMS power of 300 Watts and a maximum power of 1200 Watt. The frequency response (±3dB) starts from 65Hz up to 20 kHz and the sensitivity (1W/1m) reaches 96dB while a maximum continuous sound pressure level from 121dB can be achieved.

When not in use, the active versions of the VEXO series devices automatically go into an energy-saving standby mode. This means that active versions can also be used in fixed installations, as there is no need to physically shut them down after each use.

Using an optional 70V/100V line transformer enables the VEXO series to be used in 70V or 100V systems. By removing the backplate and replacing it with a 70V/100V backplate on which the module is integrated, the high-performance loudspeaker is able to apply in a 70V/100V system.

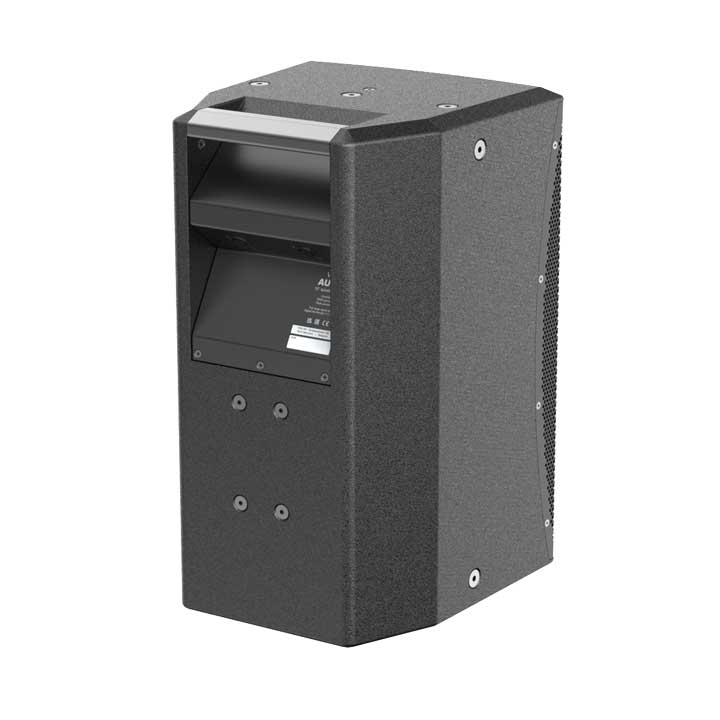

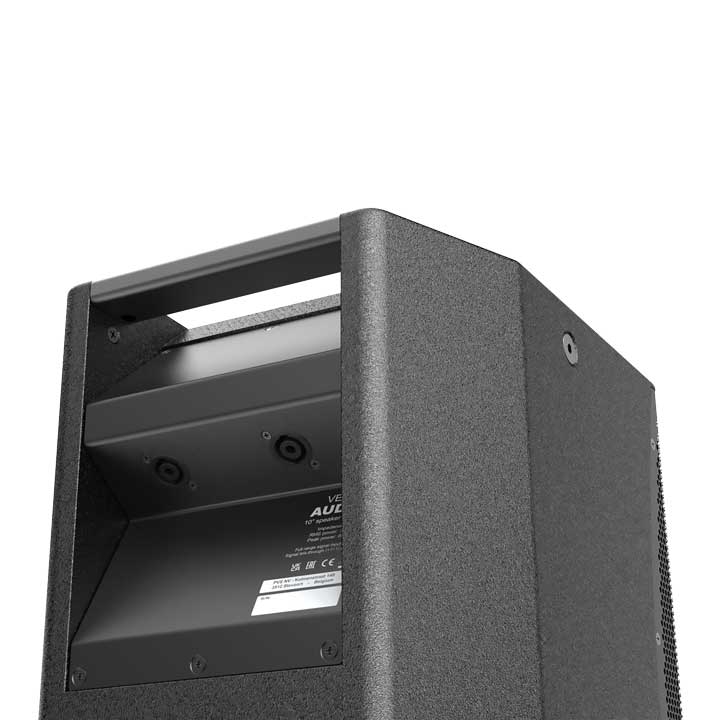

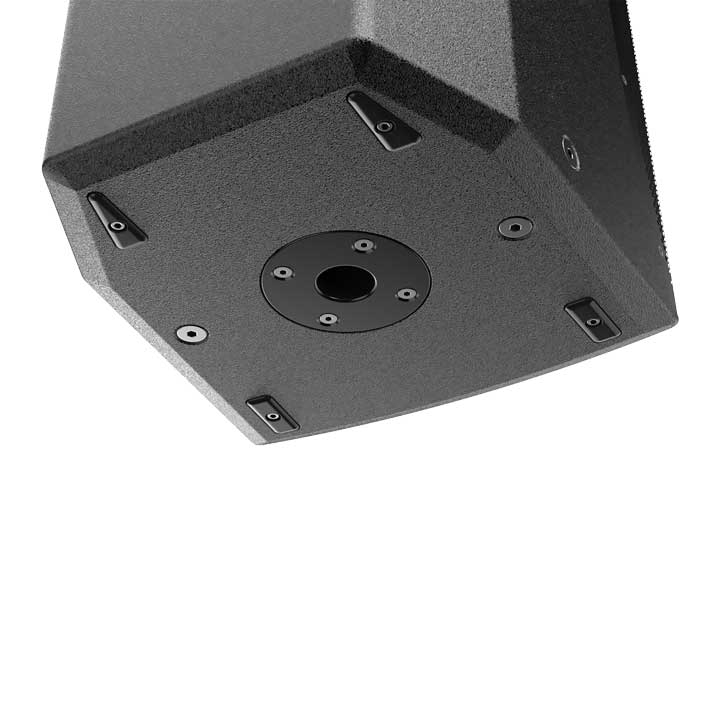

The construction of the cabinets is made of 12mm plywood with a polyurethane coating, making them resistant to any impact. The front side of the cabinet is finished with a powder-coated steel grill with acoustical foam. A recessed carry handle on the rear side makes carrying easy. Positioning and suspension of the speaker are easily achieved by using the standard 35 mm pole adapter on the bottom and the M10 rigging points. Two speaker connectors provide reliable connections with easy link-through to cabinets.

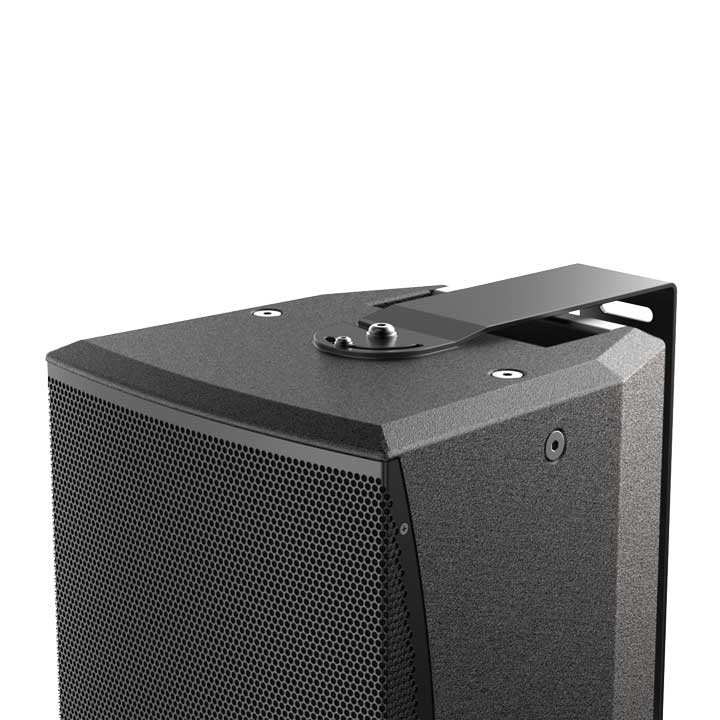

The optional Clever U bracket allows mounting the high power 2-way cabinet both horizontally and vertically. An inclination of -90° to +35° ensures an optimal positioning. The optional MBK bracket even allows mounting the VEXO series to the ceiling which gives the opportunity to install the loudspeaker cleanly in any environment.

Variant MSRP

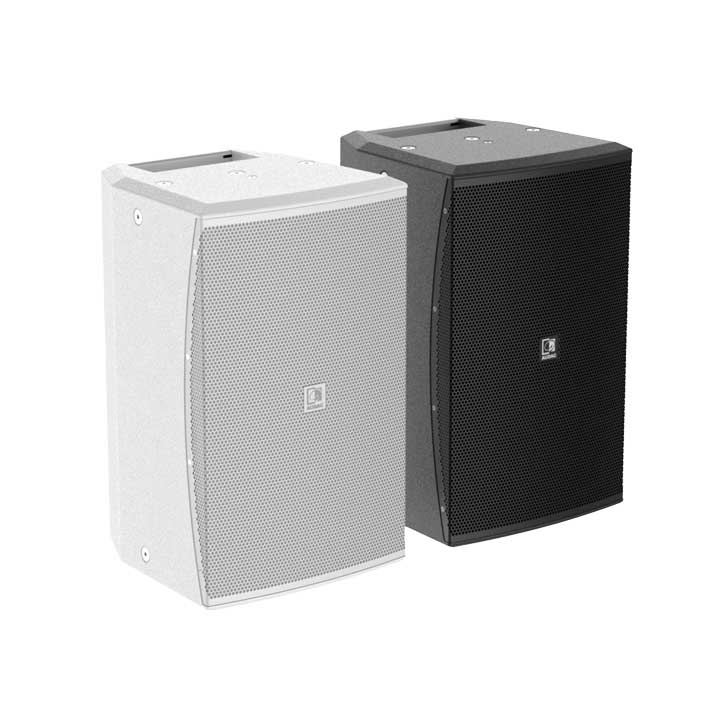

Black version AUVEXO110B POA

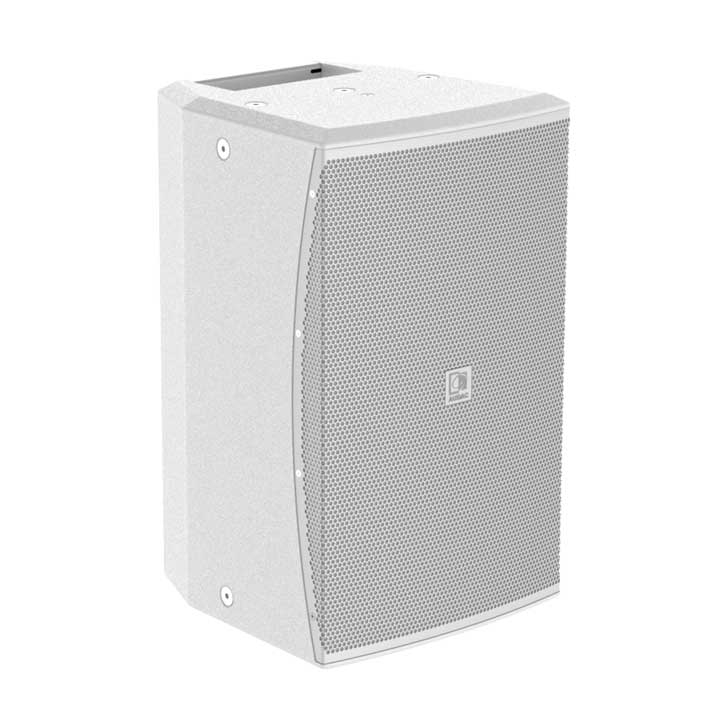

White version AUVEXO110W POA
Would you like a Demo?

8 ohm

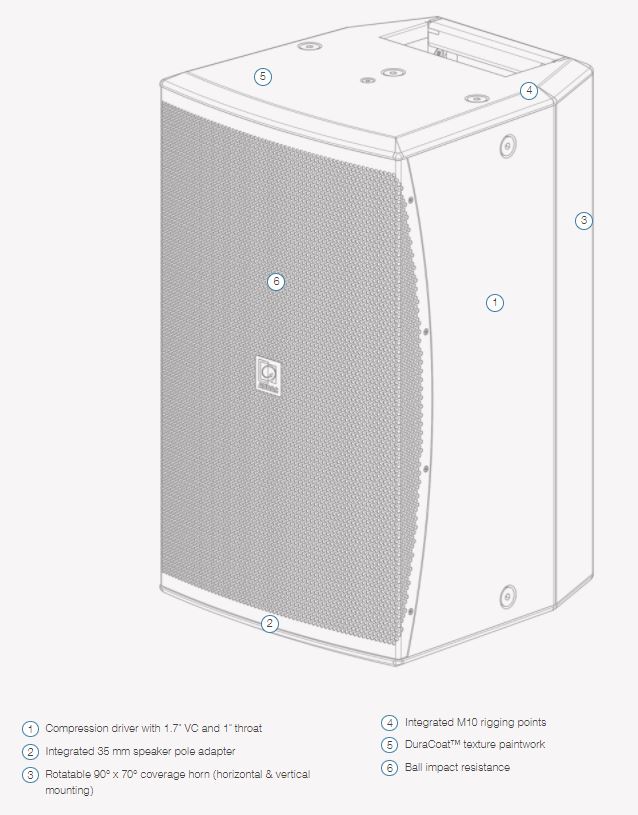

VEXO Drawing

Speaker type 2-way
Max. Power 1200 W
RMS Power 300 W
Impedance 8 Ω
Sensitivity (1W/1m) 96 dB
Sound Pressure (Max. W/1m) 121 dB
Frequency Response (± 3 dB) 65 Hz - 20 kHz
Crossover Type Passive built-in
Dispersion Horizontal: 90°
Vertical: 70°
Drivers HF: Compression driver with 1.7" VC and 1" throat
LF: 10" (2" VC)
Connectors 2 x Speakon compatible (Link through)



Dimensions 12.95" x 21.25" x 13.58" (329 x 540 x 345 mm) (W x H x D)
Weight 37.03 lbs (16.8 kg)
Construction 12 mm high-quality plywood
Finish - Cabinet Polyurethane coating
Front finish Powder-coated steel grill with acoustical foam
Mounting & handling Rigging points: 10 x M10
Stand fitting: 35 mm pole adapter on the bottom
Carry handles: On top
Accessories Optional 70V/100V transformer module
Powerdrive mount Powerdrive type 75 (108 x 50.8 mm)
Color Black or White



*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
