ARES5A wall panel - Microphone & line input - 80 x 80 mm (3.14" x 3.14")

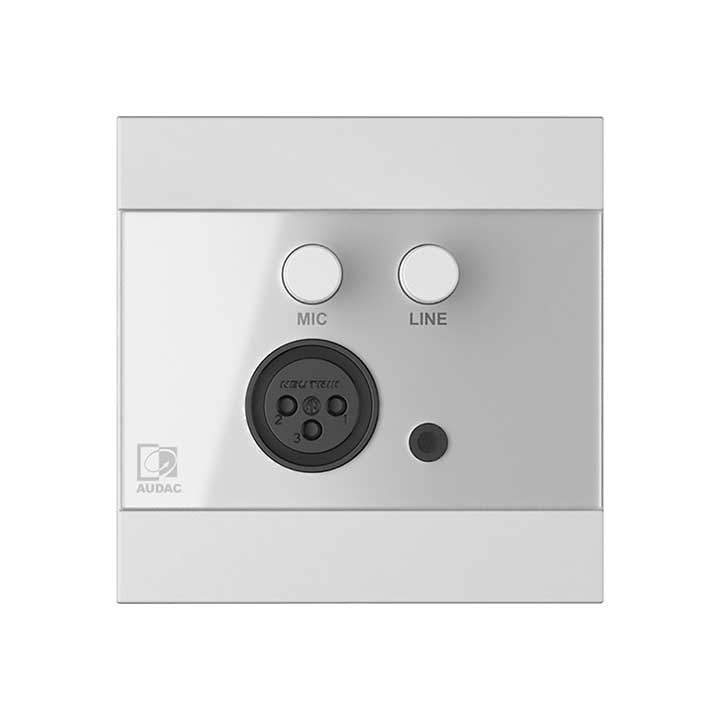

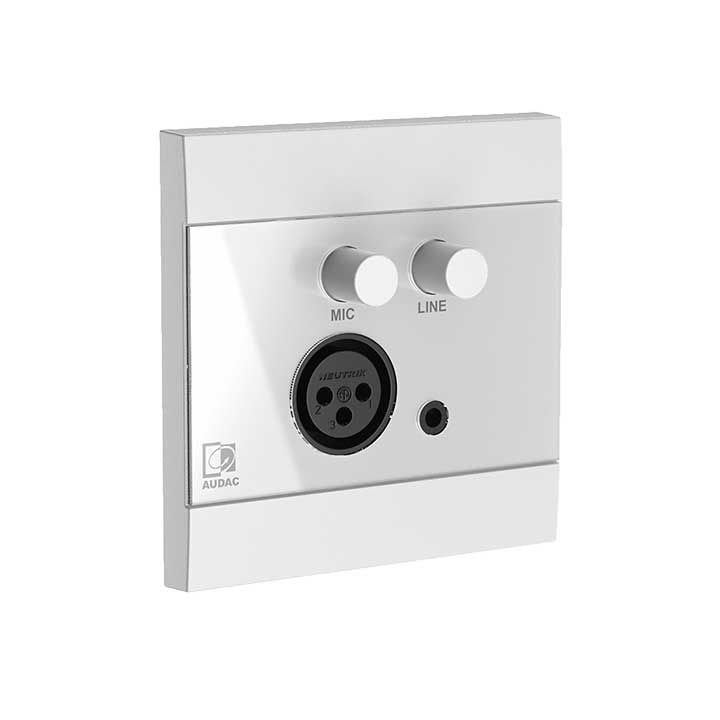

The WP205 is a remote wall mixer that is meant to be used in combination with the ARES5A active speaker system. It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, ... ) or balanced microphone to the level corresponding to the differential signal input on the ARES5A (RJ45) making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.

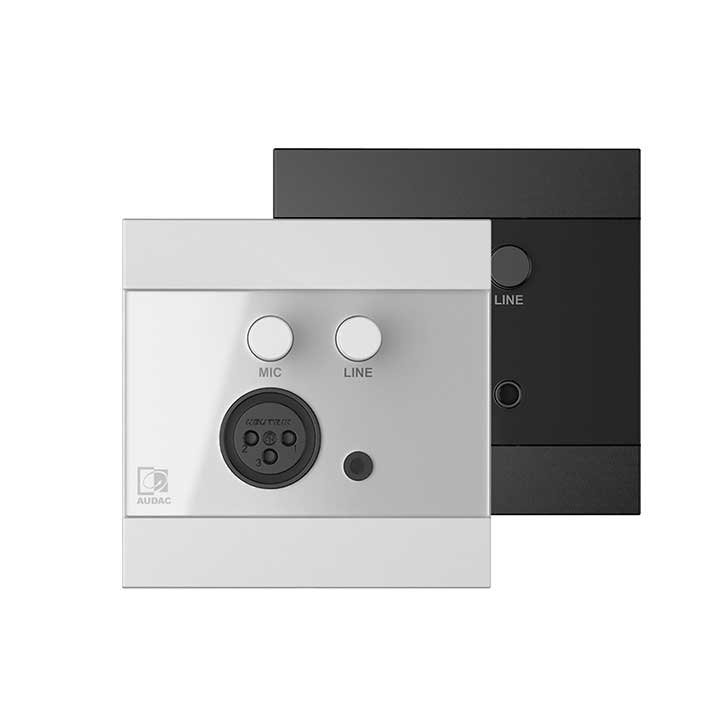

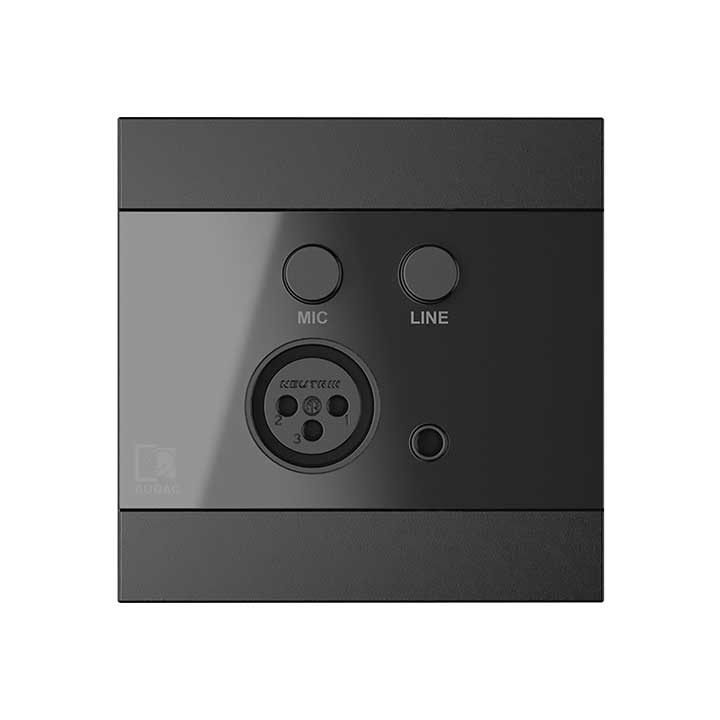

The WP205 is available in 2 colors (WP205/W - White - RAL9003 & WP205/B - Black - RAL9005) and is compatible with most standard EU (80x80 mm) (3.14" x 3.14") style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with an Acrylic (PMMA) glass finish, it will blend into any environment.

Variant MSRP
Black version WP205B POA
White version WP205W POA
Would you like a Demo?


  • Elegant design to blend in with any environment
  • Compatible with EU (80x80 mm) installation materials
  • Signal transmission over twisted pair (CAT5E) or better cabling
  • Signal transmission insensitive for interference and noise
Outputs Level +12 dB
Inputs Wall Panel Type 3.5 mm jack stereo line input connection
  XLR microphone input connection
Connection 3.5 mm jack input (Stereo line input)
  Female XLR input connector (Microphone input)

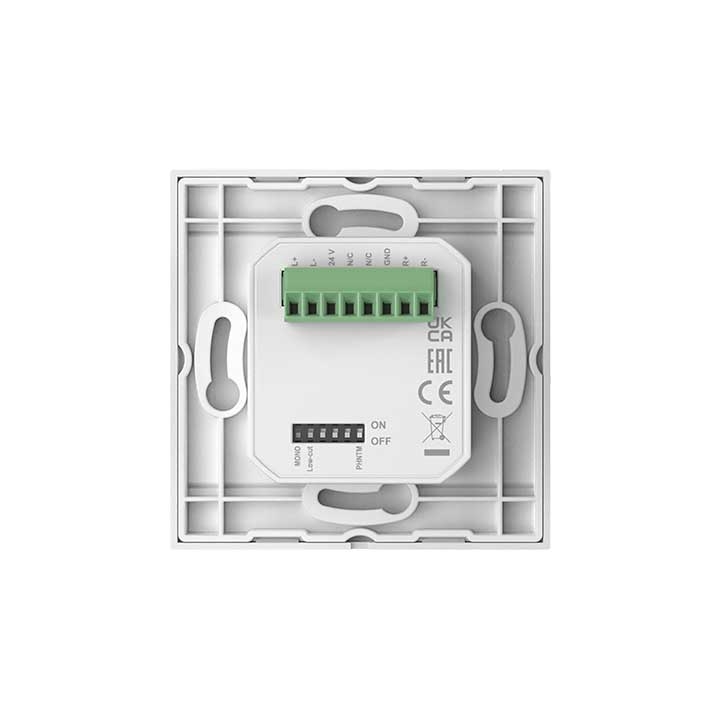

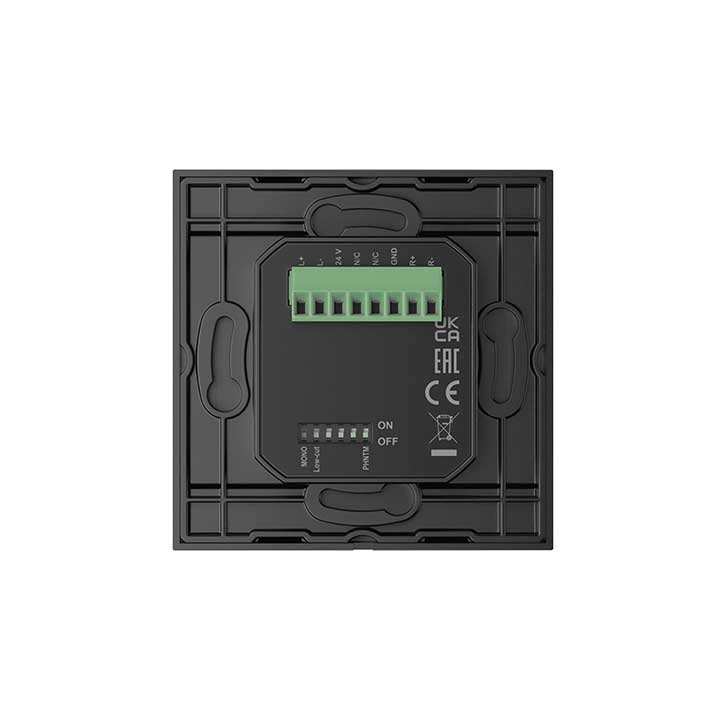

  8-pin terminal block (3.81 mm pitch) output connection
Control Individual input level control for Mic & Line
  Phantom power (DIP switch on rear)
  Low-cut (Mic) enable / disable (DIP switch on rear)
  Mono / Stereo (DIP switch on rear)
Dimensions 80 x 80 mm (3.14" x 3.14") (W x H) (Remote wall panel)
Colors Black (RAL9005) (WP205/B)
  White (RAL9003) (WP205/W)
Front finish Elegant ABS front panel with Acrylic (PMMA) glass finish
Accessories Optional Surface mount installation boxes WB200 - Surface mount wall box for WP & DWP series
  Flush mount installation boxes Flush-mount box for 45 x 45 mm wall panel - Solid wall - WB45S/FS
  Flush-mount box for 45 x 45 mm wall panel - Hollow wall - WB45S/FG

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
