BASO10 Compact 10" bass reflex cabinet

MSRP: POA
AUBASO10/B

Compact 10" bass reflex cabinet

The BASO cabinets are universally usable passive bass cabinets. Their bass reflex design is engineered to be as compact as possible while giving the maximum performance in terms of sound quality and pressure. Their enclosures are crafted out of sturdy high-quality plywood while their elegant design enables them to be placed in any environment. The BASO10 is loaded with a 10” high-performance woofer with an RMS power rating of 225 Watt and a maximum power of 450 Watt. The strength of this loudspeaker originates from a four-layer wounded 1.5” voice coil in combination with an over-sized ferrite type magnet which provides an unusual high force factor. In combination with the low-loss suspension, this results in a linear behavior with high efficiency and extremely wide frequency range These carefully selected high-grade materials in collaboration with accurate acoustical craftsmanship results in a deep and true to natural reproduction of bass. The highly-efficient design results in a sensitivity of 96 dB with the capability of continuous sound pressure production up to 120 dB. The frequency response ranges from 54 Hz up to 1.2 kHz while going down to 38 Hz at -10 dB. Besides these acoustical aspects, a lot of attention has been paid to all other aspects making it as versatile as possible. The enclosure is compactly designed without any sacrifice to robustness due to the 15 mm high-quality plywood material finished with a structured coating. Connections are made using two SpeakON compatible connectors located in a recessed connector dish, allowing link-through to other cabinets. This also allows close placement to any wall or corner.

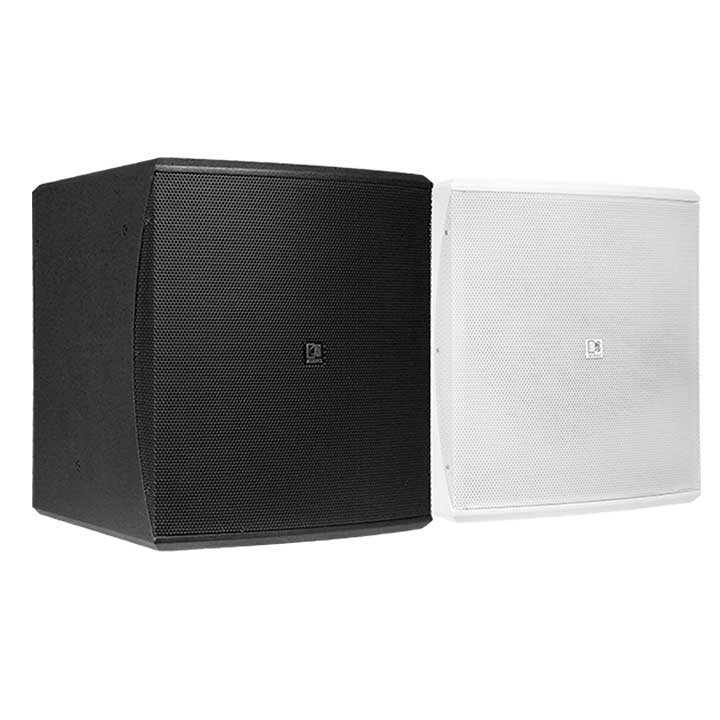

Variant MSRP

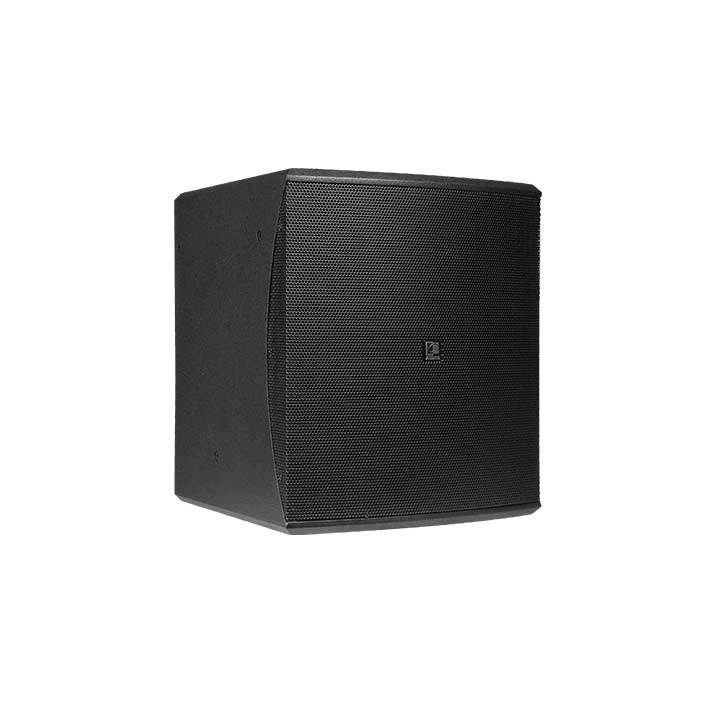

Black version AUBASO10/B POA

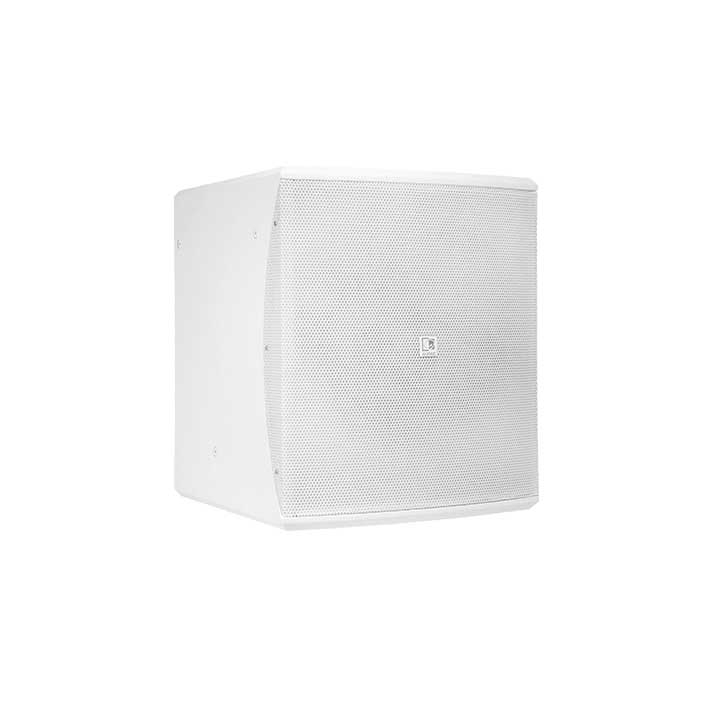

White version AUBASO10/W POA
Would you like a Demo?
  • 2 x Speakon compatible connector in recessed connector dish (linkthrough)
  • High quality 15 mm plywood
  • Compact design
  • Flat & wide frequency range
  • 10" high-performance woofer

8 Ohm

Speaker type : 10” Bass reflex cabinet
Max. Power : 450 W
RMS Power : 225 W
Impedance : 8 Ω
Sensitivity (1W/1m) : 96 dB
Sound Pressure (Max. W/1m) : 120 dB
Frequency Response (± 3 dB) : 54 Hz - 1.2 kHz
Frequency Range (-10 dB) : 38 Hz - 2 kHz
Bass reflex tuning frequency : 50 Hz
Connectors : 2 x Speakon compatible connector in recessed connector dish (linkthrough)
Drivers : 10” Ferrite with low-loss suspension and 1.5” 4-layer wounded voice coil
Dimensions : 320 x 380 x 380 mm (W x H x D)
Weight : 10 kg
Construction : 15 mm plywood with structured coating
Front finish : Steel grill (18 gauge)
Mounting & handling Rigging points : 3 x M6 mounting bracket installation holes on both sides
Colours : Black (RAL9004) (BASO10/B)
Colours : White (RAL9003) (BASO10/W)
Operating temperature : -20 °C ~ 60 °C
Accessories Optional : MBK100 Bass cabinet mounting set

DURAWEATHER™

Great sound with extreme weather protection

This special coating is developed for speaker cones and aluminum grills for additional protection against moisture. The loudspeakers that are treated with a DuraWeather™ coating have the advantage to be placed in almost any humid or outdoor environments and maintain the same stunning sound quality.

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
