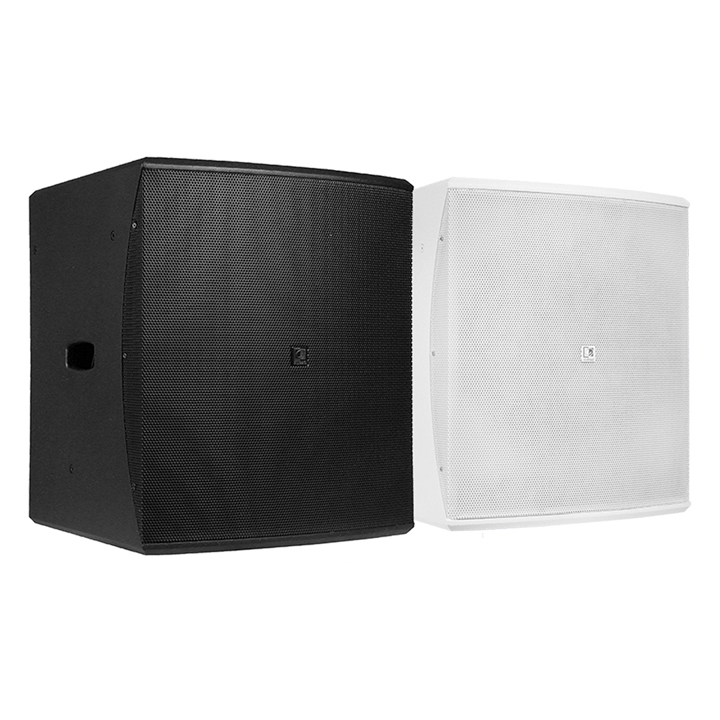

BASO15 Compact 15" bass reflex cabinet


Compact 15" bass reflex cabinet

The BASO cabinets are universally useable passive bass cabinets. Their bass reflex design is engineered to be as compact as possible while giving the maximum performance in terms of sound quality and pressure. Their enclosures are crafted out of sturdy high-quality plywood while their elegant design enables them to be placed in any environment. The BASO15 is loaded with a 15” high-performance woofer with an RMS power rating of 700 Watt and a maximum power of 1400 Watt. The strength of this loudspeaker originates from a 4” voice coil which is allowed to extra long excursions. Displacements are precisely controlled by the dual low-loss suspension resulting in a superior linear behavior. These carefully selected high-grade materials in collaboration with accurate acoustical craftsmanship result in an impressive combination of punch and low-frequency extension without compromises. The highly efficient design results in a sensitivity of 99 dB with a capability of continuous sound pressure production up to 127 dB. The frequency response ranges from 38 Hz up to 300 Hz while going down to 34 Hz at -10 dB. Besides these acoustical aspects, a lot of attention has been paid to all other aspects making it as versatile as possible. The enclosure is compactly designed without any sacrifice to robustness due to the 18 mm high-quality plywood material finished with a structured coating. The integrated carry handles and the possibility to add an optional 35 mm pole adapter improve its mobility. Connections are made using two speakon compatible connectors located in a recessed connector dish, allowing link-through to other cabinets. This also allows close placement to any wall or corner.

Variant MSRP
Black version AUBASO15/B POA
White version AUBASO15/W POA
Would you like a Demo?
  • 2 x Speakon compatible connector in recessed connector dish (linkthrough)
  • SolidGrip™ carry handles
  • Impact-resistant die-cast frame
  • DuraWeather™ cone treatment
  • 15" high-performance woofer

8 Ohm

Speaker type : 15” Bass reflex cabinet
Max. Power : 1400 W
RMS Power : 700 W
Impedance : 8 Ω
Sensitivity (1W/1m) : 99 dB
Sound Pressure (Max. W/1m) : 127 dB
Bass reflex tuning frequency : 41 Hz
Connectors : 2 x Speakon compatible connector in recessed connector dish (linkthrough)
Drivers : 15” Ferrite with low-loss suspension and 1.5” 4-layer wounded voice coil
Frequency Response (± 3 dB) : 38 Hz - 300 Hz
Frequency Range (-10 dB) : 34 Hz - 1 kHz
Dimensions : 450 x 534 x 525 mm (W x H x D)
Weight : 31 kg
Construction : 18 mm plywood with structured coating
Front finish : Steel grill (18 gauge)
Mounting & handling Rigging points : 3 x M6 mounting bracket installation holes on both sides
Colours : Black (RAL9004) (BASO15/B)
Colours : White (RAL9003) (BASO15/W)
Mounting & handling Stand fitting : Optional 35 mm pole adapter
Mounting & handling Carry handles : Integrated carry handle on both sides
Operating temperature : -20 °C ~ 60 °C
Accessories Optional : MBK100 Bass cabinet mounting set
Accessories Optional : CHB196 35 mm pole adapter


Great sound with extreme weather protection

This special coating is developed for speaker cones and aluminum grills for additional protection against moisture. The loudspeakers that are treated with a DuraWeather™ coating have the advantage to be placed in almost any humid or outdoor environments and maintain the same stunning sound quality.

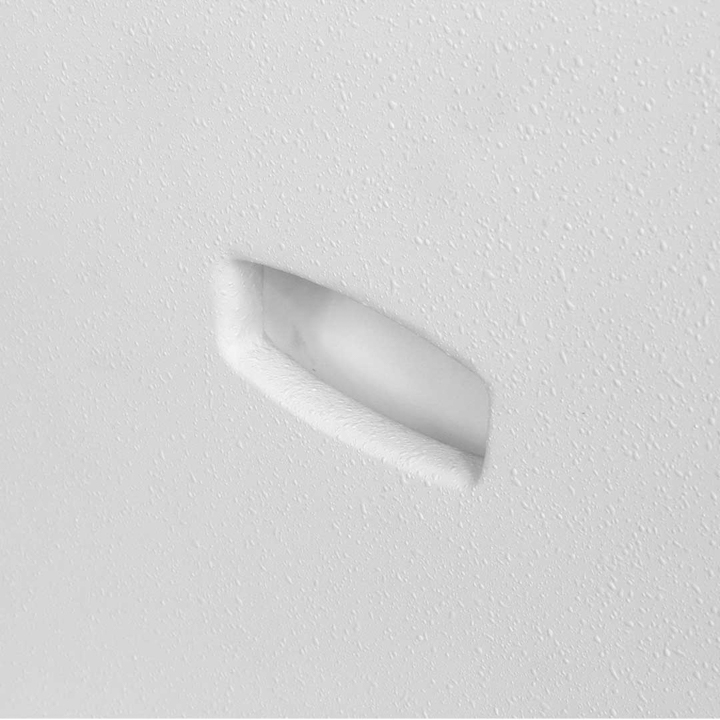

A handle that improves the whole design

The SolidGrip™ handle is fully integrated in the side of a speaker cabinet and provides a solid grip for moving and carrying the cabinets. These elegant but discrete carry handles give a benefit in transporting and contribute to the design of the cabinet.

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
